Fender Design

AIM

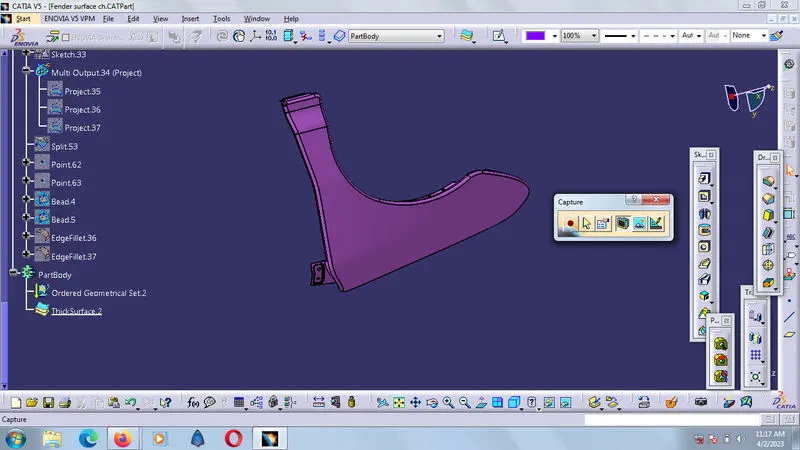

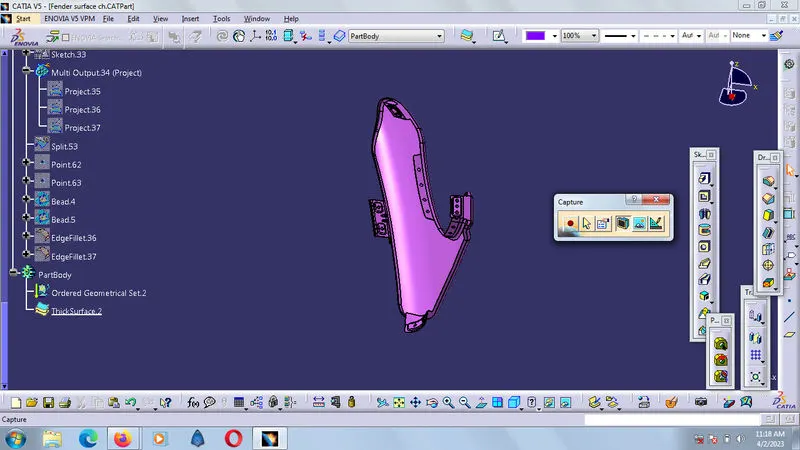

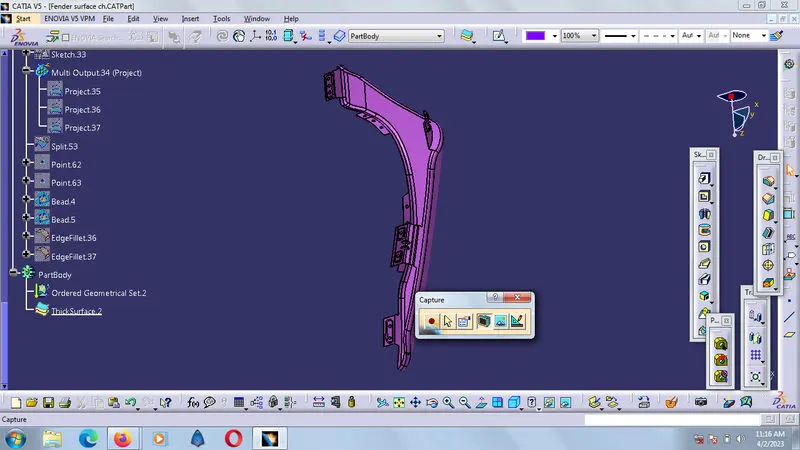

To create a fender design by using the skin data and the master section

INTRODUCTION

FENDER

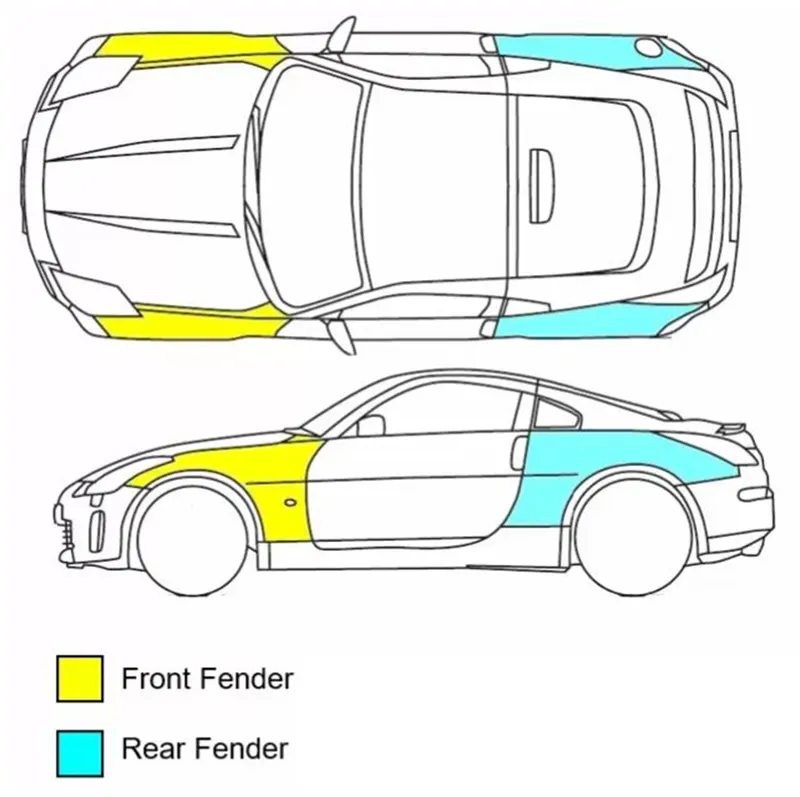

A fender is a curved panel that sits above the wheels of a car and runs from the bumper to its doors.

Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire.

THERE ARE TWO TYPES OF FENDER

half bumper type and

full bumper type

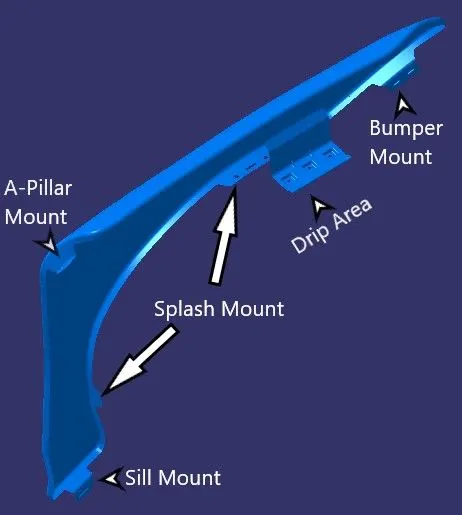

THERE ARE 5 MAJOR REGIONS TO CONNECT THE FENDER THEY ARE

A PILLAR MOUNTING

BODY MOUNTING

SILL MOUNTING

BUMPER MOUNTING

DRIP MOUNTING

DESIGN RULES FOR CREATING FENDER

There should be a minimum gap between A pillar mounting and drip area should be

minimum 200mm

from the bumper mounting side the distance should be minimum 150mm

the maximum length of the drip should not exceed 40mm

these are the criteria should follow while creating drip area.

MANUFACTURING PROCESS OF FENDER

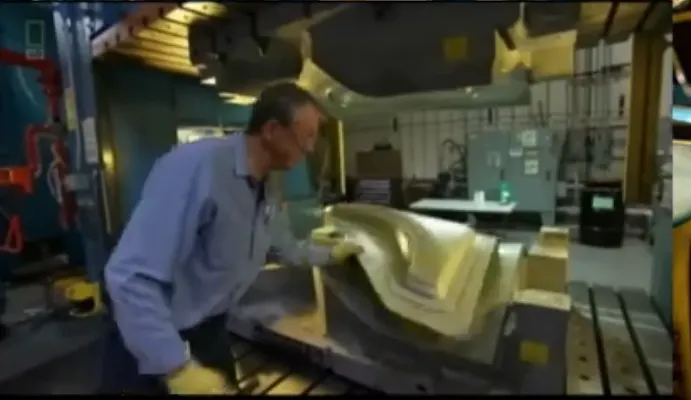

The fender is manufactured by the help of stamping press machine

A stamping press is a metalworking machine tool used to shape or cut by deforming it with a die.

In simple terms, a stamping press is the modern day equivalent of a hammer and anvil. The difference is that a stamping press uses precision-made male and female dies to dictate the shape of the final product.
