Fender Design
FENDER:
Fender is the front side part of an automobile which is used protect the pedestrains , passengers and car engine compartment of a vehicle from durt, mud and chipped of stones from road. It acts a covering for the wheel.

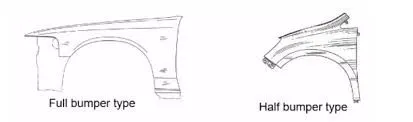

There are two types of fender:
1. Full bumper type
2. Half bumper type
A fender is moutned on five parts in a car.
1.DRIP AREA
2.SILL AREA
3.COWEL AREA
4.BUMPER AREA
5.A PILLAR AREA
EMOBOSES are used for bumper for placing them in its positions
Embosses:
Sheet metal embossing is a stamping process for producing raised or sunken designs or relief in sheet metal. This process can be made by means of matched male and female roller dies, or by passing a sheet or a strip of metal between rolls of the desired pattern. It is often combined with foil stamping to create a shiny, 3D effect.
The metal sheet embossing operation is commonly accomplished with a combination of heat and pressure on the sheet metal, depending on what type of embossing is required. Theoretically, with any of these procedures, the metal thickness is changed in its composition.
The metal sheet is drawn through the male and female roller dies, producing a pattern or design on the metal sheet. Depending on the roller dies used, different patterns can be produced on the metal sheet. The pressure and a combination of heat actually "irons" while raising the level of the image higher than the substrate to make it smooth.

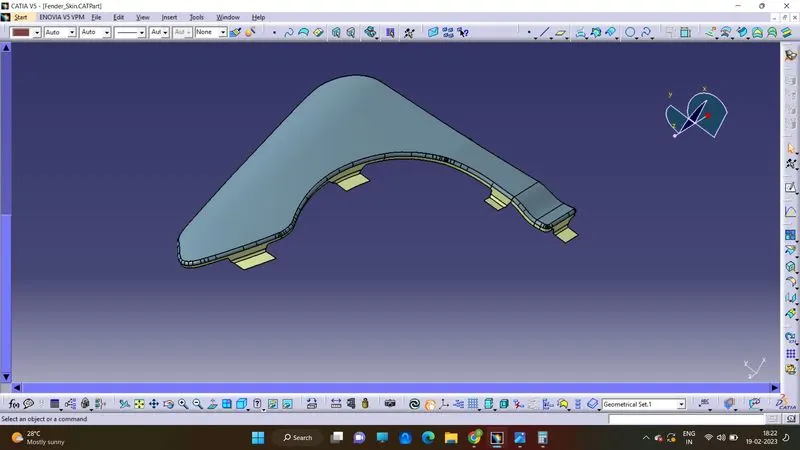

DRIP AREA:
Below is the drip area where bumper sits on the car drip area.

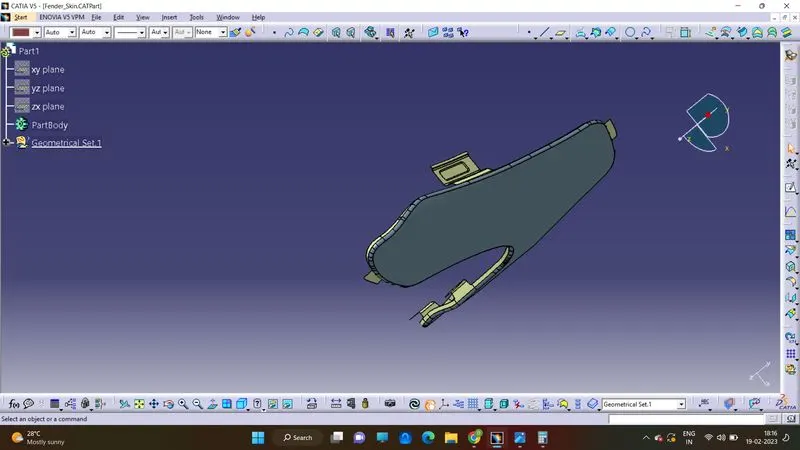

BUMPER AREA:
Below is the bumper area where bumper sits on the car bumper area.

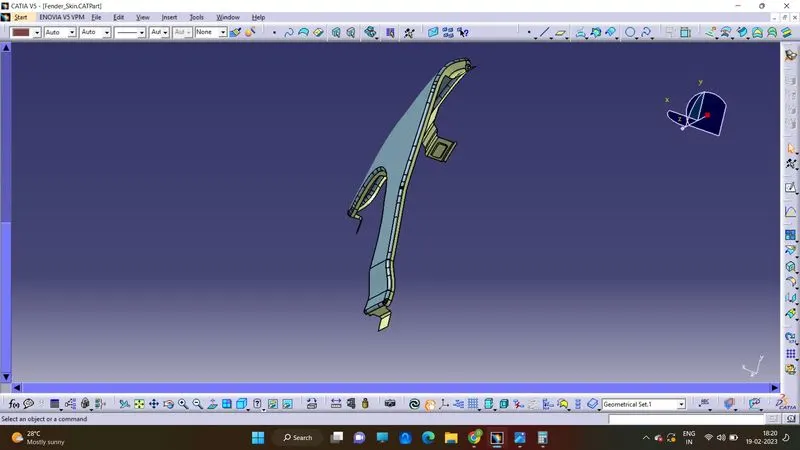

COWEL AREA:
Below is the cowel area where bumper sits on the car cowel area.

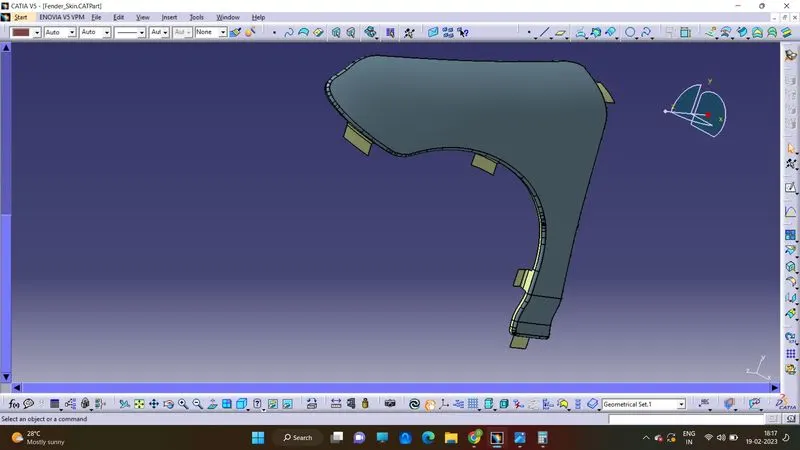

SILL AREA:
Below is the sill area where bumper sits on the car sill area.

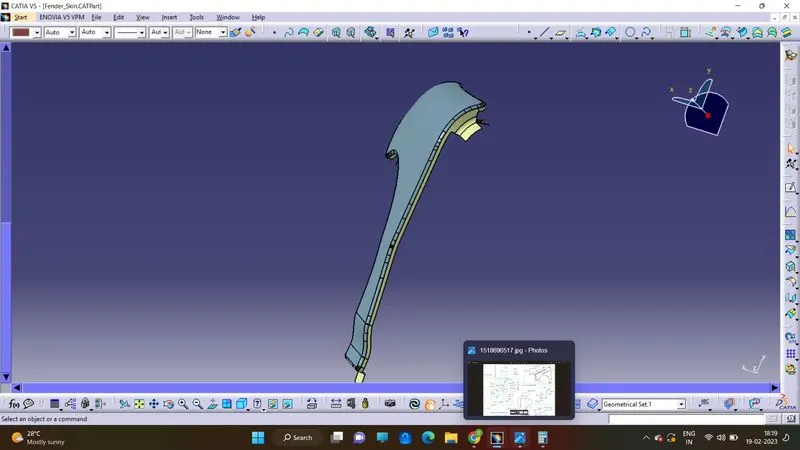

A PILLAR AREA AND DUFFEL :
Below is the A pilar adn duffel area where bumper sits on the car A pillarand duffel area.
understood how to design fender and understood how to follow the master section.
