Challenge

Fender Design

AIM

Designing fender following the design requirements for drip area, bumper, A pillar, body and sill mounting area

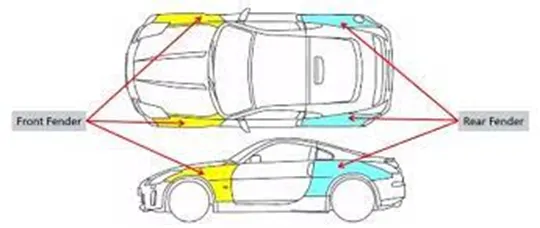

FENDER

Fender is the outside member of a car covering the wheel area. Its purpose is to prevent sand, mud, rocks, liquids and other particles

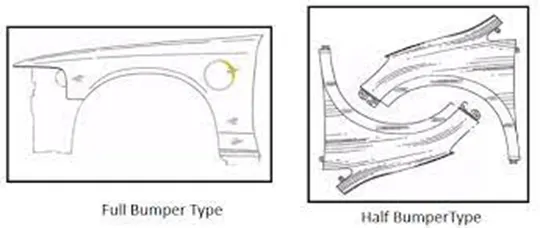

Types of fenders

Full bumper type: These types of fenders were used in earlier models of vehicles. They contribute to the major increment of the steel weight by just covering the front headlights with respect to the bumper region. The problem associated with this kind of fender is there is lot of wastage in the blank and every inch of a material is a cost to the industry
Half bumper type: These fenders are mainly used for serving the purpose of cost-cutting and reducing enough proportions of the steel resulting in a reduction of weight of the vehicle slightly. They can be economically manufactured, i.e., by slightly increasing the blank size, we can produce two fenders at a time

MOUNTING REGION ON FENDER

There are 5 mounting regions on the fender

FENDER DESIGN

Master Section

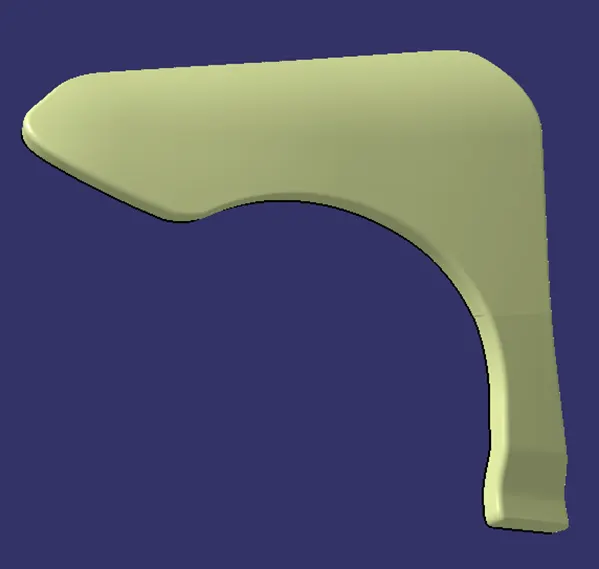

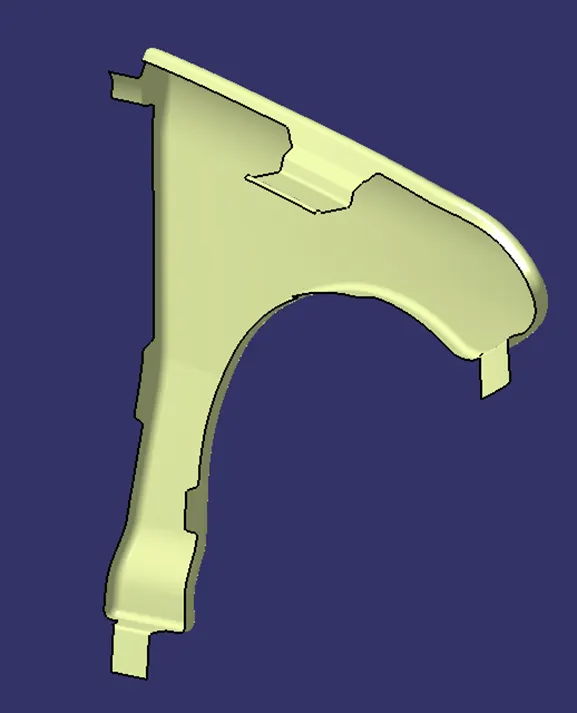

Given fender surface

Mounting areas are designed based on the given parameters

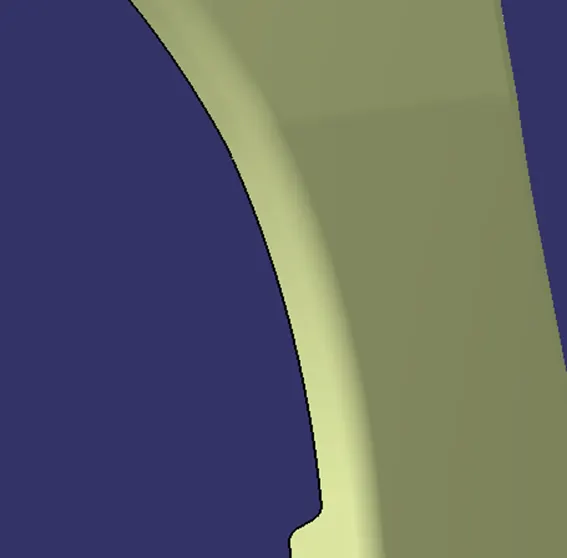

The irregularities in the given input were fixed

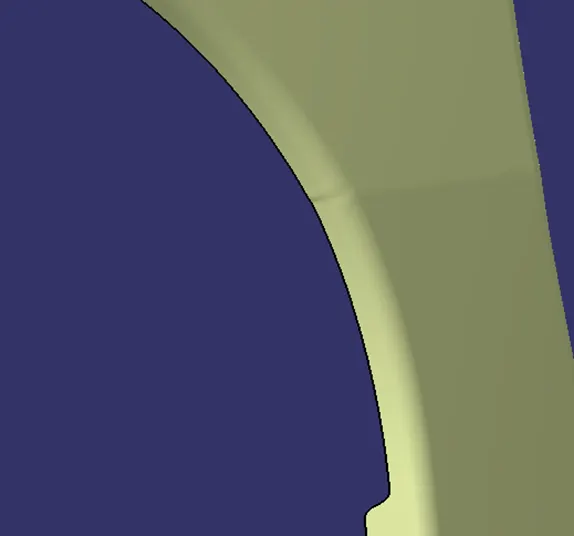

After fixing

Embosses and screw holes are made in the mounting areas

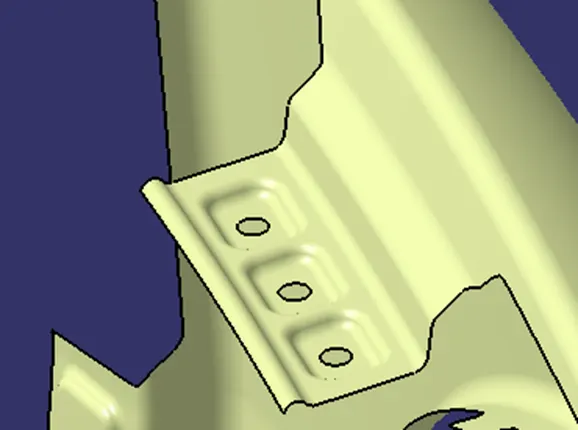

Drip Mounting Area

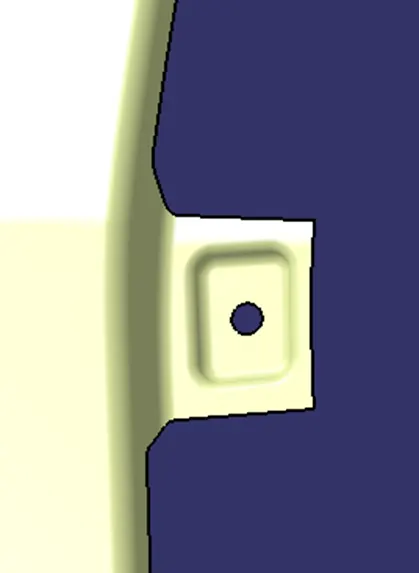

A-pillar Mounting Area

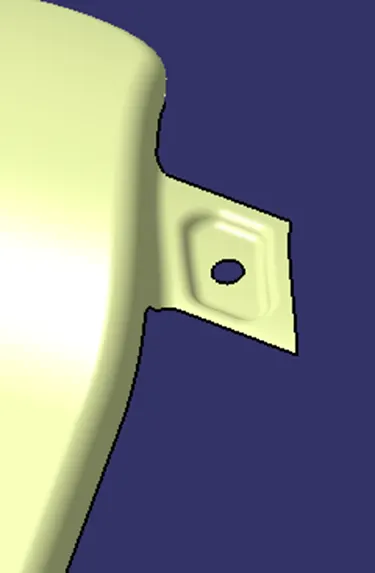

Body Mounting Area

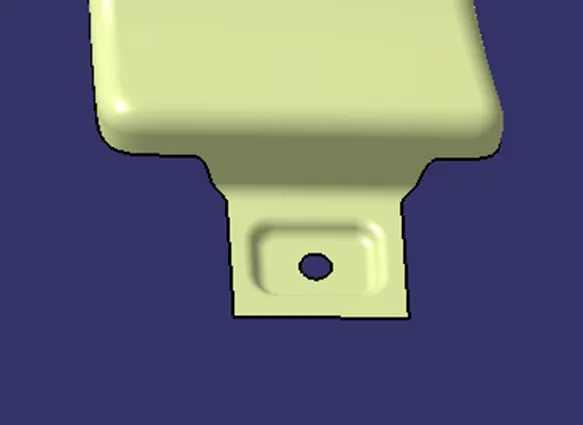

Sill Mount Area

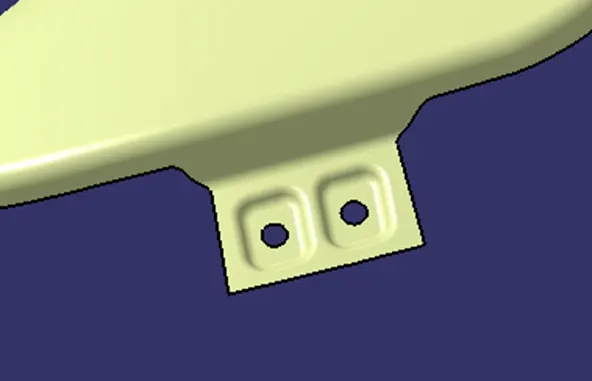

Bumper Mounting Area

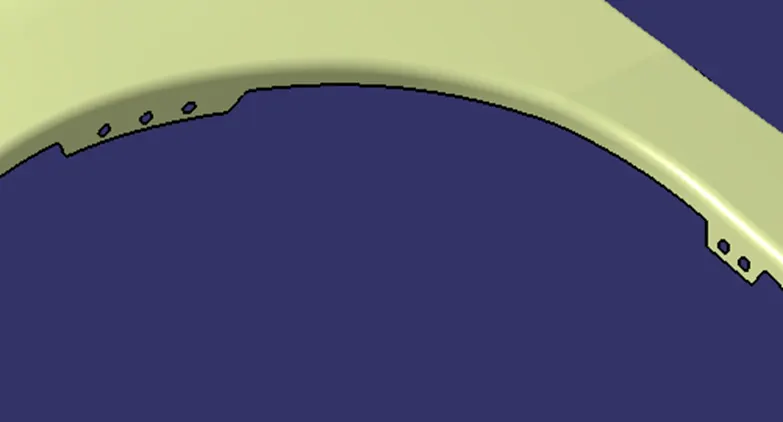

Baffle Area

Ater designing this the surface is offset by .75mm (Thickness of fender) and use Sweep and Trim to create a closed body

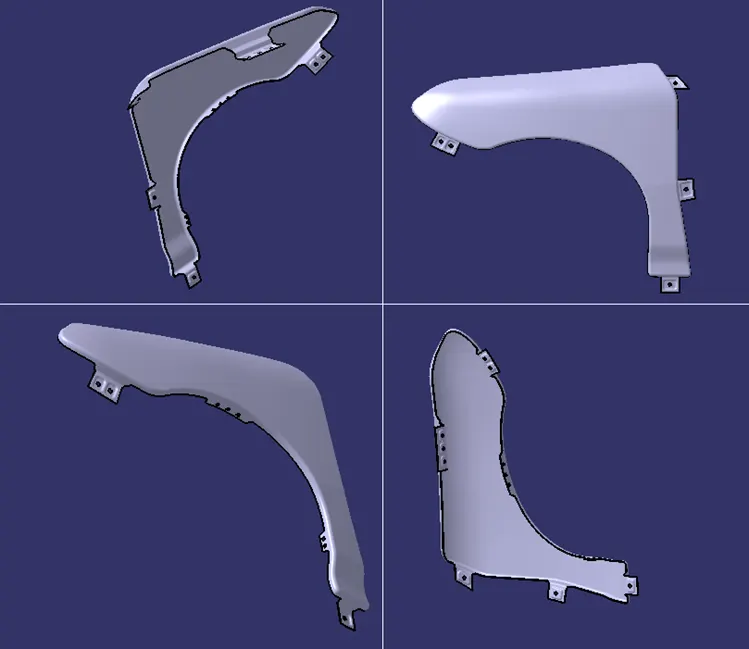

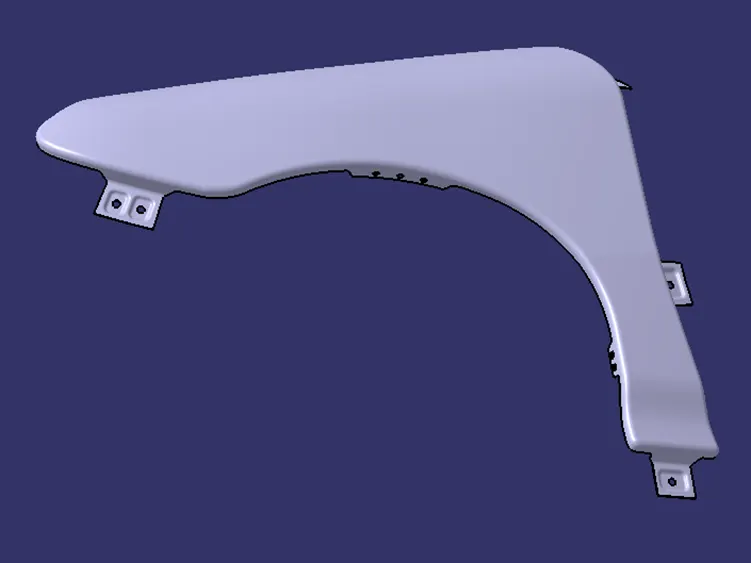

Then using Part Design this closed body is converted to a solid body

CONCLUSION

Designed mounting flanges in Drip area, Sill mount, Body mount, A-pillar and Bumper with given design parameters
