Fender Design

FENDER DESIGN:

AIM:

• To design fender with given cross section and mounting region as per the standard.
• Then to design sill,Bumper,Baffle and A Pillar mount as per engineering standards.

INTRODUCTION:

• Fender is the sheet metal part is used to avoid chiping inside the engine compartments like stone water etc...
• It had a plastic part part placed in arc area
• it is define into full bumper type and half bumper type
• full bumper had bigger in size and lot of waste area is there
• half bumber type recently used technology that had good aesthetic ,lesser amount of material and lesser in cost also.
• it had five important mounting region that are,
•                 Body
•                 A pillar
•                 Sill
•                 Cowl
•                 Drip

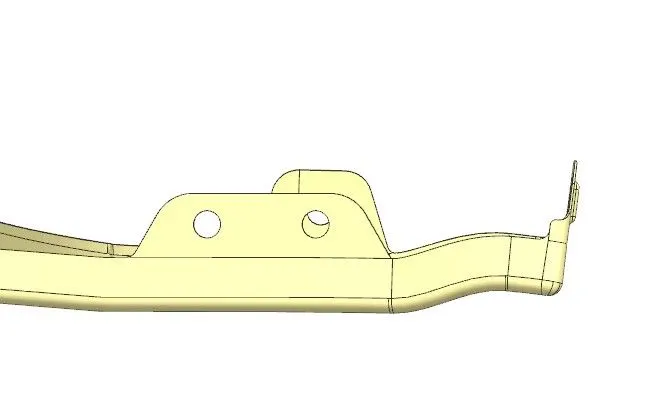

DRIP AREA:

Drip area is the main part in front fender it is directly connected to the engine compartment.when we are going to design the drip area we should maintained the gap from rear that cowl top area 200mm and front area that head lamp area 150mm minimum distance to be maintain when we are designing.here they are given master section for drip area.those dimension should be maintain because,when we are doing assembly and production time the tool will go inside on open condition of hood.It is help to pedestrial saftety also.





A PILLAR:

A Pillar region is variying based upon the A PILLAR design of the car,it contains ribs and reinforcement parts to strengthening the joinning areas of the fender.

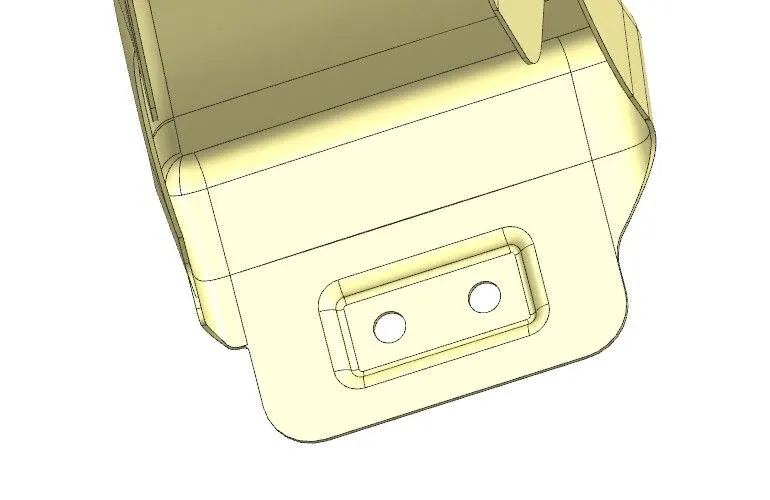

SILL AREA:

Sill area is the important mounting region of the fender,it is placed on bottom of the fender.



BODY AREA:

It was mounting region,that directly connected to the body side of the car.It contains one or two mounting holes.



COWL AREA:

It was positioned in top side of the fender,which is connected to the drip area.

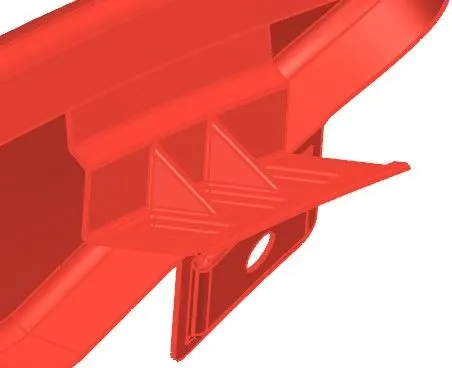

BUMPER MOUNTING AREA:

It was directly moutinng to the bumper area of the car.

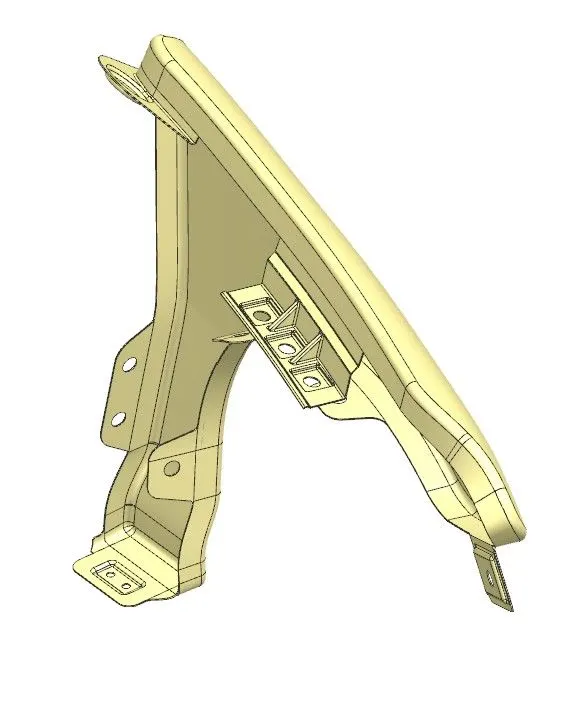

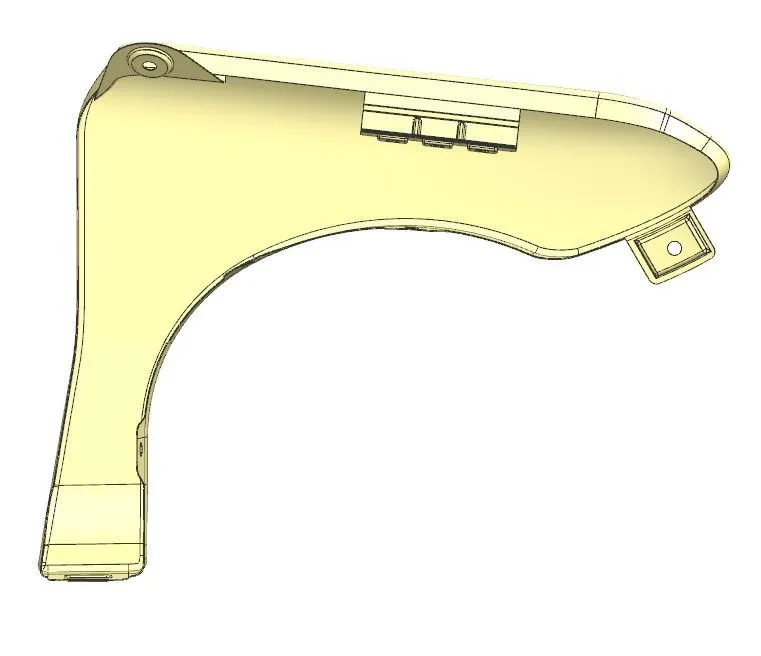

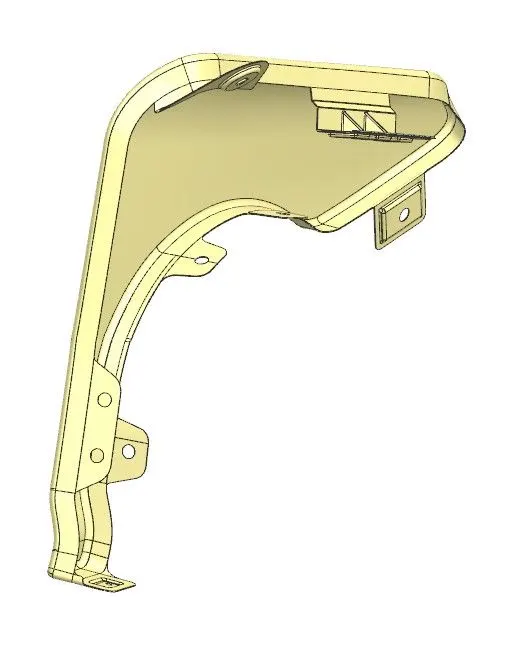

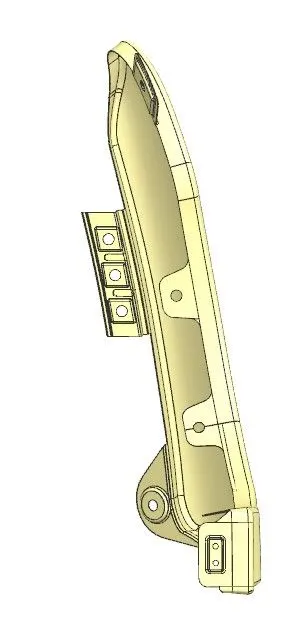

FENDER DESIGN VIEWS:



CONCLUSION:

As per given master section and fender design surface data we design and create the 3D model of the fender.
