Fender Design
Fender Design
Objective is to:- 1. Design Drip Area, 2. Design Sill Mount Area 3. Design Body Mount Area 4. Design Bumper Mount Region and A-pillar mount Region. INPUT FROM STYLING TEAM:- A Class Surface

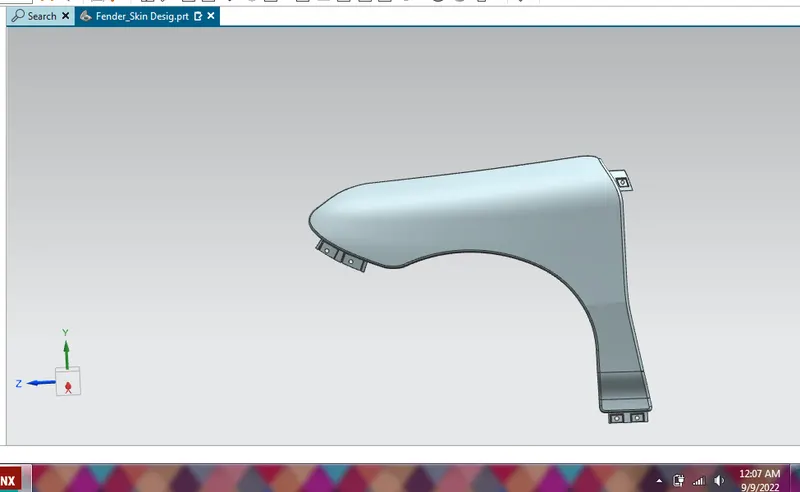

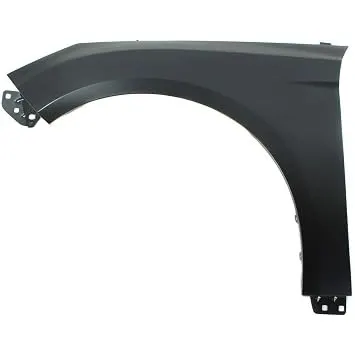

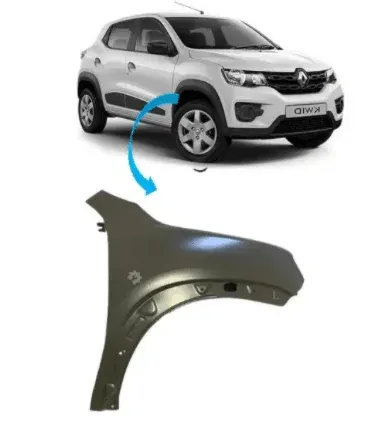

Fender Fender is the American English term for the part of an automobile, motorcycle or other vehicle body that frames a wheel well (the fender underside). Its primary purpose is to prevent sand, mud, rocks, liquids, and other road spray from being thrown into the air by the rotating tire. Fenders are typically rigid and can be damaged by contact with the road surface.
Sticky materials, such as mud, may adhere to the smooth outer tire surface, while smooth loose objects, such as stones, can become temporarily embedded in the tread grooves as the tire rolls over the ground. These materials can be ejected from the surface of the tire at high velocity as the tire imparts kinetic energy to the attached objects. For a vehicle moving forward, the top of the tire is rotating upward and forward, and can throw objects into the air at other vehicles or pedestrians in front of the vehicle.
TYPES OF FENDER
- Full Bumper type
- Half Bumper type
MOUNTING
- Bumper
- Drip
- A Pillar
- Sill
- Cowl
Data given for Designing Fender
Step
Creating Drip Area,Draft Angles ,Fillet, Embosses and Ribs on the given Master Sections, Regulations and Standards:-

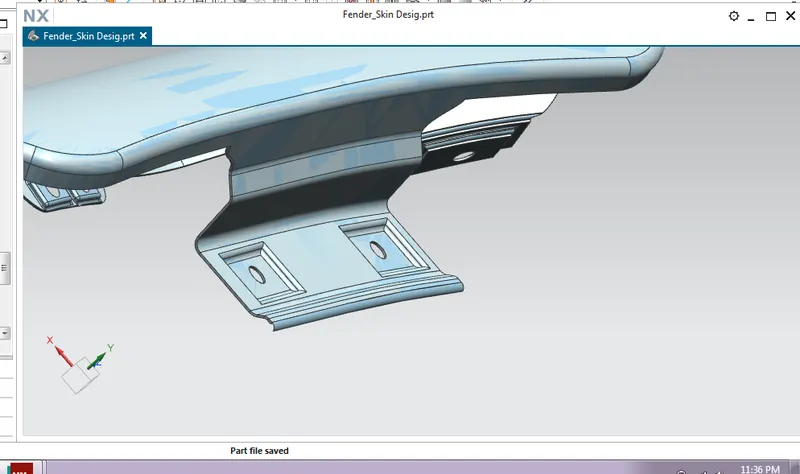

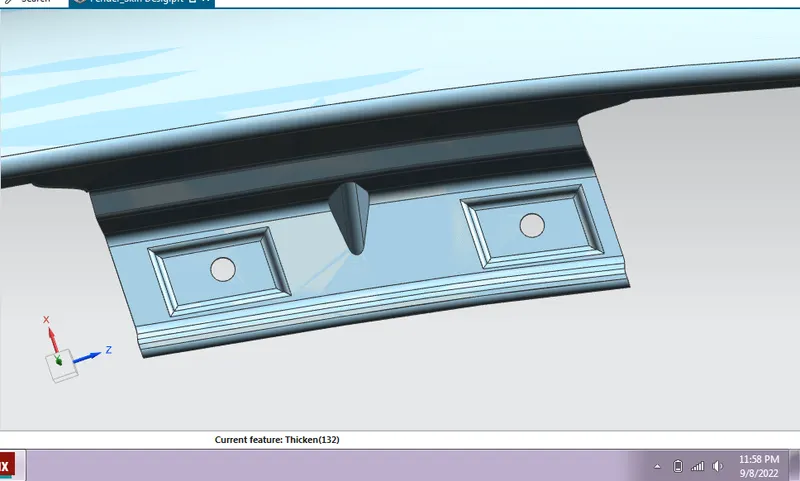

2. DESIGN OF SILL MOUNT AREA

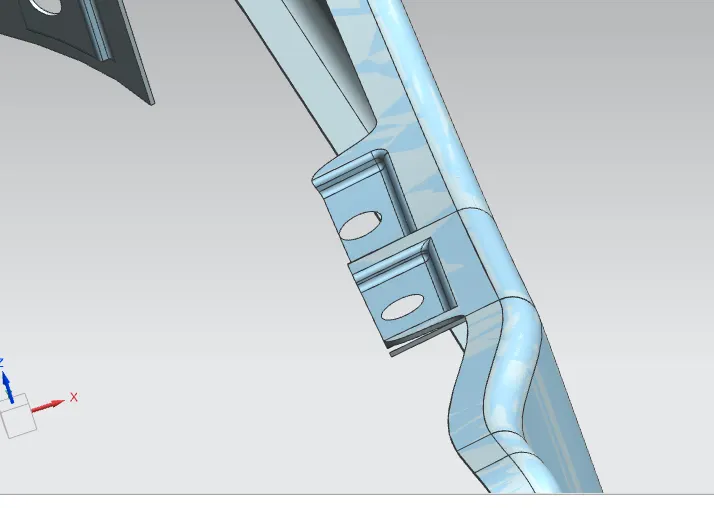

3. DESIGN OF BODY MOUNT AREA

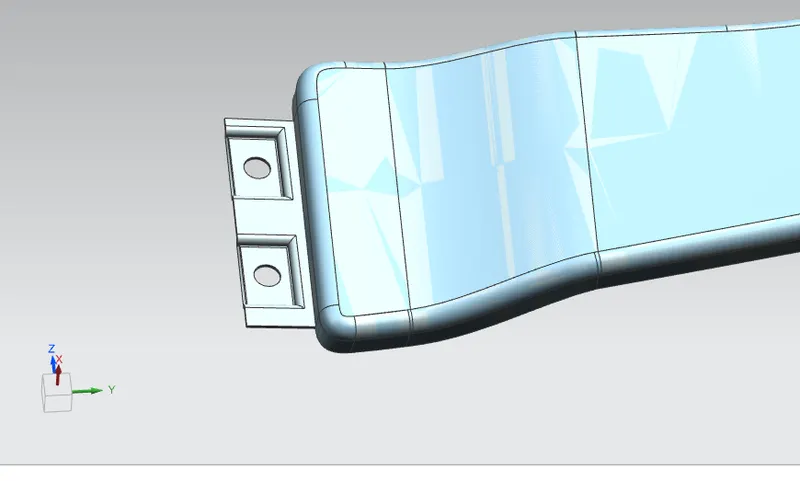

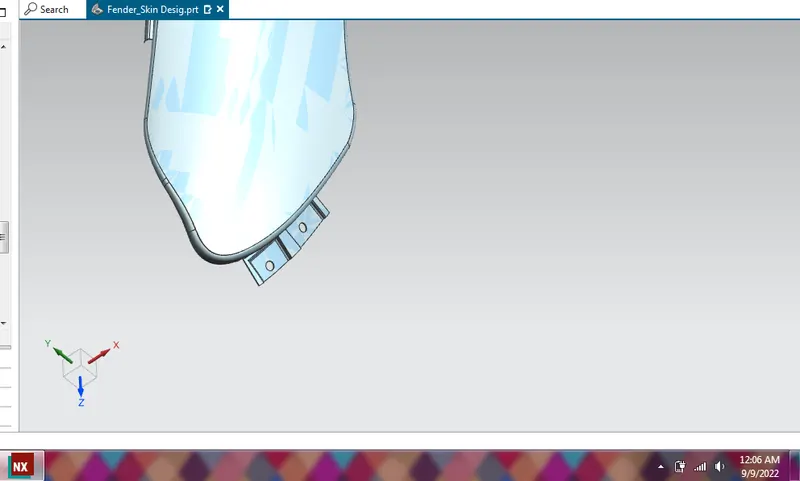

4. DESIGN OF BUMPER MOUNT AREA
Thickness provided at 0.65mm .
