Project 1

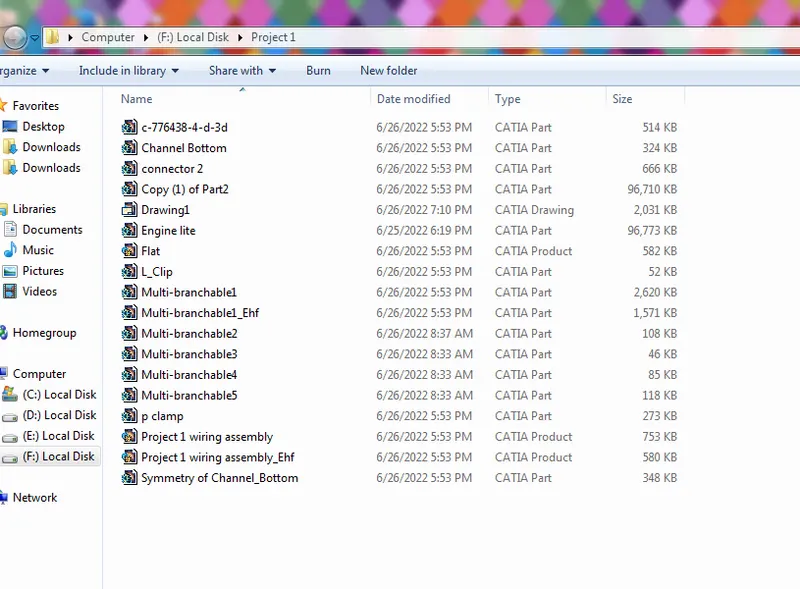

1. Downnload all required files and extract it in catai.

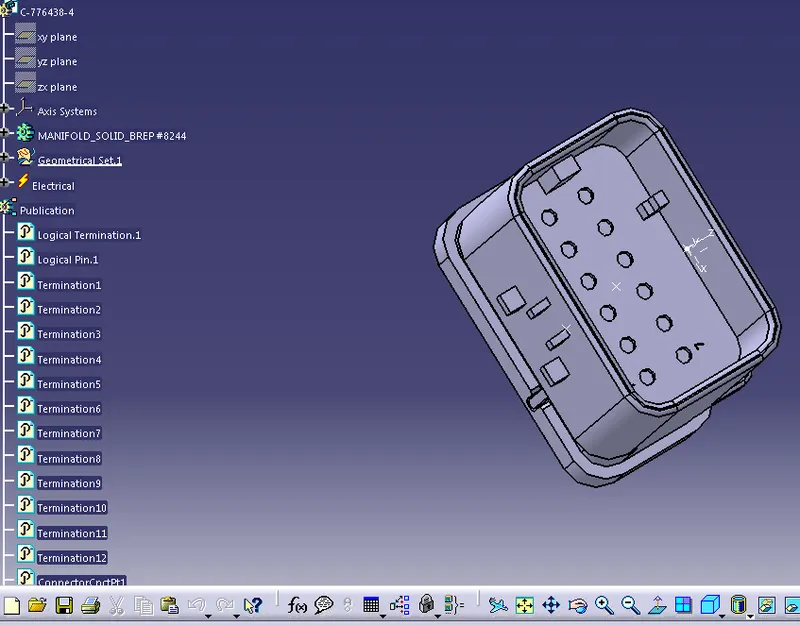

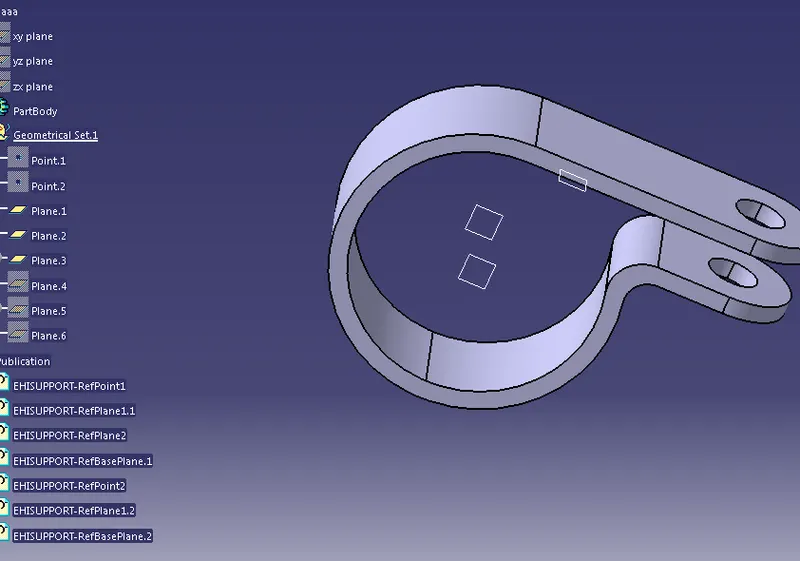

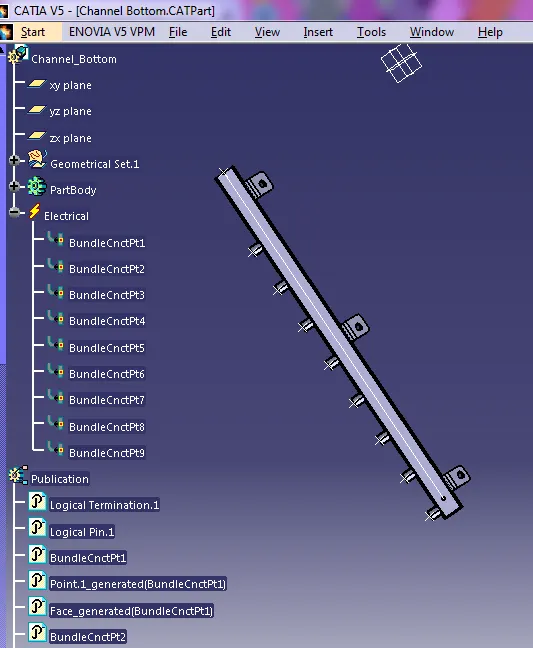

2. Define geometical points, plane, lines, and electical properties . Then add bundle connection points , and connector connection points.

Connector

Channel bottem

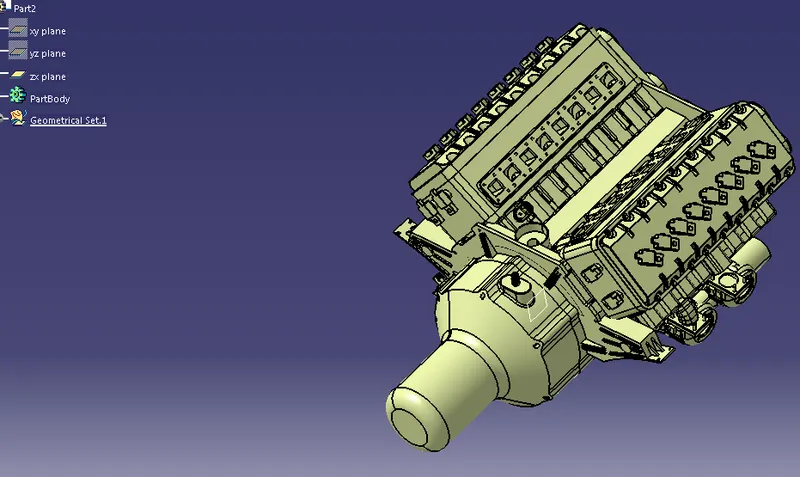

4. Extract engine part and every other required part and assemle it on engine.

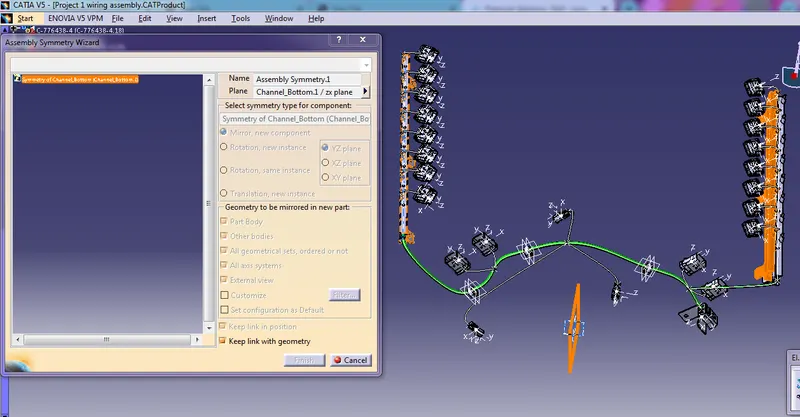

 5. Using symmetry mirror channel bottem part on the other axis of engine.

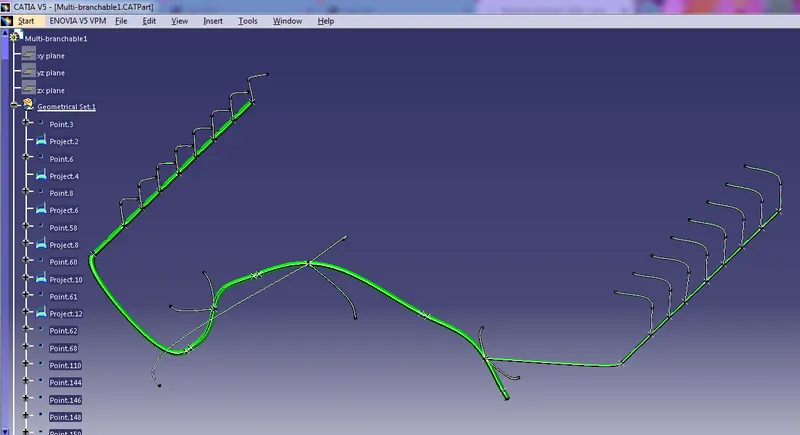

 6. Use workbench Electic Herness assembly generate bundle connection points at all connectors and clips.

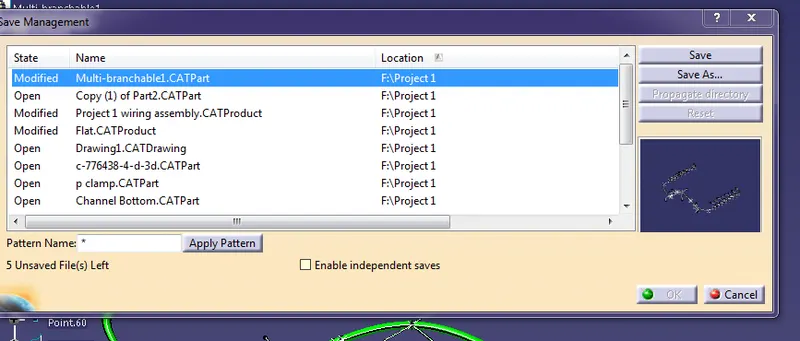

7. Save using save management all the product and parts.

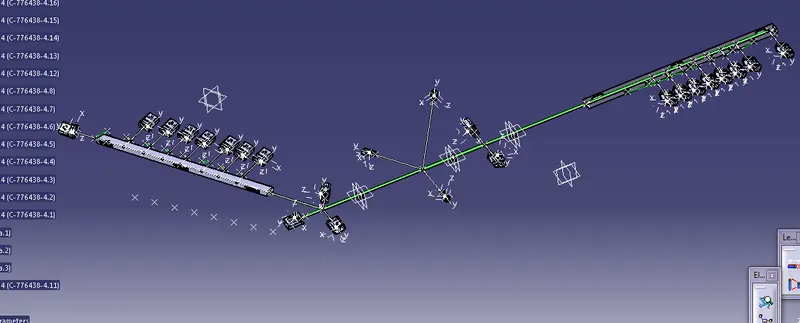

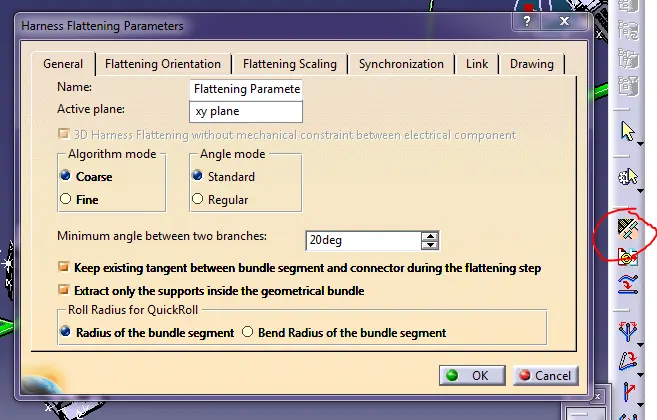

8. Open new product file and use workench electric harness flattening and save product file. Then make some changes in flattening parameter.

9. Use command extact export the parent file from harness assembly product.



 10. Use flatter command flatten the extacted product

 11. Use following command for further modification and save it in same folder.

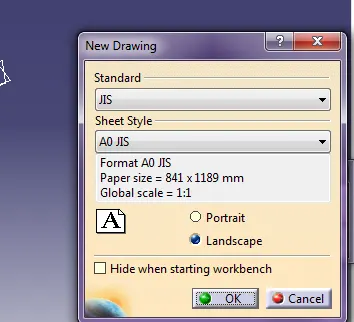

 12. Open new product and select drawing workbench.
