Drafting of various geometries using Chamfer, Fillet tool in AutoCad

CHALLENGE 03

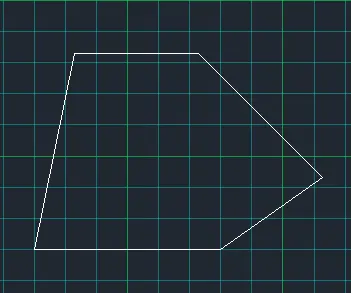

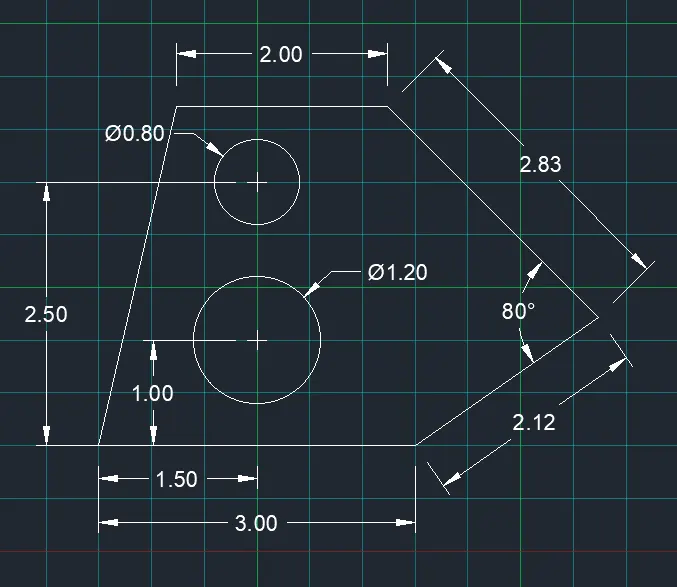

DRAWING 01:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. circle
3. trim

Procedure:

• Open new file and set decimal and precision to 0.00
• zoom all
• Select LINE tool from ribbon,then select random point draw a line of 3 units.
• Specify next point @2.12<45
• Specify next point @2.83<135 then draw 2 units line and select close.

• Give CIRCLE command and then draw first circle at x=1.50,y=1.00 of diameter 1.20 units.Similarly,draw another circle at x=1.50,y=2.50 of diameter 0.80 units.
• Erase the remaining offset by ERASE command.
• Annotate and given dimensions to all the line segment by using Dimension command.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

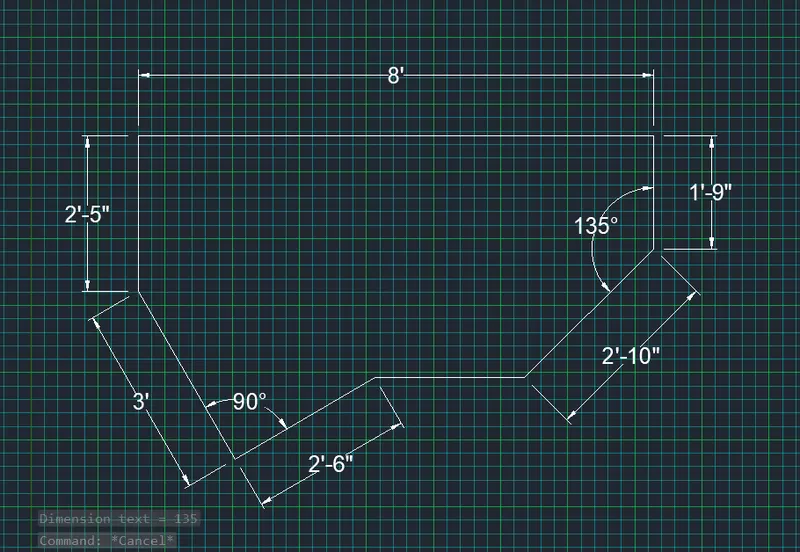

DRAWING 02

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. trim

Procedure:

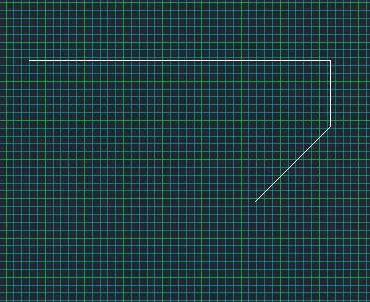

• Open new file <units-architectural<precision- -0'0"-feet-ok
• Setting up the limits and Dimension of sheet -12',9'
• zoom all
• Select Line tool from ribbon and draw the length starting from top line segment of 8",now give line command positiong the cursor at 270 degrees with ortho on,1'-9" enter.

• Give Line command positioning the cursor at 270 degree at first end and draw 2'-5" and then enter
• Draw the line at 315 degree of 3',at 90 degree 2'-6".Now draw the line 2'-10" at 225 degree and join the line

• Annotate and given dimensions to all the line segment by using Dimension command.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

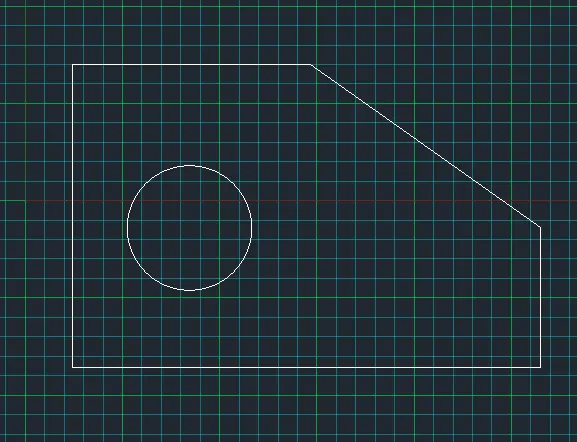

DRAWING 03:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. circle
3. trim

Procedure:

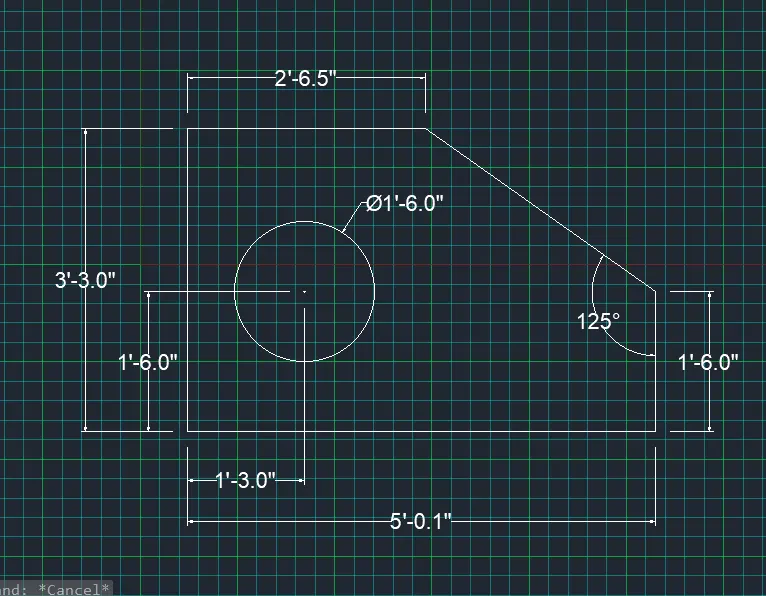

• Open new file <units-architectural<precision- -0'0"-feet-ok
• Setting up the limits and Dimension of sheet -10',7'
• Zoom all
• Select line tool and draw the length starting from top line segment of 2'-65"
• Now give line command positioning the cursor downwards and draw lines of 3'-3",5'-0.1",1'-6" with ortho on and close.

• Then select circle command and draw the circle in between 1'-3" and 1'6" with ths diameter of 1'-6".

• Annotate and given dimensions to all the line segment by using Dimension command.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

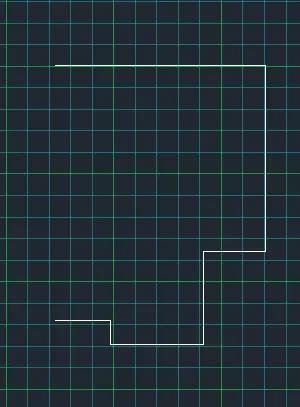

DRAWING 04:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. trim

Procedure:

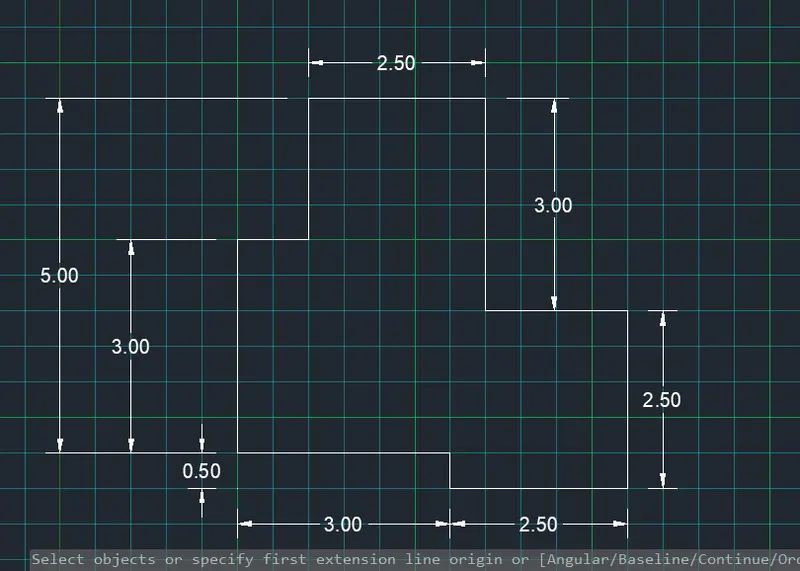

• Open new file <units-decimal<precision- 0.00-ok
• Set the limits in Dimension of sheet -12,9.
• zoom all

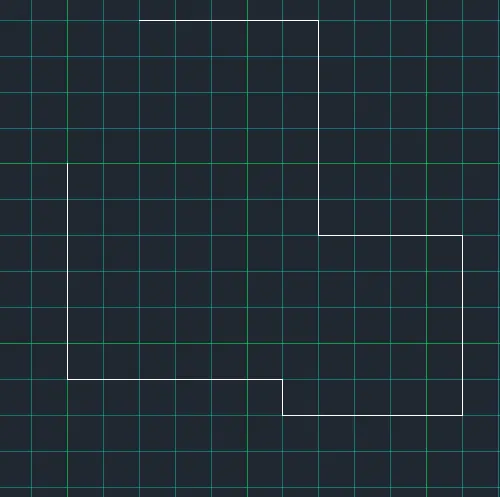

• Select LINE tool and draw the line starting from base of 2.50 units,now give line command @2<270,@0.5<180,@3<270,@3<0,@0.5<270,@2.5<0,@2.5<90,@2<180 and close

• Annotate and given dimensions to all the line segment by using Dimension command.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

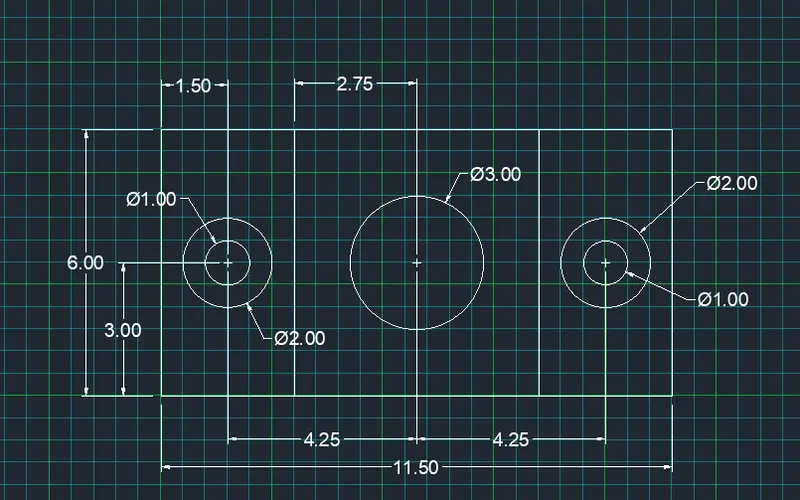

DRAWING 05:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. trim
3. Circle
4. Offset

Procedure:

• Open new file <units-decimal<precision- 0.00-ok
• Set the limits and Dimension of sheet -12,9
• zoom all

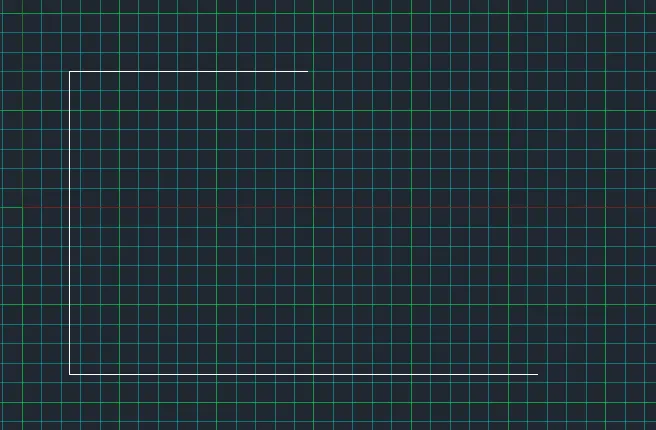

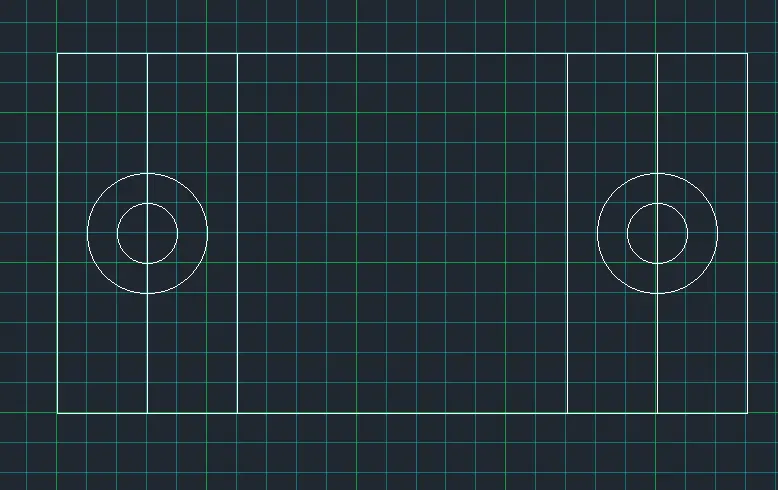

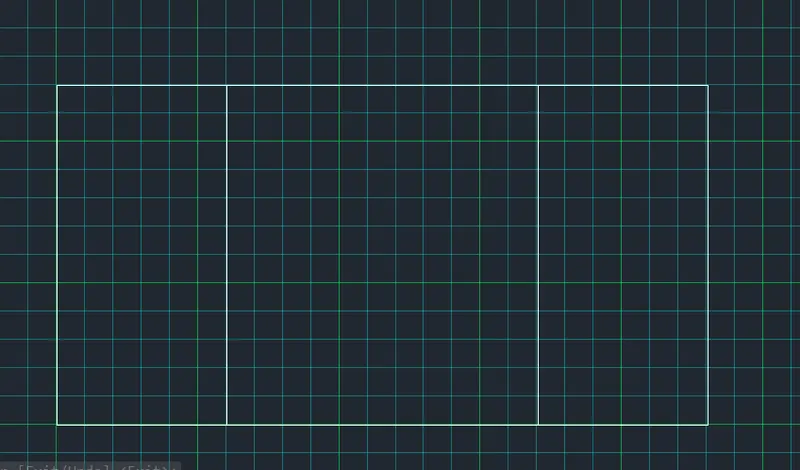

• Select LINE tool and draw the length starting from base of 11.5 units,now give line command @6<90,@11.50<180 and close.Draw the vertical lines at 2.75 from the centre of the rectangle on both sides by using offset command.

• Draw the concentric circles with centre at x=1.50,y=3 of diameter 1 and 2.
• Copy the circles towards 4.25 right from the centre of the rectangle

• Draw another circle at centre of the rectangle of diameter 3
• Then erase the unwanted lines using trim command.
• Annotate and give dimension to all the line segments and circles.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

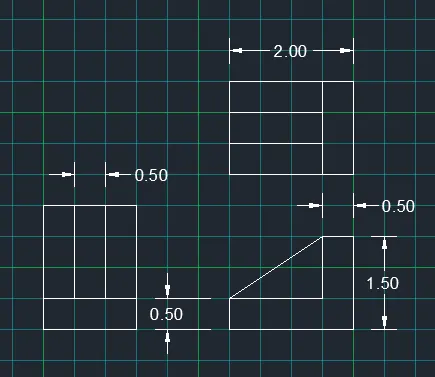

DRAWING 06:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. Trim
3. Offset
4. Rotate
5. Move

Procedure:

• Open new file <units-decimal<precision- 0.000-ok
• Set the limits and Dimension of sheet - 10,8
• zoom all

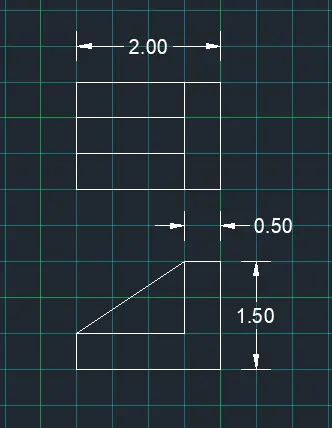

• Select the line tool and draw 2 units for x direction and 1.5 units for y direction.
• select offset command at the distance 0.5units. Then trim the unwanted lines.

• Select line tools and join the two edges of the line by triangular object.
• After completing first object, move the cursor upward direction approximately and draw the second object.
• Select rectangle command and give length 2units and width 1.5units
• Select offset command at the distance 0.5units. Then trim the unwanted lines.

• Copy the second object and using Rotate command for change its direction
• Then select move tool and place it in required position.
• Annotate and give dimension to all the line segments

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

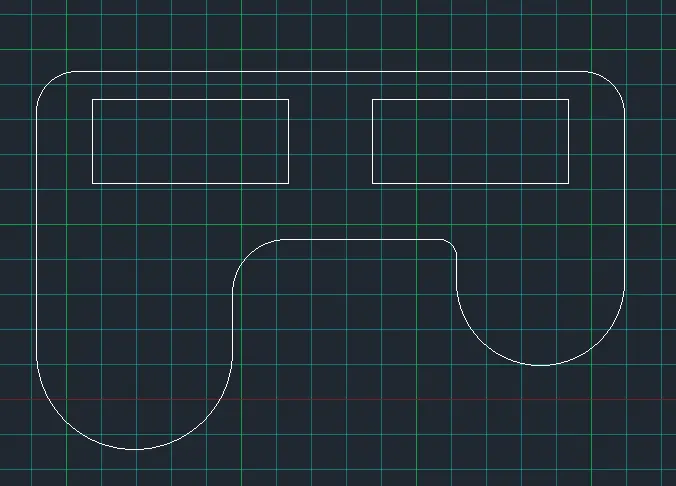

DRAWING 07:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. Fillet
3. Trim
4. Offset
5. circle
6. Rectangle

Procedure:

• Open new file <units-decimal<precision- 0.0-ok
• Set the limits and Dimension of sheet - 300,150
• zoom all

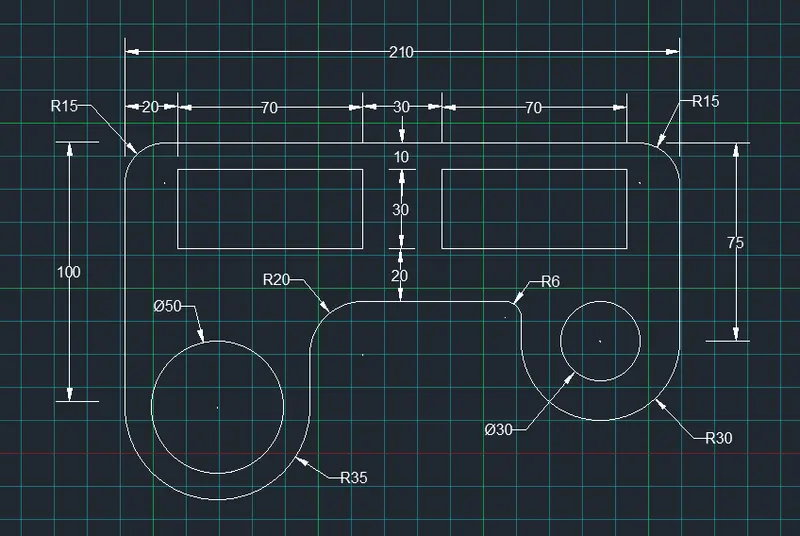

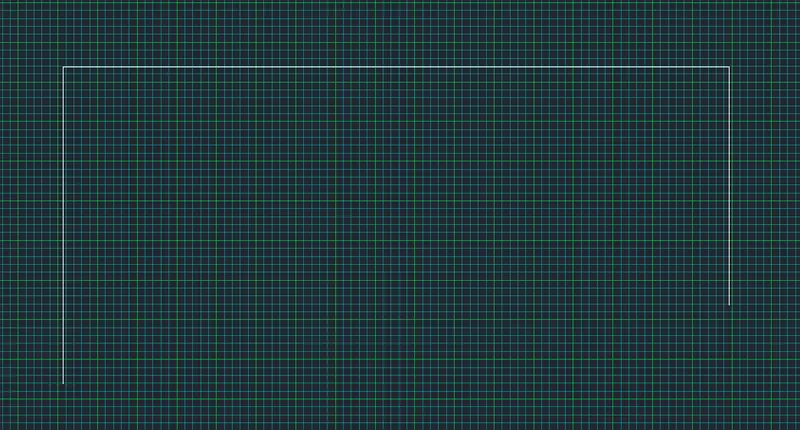

• Select LINE tool and draw the length starting from base of 210 units,now give line command @100<270.Draw @75<270

• Then using Fillet command and select radius option, give 15 units and select the two points make it an arc.
• Draw the rectangle of dimension 70*30 and copy at distance 30units.
• Draw circles with centre at y=100,y=75.Draw parallel lines from both the circle and using fillet tool give radius of 35,20,6 and 15

• Select circle command and draw the circle of diameters of 50 and 30 units. Then placed it in required position.
• Annotate and give dimension to all the line segments and circles.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

DRAWING 08:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. Fillet
3. Trim
4. circle

Procedure:

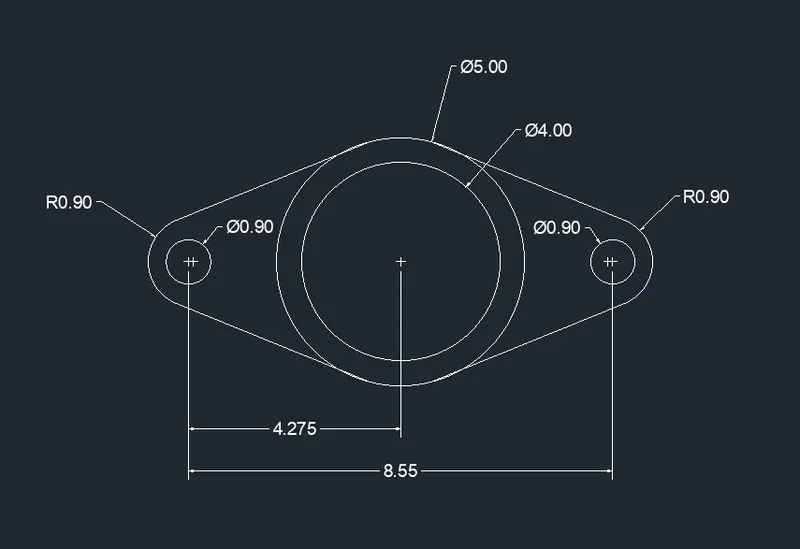

• Open new file <units-decimal<precision- 0.0-ok
• Set the limits and Dimension of sheet - 50,20
• zoom all

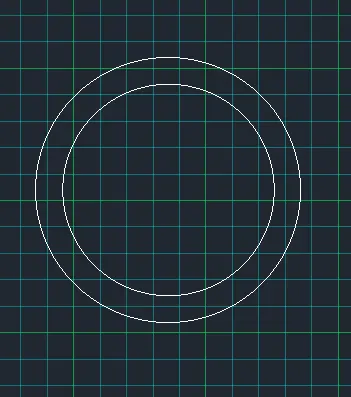

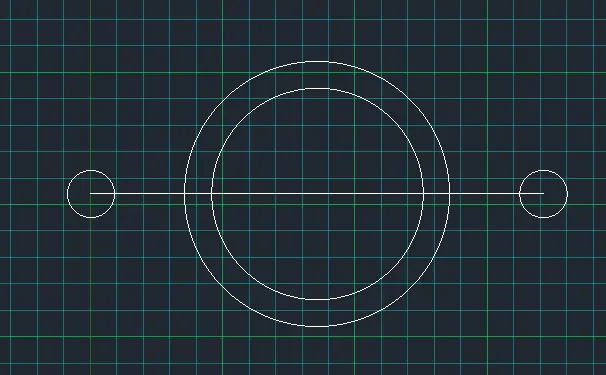

• Draw concentric circles with diameter 4 and 5 units.Draw one circle at 4.725 distance from the centre.

• Draw parallel line and draw a fillet of radius 0.9 and extend the lines to draw the tangent of bigger circle.

• Mirror the same towards right and trim the extras in geometry.
• Annotate and give dimension to all the line segments and circles.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

DRAWING 09:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Line
2. Fillet
3. Trim
4. circle

Procedure:

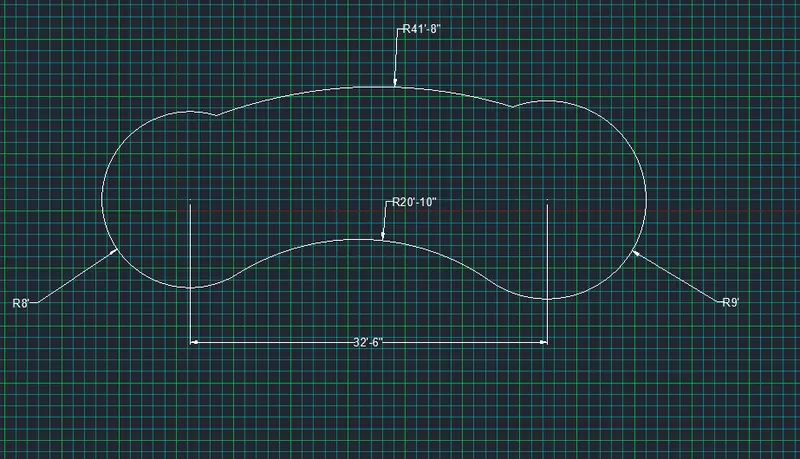

• Open new file <units-architectural<precision- 0'0"-ok
• Set the limits and Dimension of sheet - 50',20'
• zoom all

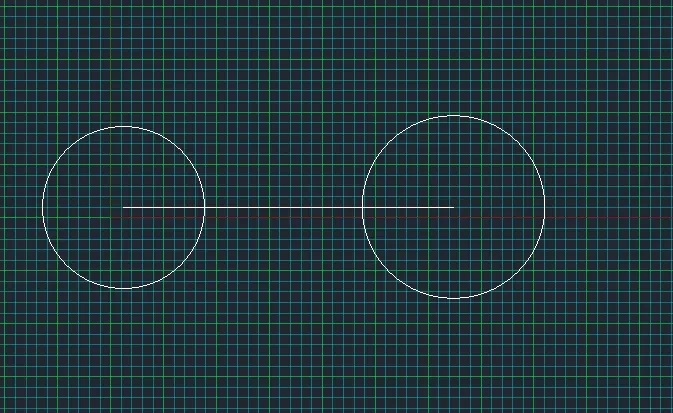

• Select circle tool and draw the circles of radius 8' and 9' at a centre to centre distance of 32'-6".

• Using fillet command, connect the circles with radius 41'-8" and 20'-10" in both direction.
• Annotate and give dimension to all the line segments and circles.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

DRAWING 10:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Rectangle
2. Rotate
3. Move
4. Offset

Procedure:

• Open new file <units-decimal<precision- 0.0-ok
• Dimension of sheet - 10,5
• zoom all

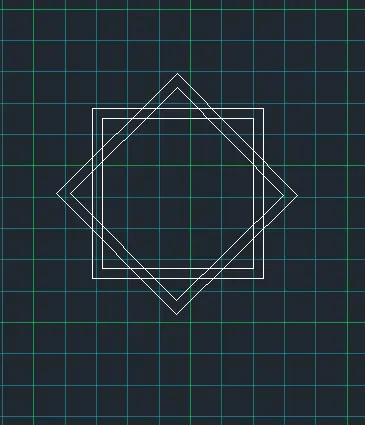

• Draw square using rectangle tool with 5x5.
• Using offset command @ distance of 0.2

• Copy and rotate at 45 degrees.
• Move the rotated rhombus over the square and trim the unwanted lines.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.

DRAWING 11:

AIM:

To Draft the various given geometries using Chamfer, Fillet tool in Autocad.

Commands Used:

1. Rectangle
2. Line
3. Mirror
4. Rotate

Procedure:

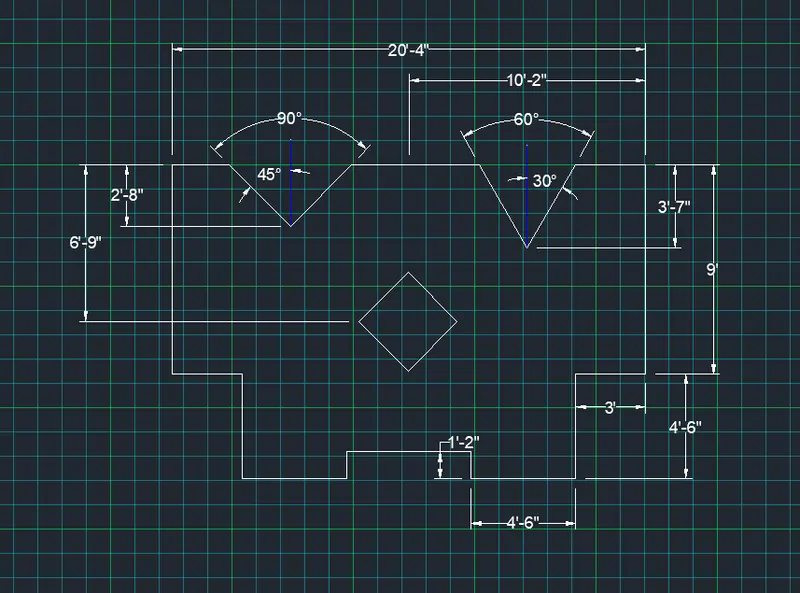

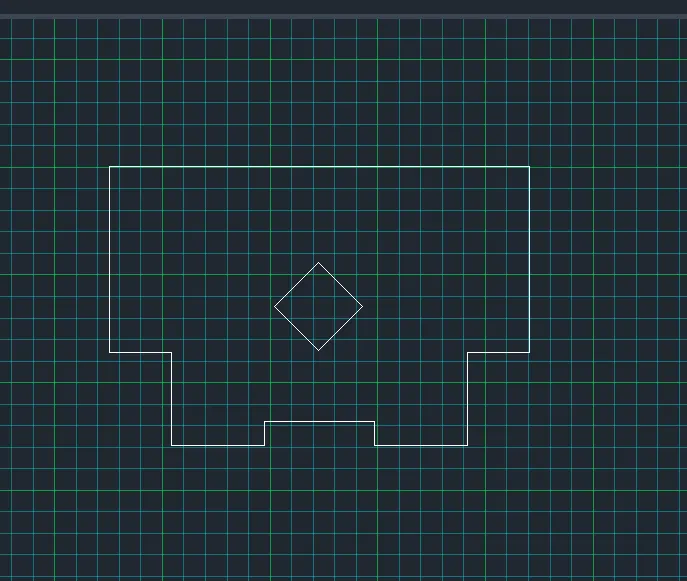

• Open new sheet with units in architectural format with precision 0'-0" feet with limits in dimension of sheet 30',15'.
• Zoom-all

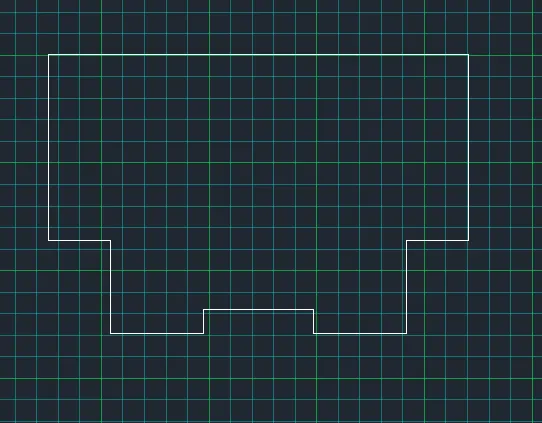

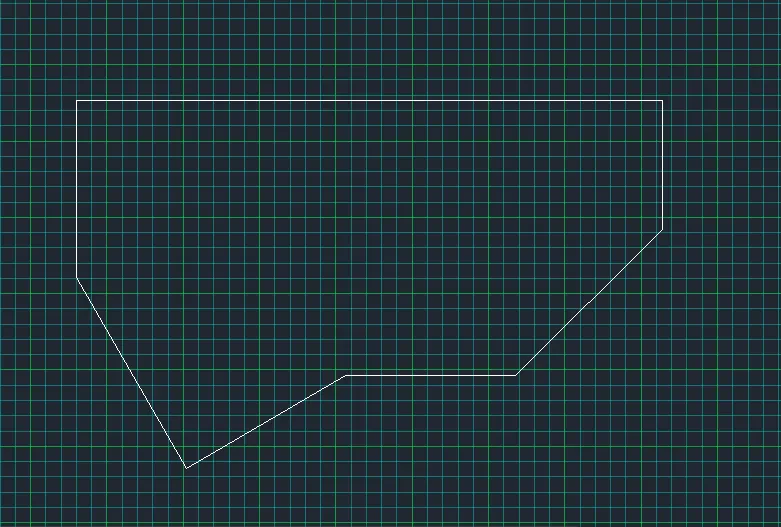

• Select line tool and draw the length starting from top line segment of 10'-2" and 9' towards downward direction,changing the position of cursor in direction of the line with ortho on draw 3'-0",4'-6",4'-6",1'-2.

• Now using mirror command and copy the object , mirror the left to right and join to close.

• Draw a square of side 3'-0" and rotate to 45 degree and position it using move tool.

• Using line tool and draw verticsl lines of 2'-8" and 3'-7" and make 30 degree line on each side with respect to reference vertical line and 60 degree on the end.
• Annotate and give dimension to all the line segments.

RESULT:

The given geometries are drafted using chamfer, fillet, circle and line tool in AutoCad in accurate measurement.
