Door Arm Rest Week 8 Challenge
Report
Aim:Creation of Door Arm rest and add thickness to it
- Part Thickness : 2.5 mm
Procedure:
import geometry

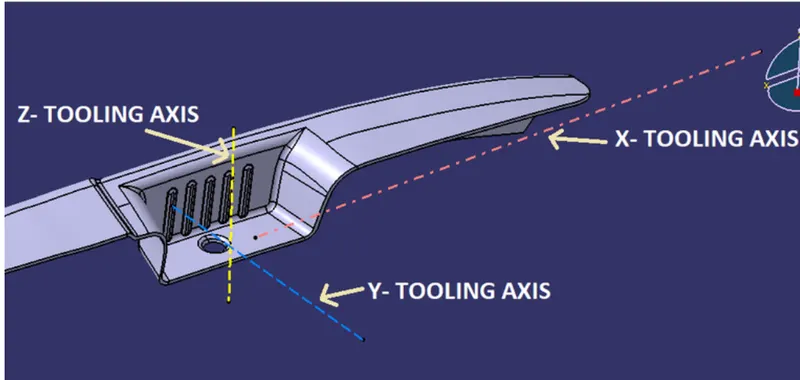

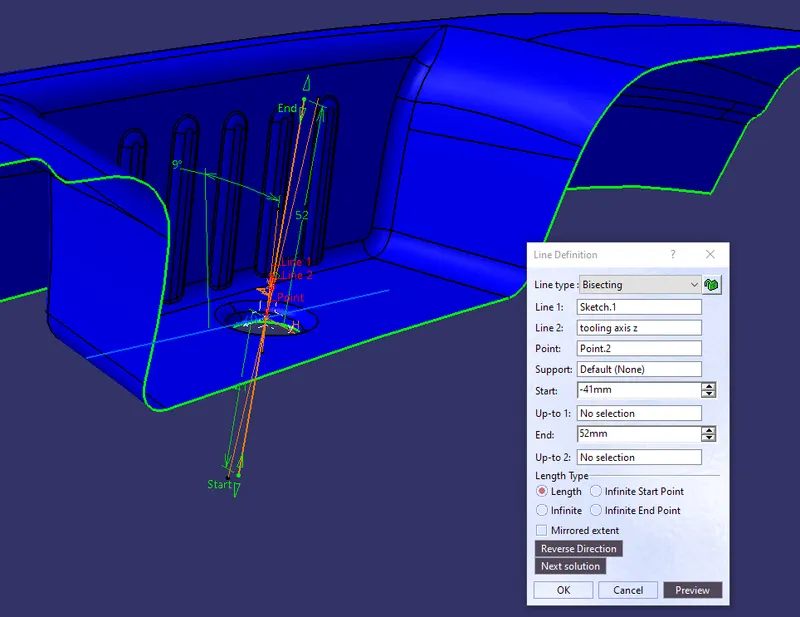

create tooling axis
final

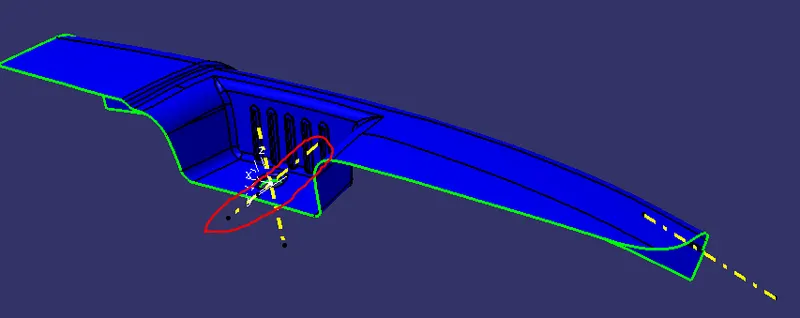

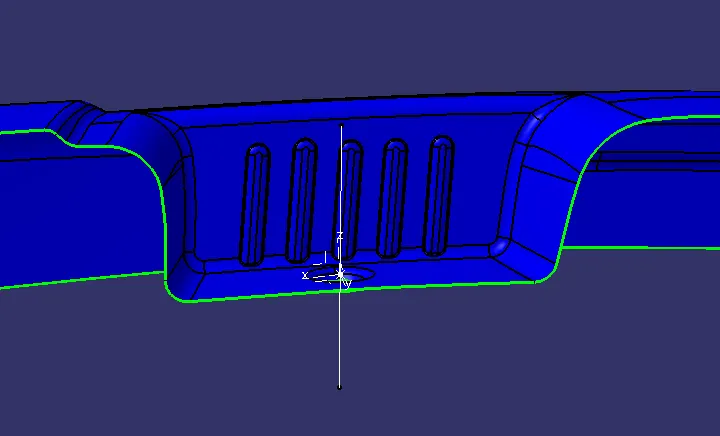

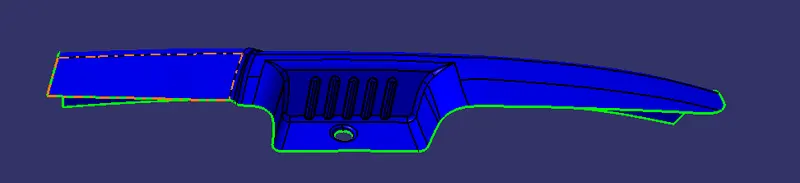

considering side core
x direction
y direction

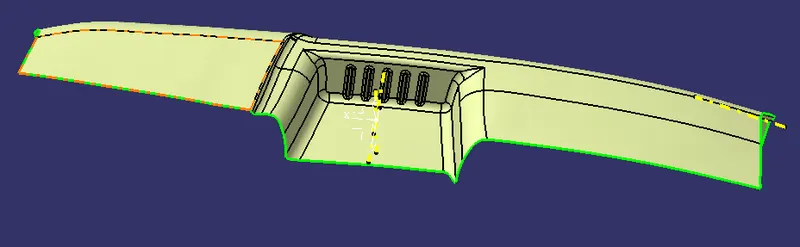

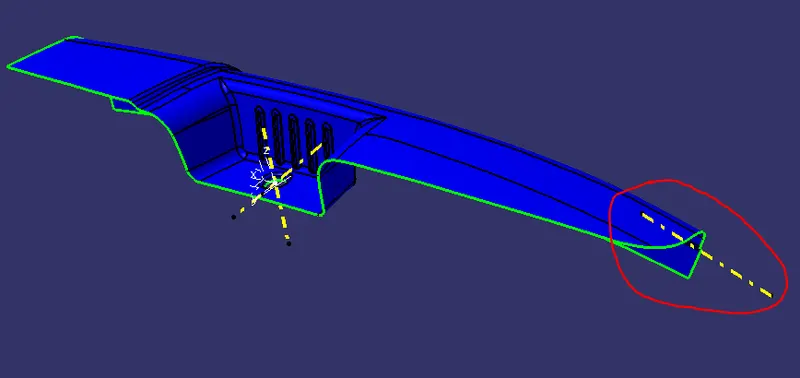

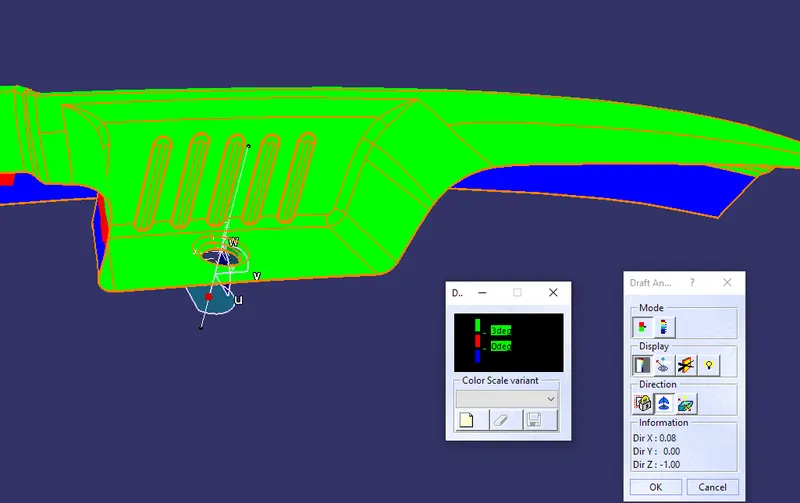

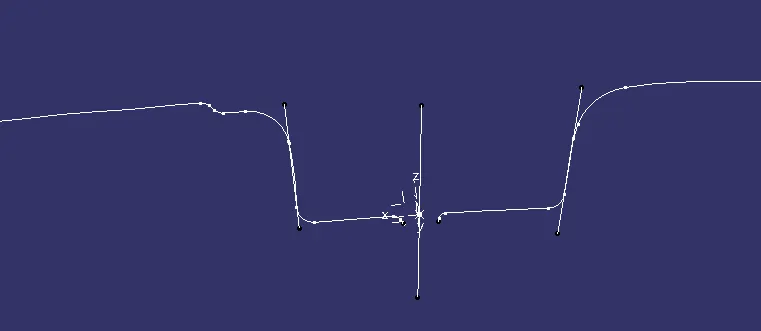

draft analysis
create b surface:

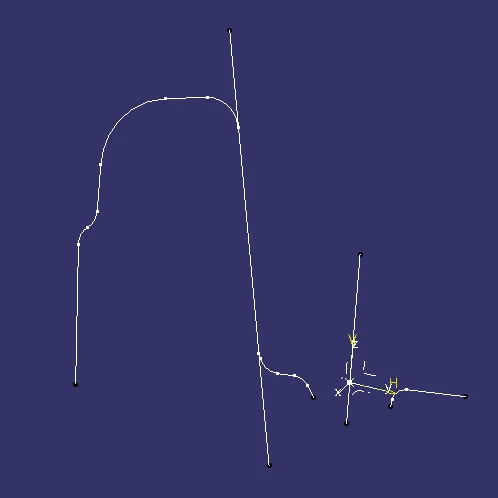

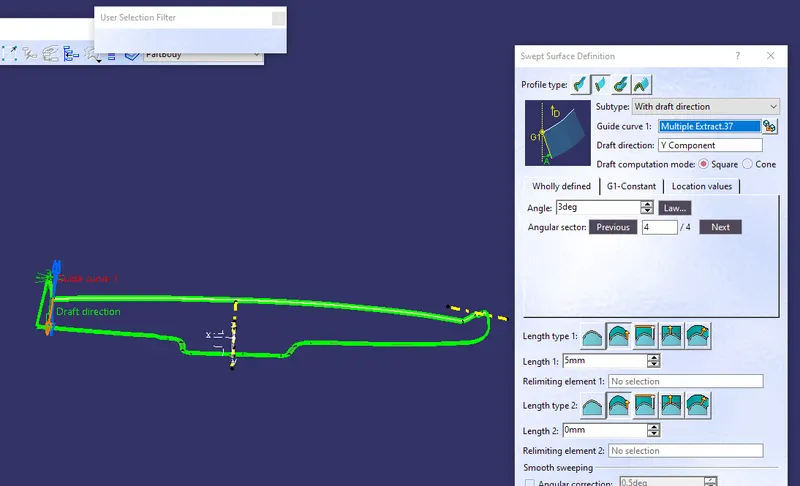

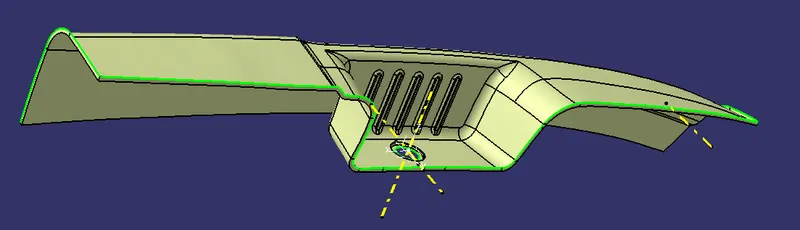

extract, untrim and offset surfaces

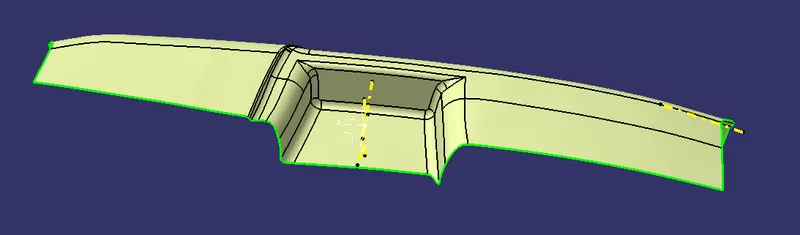

initial trim with offset 2.5mm
give fillets

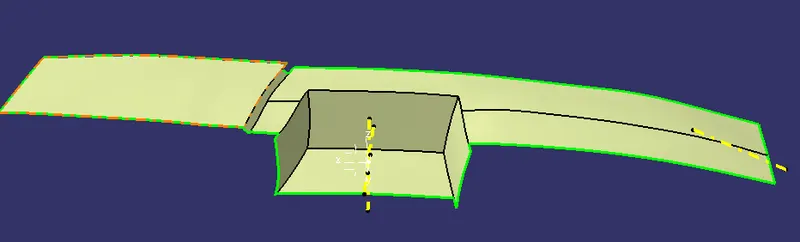

final trim with split holes
c surface

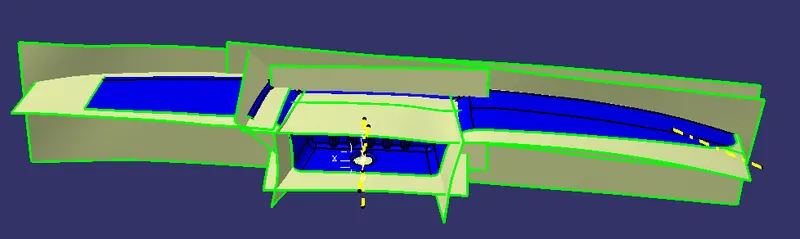

trim a, b and c surfaces
create solid with closed surface

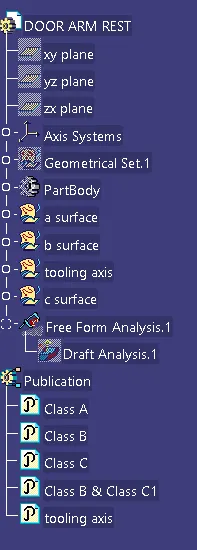

Tree Structure

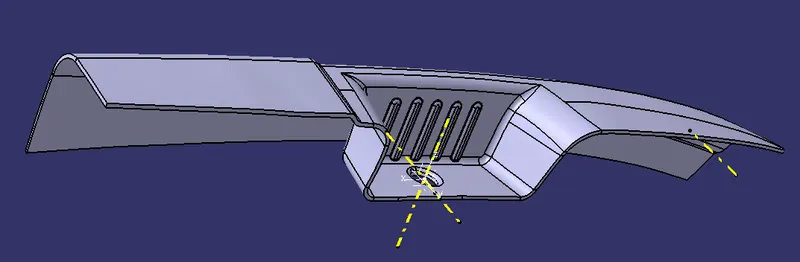

Tooling axis
