Door Arm Rest Week 8 Challenge

                                                                 DRAFT ANALYSIS REPORT FOR DOOR ARM REST:

PROCEDURE:

Features used for design Class A B & C

Creation of Class A surface:

To the class A the processs to be followed for creating  closed body from the given class A

creating tooling Axis  for the draft analysis for the given Class A

Creation of B Class Surafce:

Extracting the class A surface the untrim the surface and Extrapolating the surface and offseting and then Trim.

applying the fillets where neccesary

Creation of Class C surface:

creating the boundary and then sweeping along the draft direction and joining trimming the C Surface Together.

Final trim :

trimming Class A & C the trim with CLass B to get a close surface

To check closed surface do the Boundary Operation

Then to create Solid body:

moving into the part design to make a close surface .

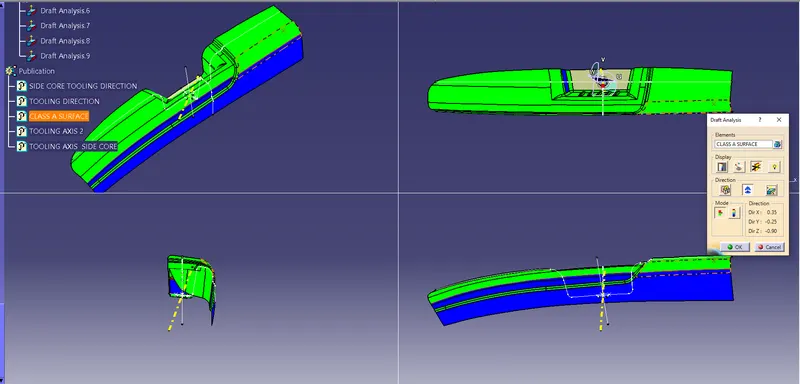

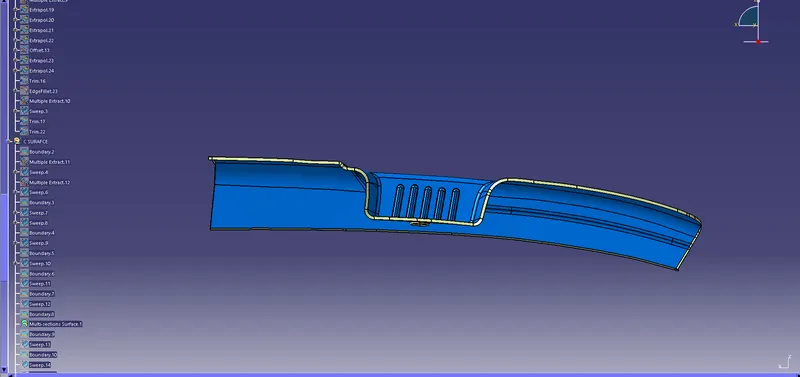

HERE the Draft analysis ScreenShots in four views:

Solid body view image :

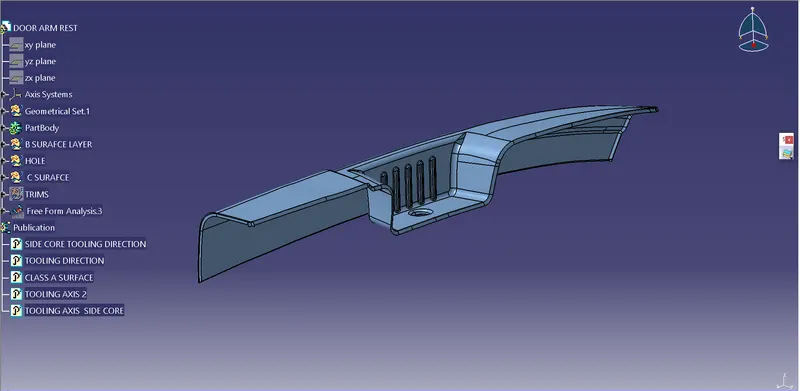

Snapshots Of complete Door Arm Rest Design :

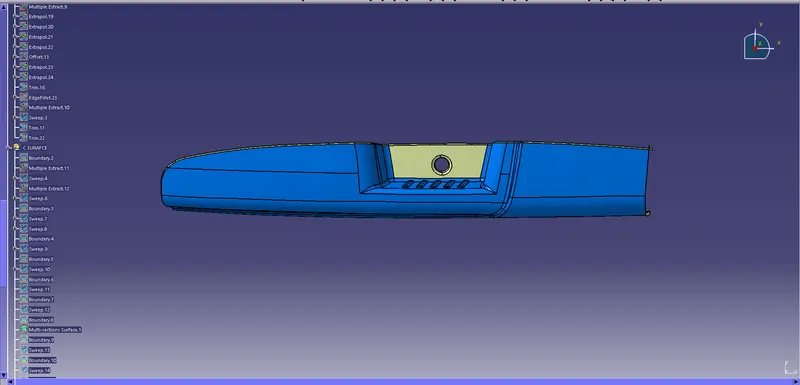

FRONT VIEW:

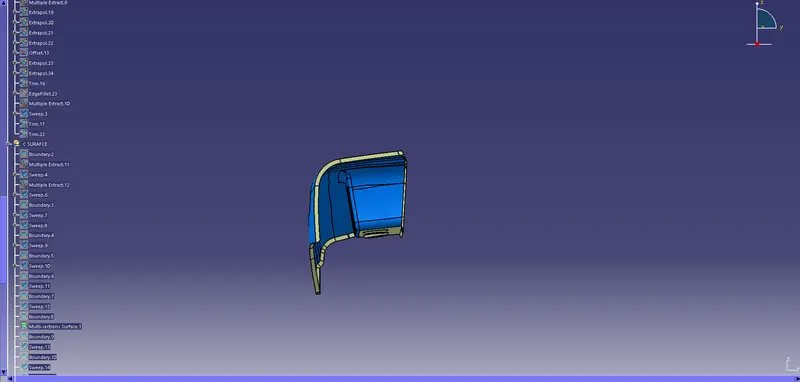

SIDE VIEW:

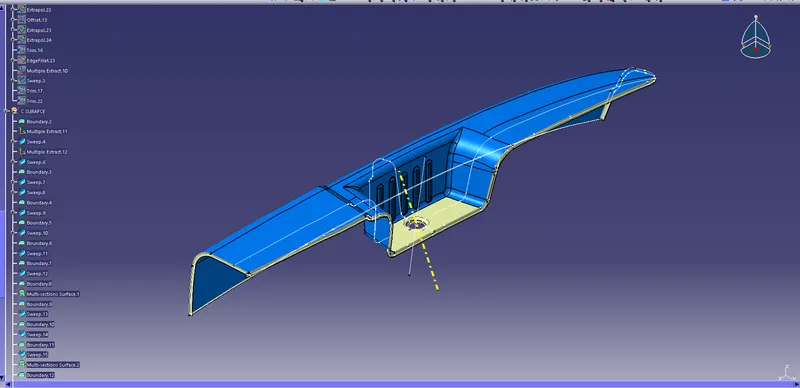

ISOMETRIC VIEW:

TOP VIEW:

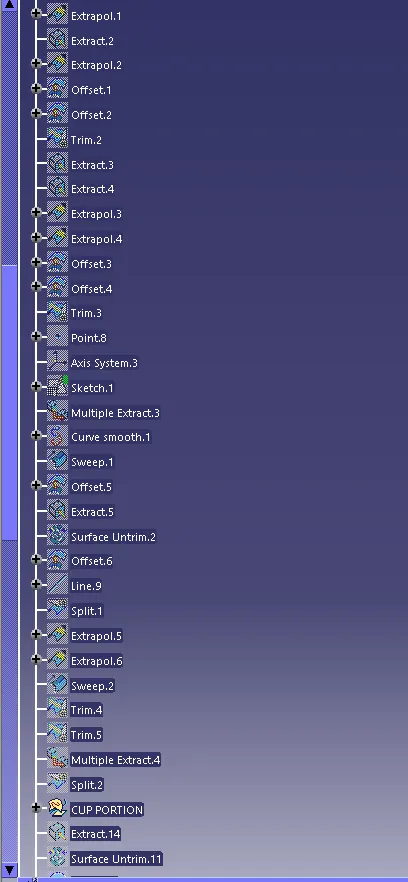

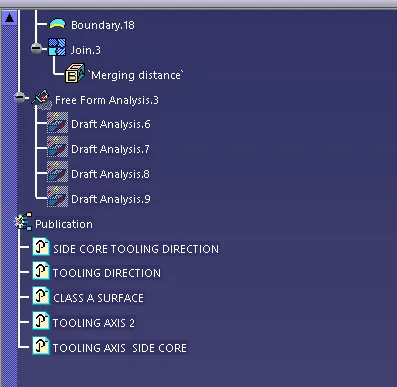

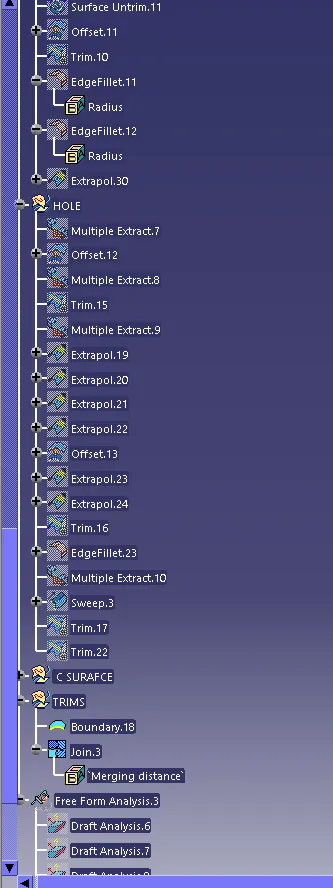

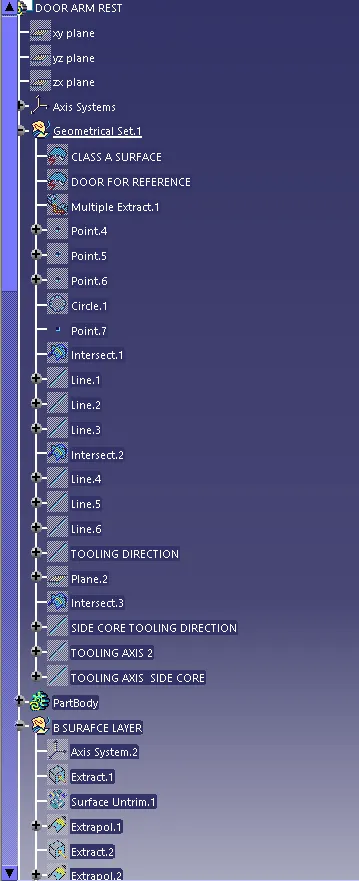

TREE STRUCTURE SNAPSHOTS:



CONCLUSION:

Door arm Rest plastic component using Class A Surface have been succesfully Created and Draft analysis also been performed For the Same.
