Door Arm Rest Week 8 Challenge

AIM: CREATION OF DOOR ARM REST AND ADD THICKNESS

PROCEDURE:

1. Create point on the middle of the hole. And insert the system axis.

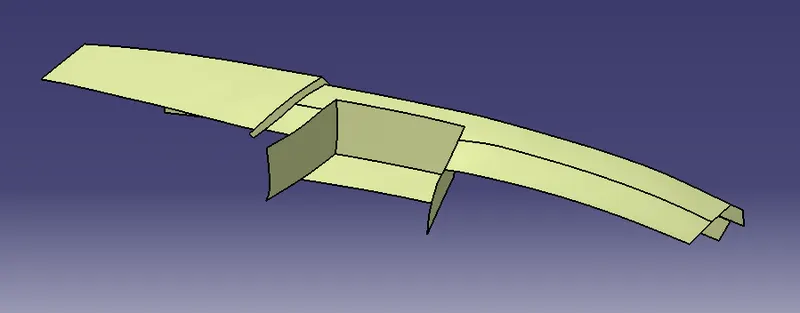

2. Extract the arm rest top surfaces.and un trim and do extropolate up to 50mm.

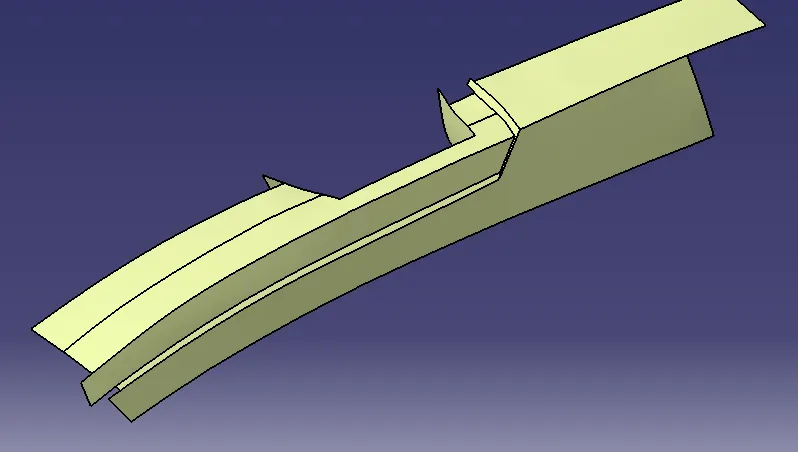

3. Create a sketch on the middle othe surfaces for getting two curves between the surfaces.create a line through y direction. and exrude a surface using guide curve and create a bend between the one of the top surface and middlle plane.
4. trim the all surface of the top and offset 2.5 mm

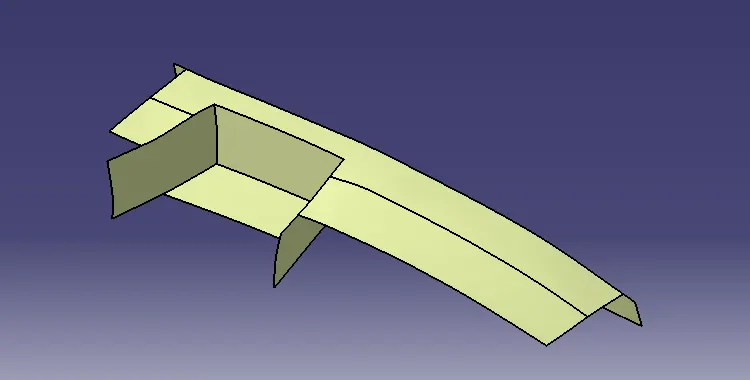

5. And extrude walls and untrim it than extrapolate up to 50mm.and trim the surfaces.

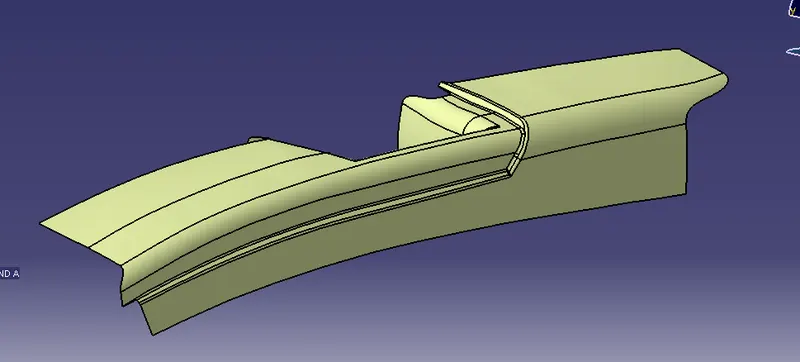

6. give the edge fillets based on dimensions of the fillets.
7. Create a boundaries on class A surface on step by step based on staright plane and curved planes.
8. creates boundaries differently divided by the angle.
9. crerate sweeps on boundaries

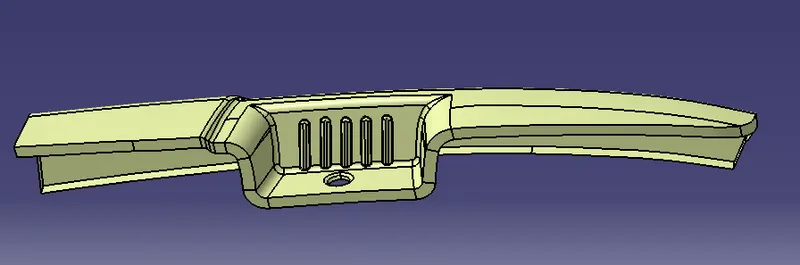

10. trim the surfaces and join the classA And class b surfaces.than will get c curface.

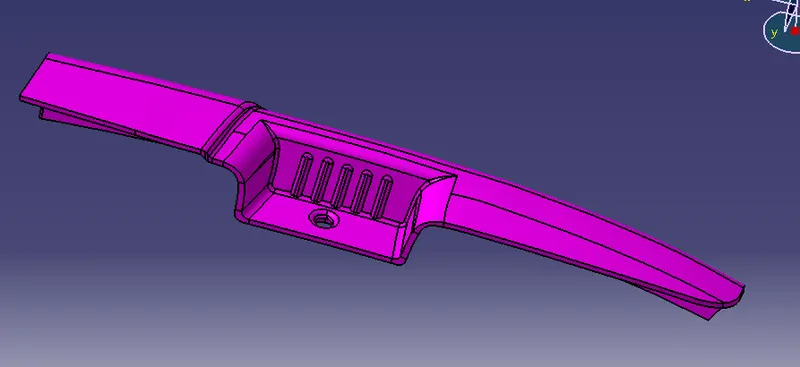

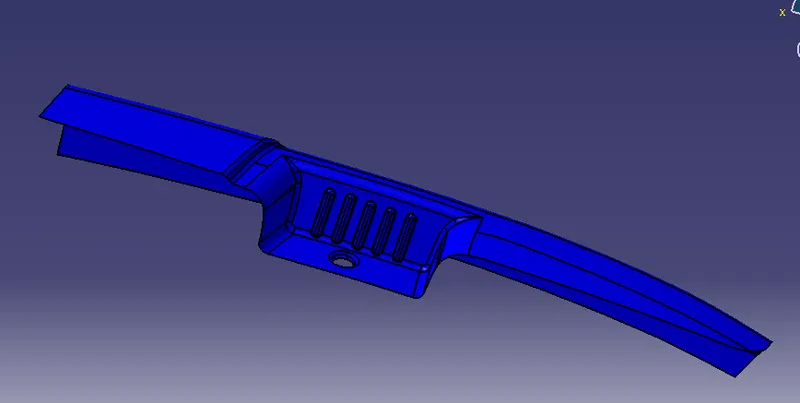

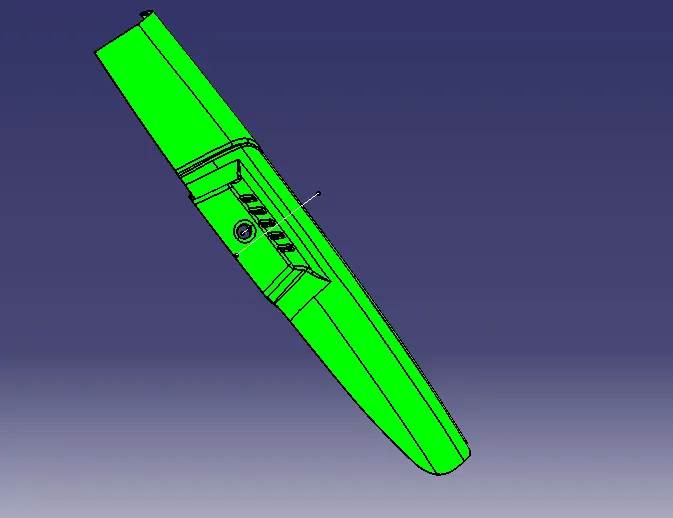

11. Than will go to part design and fill the surface
