Door Arm Rest Week 8 Challenge

AIM:

To create a Door arm rest and add a thickness to it.

objective:

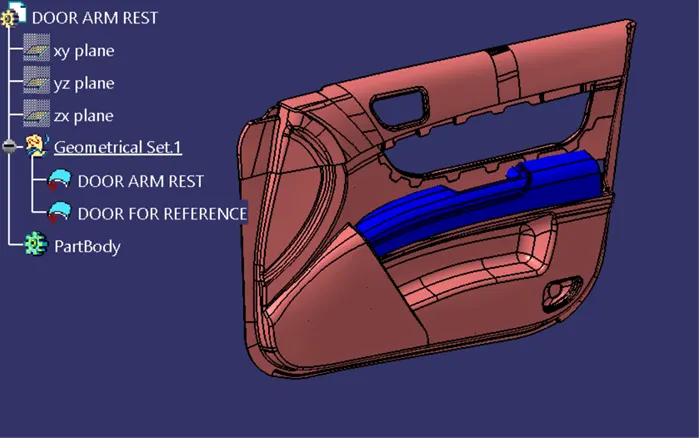

Inputs:

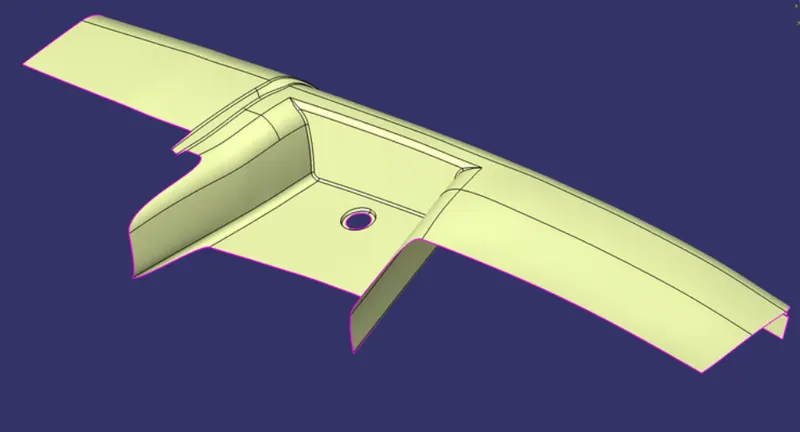

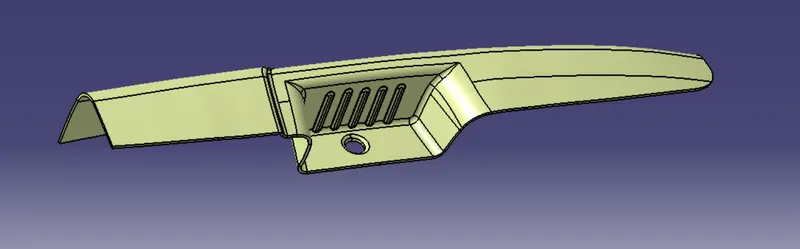

class A surface:

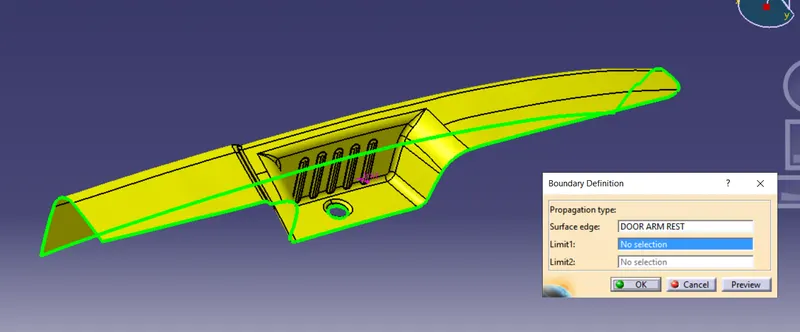

check the input class a surface boundary for opening other than edges of the component.

creating tooling axis on the class A surface for door arm rest:

For creating the main tooling axis use bisecting line. we requires a point for creating the line. for point we use the hole in the class a surface.

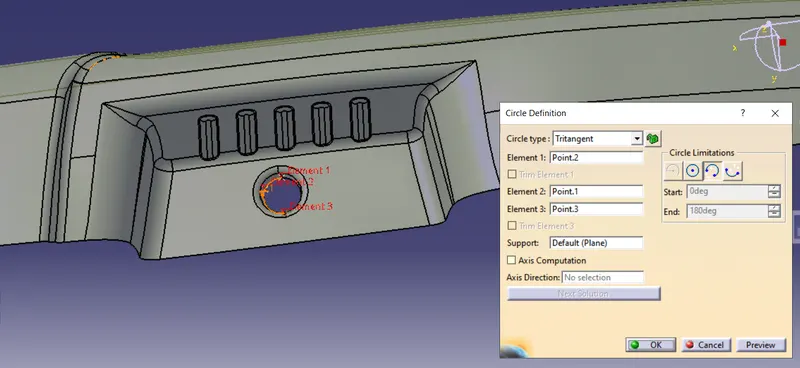

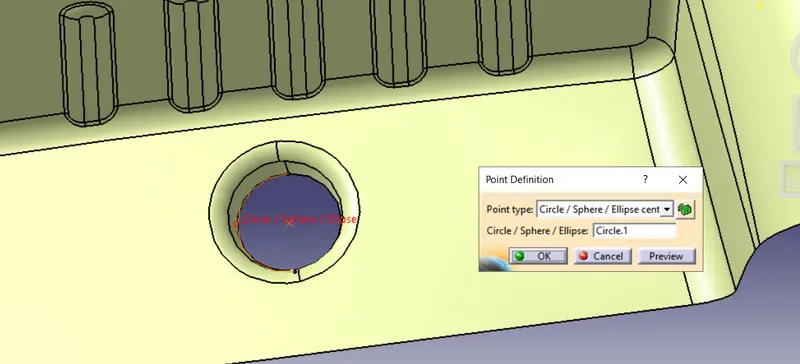

we consider the circumference of the hole . so create a circle on the hole by using three point. then use circle to create a point.

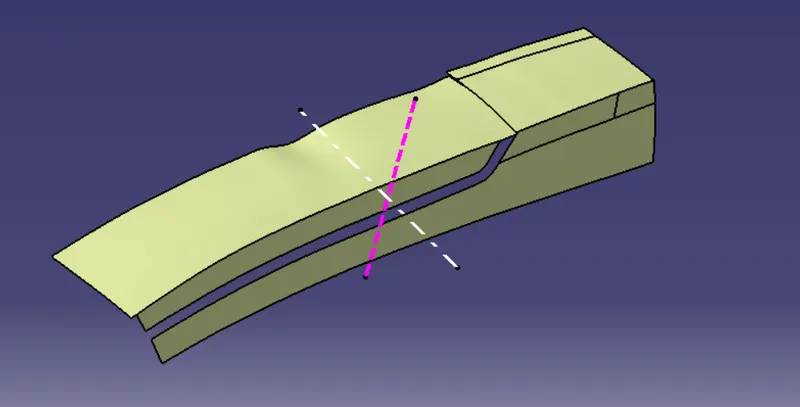

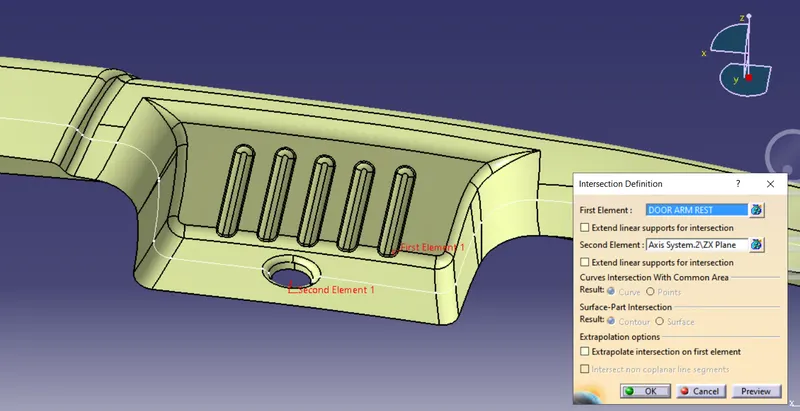

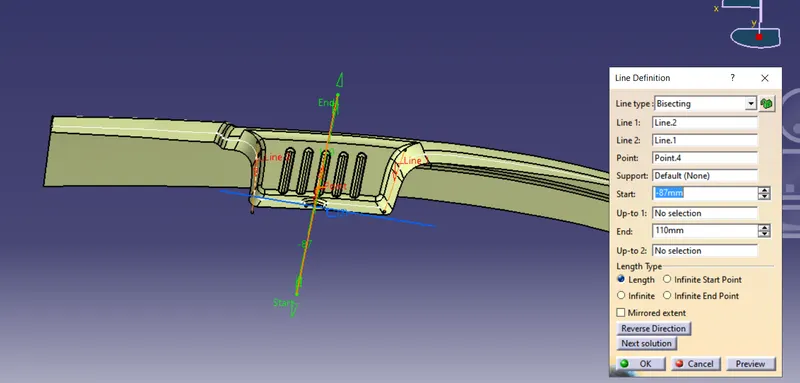

use bisecting line now for that we need intersection from the class A surface.

for creating the bisection we require two lines at the sides of the wall.

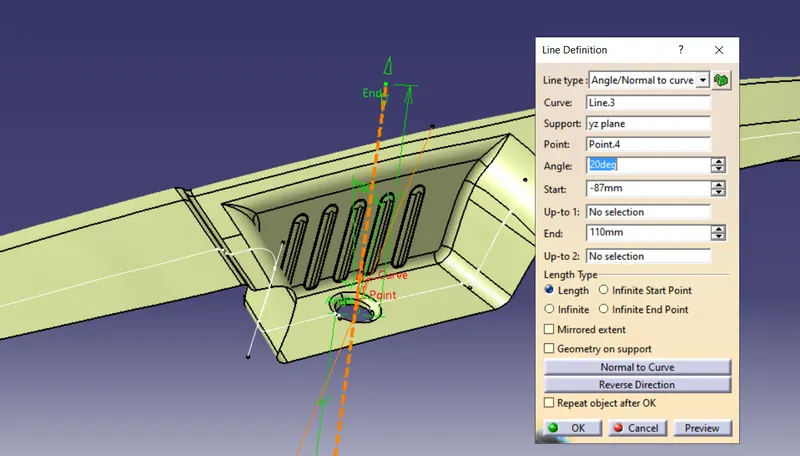

but the bisecting line does the class A surface. so we use angle to the line. angle to the line from the bisected line is 20 degree.

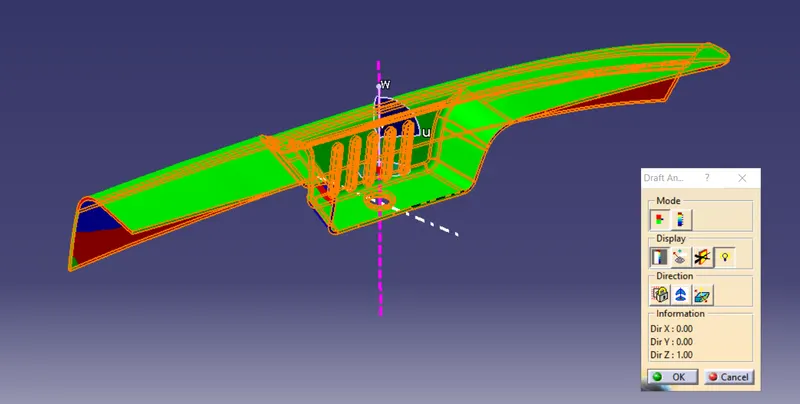

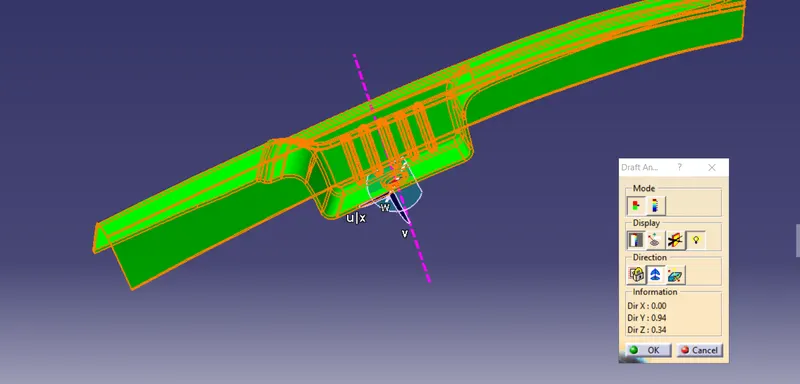

Draft analysis with the tooling axis on the class A surface:

you can see some of the features are not cleared on the main tooling axis. so we require side core tooling axis.

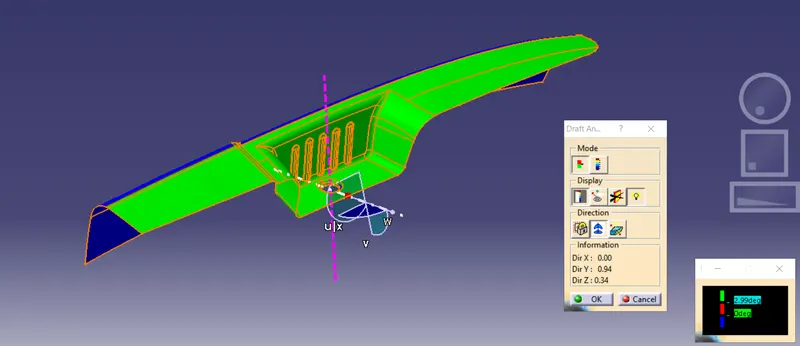

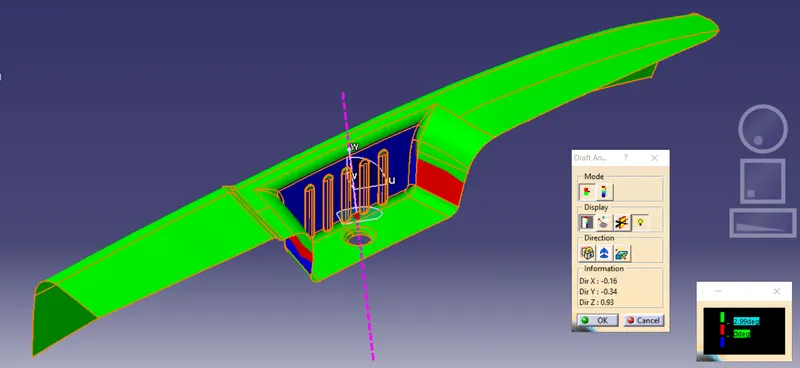

drafting with side core axis.

creating the class b and class c surface:

extraction of surfaces from class A surface to form class B surface.

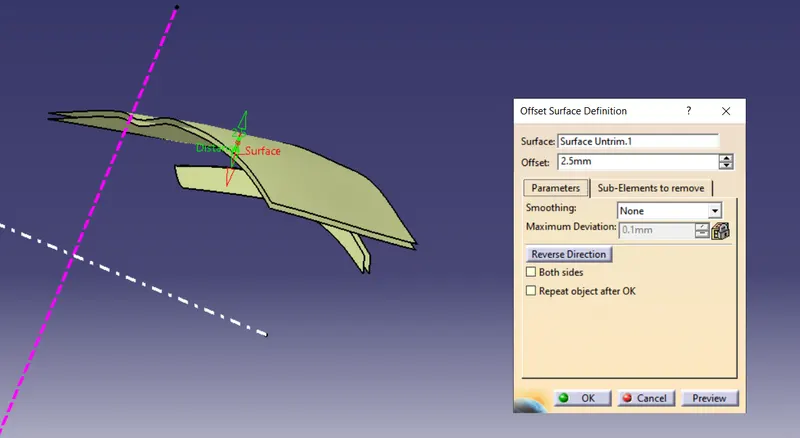

untriming and offsetting the extracted surfaces:

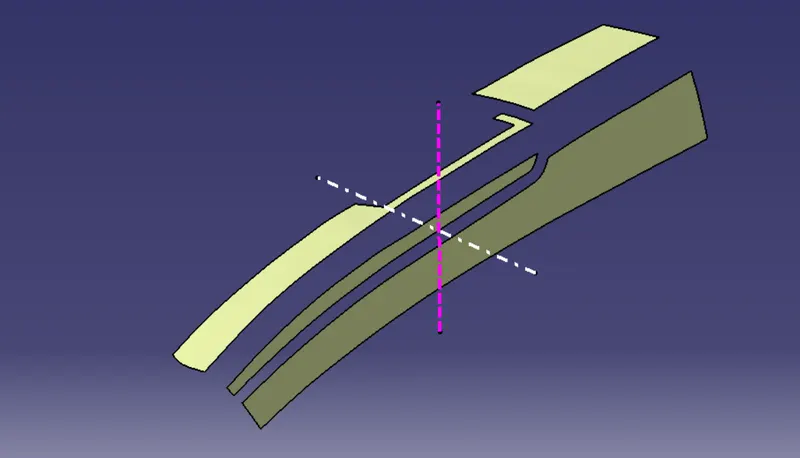

trimming the surface to create class b surface:

connect th flanges and give fillet.

class C surface:

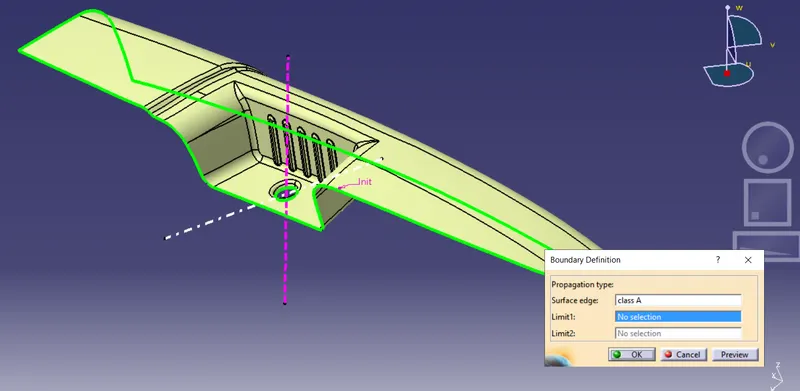

from the class A surface extract the edges.

after extracting the edges using boundary or multi extraction. try sweeping the surface to create class c surface.

trim class A and B ,C

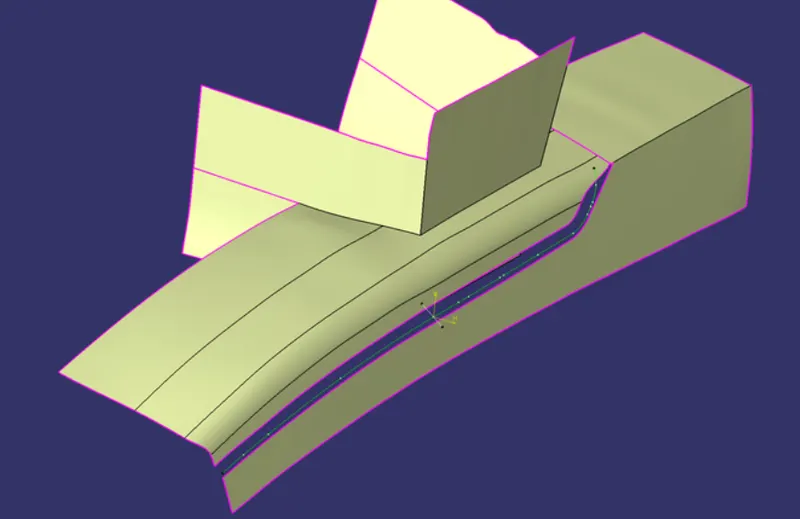

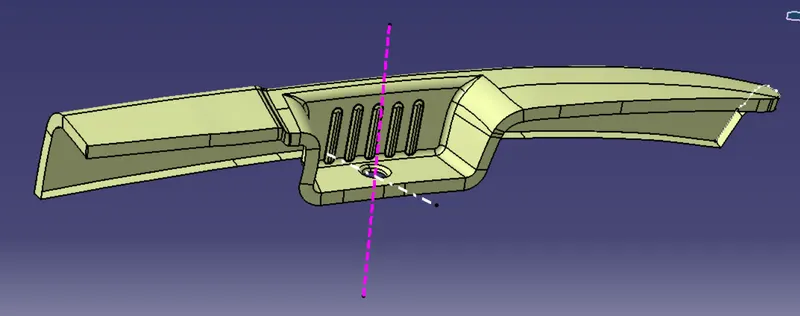

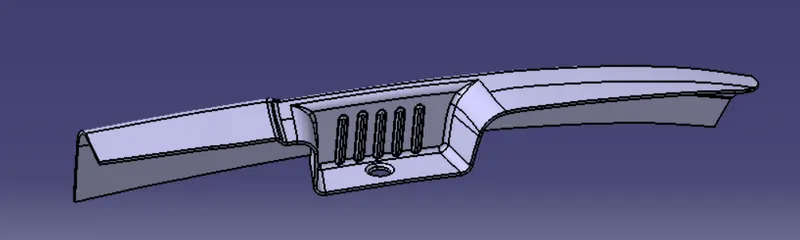

create the soildbody on trimmed surface.

the soildbody is created with nominal thickness of 2.5 mm

drafting the solidbody along two tooling axis:
