Design of Shallow Foundation (Isolated Footings)

Aim: To Design the Square footing for a column size of 400X400 mm with the load of 2000kN and the soil having the SBC of 150kN/m2. Result: Providing 16 numbers of 20mm diameter bar at a 250mm c/c

    • Akanksh M Goudar

      updated on 24 Apr 2021

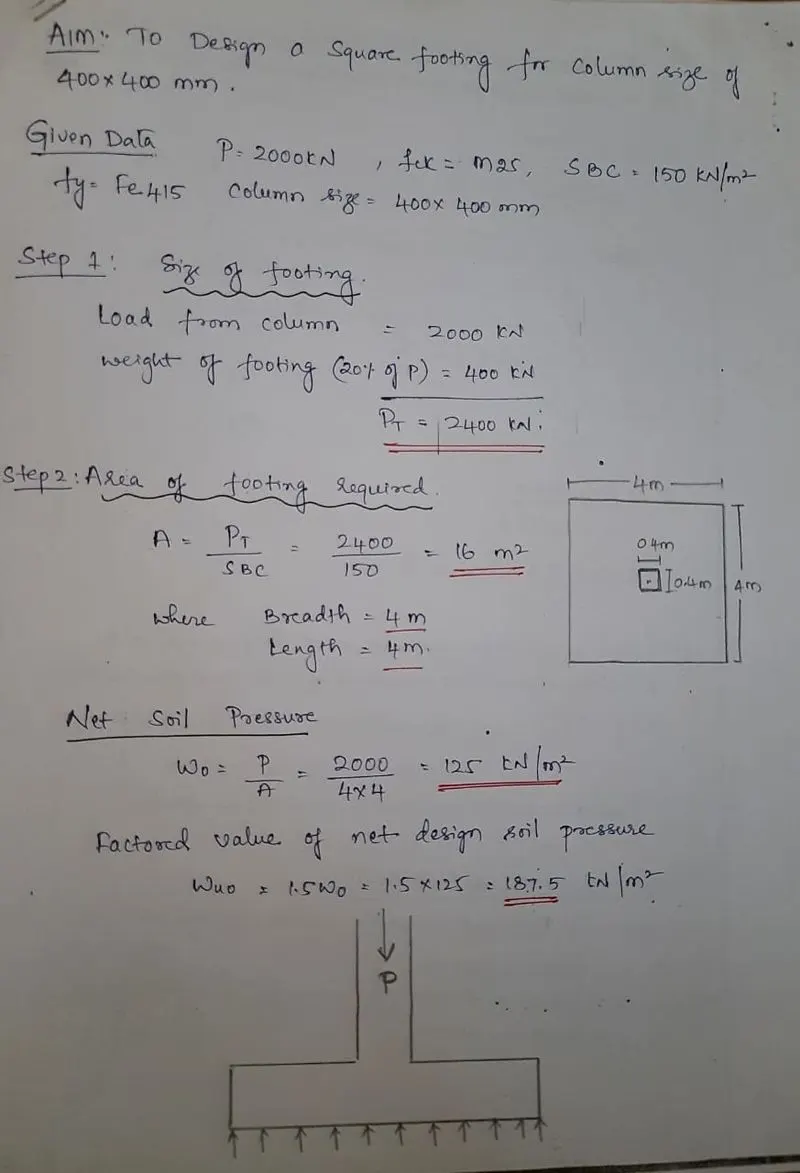

    Aim: To Design the Square footing for a column size of 400X400 mm with the load of 2000kN and the soil having the SBC of 150kN/m2.

    Result:

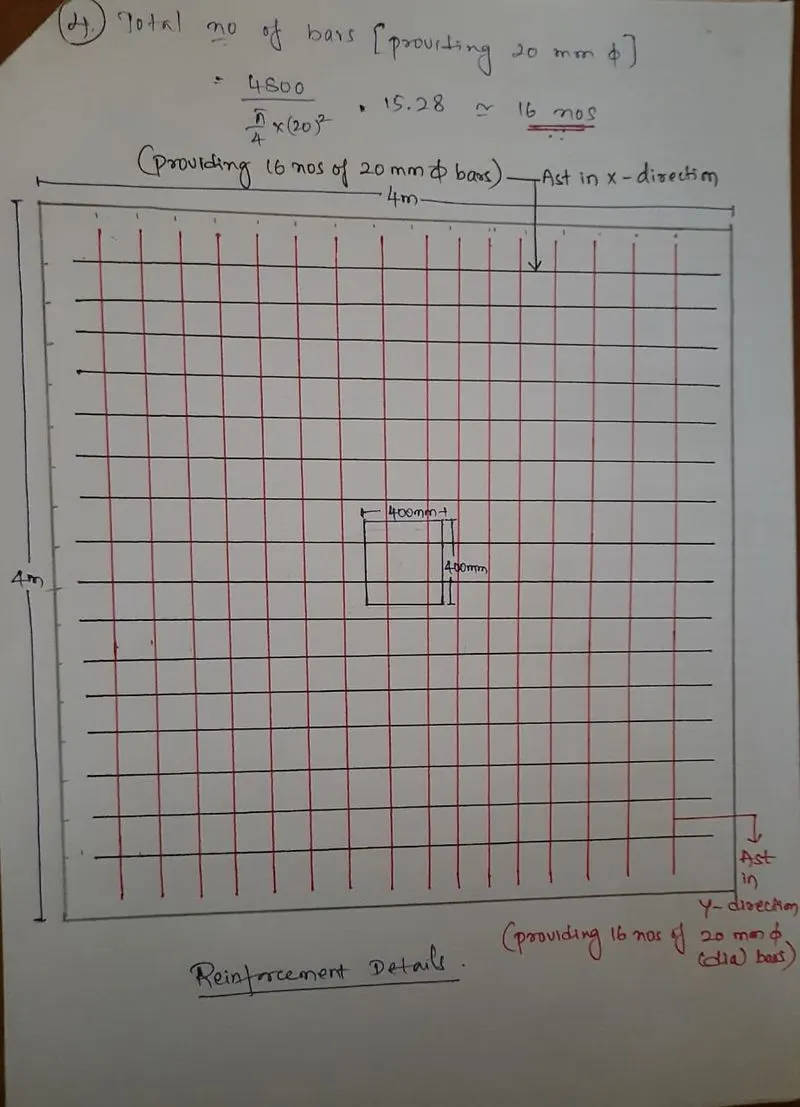

    Providing 16 numbers of 20mm diameter bar at a 250mm c/c
