Design of Shallow Foundation (Isolated Footings)

Challenge 11 - Design Of shallow Foundation (Isolated Footings)

1Q.

Answer:

Aim: To design the square footing using the data given.

Introduction:

• Isolated footings are those that are provided independently under each column.
• Typically, their sections are square, rectangular, or circular.
• PCC is set on foot. Termite control liquid is sprayed on the top face of PCC prior to PCC installation in order to prevent termites from damaging the footing.
• Where the soil bearing capacity is typically high, isolated footings are offered. They consist of a thick slab that can be flat, stepped, or sloped.
• When compared to other types of footings, this type is the most cost-effective



Procedure:

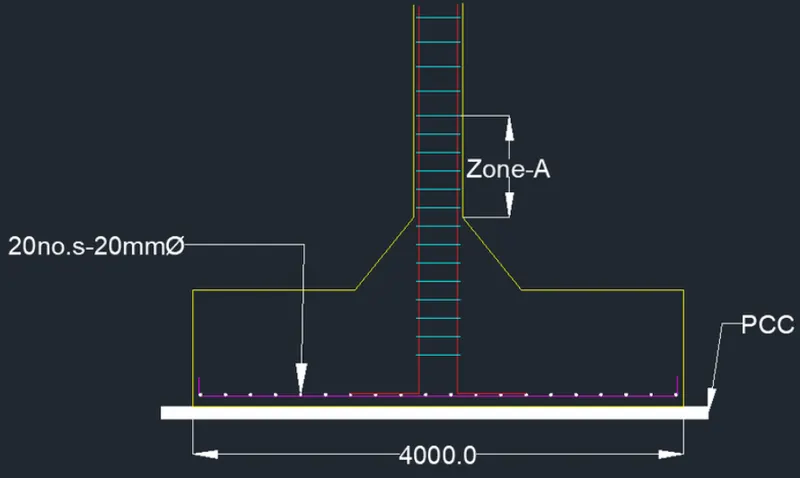

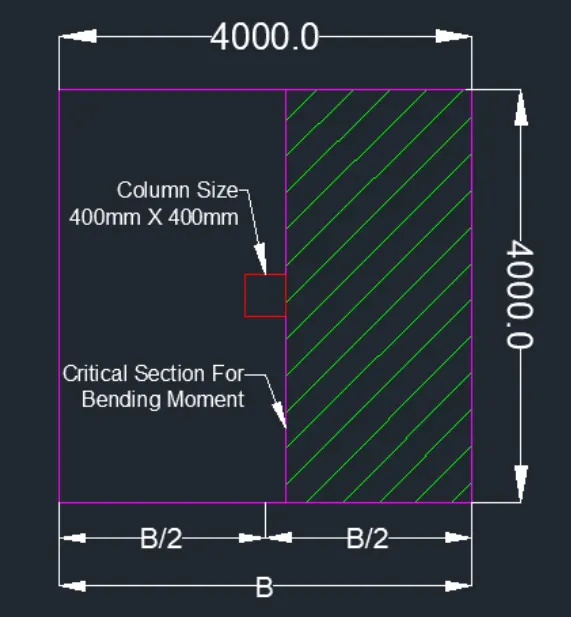

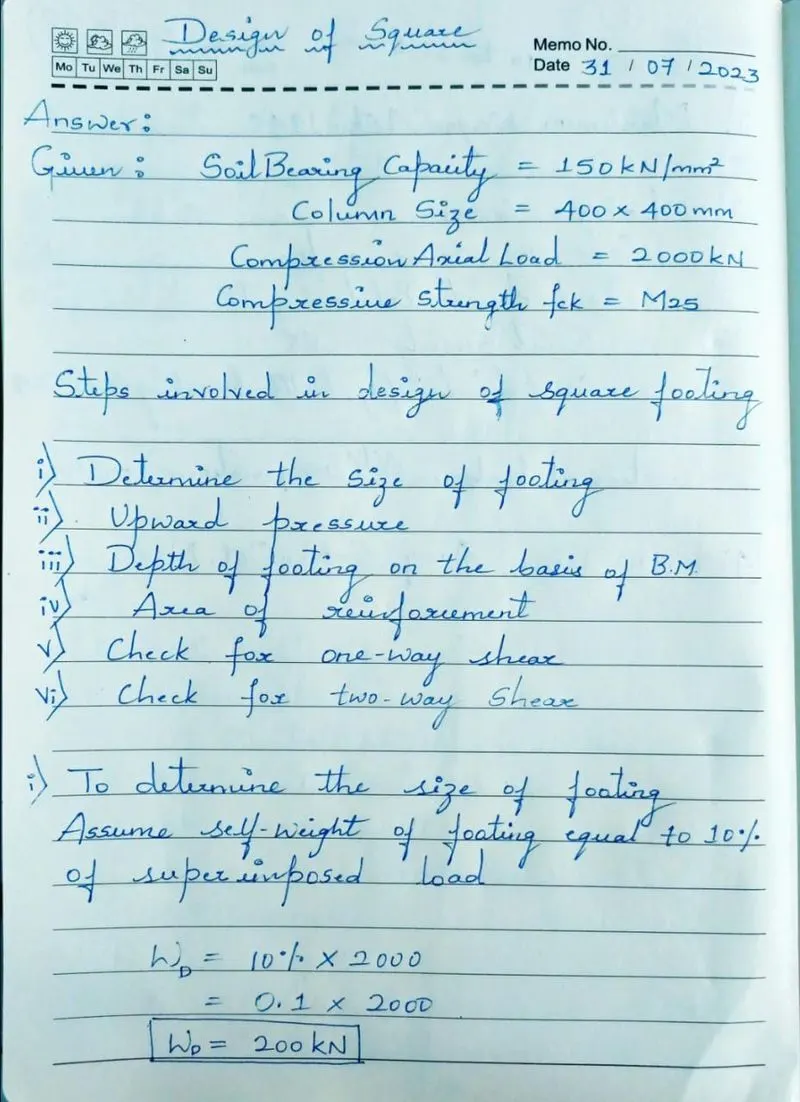

Design of Square Foorting:

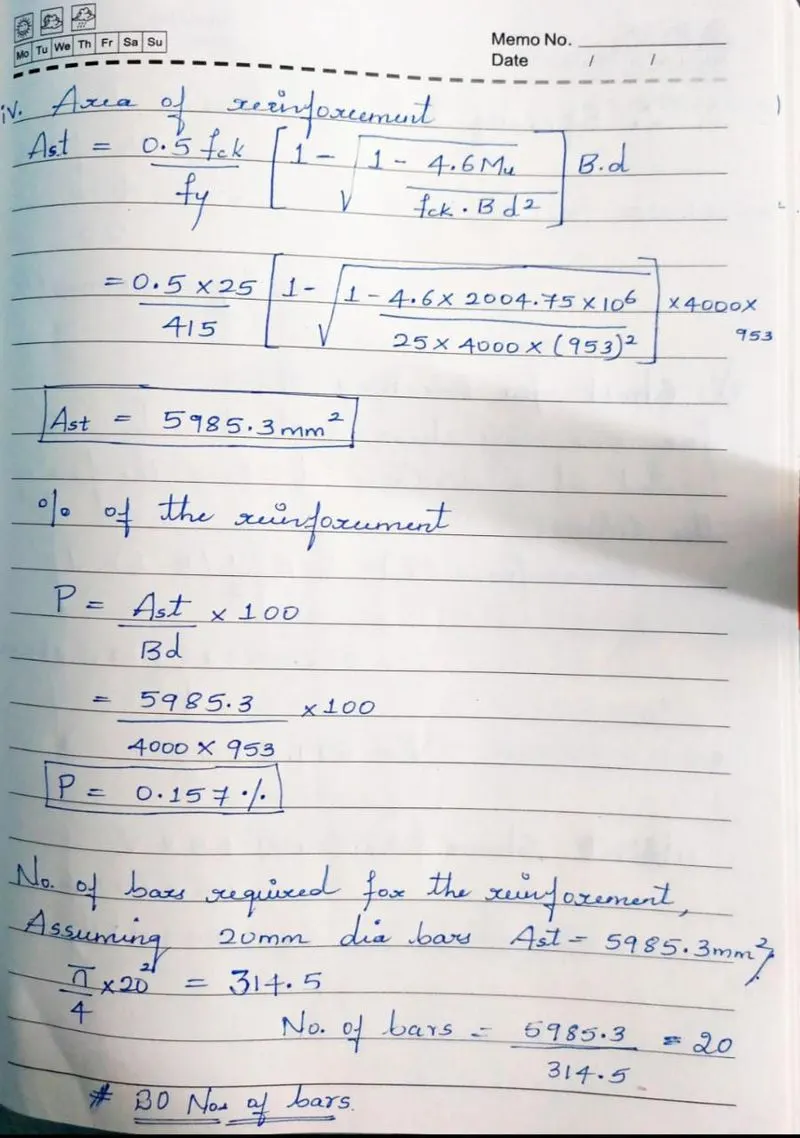

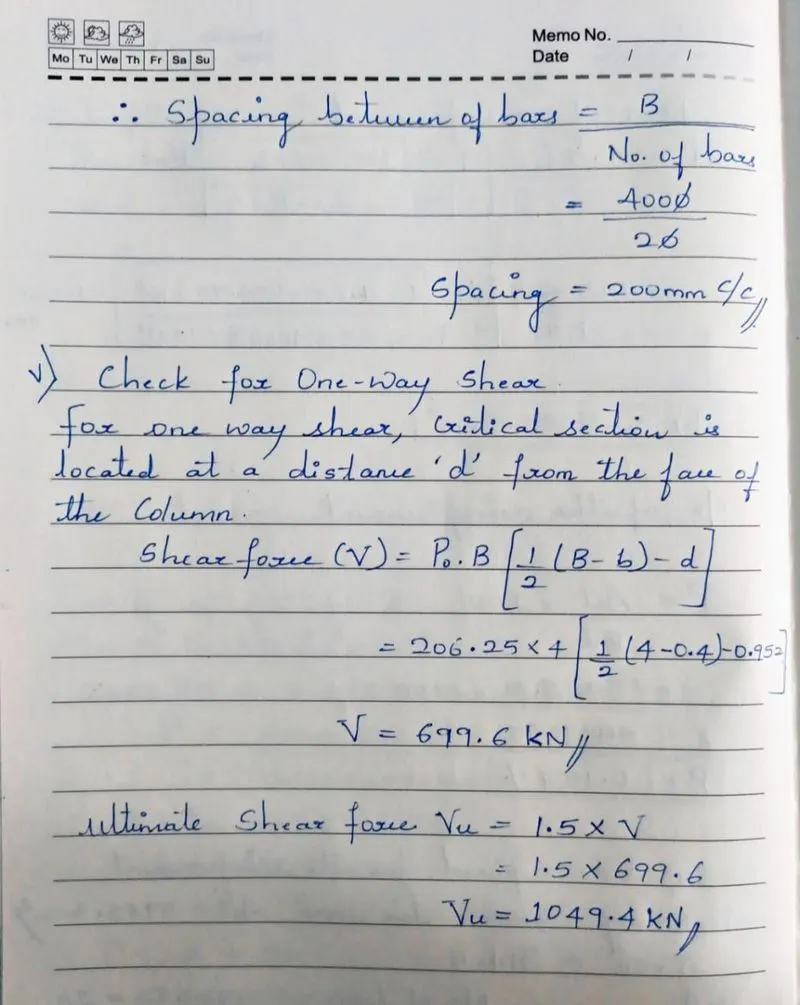

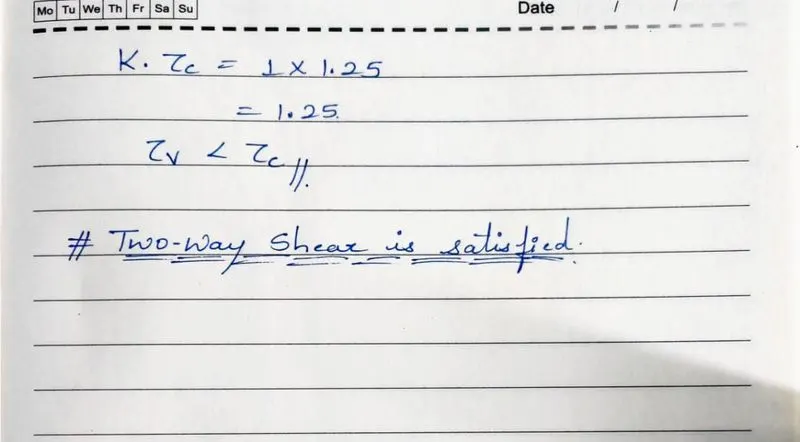

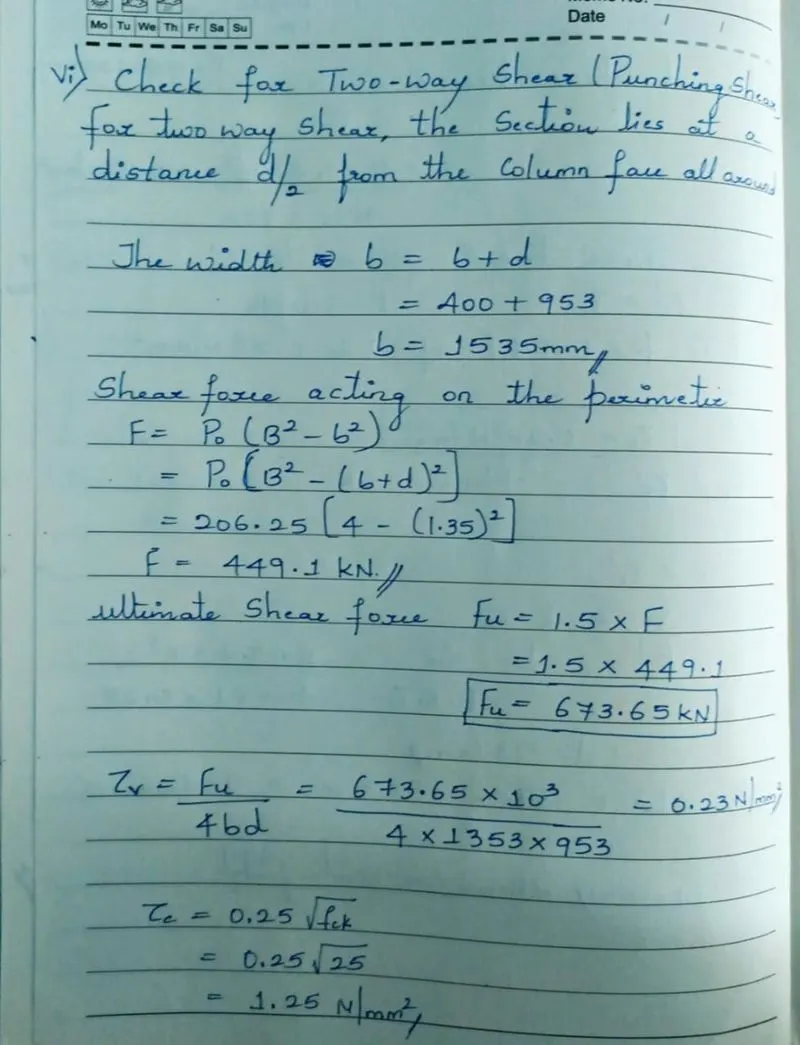

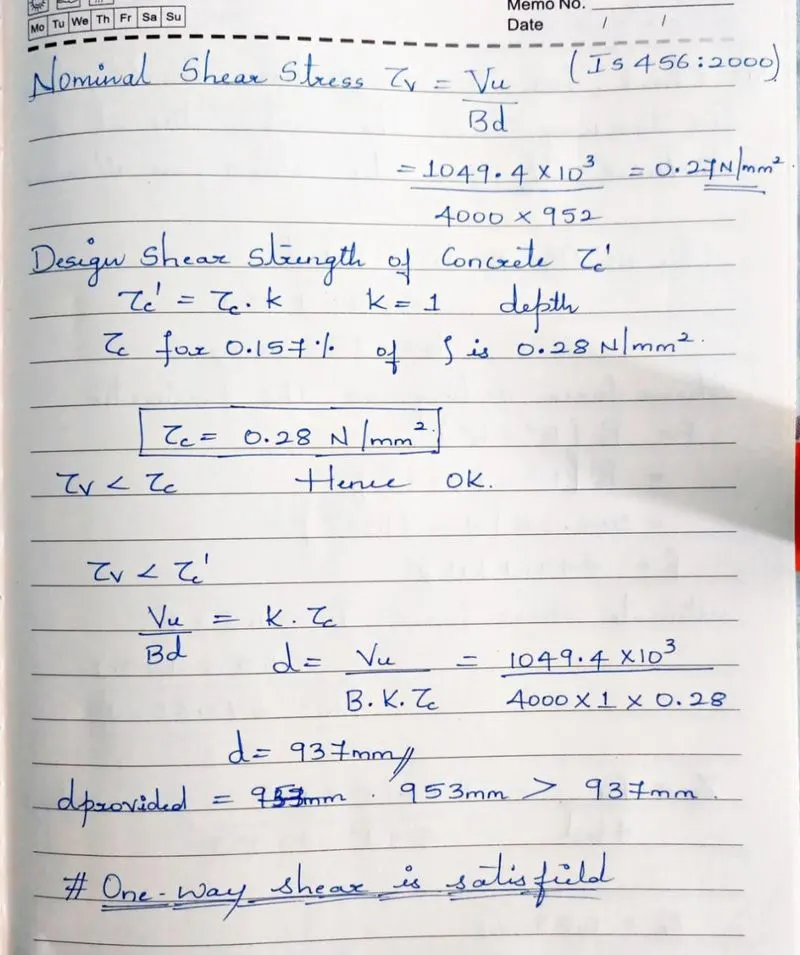

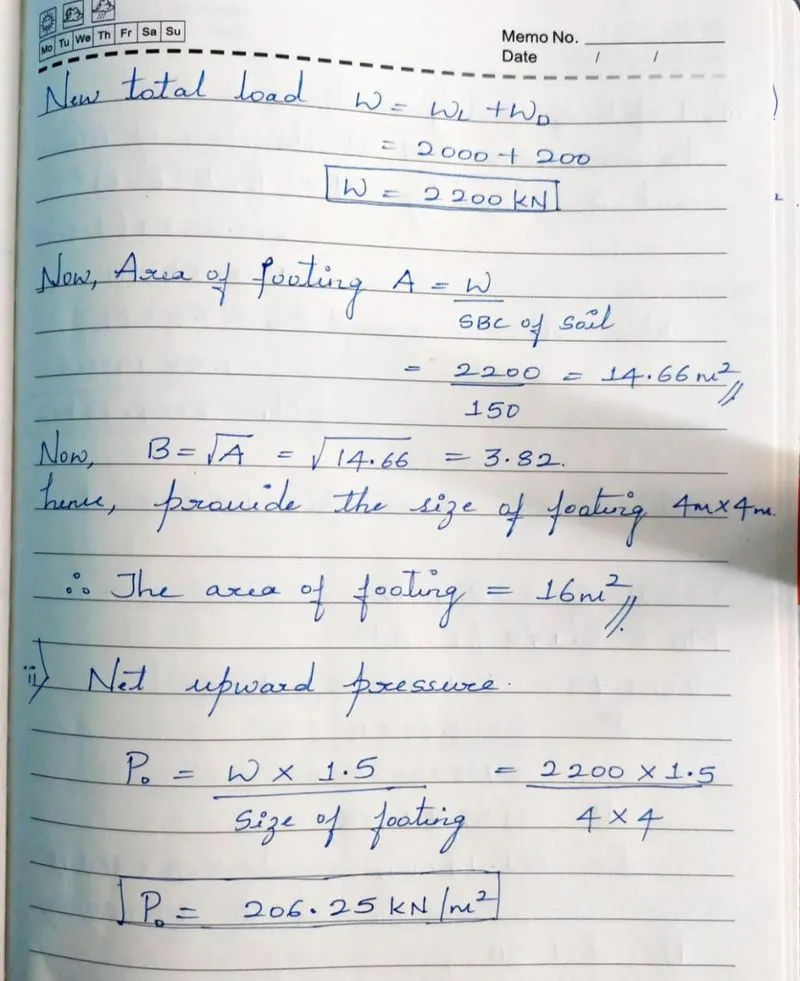

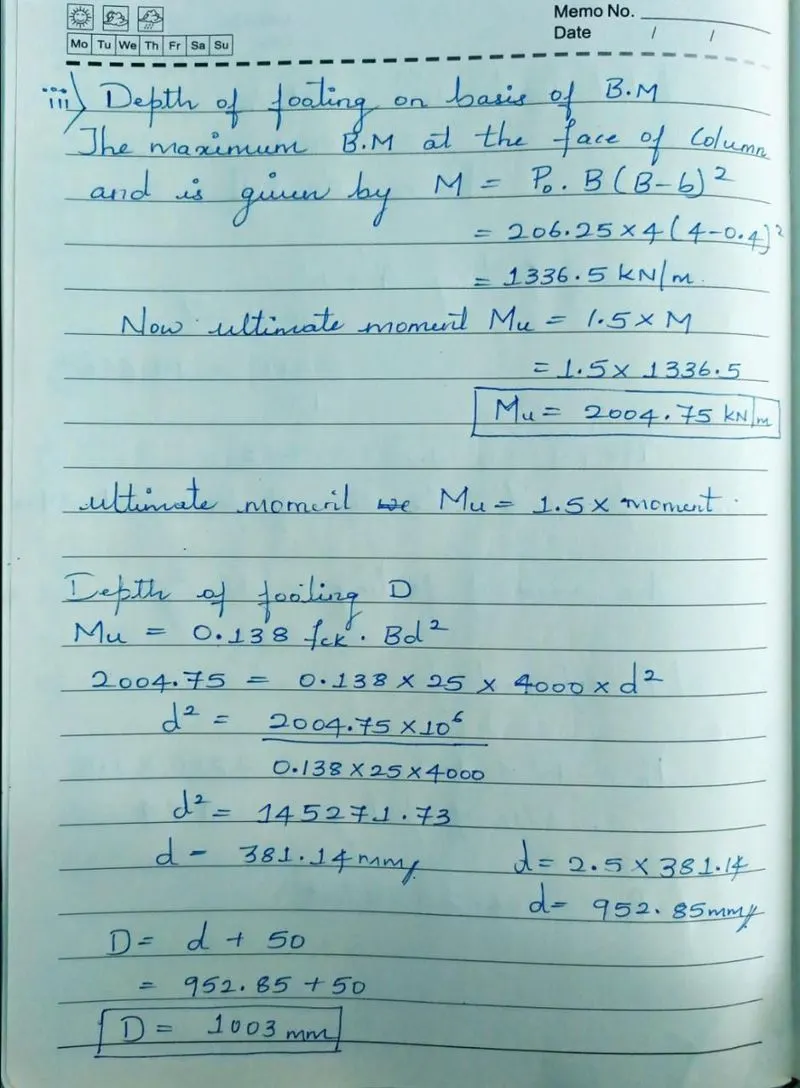

Calculations:

Result: It has been successful to design the square footing using the provided information.
