Design of Shallow Foundation (Isolated Footings)

AIM:

To design a square footing for a column of size 400x400 using some of the informations such as

• The compression axial load for the load combination of (1.5 DL + 1.5 LL) = 2000 KN.
• The safe soil bearing capacity = 150 KN/m2 at a depth of 2 metres below E.G.L.
• Grade of concrete = M25

Introduction:

• Footings and other foundation units transfer loads from the structure to the soil or rock supporting the structure.
• The distribution of soil pressure under a footing is a function of the type of soil and the relative rigidity of the soil and the foundation pad.

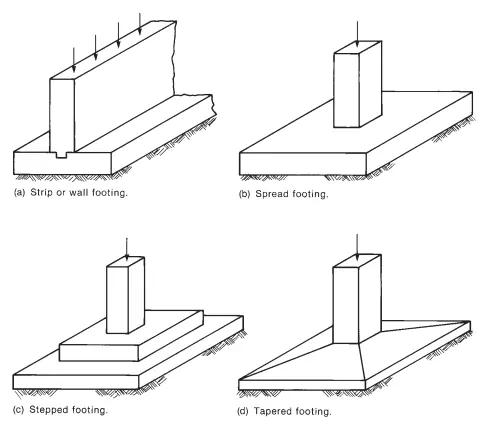

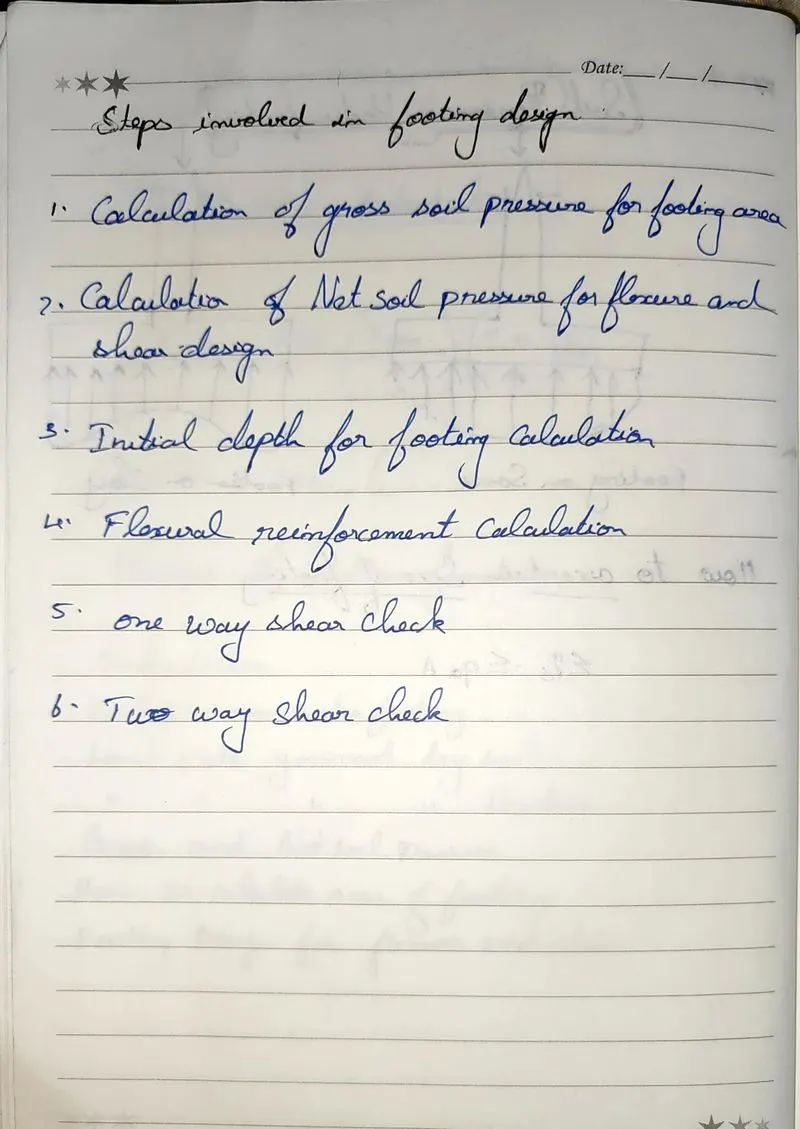

• Most common types of footings used are:
  • Strip or wall footing
  • Spread footing
  • Stepped footing
  • Tapered footing

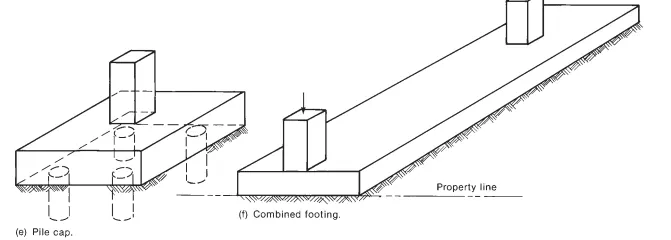

  • Pile cap
  • Combined footing

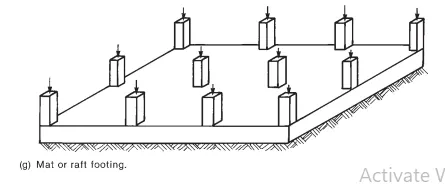

  • Mat or raft footing.

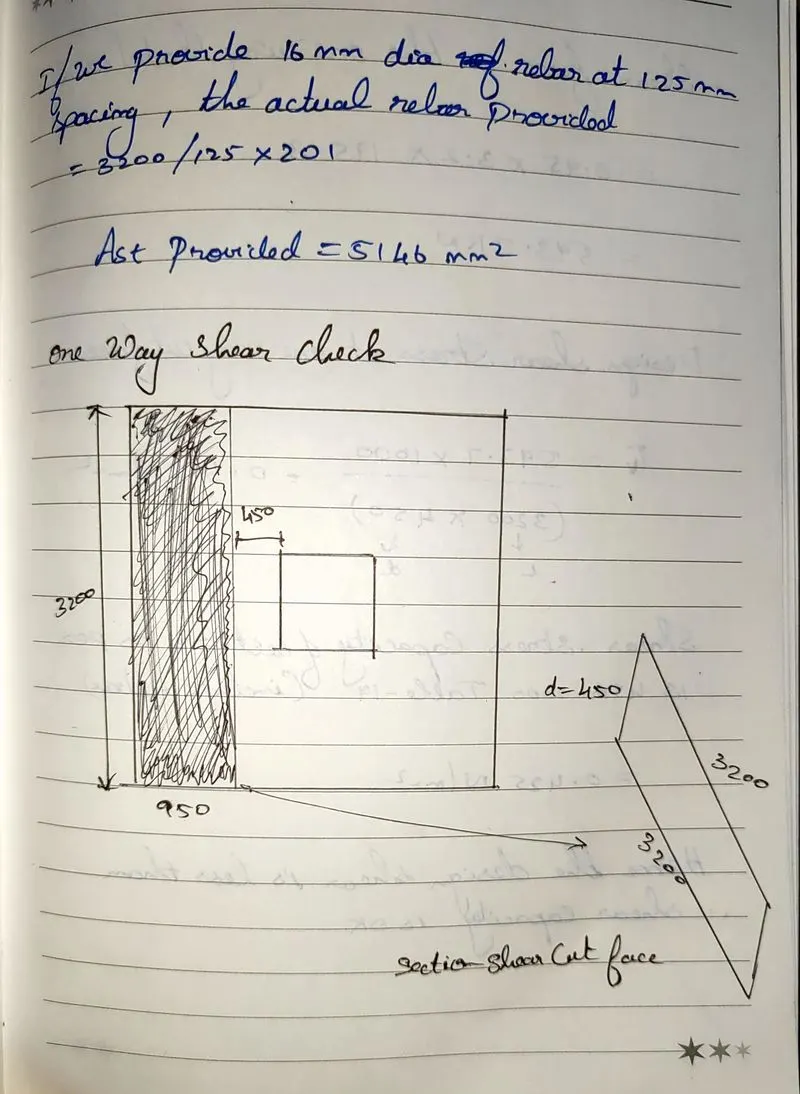

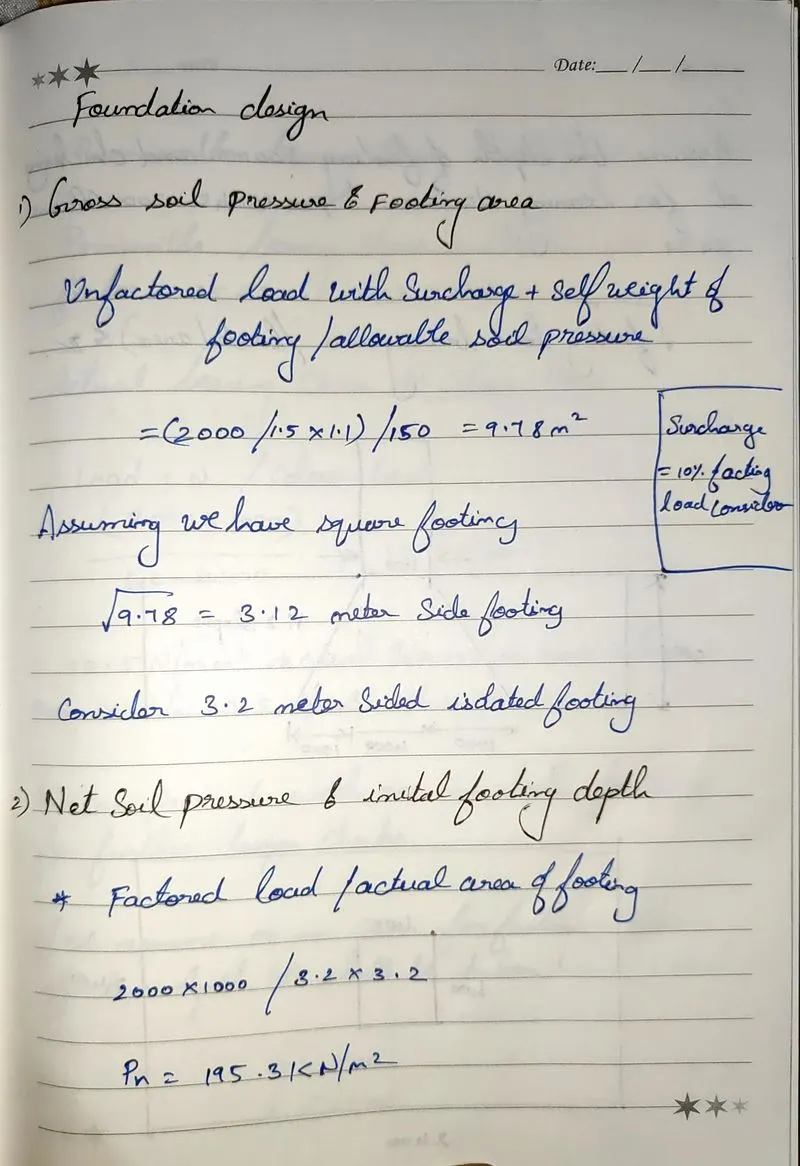

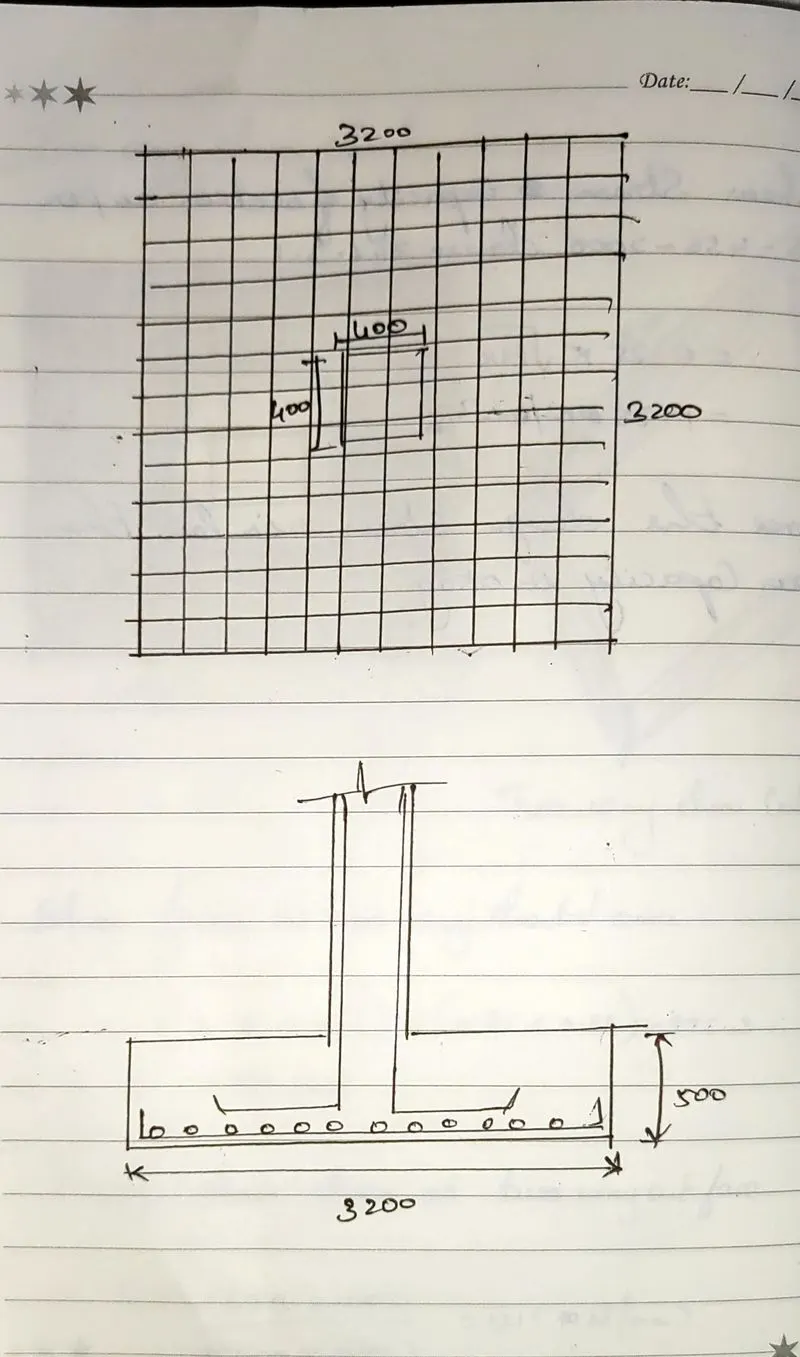

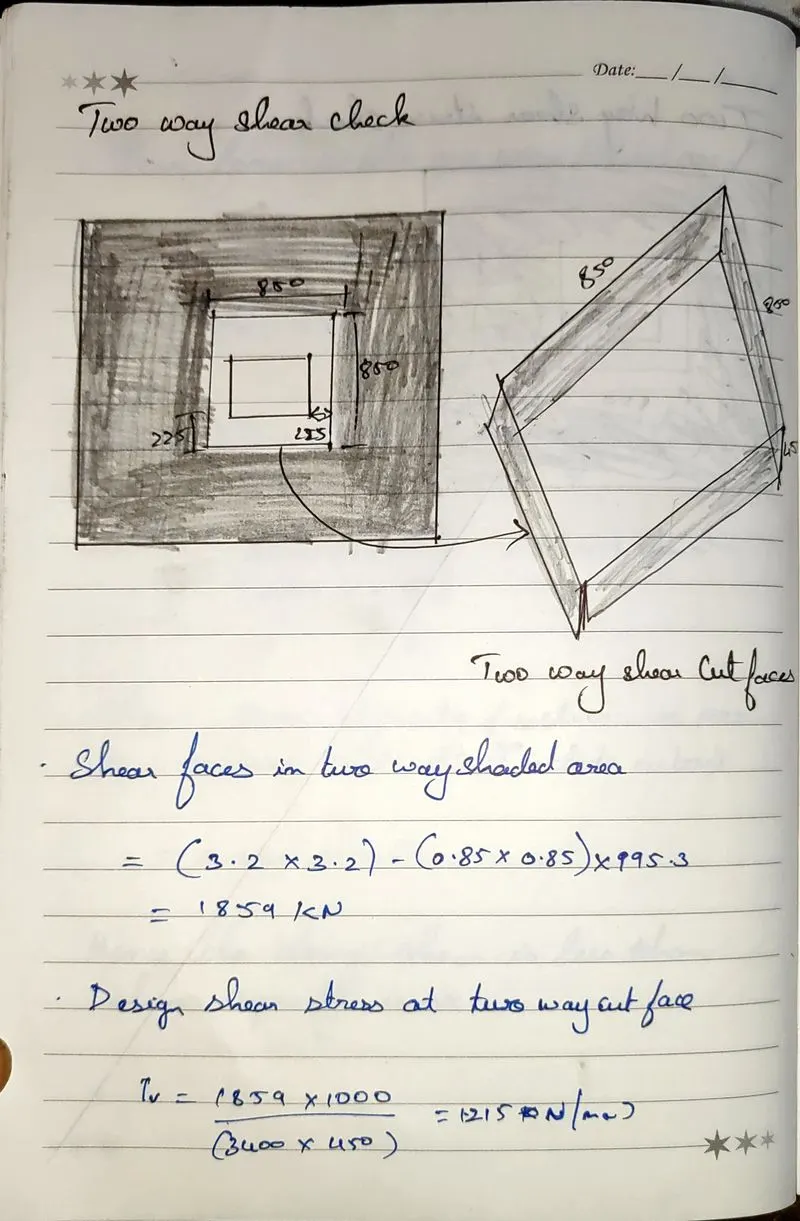

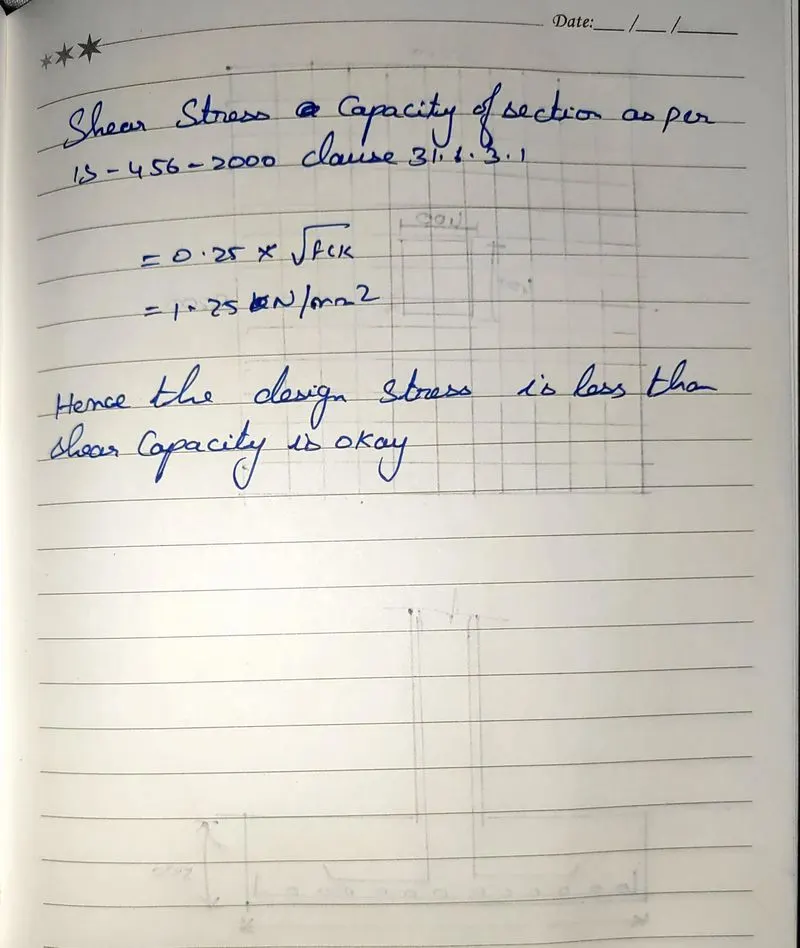

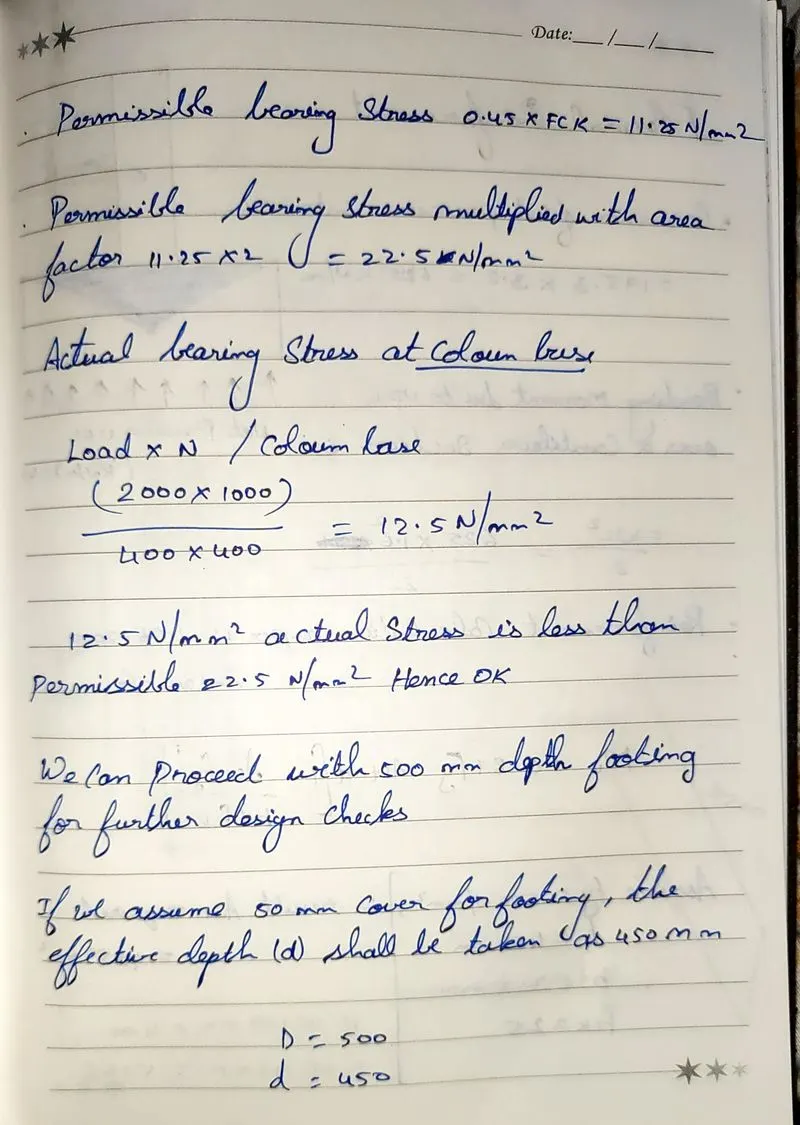

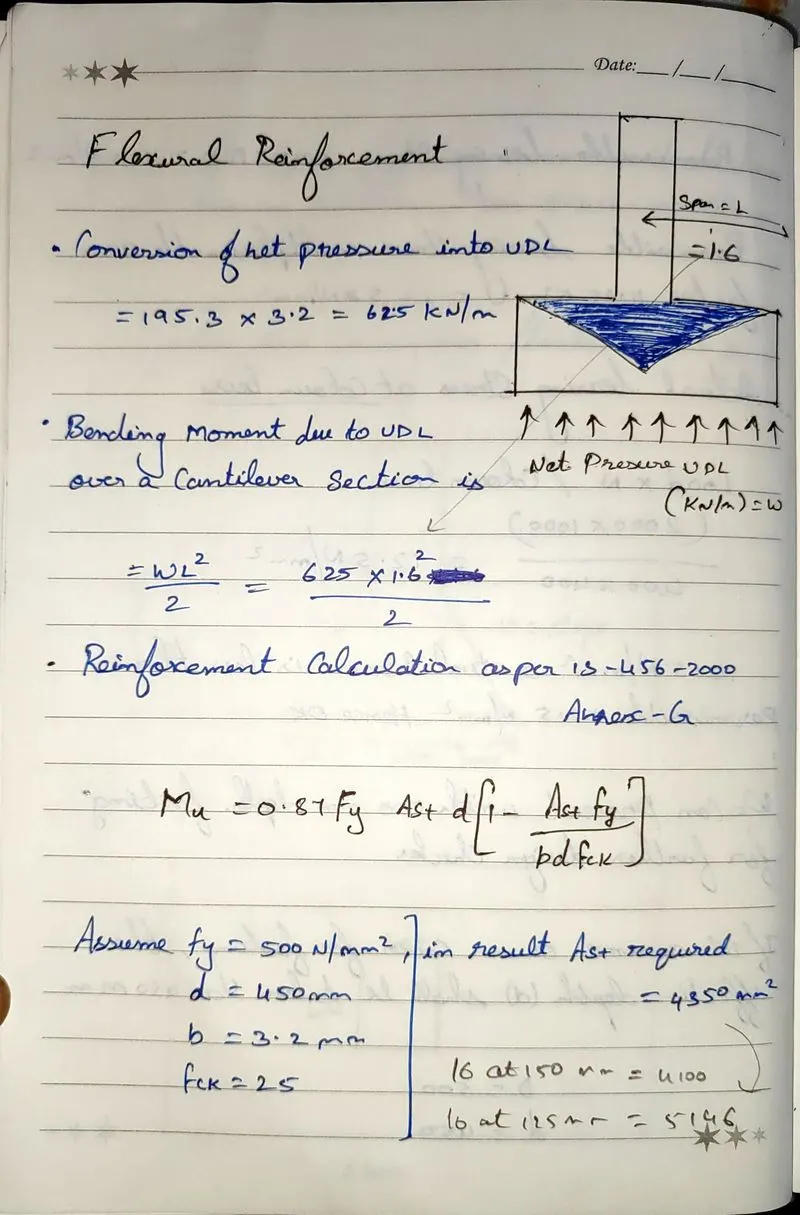

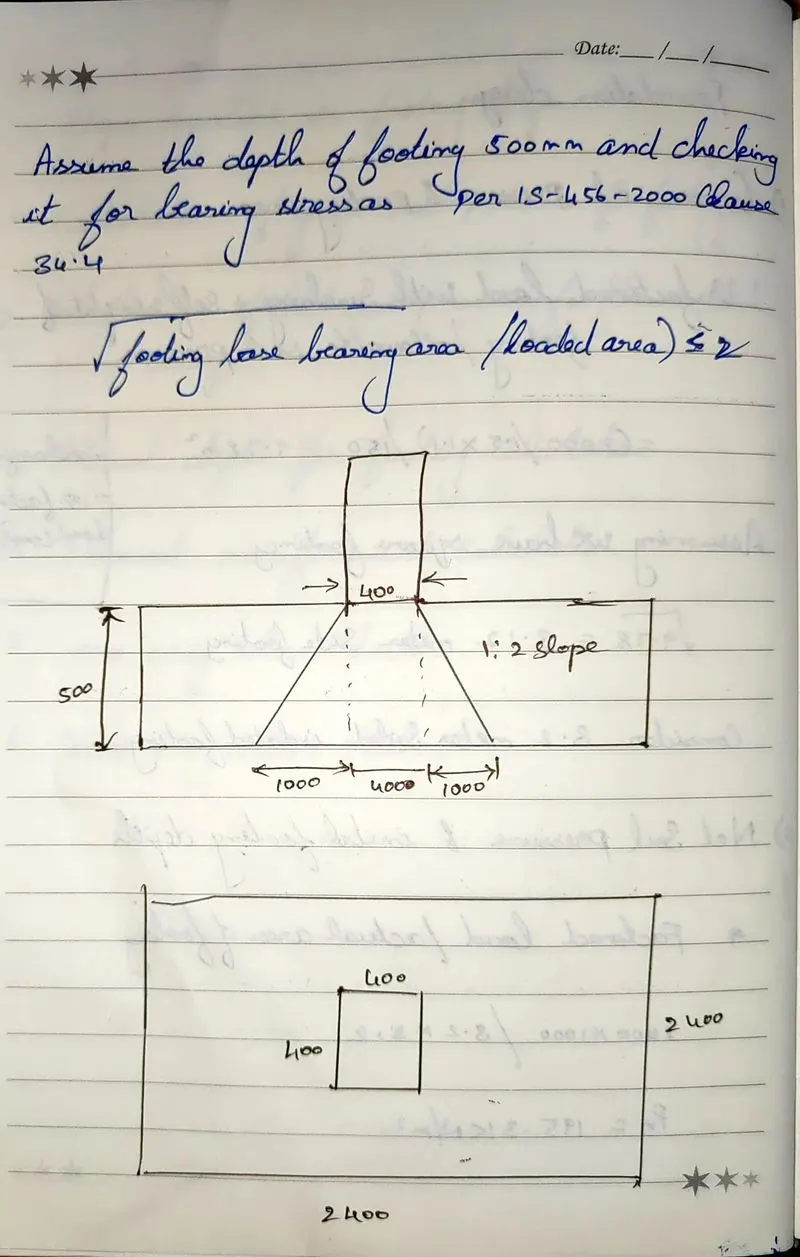

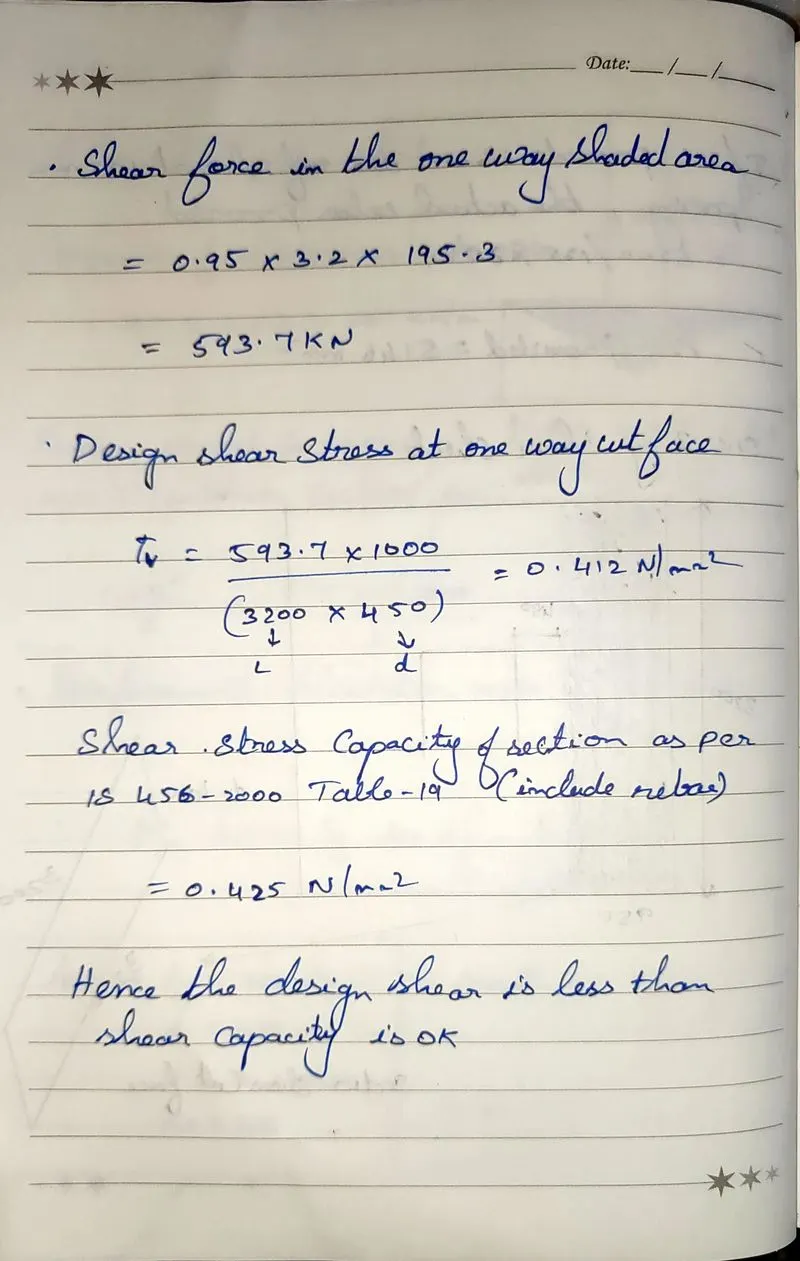

RESULT: the foundation of a shallow footing has been designed by manual is completed.
