Design of Shallow Foundation (Isolated Footings)

AIM:

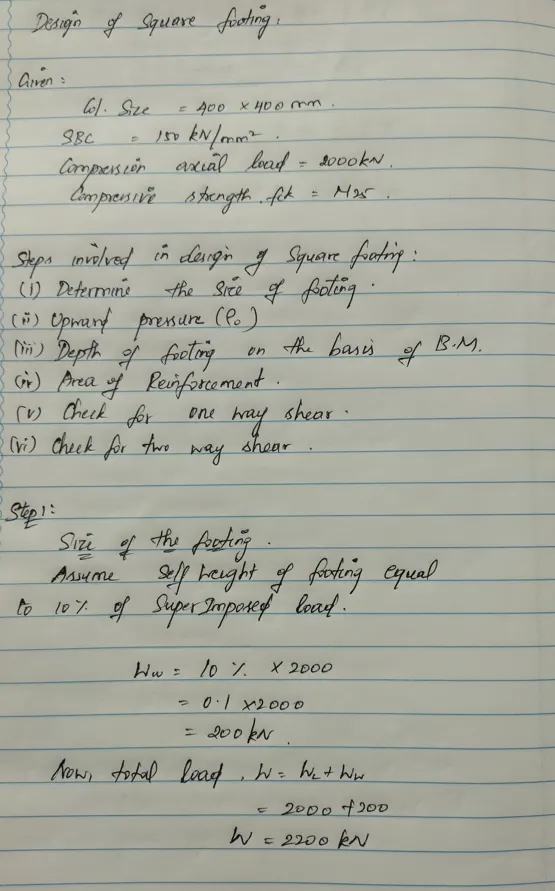

⦁ To design the square footing using the given details.

INTRODUCTION:
⦁ Footings which are provided under each column independently are called as Isolated footings.
⦁ They are usually square, rectangular or circular in section.
⦁ Footing is laid on PCC. Before laying PCC, termite control liquid is sprayed on top face of PCC to restrict the termites to damage the footing.
⦁ Isolated footings are provided where the soil bearing capacity is generally high and it comprises of a thick slab which may be flat or stepped or sloped.
⦁ This type of footings are most economical when compared with the other kind of footings.

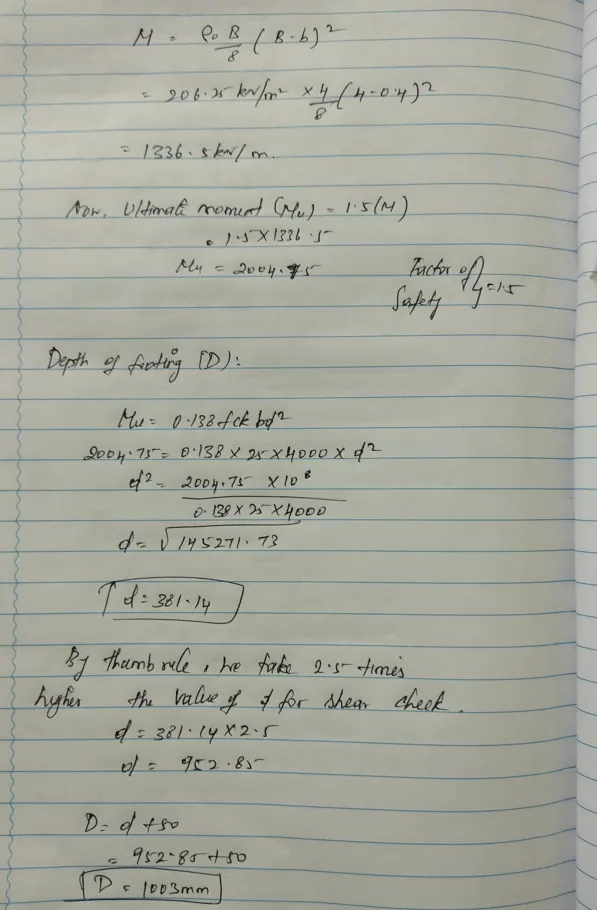

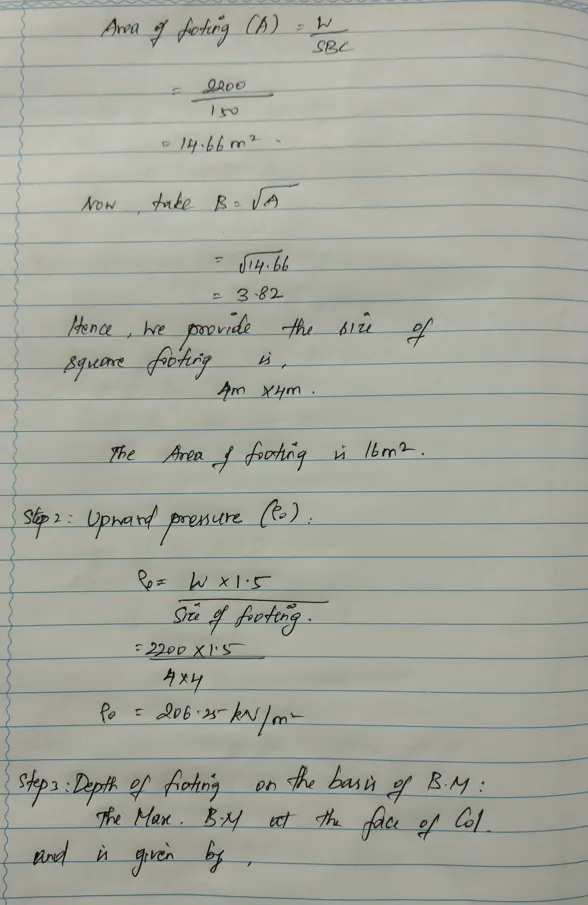

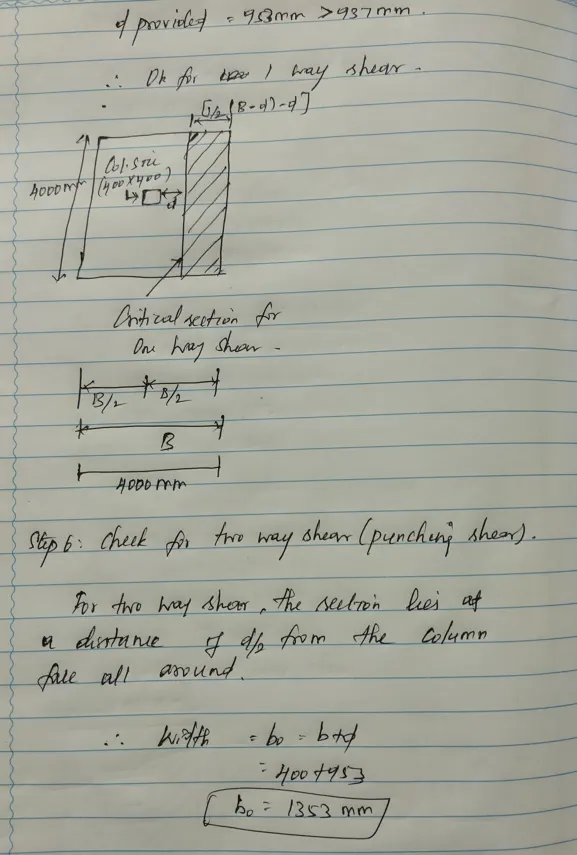

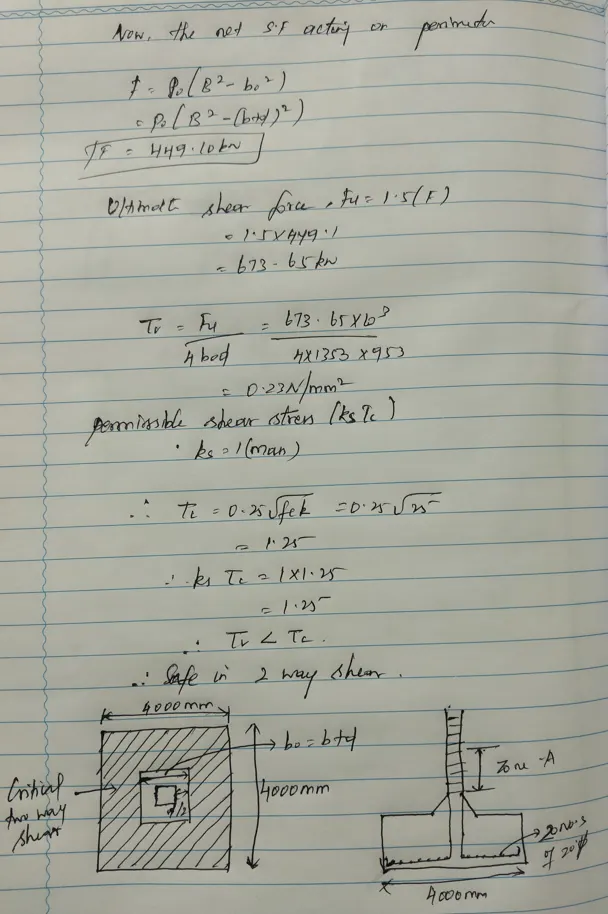

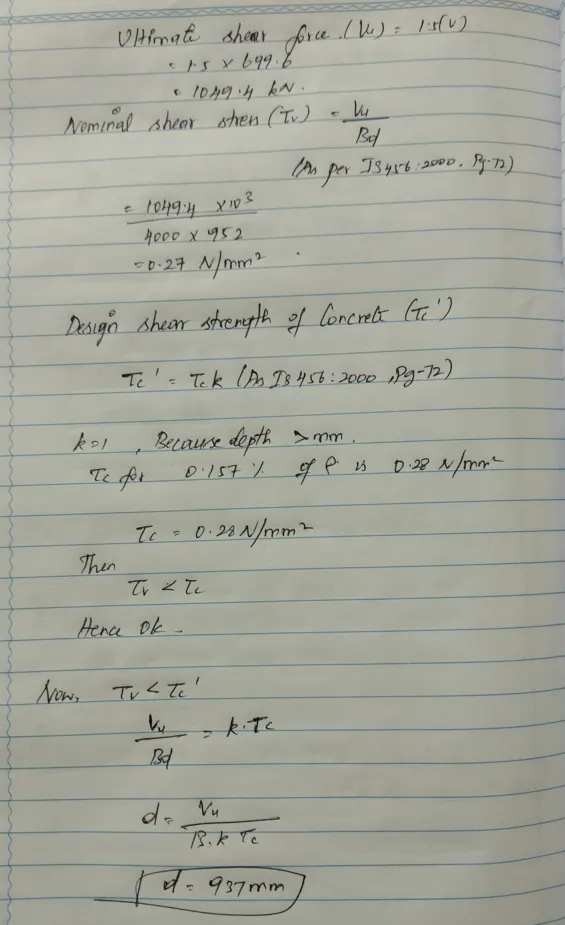

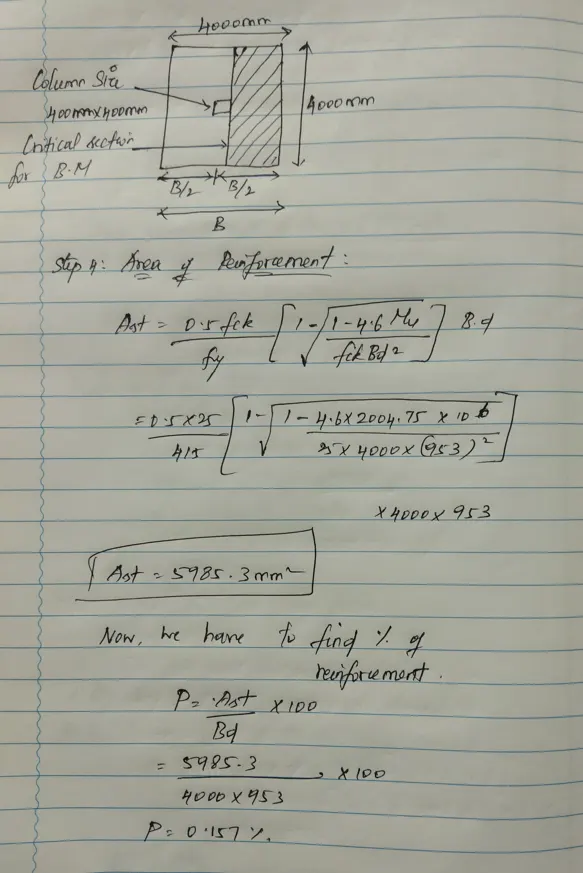

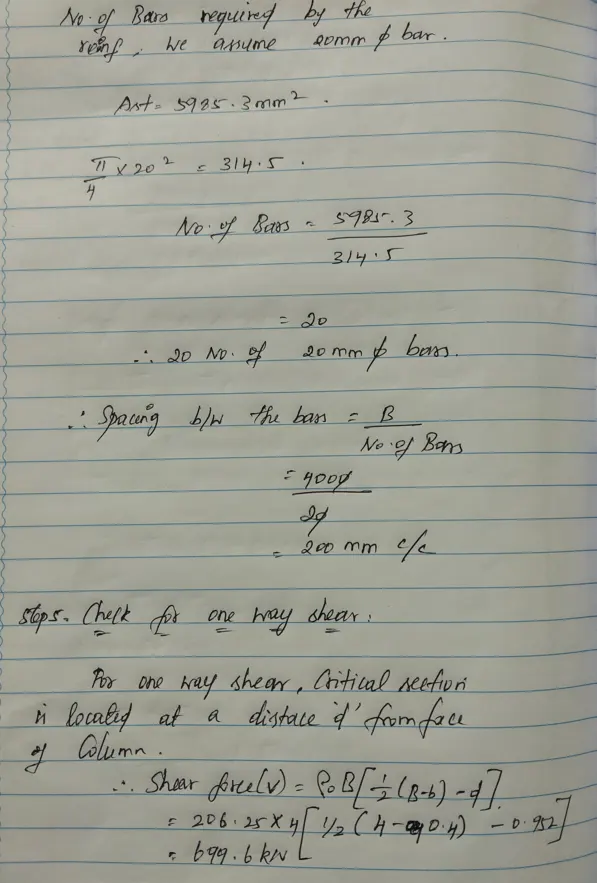

PROCEDURE:

RESULT:
⦁ The square footing is designed successfully by using the given details.
