Design of backdoor

BACK DOOR DESIGN

- MAYANK TIWARI

AIM - TO DESIGN BIW BACK DOOR USING PROVIDED STYLING SURFACE,WITH APPROPRIATE DESIGN METHODOLOGIES.

OBJECTIVE - 1. CREATION OF INNER PANEL,OUTER PANEL,REINFORCEMENTS FOR HINGE,GAS STAY,WIPER MOTOR & LATCH AREA.

2. PROPER DRAFT SHOULD BE MAINTAINED IN ORDER TO ENSURE WHETHER IT IS SATISFYING THE DEEP DRAWING REQUIREMENTS FOR THE TOOLING DIRECTION OR NOT.

SOFTWARE USED - SIEMENS NX

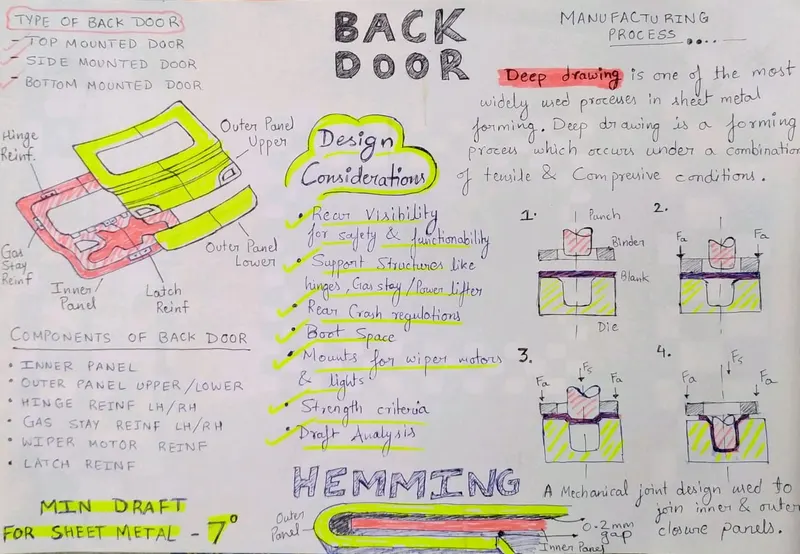

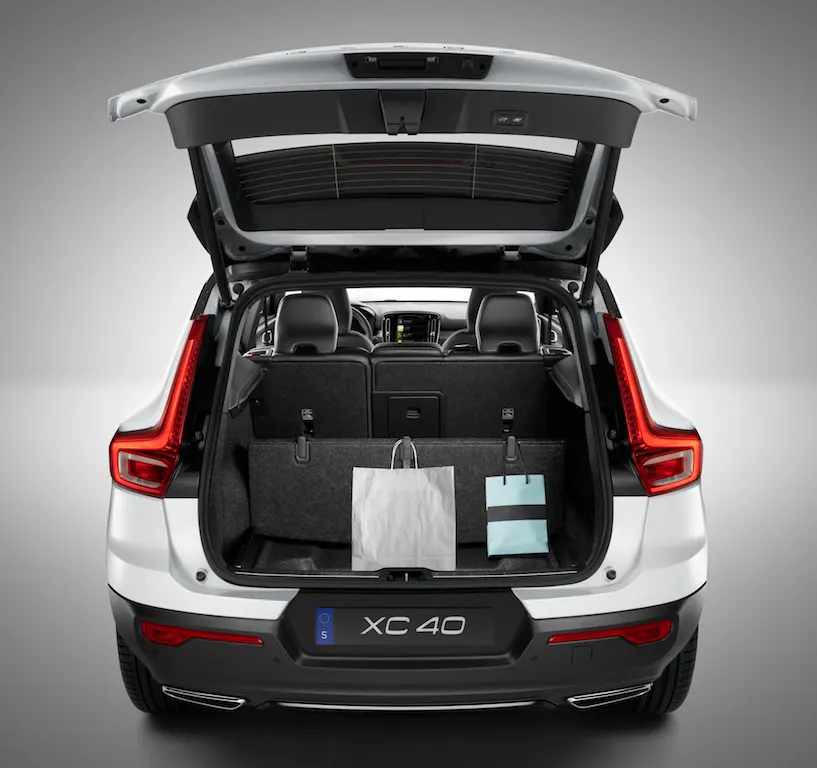

INTRODUCTION OF BACK DOOR -

STEPS INVOLVED - 1. CHECKING FOR ANY IRREGULARITIES IN GIVEN CLASS A SKIN DATA.

2. CREATION OF SEALING FLANGE.

3. CREATION OF TOOLING DIRECTION.

4. CREATION OF INNER PANEL / OUTER PANEL UPPER,LOWER.

5. CREATION OF MASTIC REGION & EMBOSSES.

6. CREATION OF REINFORCEMENTS FOR HINGE,GAS STAY WIPER MOTOR & LATCH AREA.

7. CREATION OF HEMMING & CHECKING THE DRAFT

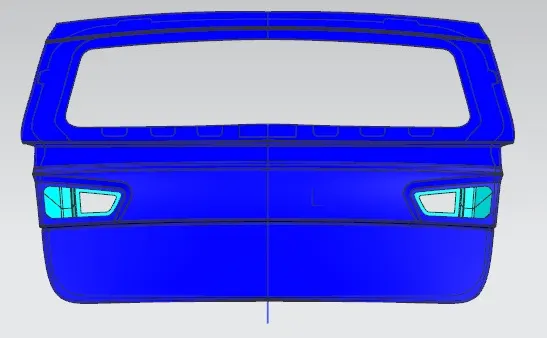

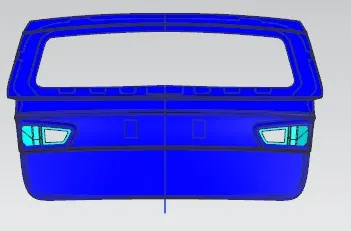

# BACK DOOR OUTER PANEL

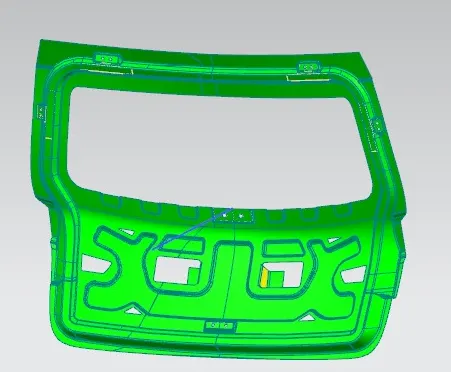

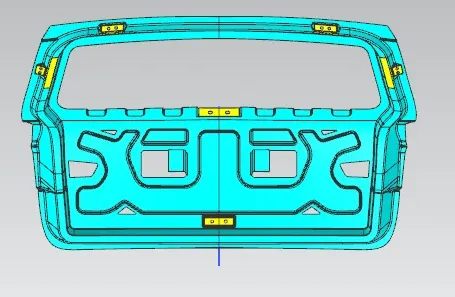

# BACK DOOR INNER PANEL

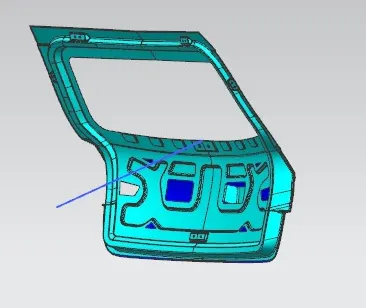

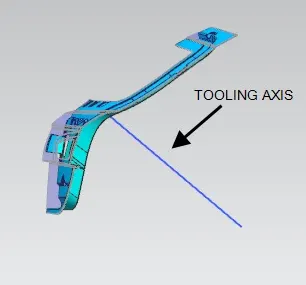

# TOOLING DIRECTION

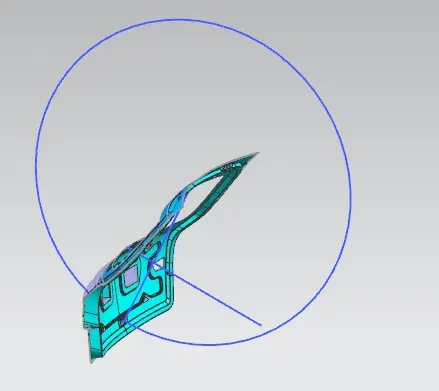

# LATCH & STRIKER TRAJECTORY

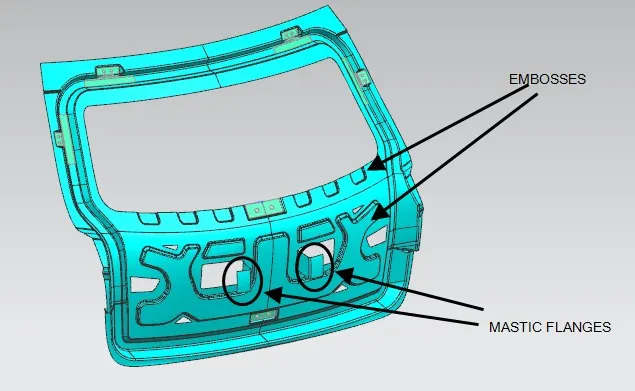

# CREATION OF MASTIC REGION & EMBOSSES

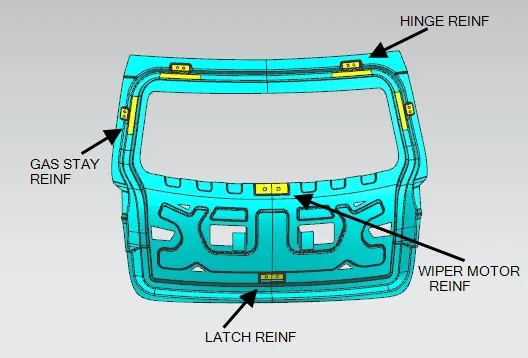

# CREATION OF REINFORCEMENTS FOR HINGE,GAS STAY WIPER MOTOR & LATCH AREA.

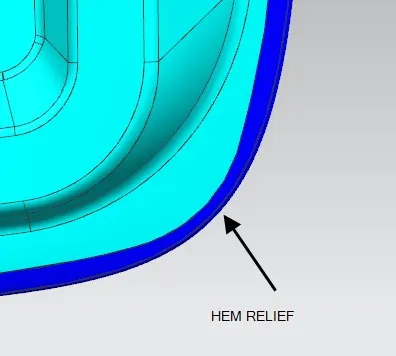

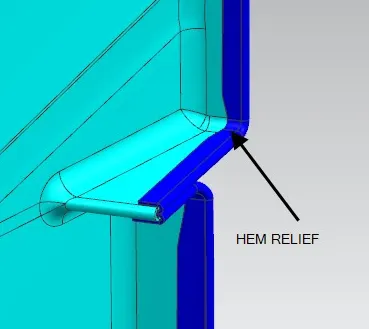

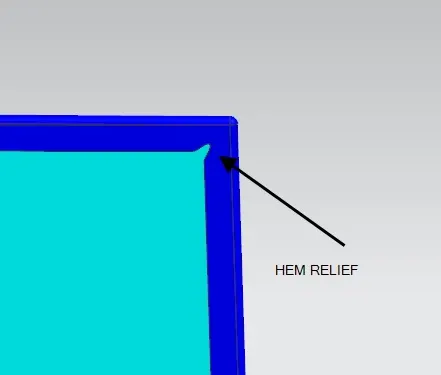

# HEMMING

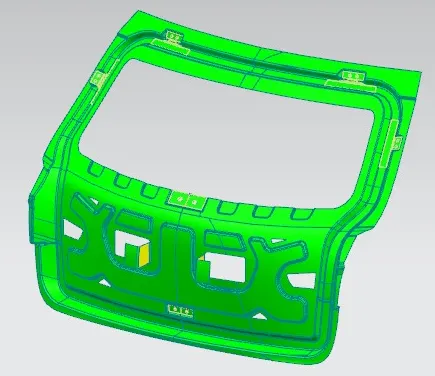

# DRAFT CLEARANCE CHECK

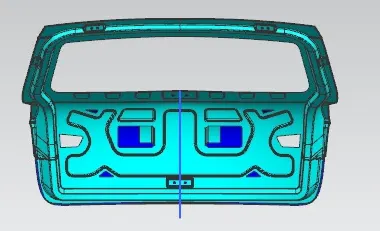

# SCREENSHOTS IN DIFFERENT VIEWS

.

# CATPART FILE IS ATTACTHED BELOW
