Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1.

Aim:

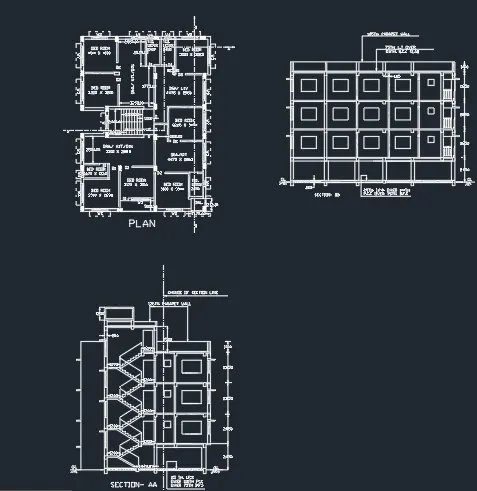

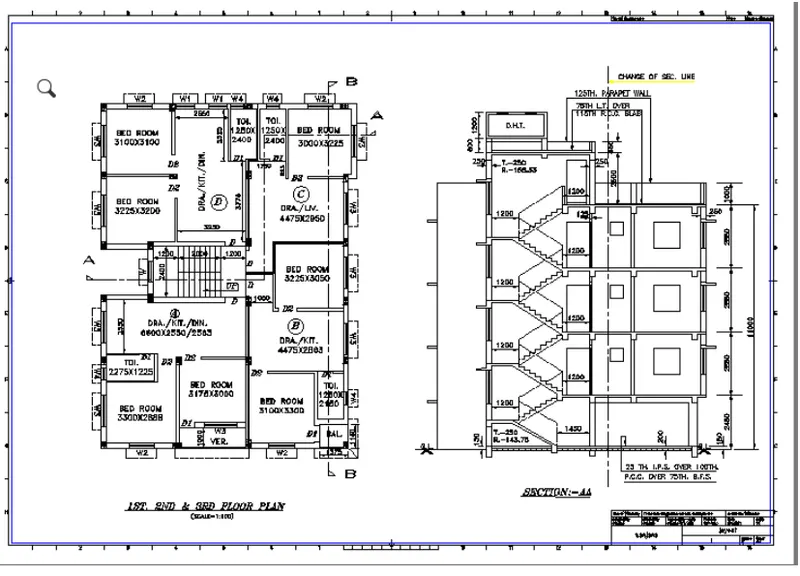

To create a layout of the plan and section A of the project in challenge 7

Procedure:

•
• In the command prompt type layout>template>Tutorial arch.m
• In the command prompt type Ms to specify the center of the plot.
• Then click on the little box to edit the title
• In the command Prompt type Mv to add the view
• In the command prompt type ctrl+p to plot it

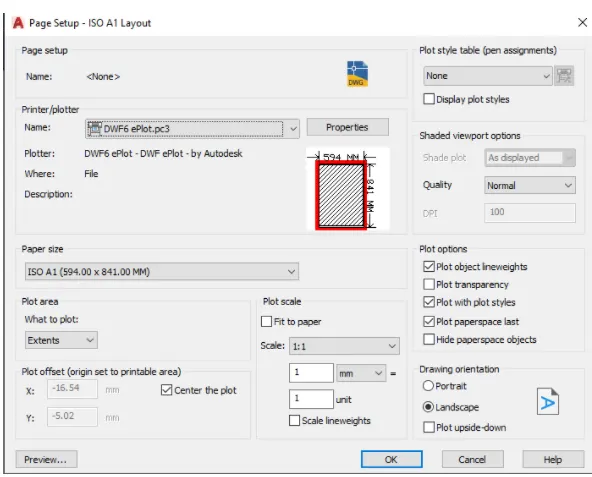

• In the command prompt type page setup.
•

Result:

____________________________________________________________________________________________________

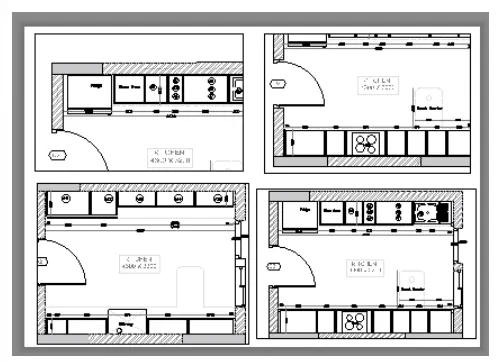

Aim:

To create the layout of the kitchen drawn in challenge 9.

Procedure:

• In the command prompt type ps and ms to adjust the view.

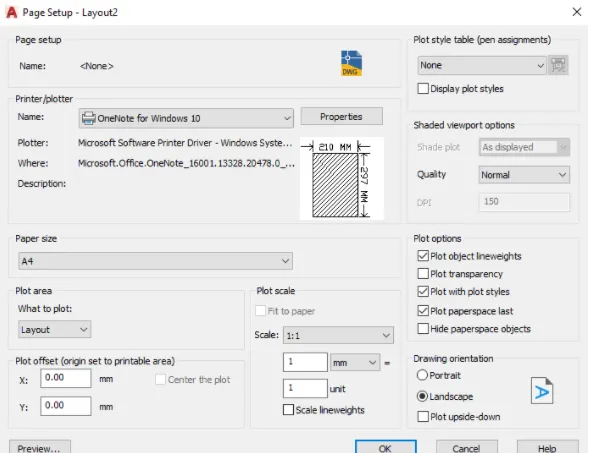

• In the command prompt type page setup to make a size to A4 change.
• Click on the arrow mark to change the view
•
•

Result:

____________________________________________________________________________________________________

3.

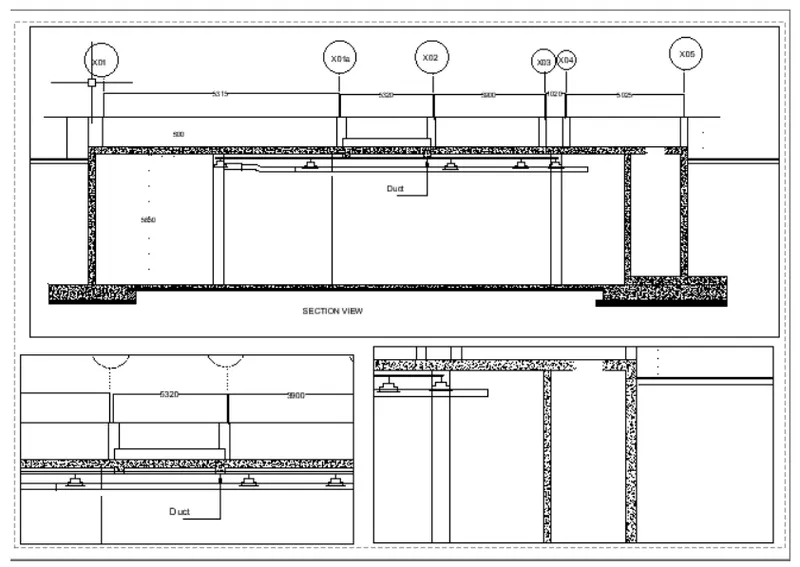

Aim:

To create the layout of the section created in challenges 9

Procedure:

• Open the file in which challenge 9 is created
• Go to layout in the command prompt type MV

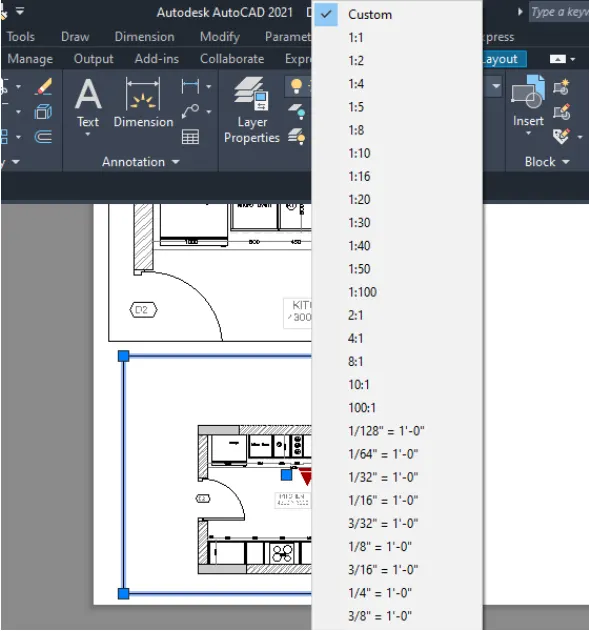

• Change the scale ccordingly
• In the command prompt using ms and ps adjust the view accordingly.

Result:
