Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1

Aim- To create a layout of plan and elevation by template and adjust scale

Procedure-

Floor plan

First conver units in millimeters in units command

Zoom enter all enter

Then use XL command and draw one horizontal and one vertical lines

Then trim on the other side which you dont want to draw

Give offset of 230 assuming on the outer walls

Then draw bedroom of using offset of 3300x2888

Then draw toilet of 2275x1225

Then trim the extra ends

Then give inner walls offset of 150 assuming

then draw bedroom and verenda of offset of bedroom of lengths 3170 x 1000 remaining of ver

Inner wall offset of 150mm

Then draw the another bedroom and toilet of 3100x3000 and toi of 1250x2150

Then give outer wall for toilet of 230mm then trim extra ends of XL line of horizontal

Then draw KIT/DRA/DIN of offset of 660x2550

Give outer wall offset 230

Then come from right side of outer wall

Draw offset for KIT/DRA off 4475x2863

With that offset create bedroom of lengths 3225x3050

Then draw the staircase of landings,riser and thread in the given dimensions

Then draw the bedroom from outer wall of lengths 3225x3220

Then draw DRA,KIT, of respected dimensions wrt the bedroom drawn

Then draw two bedrooms in the two corners as given dim

Then draw two toilet as shown

Then Cloase it with the 230 outer wall

Then Give openings of all the door given with trim command

Draw windows and ventilators of respectes places

Give dimensiond and naming to all the rooms using DT command

SECTION- AA

Procedure

First project all the coloums towares down using XL command

Strat frm the ground floor

Draw one line from one corner to other corner for sratting reference

Then give pcc of 200mm of offset

Then give offset of total height of 2450 and give slab thickness of 150 downwards

Give beam sections to downwads

Trim all coloumn in GF hence middle coloumn is not visible

Give staircase section of 143 riser and 300 thread of 7 steps towards and give landing

Continue for another circle

Join railing and stairslab with isometric command

Give window section which is cut at a section

Then give wall projection with just empty line because plane wall and lintel of windows outwards

Then go to the first floor give same projections but give

Door beside coloumn is visible

Then toilet and bedroom window is in the section is visible so draw them

Then all the three coloumns are visible

The the window on the outer wall which is cut is visible so draw it in the wallitself because only side is visible

The following first floor dimensiond is same for second and third floor hence copy and paste it in the second and the third floor

Over head tank is visible and give it in the given dimensions

By using DIMLIN command give dimensions and

By using multileader command give all the specifications

Then bt DT command give all the texts which are necessary

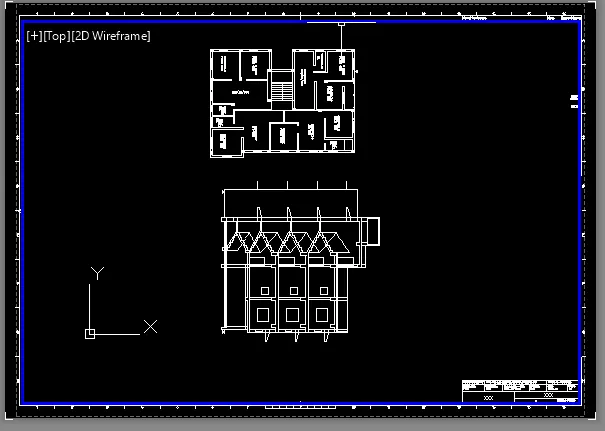

Layout

Firstly create a layout using MV command and first and last corner

LAYOUT enter and template and select MArch and ok

By two windows

MS enter and zoom and set the scale

Same as the second window and set section

Remame the ATTEDIT attribute block

Then PS enter ok

2.

Aim- To create a layout of kitchen and adjust scale

Procedure-

Use rec command and draw @4300,3200

Then give offset of 230 for outer walls

Give door openings using trim command

Draw doors using line and circle command

Then trim unnecessary lines

Draw windows as assumpted dimensions using line command

Then copy it since the outlook is same for above and below counter

For below counter

Use offset command and draw fridge of 1000 units and microvave as 600

A nd rest all as 450,300,900 as shown

Same for the above counter also

Give offset for chimney all the other blocks

A11 to A15

According to the drawings

Give dimensions using DIMLIN command

And names using DT command and specefy height as 4" and 0 rotaion

BLOCKS

If you want blocks

Enter B enter

Then select on al block

Then select the insertion point

And angle if wanted

Block is created

For insertion I enter

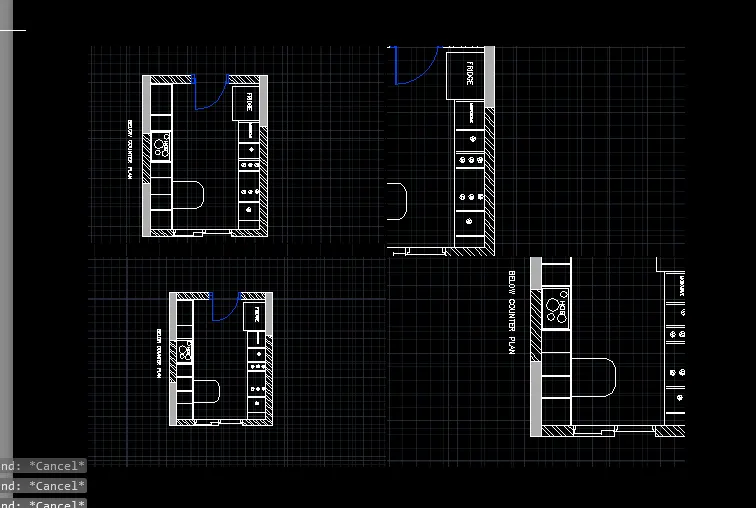

Firstly create a layout using MV command and first and last corner

By four windows

MS enter and zoom and set the scale

Same as the second third and fourth window and set section

Then PS enter ok

3.

Aim- To create a layout of section and adjust scale

Procedure-

First of all see the section where is to cut

Draw the section where is to be done

With line and rec command draw the outlay of section

Offset outer wall of 300mm

Then the bottom of 450 and extend it with line commandSeperate the pump room and filter feed tank

With the offset command and draw the wall thickness

Draw the duct as shown in the figure

With the line command draw the all appropriate sections and measurments

Use DT command write all the properties

Use DIMLIN command and give all the dimensions

At last use HATCH command and hatch all the walls as shown by leaving manhole

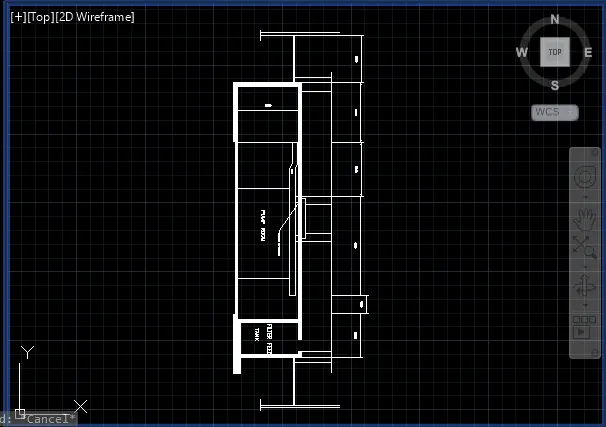

Firstly create a layout using MV command and first and last corner

By one windows

MS enter and zoom and set the scale

Then PS enter ok
