Creating a Floor plan, Footing detail and Isometric view using AutoCad

Aim-

To draft all the floor plans , footing and isometric drawings using auto cadd

Procedure-

1.

First take the rectangle command as rec enter in command box

Then give the values of the botto rectangle as (@0.90,0.25)

Then give the values of next (@0.50,0.40) the both centres should be placed in one point using snap

Then give the values of next (@0.40,0.40) the both centres should be placed in one point using snap

Then give the values of next (@0.50,0.40) the both centres should be placed in one point using snap

Then give the values of next (@0.30,1.90) the both centres should be placed in one point using snap

2.

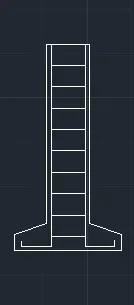

Use line command and draw bottom line with 1 unit length

Then draw two adjacent lines with length of 0.15

By angle of 45^ draw them each others as shown in fogure

Leave space for reinforcement in middle

Drag lines to top for coloumn of length 1.60

With off set command add reinforcement with cover of 0.04 in all sides

By using same command draw stirrups of spacing 20

3-

By using line command the entire drawing is drafted

Activate line command in ribbon

Start line from any point and give distances of 3.60 on left either sides

Right side length is 4.60 and steps by using offset of 0.30 lengths

4.

Activate the rectangle command in command box

Give dimensions of (@0.90,0.45)

Then give (@0.60,0.40)

Then give (@0.50,0.40)

Then give (@0.40,0.60)

Then give (@0.30,1)

It will be done

5-

Here the entire process is done in isometric

Activate isometric command left side

Line command is started

Click anywhere for first point

Then 90 degrees for riser of length 0.15

Then 30< for thread of 0.30 length in isometric angle

Continue for 5 steps

Then width is taken as 1 and join all of them as shown in diagram

6-

Isomerti command is must activates

Take line command from ribbon

Then start a point anywhere

First give thickness as 0.30

Then give height at 90^ and height of 3

Same on the another side buth not thickness because only one side is visible in isometric view

Give door dimensions height if 2.42 and thickness of 0.30

Then give the roof it shoulb be the height of 3.25 from below
