Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

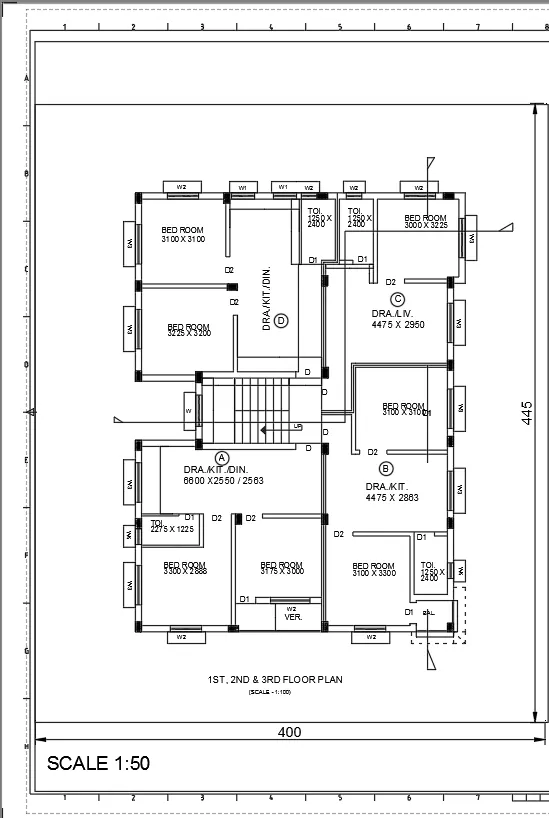

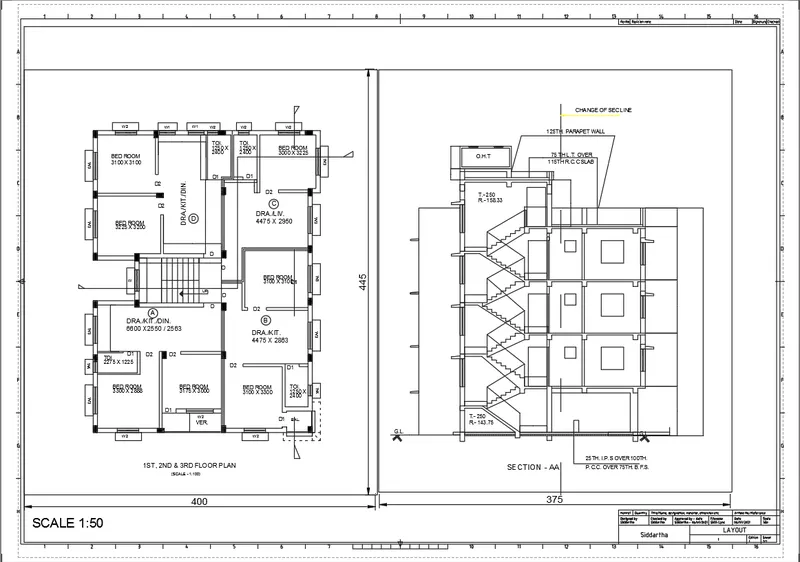

Q1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.
AIM: To create the layout of the plan and section A of the project in challenge 7
PROCEDURE:
STEP 1:
- In command prompt type UNITS, set to DECIMAL, precision = 0, insertion scale = MILLIMETERS
- In command prompt type LIMAX and LIMITS set to desired
- In command prompt type ZOOM, All and enter
STEP 2:

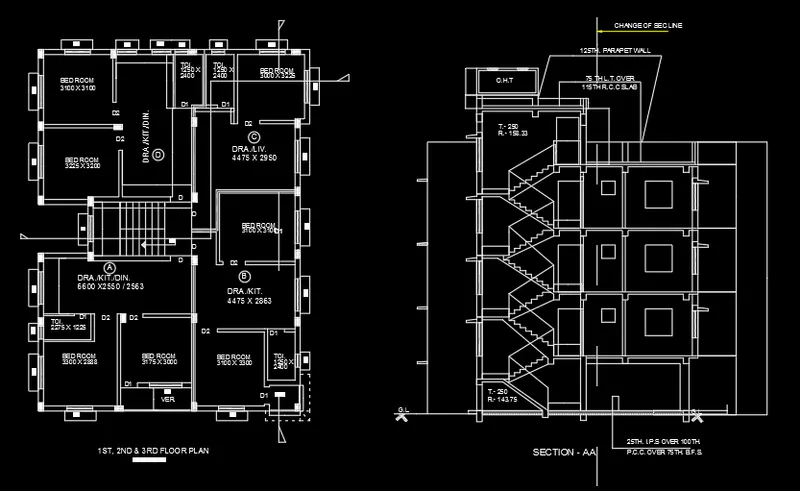

- Load the layout of the plan and section from challenge 7

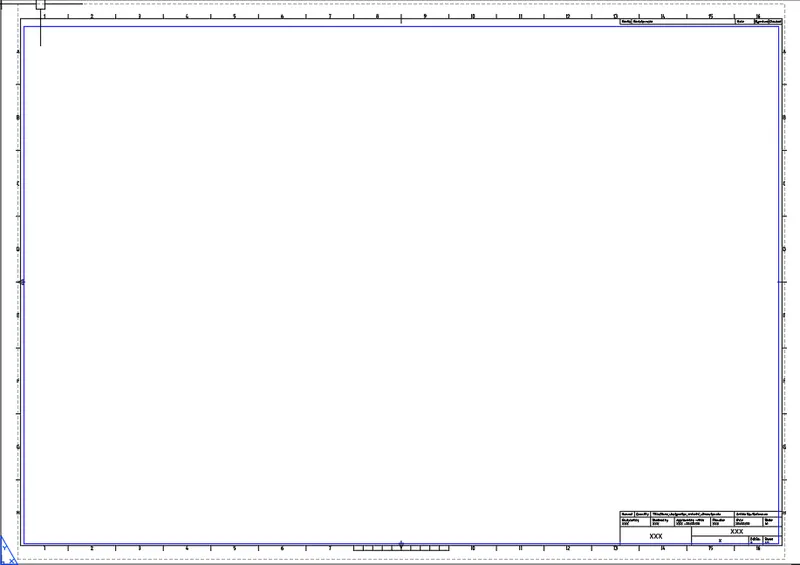

- In the command prompt type LAYOUT, select Template of Tutorial arch.m

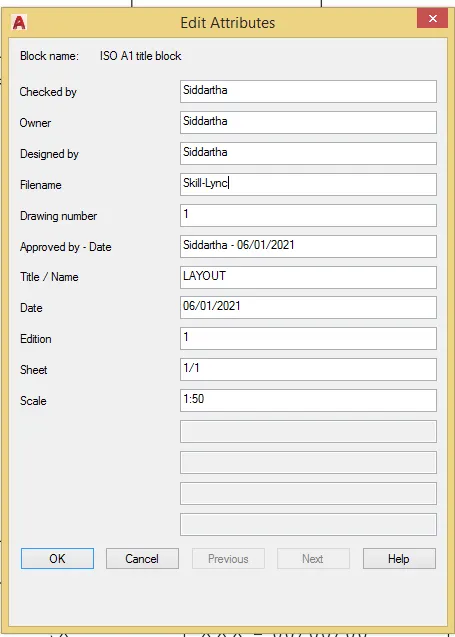

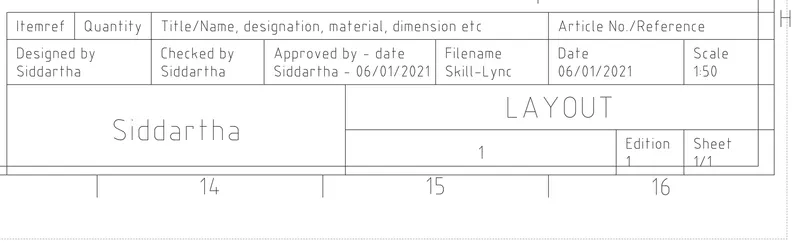

- In the command prompt type ATTEDIT, to edit the text in the information box

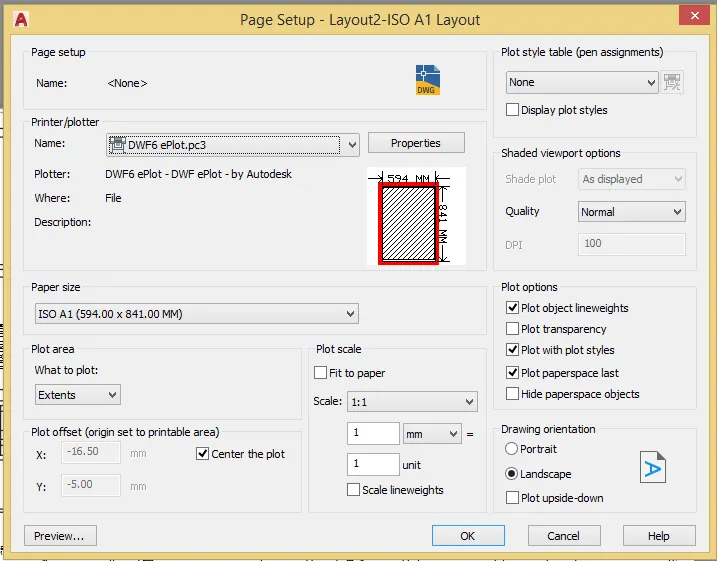

- In the command prompt type PAGESETUP, set the page to ISO A1
- In the command prompt type MV, set up the views
RESULT :
Q2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.
AIM: To create the layout of kitchen drawn in challenge 9. use A4 size page for the layout to plot
PROCEDURE:
- Load the Kitchen layout from challenge 9
- Add a new layout by selecting the add symbol in the left bottom corner

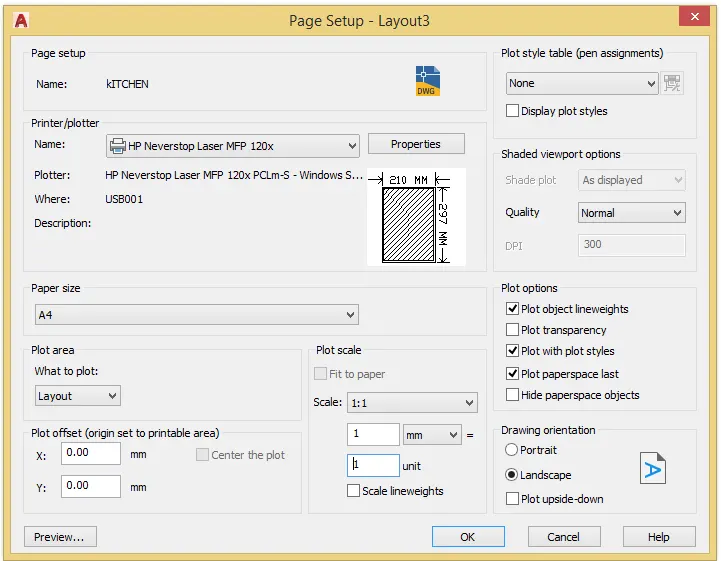

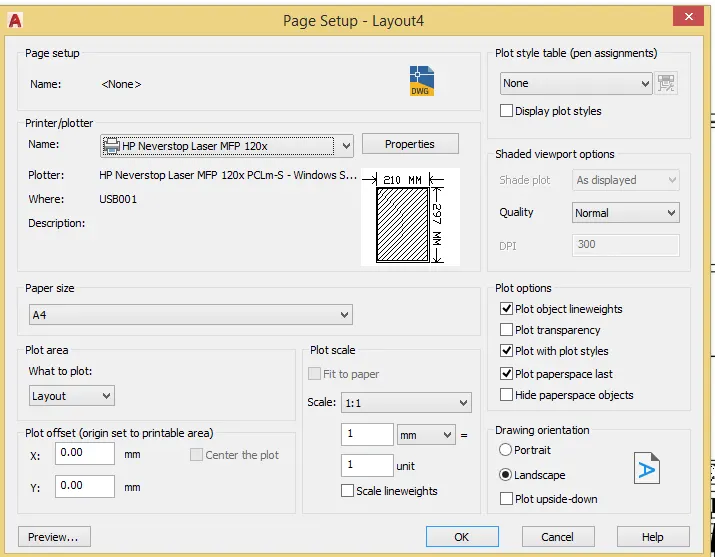

- Setup the page to the A4 size

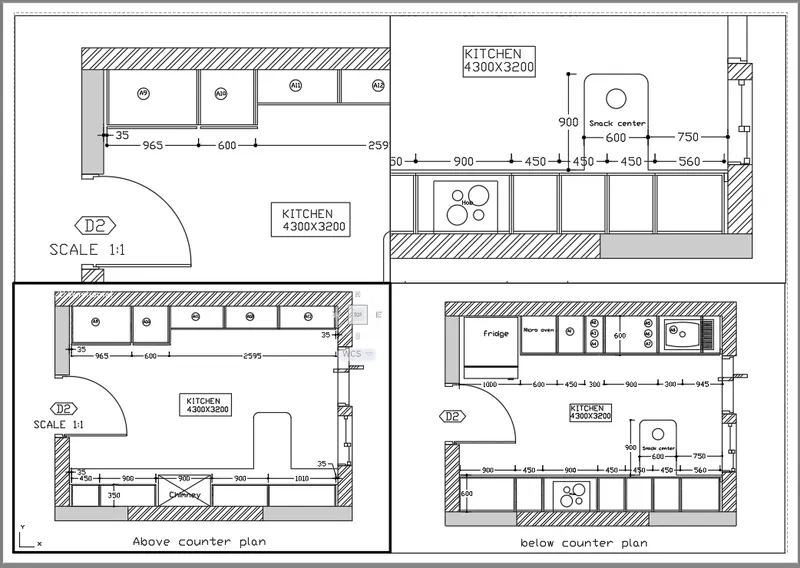

- In the command prompt type MV, set up the views
RESULT:

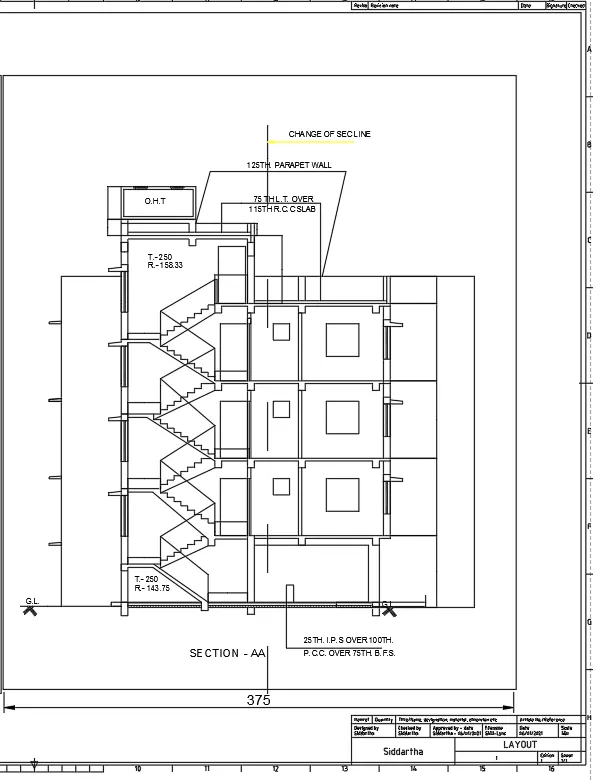

Q3. Create a layout of the section created in Challenges 9.
Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.
AIM: To create the layout of the section created in challenge 9 in multiple viewports
PROCEDURE:
STEP 1:
- In command prompt type UNITS, set to DECIMAL, precision = 0, insertion scale = MILLIMETERS
- In command prompt type LIMAX and LIMITS set to desired
- In command prompt type ZOOM, All and enter
STEP 2:
- Load the layout from challenge 9
- In command prompt type LAYOUT, set the new layout, and set the page to A4 size
- In the command prompt type MV, set up the views

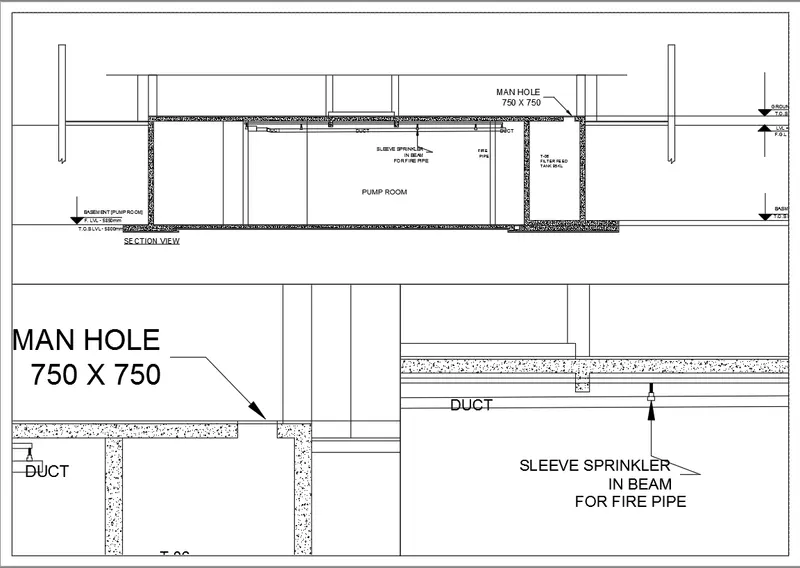

RESULT:
