Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM: To create a layout of the plan and section-A of the project in challenge 7 and take a plot using AutoCAD.

INTRODUCTION:

AutoCAD is a commercial computer-aided design (CAD) and drafting software application. Developed and marketed by Autodesk, AutoCAD was first released in December 1982 as a desktop app running on microcomputers with internal graphics controllers. Before AutoCAD was introduced, most commercial CAD programs ran on mainframe computers or minicomputers, with each CAD operator (user) working at a separate graphics terminal. AutoCAD is also available as mobile and web apps.

AutoCAD is used in industry, by architects, project managers, engineers, graphic designers, city planners and other professionals.

PROCEDURE:

Step 1: Open AutoCAD by clicking on the AutoCAD icon on the Desktop

Step 2: Start a new project by clicking Ctrl + N on the keyboard. A "Create new drawing" dialogue box will appear.

Step 3: Choose 'metric' and click OK.

Step 4: Commands used are as follows:

• Click on 'File' and then select 'Open'

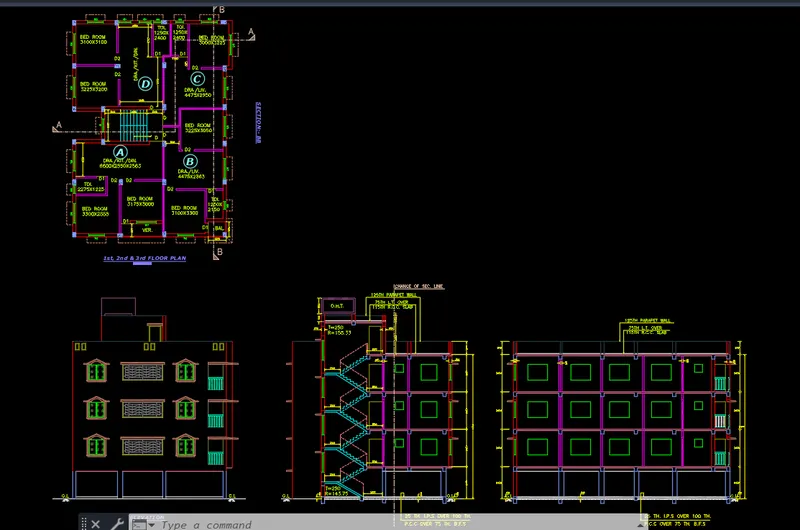

• Now Select the challenge 7 drawing and open it.

• Type 'Layout' in the command prompt and then select template.
• From the dialogue box select 'Tutorial-mArch'.
• Delete other layout from the bottom tab by right clicking of the tab and selecting the delete option.

• Rename the layout by right clicking on the bottom layout tab and selecting the option 'rename'.

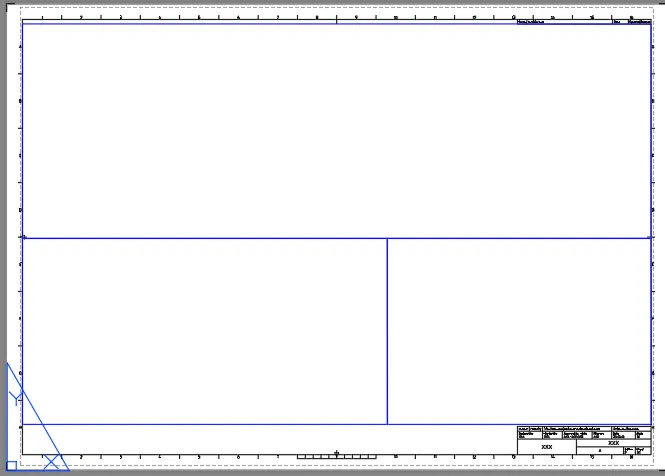

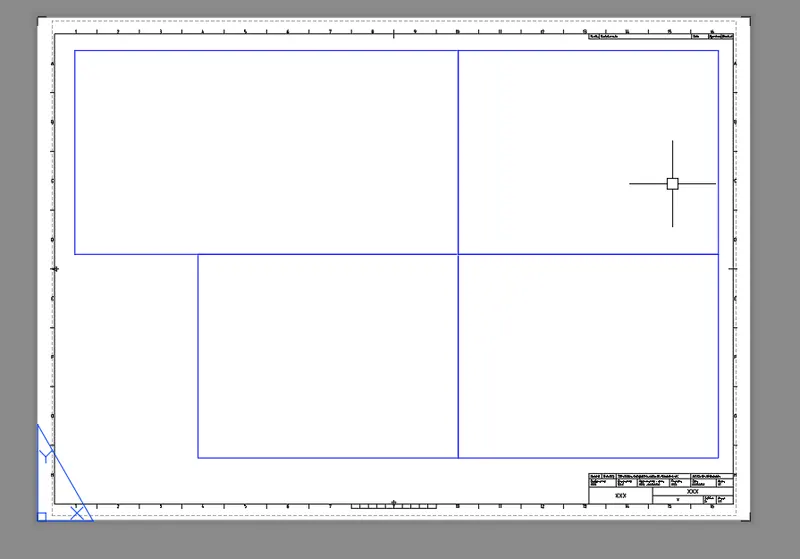

• Type rec for rectangle tool and draw two rectangles in the layout page with dimesnions 400,445 and 375,445 .
• Type 'MV' in the commant promt and select 'object' option.
• Select the rectangles previously drawn.
• Select the first view port and type 'MS' to go to model space. Now adjust the Plan of the drawing in the view port.

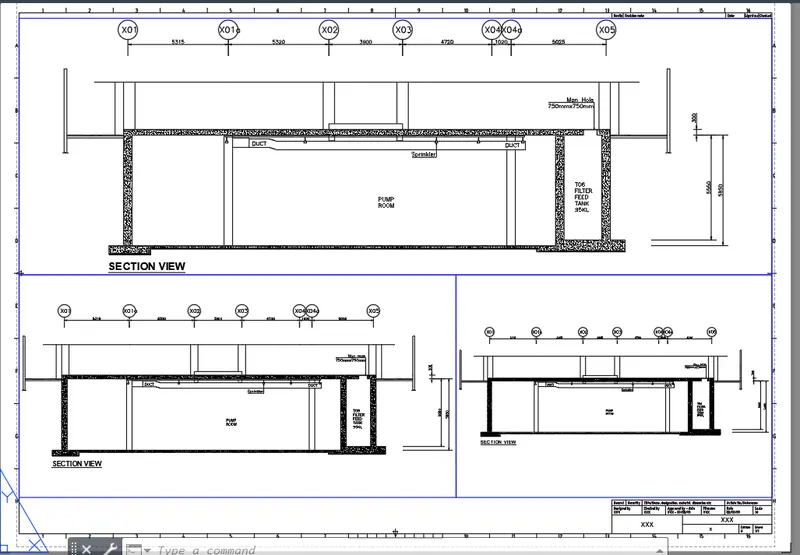

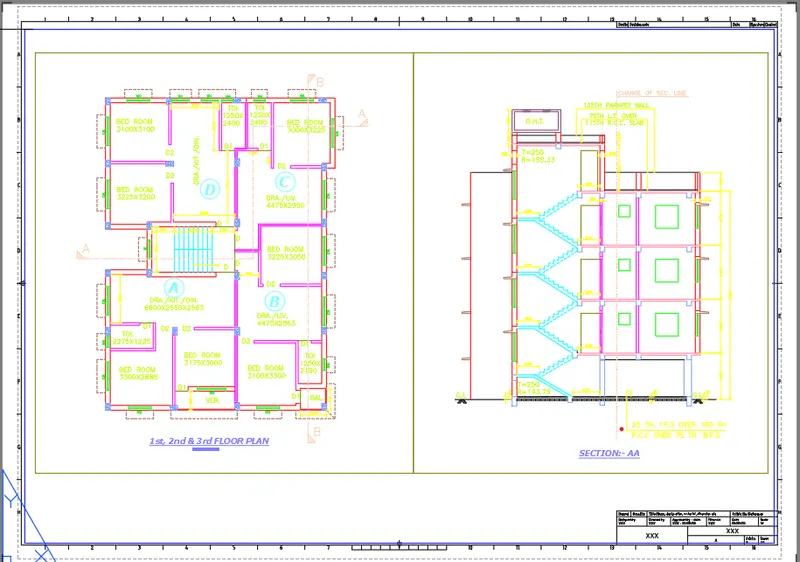

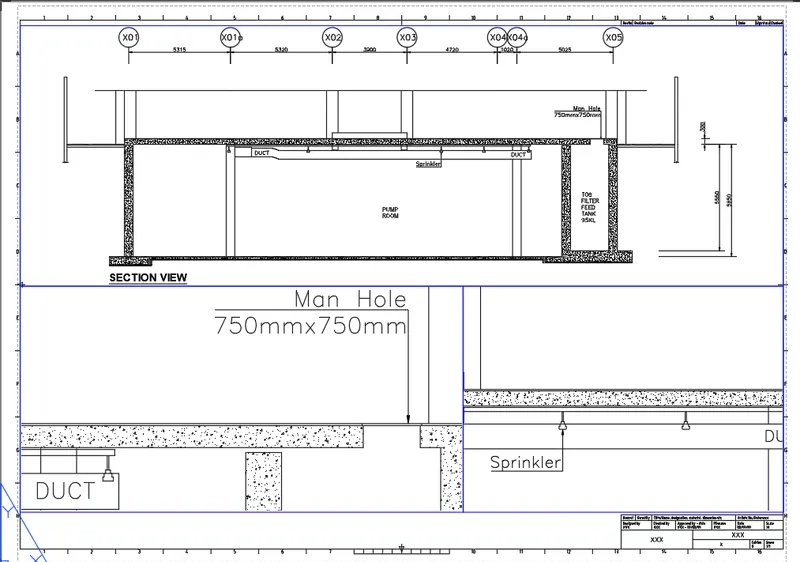

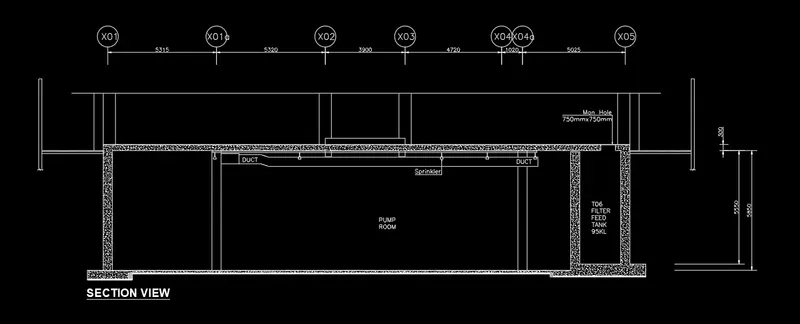

• Similarly select the other view port and from the model space adjust the section A of the drawing in the view port.
• Now Type 'PS' to come back to paper space.

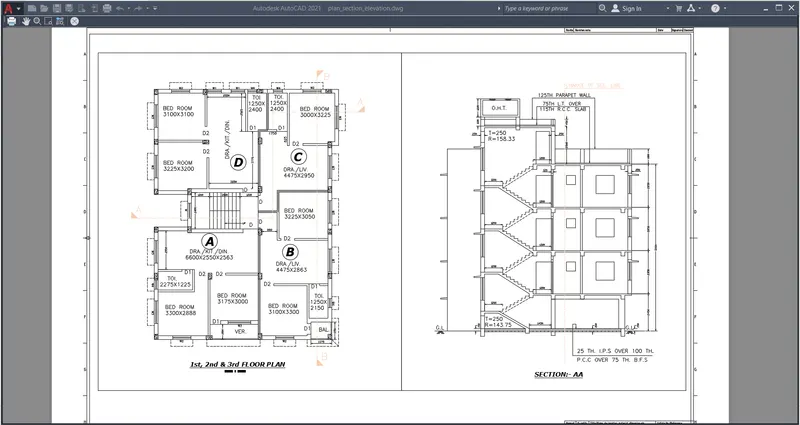

• Select the View port and adjust the scale to 1:50 from the bottom tab.
• Similarly adjust the scale of the other view port.

Type "Attedit" command and select the Template block to edit the attributes.

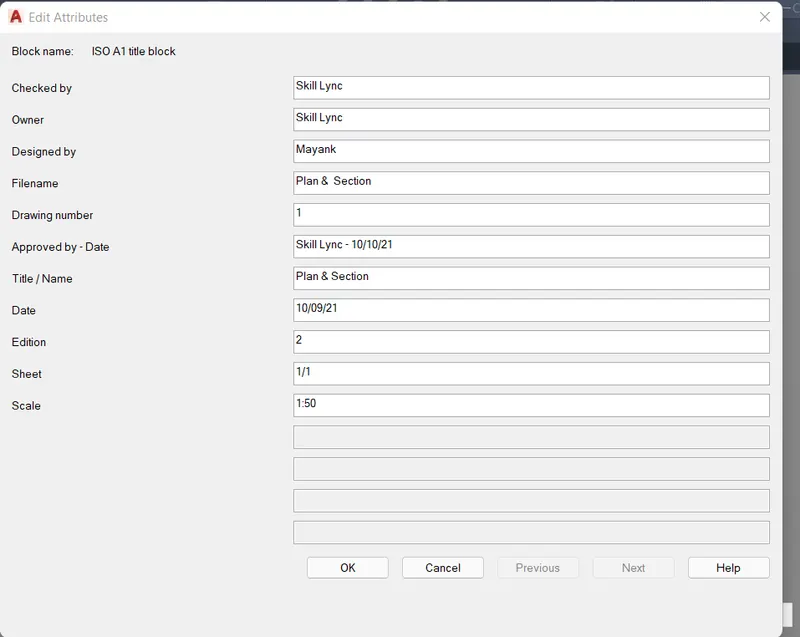

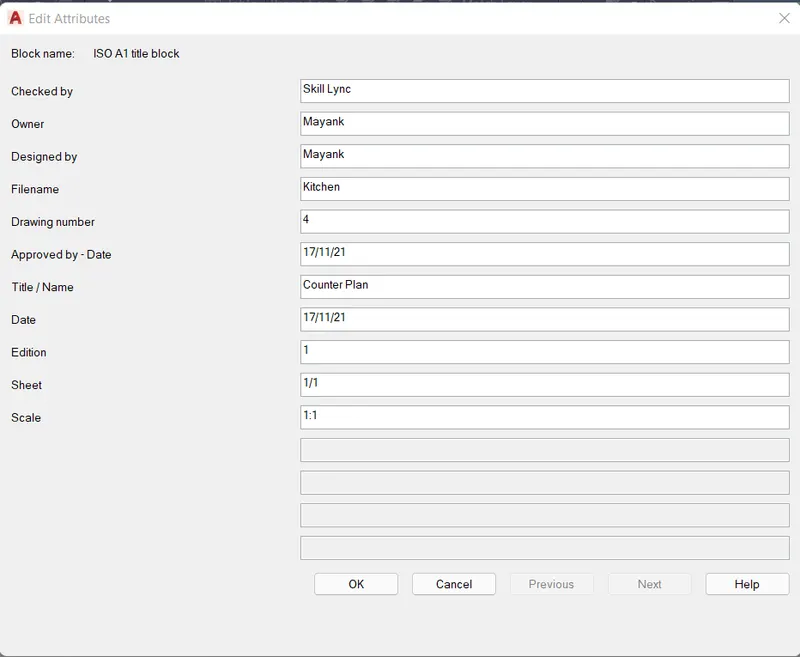

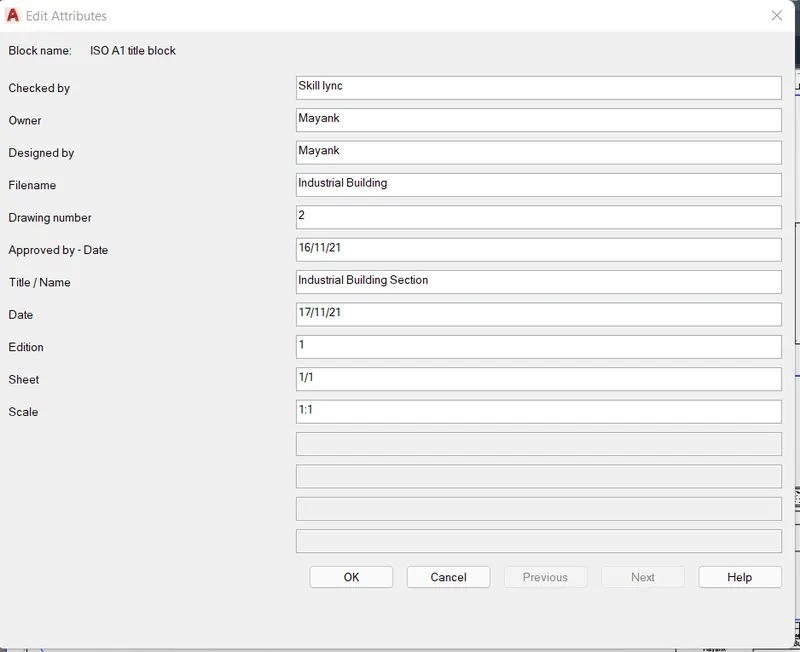

• Edit all the desctription as shown above and click OK.
• Now Go to File and select Plot.

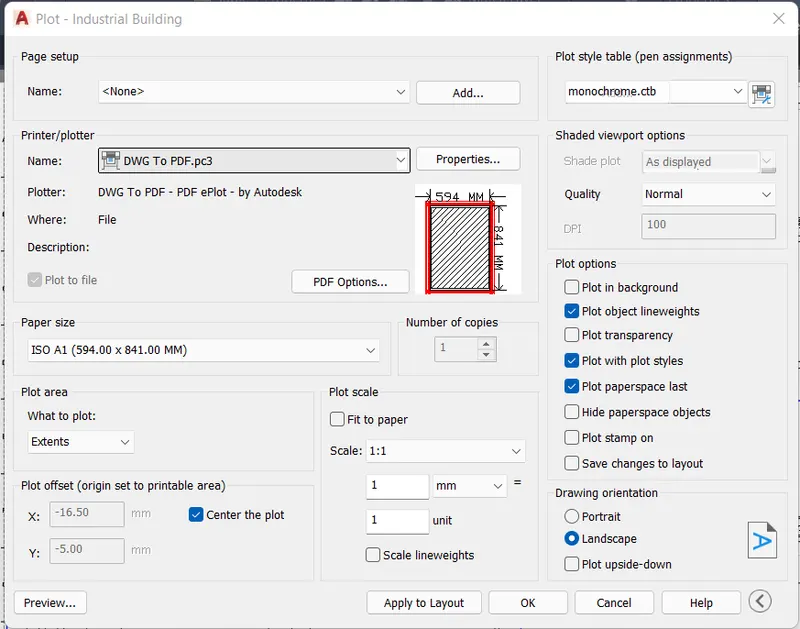

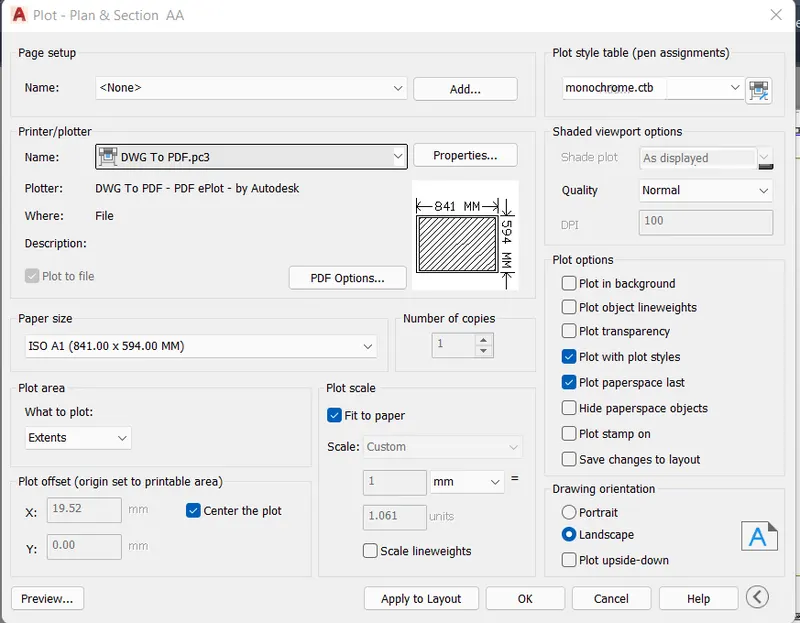

• Select paper size A1. Select Dwg to pdf.
• Select other options as per preference.

]

• Click on preview to check the plot is visible and good.

• Once everything is checked then click Ok to plot.

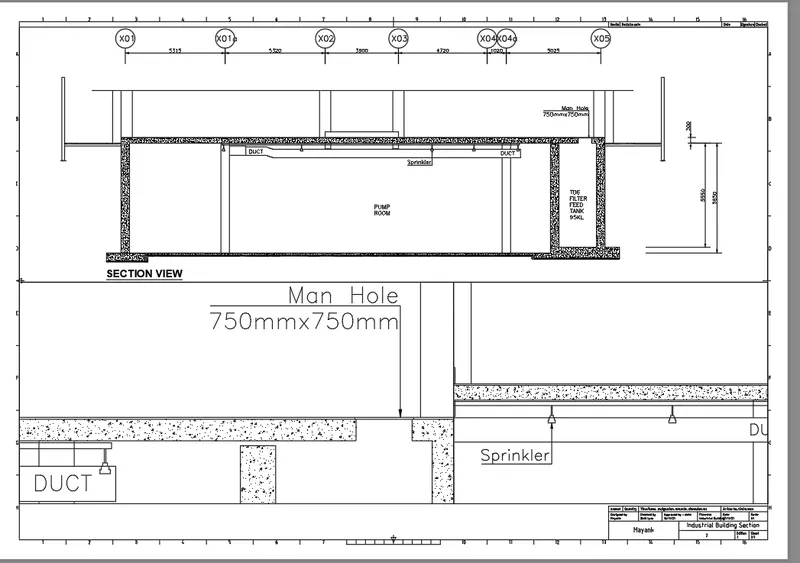

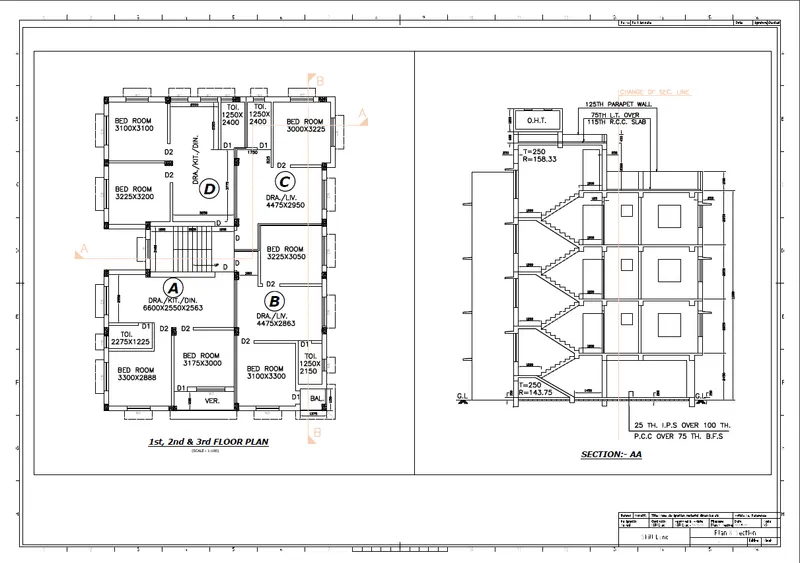

RESULT:

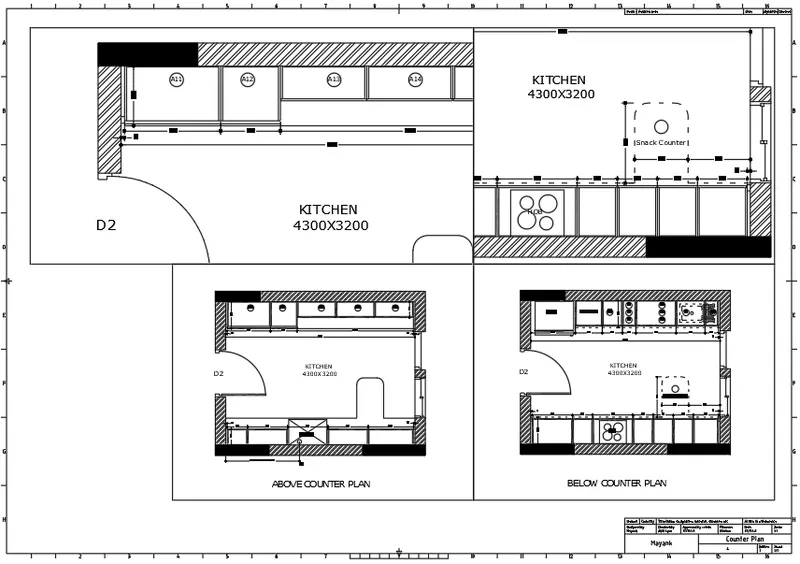

AIM: To create a layout of the kitchen drawn in challenge 9 and take a plot using AutoCAD.

INTRODUCTION:

AutoCAD is a commercial computer-aided design (CAD) and drafting software application. Developed and marketed by Autodesk, AutoCAD was first released in December 1982 as a desktop app running on microcomputers with internal graphics controllers. Before AutoCAD was introduced, most commercial CAD programs ran on mainframe computers or minicomputers, with each CAD operator (user) working at a separate graphics terminal. AutoCAD is also available as mobile and web apps.

AutoCAD is used in industry, by architects, project managers, engineers, graphic designers, city planners and other professionals.

PROCEDURE:

Step 1: Open AutoCAD by clicking on the AutoCAD icon on the Desktop

Step 2: Start a new project by clicking Ctrl + N on the keyboard. A "Create new drawing" dialogue box will appear.

Step 3: Choose 'metric' and click OK.

Step 4: Commands used are as follows:

• Click on 'File' and then select 'Open'.

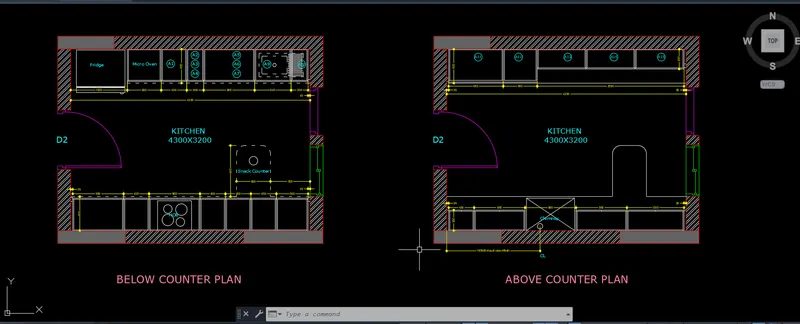

• Now Select the challenge 9 drawing and open it.

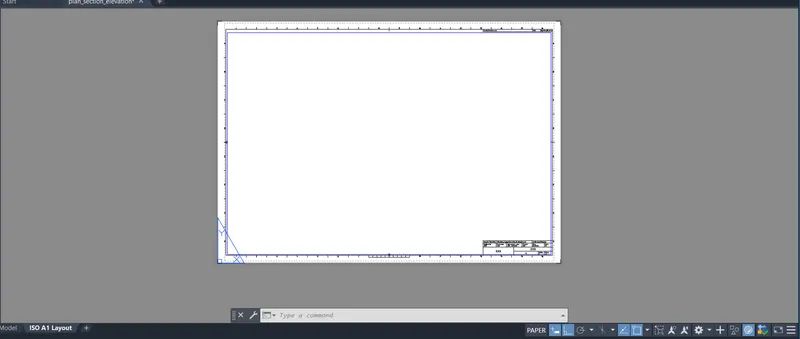

• Type 'Layout' in the command prompt and then select template.
• From the dialogue box select 'Tutorial-mArch'.
• Delete other layout from the bottom tab by right clicking of the tab and selecting the delete option.
• Go to page setup manager in the file and set the page to A4. Also adjust the template.

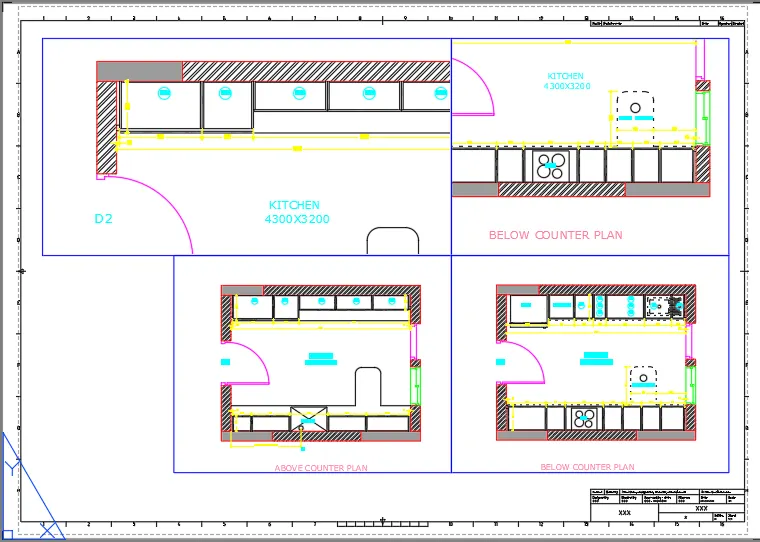

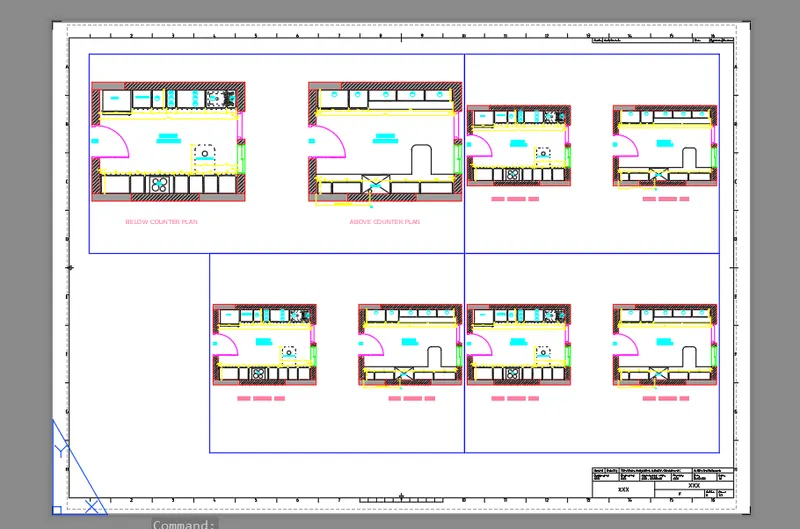

• In the layout page draw rectangles with random dimensions (as shown below).

• Type 'MV' and select 'Object'.
• Now click on the rectangle precviously drawn.
• Do the same for other rectangles.

• Again select the view port and type 'MS' to go to model space.
• Scroll to zoom in and using pan command drag the drawing.
• Do same for other view ports.

• Type "Attedit" command and select the Template block to edit the attributes.

• Edit all the desctription as shown above and click OK.
• Now Go to File and select Plot.

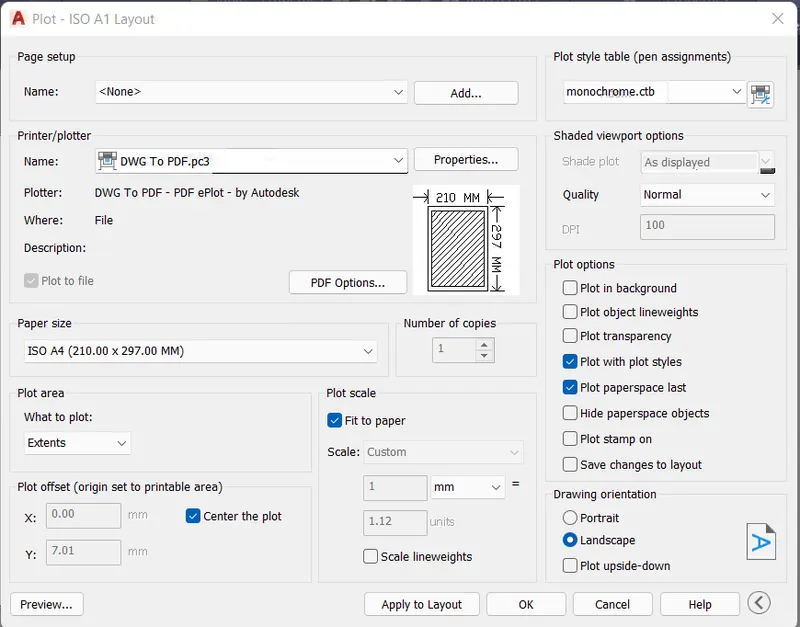

• Select paper size A4. Select Dwg to pdf.
• Select other options as per preference.

• Click on preview and see everything is all right then click ok.

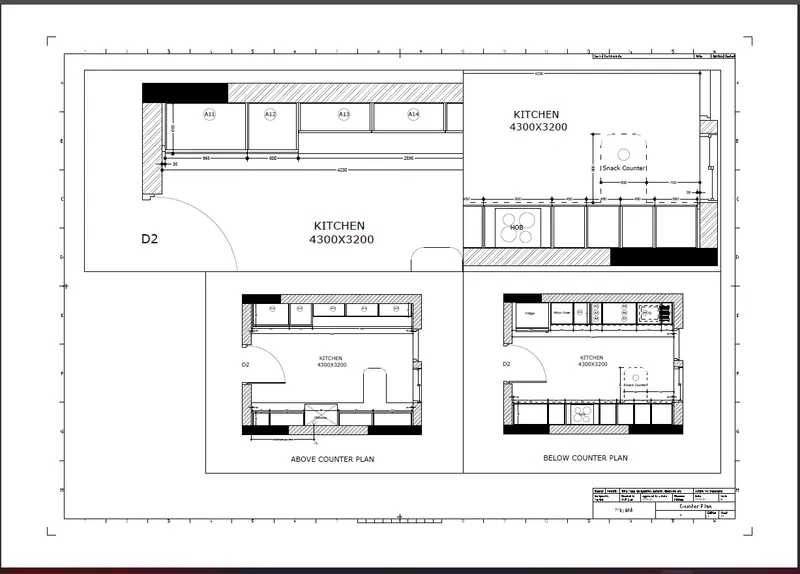

Result :

AIM: To create a layout of the kitchen drawn in challenge 9 and take a plot using AutoCAD.

INTRODUCTION:

AutoCAD is a commercial computer-aided design (CAD) and drafting software application. Developed and marketed by Autodesk, AutoCAD was first released in December 1982 as a desktop app running on microcomputers with internal graphics controllers. Before AutoCAD was introduced, most commercial CAD programs ran on mainframe computers or minicomputers, with each CAD operator (user) working at a separate graphics terminal. AutoCAD is also available as mobile and web apps.

AutoCAD is used in industry, by architects, project managers, engineers, graphic designers, city planners and other professionals.

PROCEDURE:

Step 1: Open AutoCAD by clicking on the AutoCAD icon on the Desktop

Step 2: Start a new project by clicking Ctrl + N on the keyboard. A "Create new drawing" dialogue box will appear.

Step 3: Choose 'metric' and click OK.

Step 4: Commands used are as follows:

• Click on 'File' and then select 'Open'.
• Now Select the challenge 9 drawing and open it.

• Type 'Layout' in the command prompt and then select template.
• From the dialogue box select 'Tutorial-mArch'.
• Delete other layout from the bottom tab by right clicking of the tab and selecting the delete option.
• In the layout page draw rectangles with random dimensions (as shown below).

• Type 'MV' in the commant promt and select 'object' option.
• Select the rectangle previously drawn.
• Do the same for other rectangles.

• Again select the view port and type 'MS' to go to model space.
• Scroll to zoom in and using pan command drag the drawing to fit in the view port.
• Do same for other view ports.

• Type "Attedit" command and select the Template block to edit the attributes.

• Edit all the desctription as shown above and click OK.
• Now Go to File and select Plot.
• Select paper size A1. Select Dwg to pdf.
• Select other options as per preference.

• Click on preview and see everything is all right then click ok.

Result:
