Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad
1)AIM:-
.To create the layout of plan & section, creating viewports editing attributes& taking a plot.
.To create a kitchen layout in an A4 sheet & take a plot.
.To create multiview ports for individual section drawing, scaling it & taking plot.
COMMANDS USED:-
.VIEW
.LAYOUT
.MULTIPLE VIEW
.MODEL SPACE
.PAPER SPACE
.SCALE
.XREF
.LOCK
.PAN
.PLOT
PROCEDURE:-
AIM:-

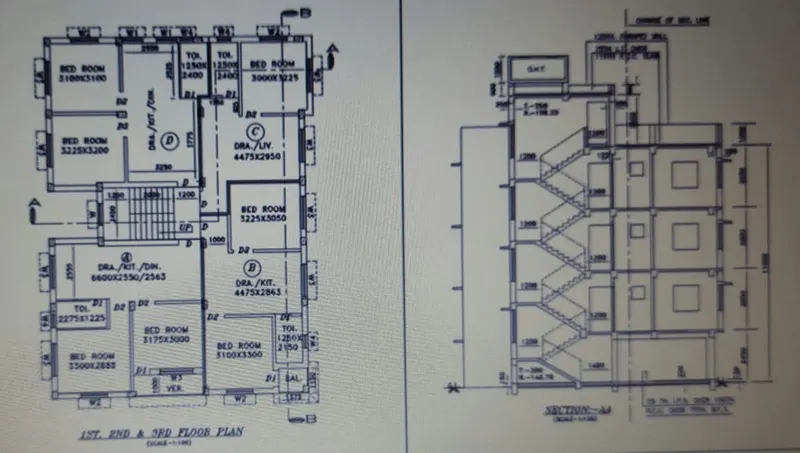

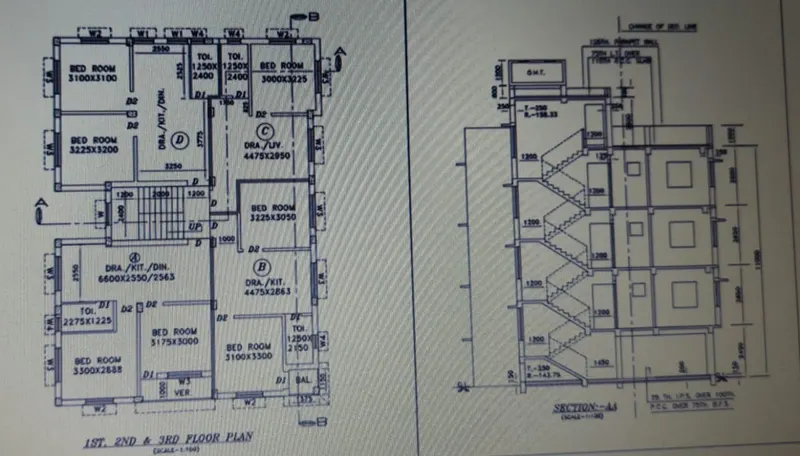

.To create layout of plan & section using template mArch.dwt.to create viewport using MV command of size 400x445 & 375x445 & setting the scale(1:50)
.Editing attributes in the template .take a plot using A1 size.
PROCEDURE:-

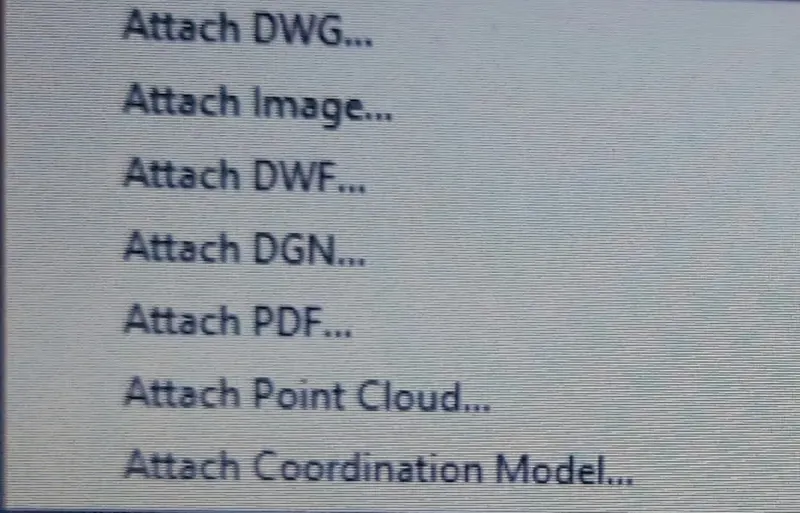

.In the command prompt enter 'XREF' & on the left corner attach the Dwg. attach the drawing.

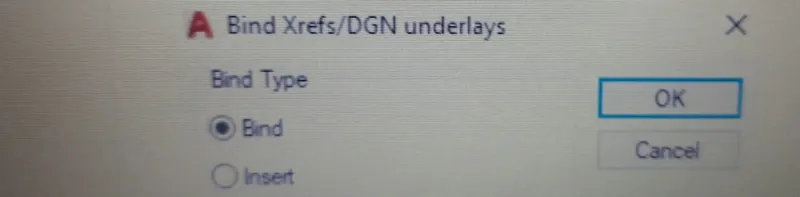

.After attaching left click on the attached drawing file. bind the attached file & then explode the drawing file.
.Click on the layout tab right click it & create a new layout .rename the layout tab as plan & section .Delete the current viewport displayed the layout.
.To create the template.
.Use command 'LAYOUT'select template (dwt) select mArch from diglog box.Select ISO A1 layout & rename it as layout plan & section.
.Type 'MS' for the activation of model space.
.To create viewport.

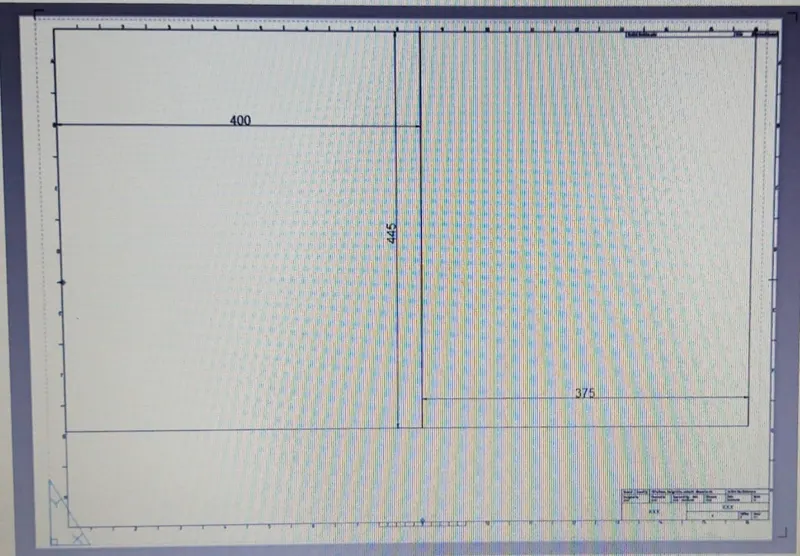

.Draw a rectangle of size 400x455 & 375x445 for creating the viewport.
.Use the command 'MV' multiple view object option & click on the rectangle ,then the drawing will be displayed in the viewport.Similarly do it for the second rectangle.
.Command 'MS' for model space click on the viewport we need to set drawing click on the viewport & zoom in the drawing for the plan & give a scale 1:50 & lock the viewport so that further zooming will not change the scale.

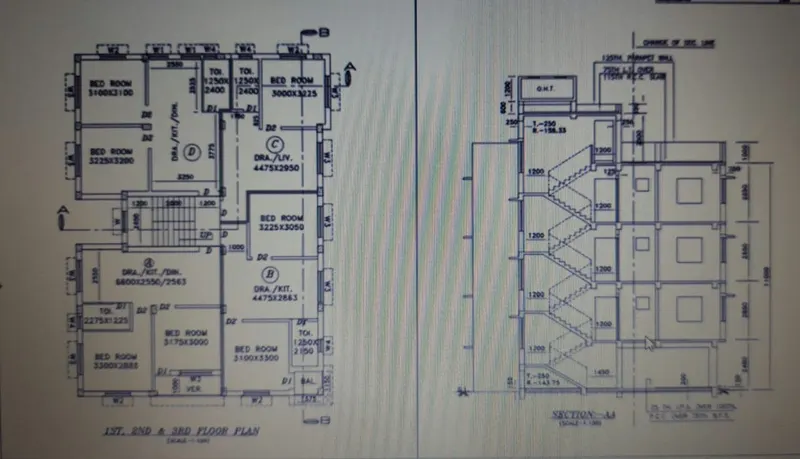

.Similarly, do it in the second viewport zoom in the section view making it a scale of 1:50 and lock.
Editing Attributes in the template.

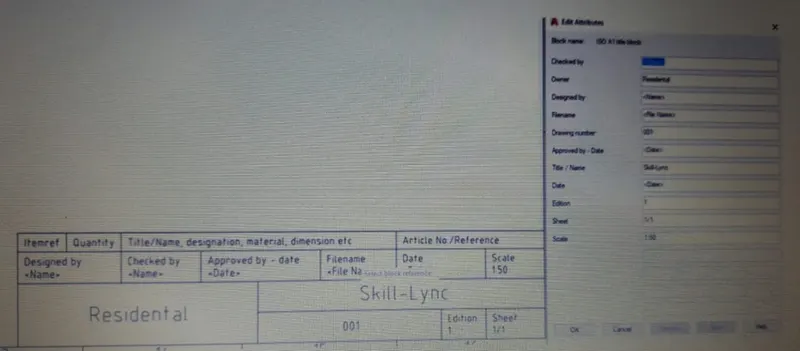

Go to the paper space by command 'PS' & click on the template which is a block. Click on the attributes & edit the attributes -double click the attribute text or command text or command 'ATTEDIT'.The attribute dialog box appears.
.Give the value as NAME, DATE, SCALE etc.
.Enter the text by multiline text in paper space with text height 20.
SCALE 1:50
.Taking plot using A1 sheet.

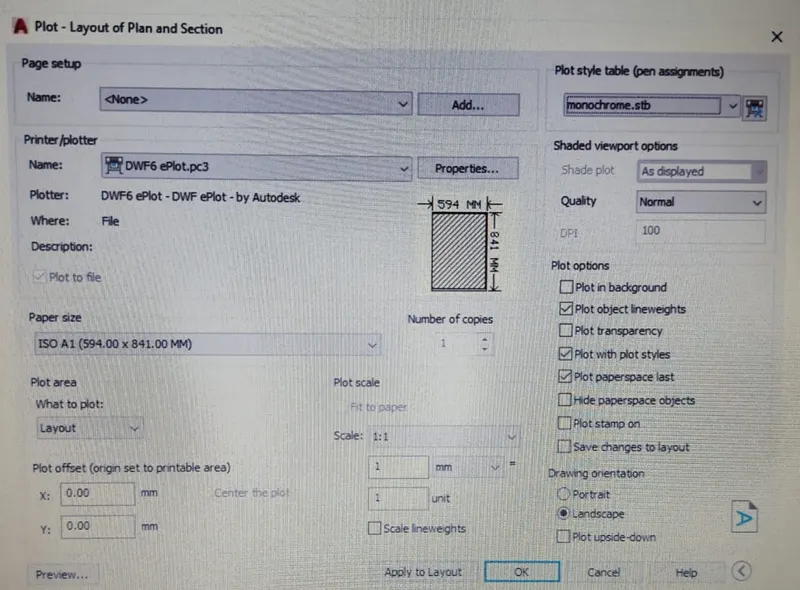

.Use command plot the dialog box appears.Give the to DWG to PDF.Select the paper size to ISO A1(594x841mm)
.Select what to plot as layout.Scale is given as 1:1.Orientation is given as LANDSCAPE.
.Select the pen assignment as MONOCHROME so that the print will be in lack.
RESULT:-

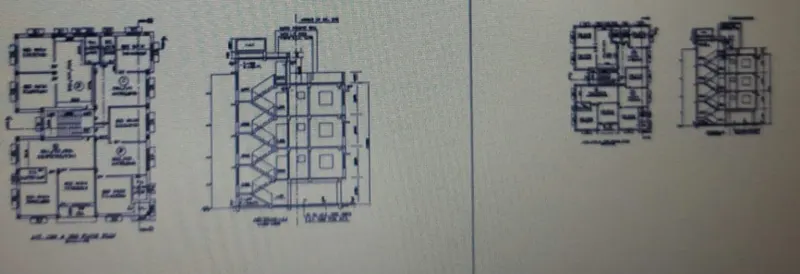

.Layout is created using template M arch .DWT.VIEWPORT is created using MV command of size 400x445 & 375x445 & the scale of the viewport is set to 1:50 attributes in the template are edited.A plot is taken using A1 size.
2)AIM:-
To take different views of the kitchen for layout in model space, create the layout with 4 viewports with an A4 sheet, create a plot.
PROCEDURE:-
In the command prompt enter, XREF & on the left corner attach the DWG attach the drawing.
.After attaching left click on the attached drawing file. bind the attached file & then explode the drawing file.
.Take different views for the layout in the model space. Open the drawing , use the command 'VIEW' to create new views.

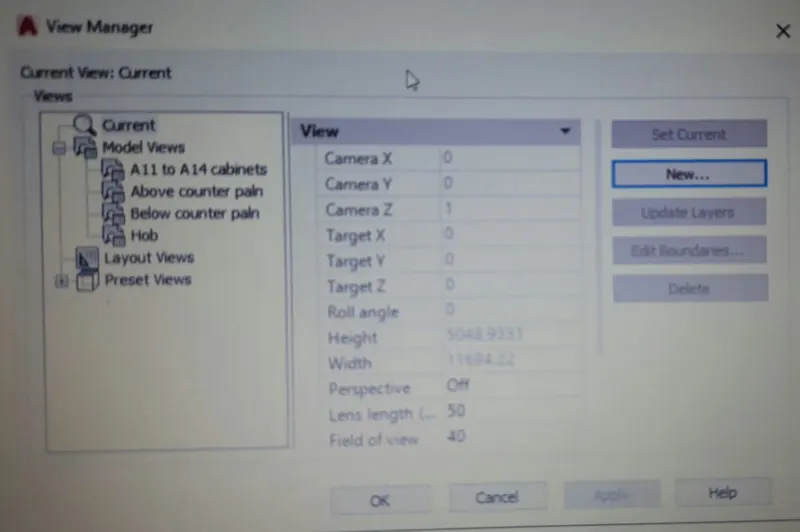

.The view manager dialog box appears. Click on the model, click on new to create new view.

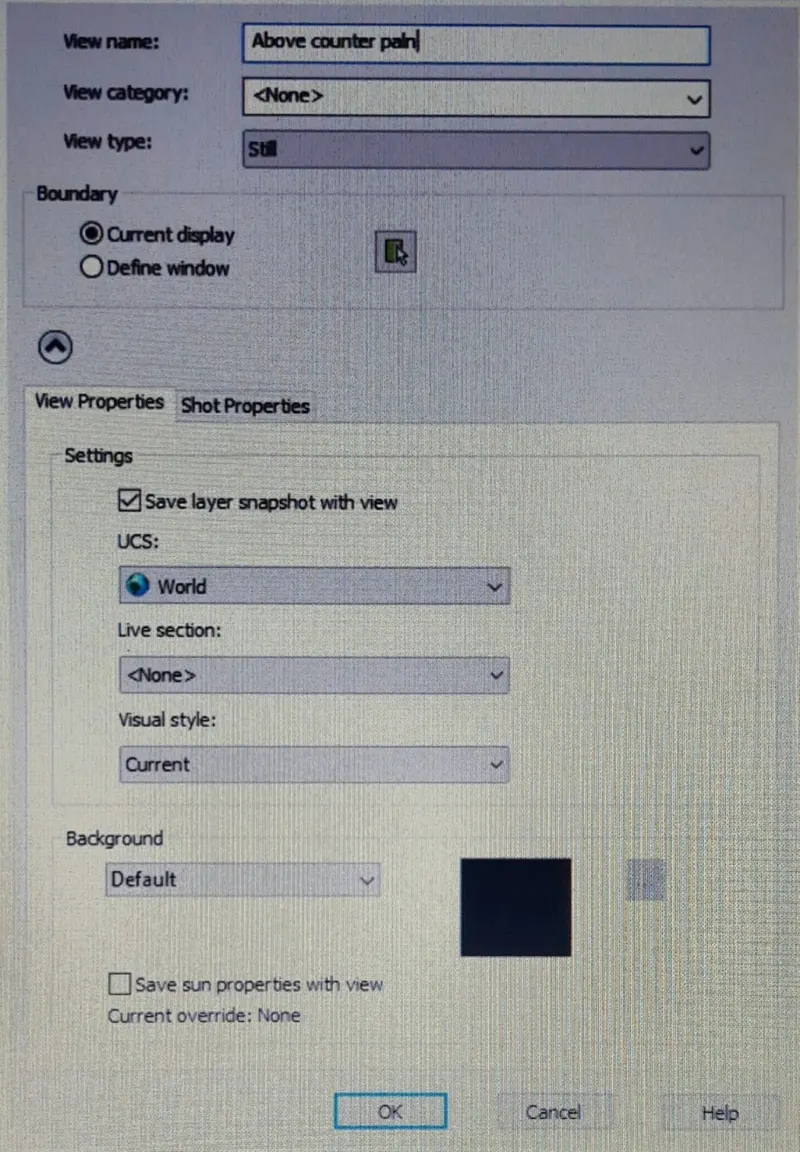

.Another dialog box of new view appears to give the view name as 'ABOVE COUNTER PLAN' select the boundary as define window & select it using the window selection from the drawing.
.Click on OK.
.View with name above counter plan & the selected drawing will be created.Similarly create views for below counter plan,hob,A11 to A14 cabinets.

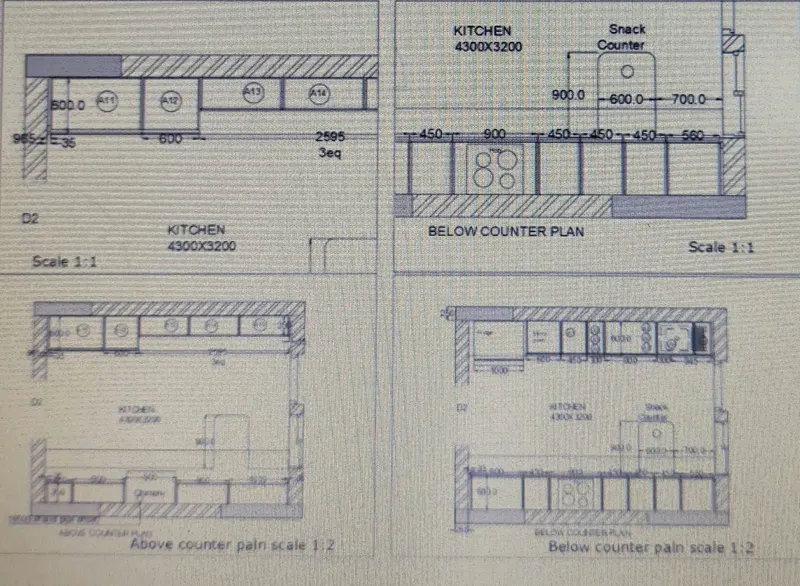

.Create the layout with 4 viewports,with A4 sheet. Open the layout tab,rename the layout as kitchen layout.Delete the existing viewport.
.Default is the A4 sheet .With 'MV'command to create 4view ports by making the window.
Type command view in the layout tab, select the required view & click on the viewport where it has to be displayed & lock each viewport.

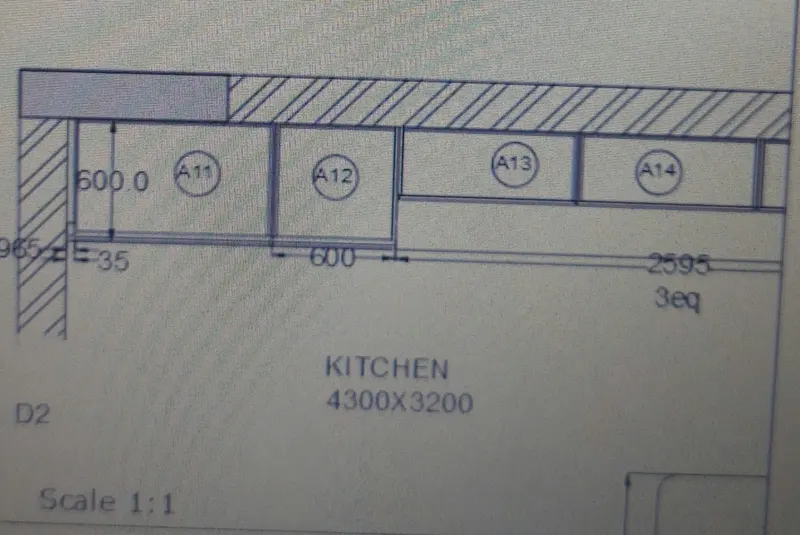

Select A11 to A14 cabinet view in the viewport,zoom & pan to fit in the viewport.
Go to paper space,With text command type SCALE 1:1.
.Enter command 'MS' click on the second viewport . Enter the command 'VIEW' & select the view name snack counter.
.Zoom & pan the viewport to make the view fit in the viewport. Lock the viewport.
.Go to paper space & with command T enter the text scale 1:1.
.Similarly in model space click on third viewport .Enter the view above counter plan .Zoom & pan the viewport ,so that the drawing fit in it.

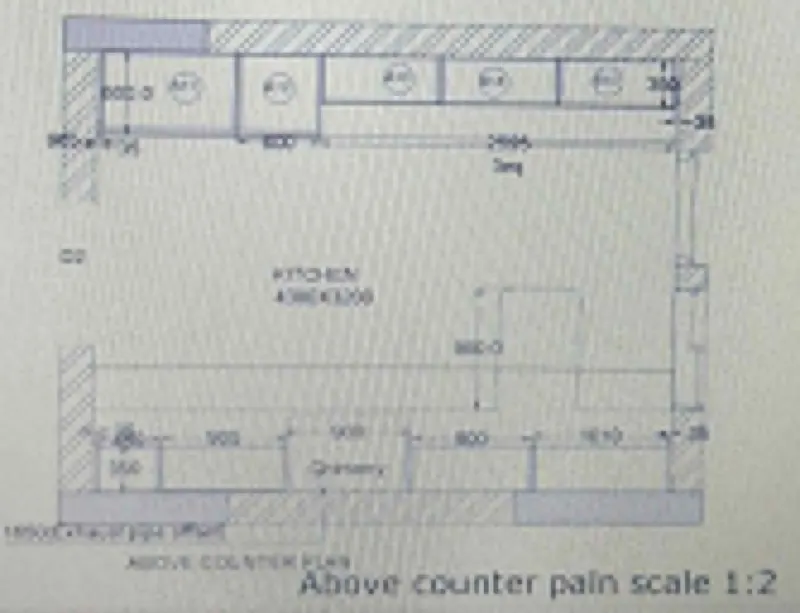

.Lock the viewport .Go to the paperspace & with command T enter the text as ABOVE COUNTER PLAN 1:2 with text height 3.5.
.Similarly in model space click on third viewport .Enter the view above counter plan .Zoom & pan the viewport ,so that the drawing fit in it.

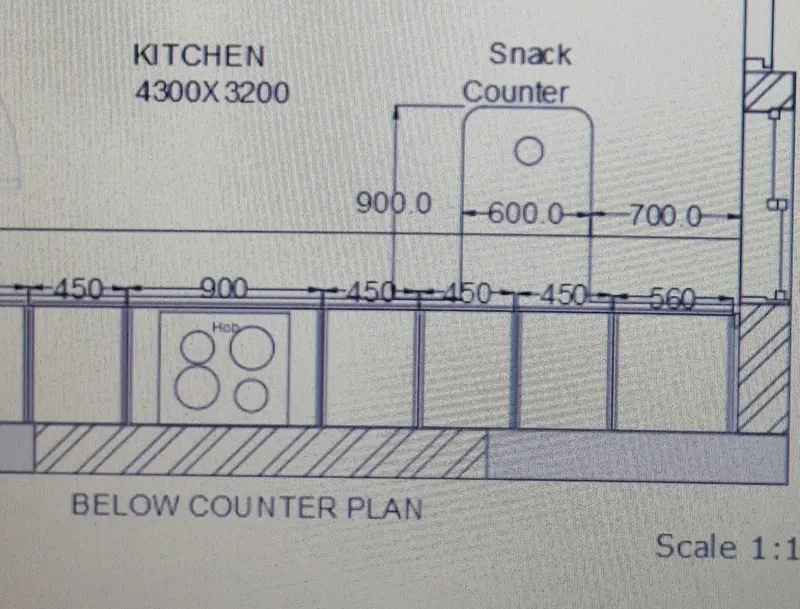

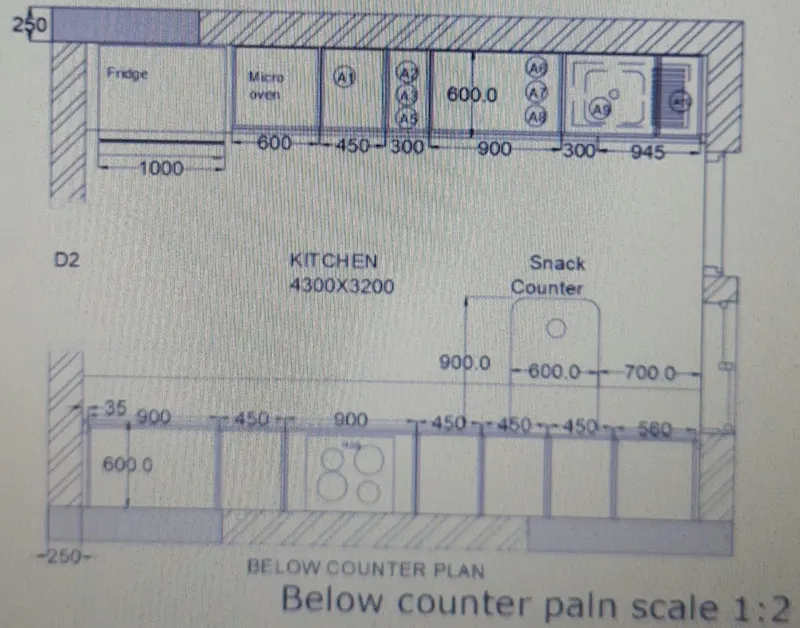

.Lock the viewport .Go to the paperspace & with command T enter the text as BELOW COUNTER PLAN 1:2 with text height 3.5.

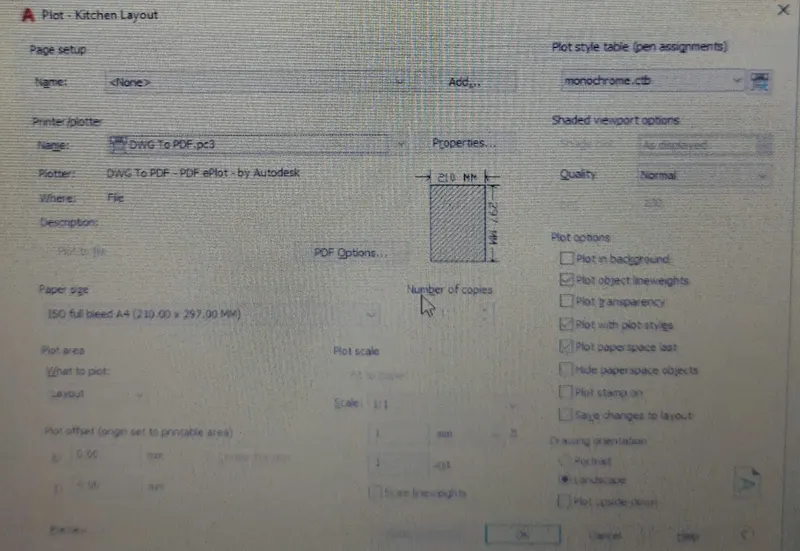

.Creating A plot use PLOT command .Plot the dialog box appears paper size is selected as A4 & name is given as A4,printer name ad print to pdf.
.Select what to plot as layout ,select pen assignment as monochrome .preview the print.
.Select ok to convert to PDF.
RESULT:-
.Different view of kitchen for the layout in modelspace is created.
.Layout with four viewports with A4 sheet is created.
.plot is created.
3)AIM:-
.To create a layout of the section of the industrial building, creating viewport by MV command & scale 1:30 & 1:100 is given to take a plot of the layout.
PROCEDURE:-
.In the command prompt enter 'XREF' & on the left corner attach the DWg. attach the drawing.
.After attaching left click on the attached drawing file.Bind the attached file & then explode the drawing file.

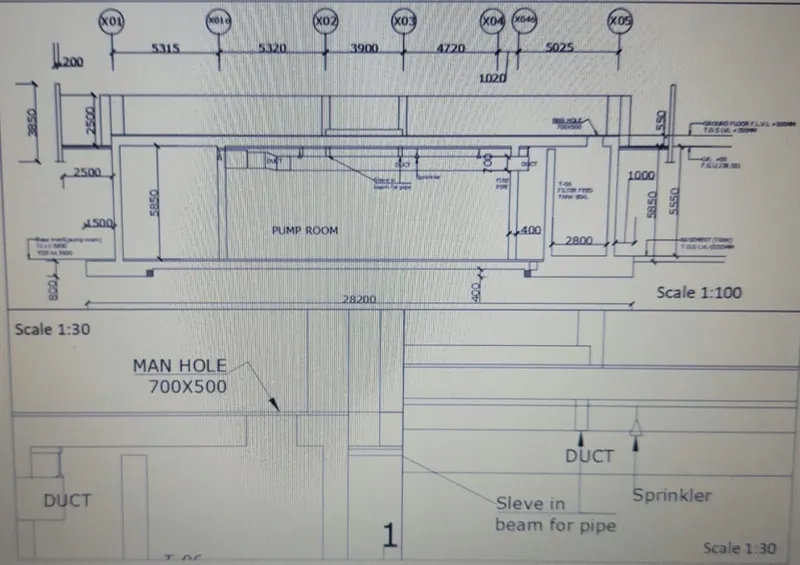

.Create a layout of the section of the section building.
.Open the drawing of a section of an industrial building. Rename the tab as industrial section.

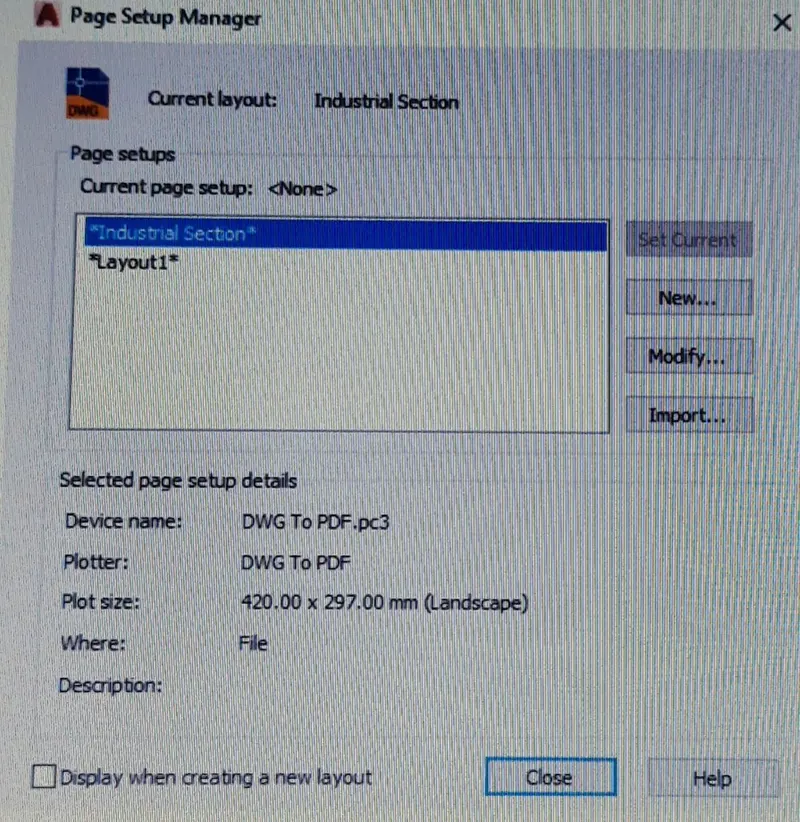

.Right-click on the tab & select page set up manager option .Click on new-give a name, page set up dialog box appears.

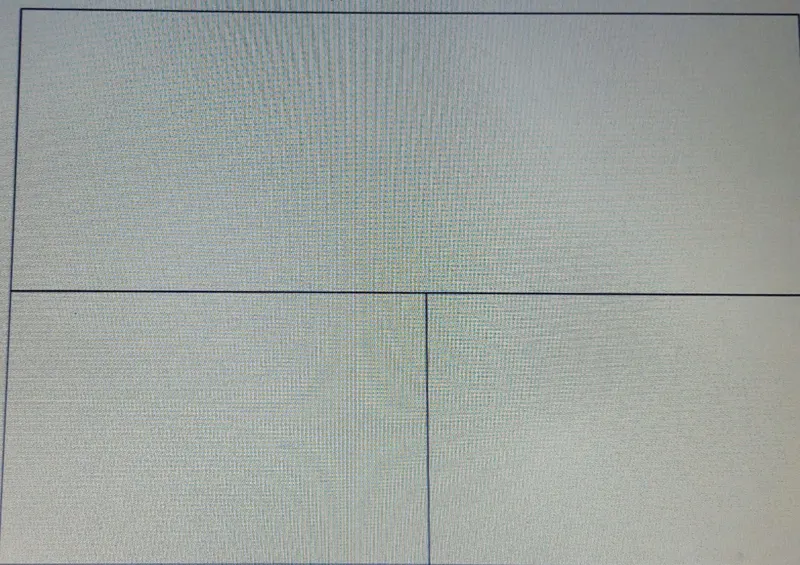

.Click on modify.Give the paper size as A3 in page set up dialog box.Make it current ,the layout paper size changes to A3.Use 'MV' command & create 3 viewports accordingly.
.Use command 'MS' for the model space, click on the first viewport. Set the scale 1:100 from the bottom toolbar or right-click & properties from there also we can change the scale.

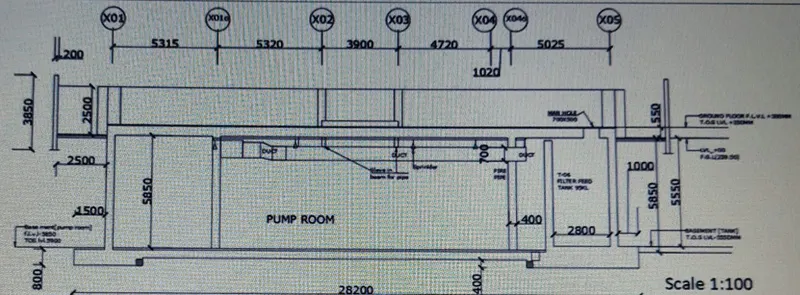

.By pan command fit the drawing inside the viewport. By text, the command writes the text a scale of 1:100 with a text height of 6 & locks the viewport.
.Go to model view. create a view for the next two viewports.

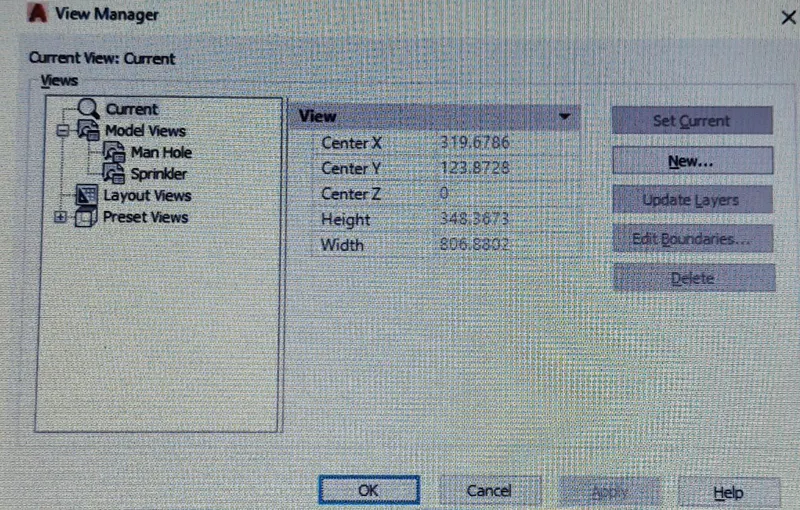

.Command view.-view manager dialog box appears. create a new give name as manhole view. select define window & select the view we need to create press enter. similarly, create the view for sprinkler named as sprinkler view.
.Now go to the layout industrial section & command 'MS' click on the left model space.

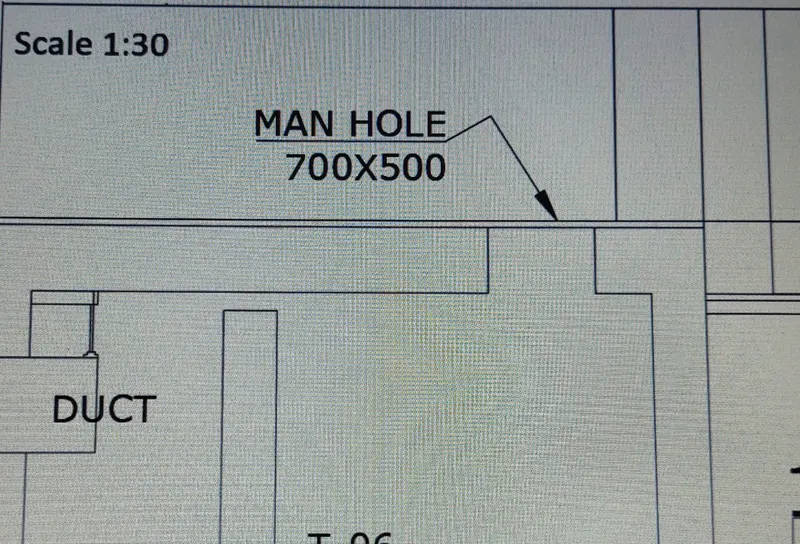

.Now use command view select the manhole view & click on set current.
.Then the view will be displayed on the model space select the scale to 1:30 from bottom toolbar.
.By multiline text give the text as scale 1:30with a text height of 6 lock the viewport from the bottom toolbar lock symbol.

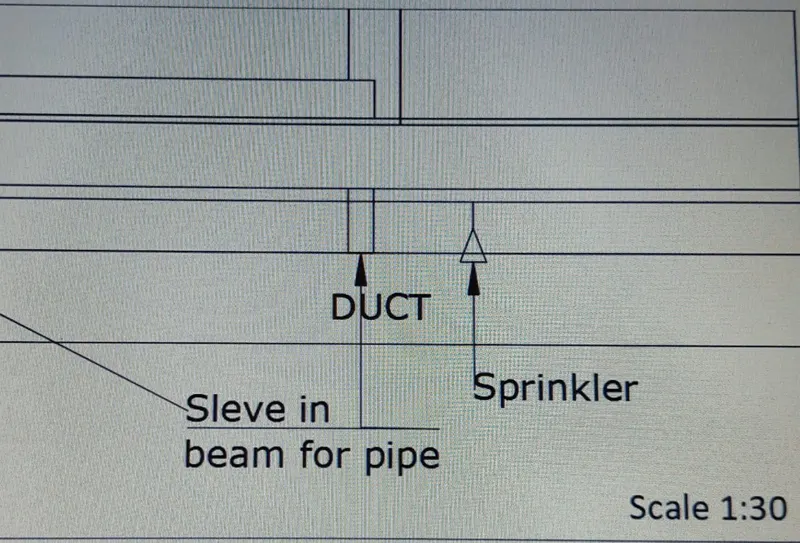

.Type 'MS' & click on the third viewport.Use command view & select the sprinkler view & make it current.
.Select the scale to 1:30 from the bottom toolbar.By the multiline text insert the text as scale 1:30 with a text height of 6 .
.Lock the viewport.
.Take a plot of viewport.

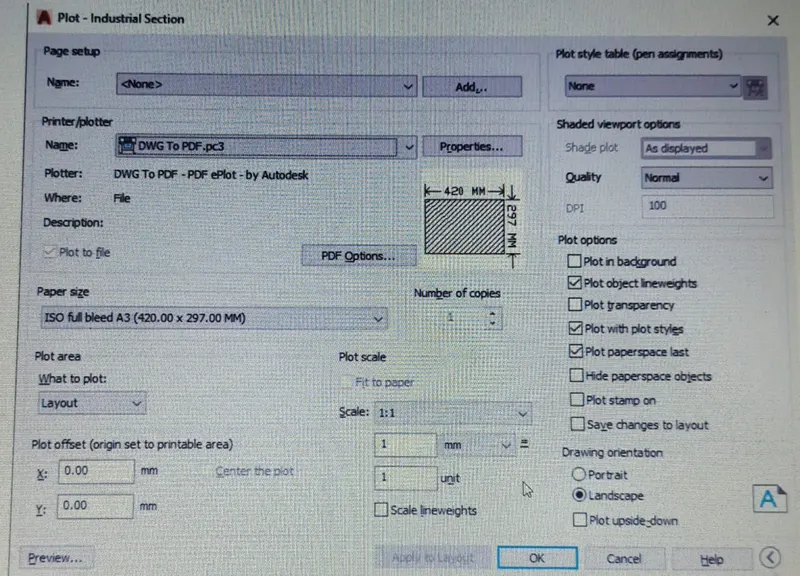

.Enter the command plot.The dialog box appears. Select the paper size as A3.What to plot as layout.
.Give pen assignment as monochrome.
RESULT:-
.Layout of the section of industrial building is created View port is created by 'MV' command & scale 1:30 & 1:100 is given.
.Plot the layout is taken.
RESULT:-
.Layout of plan,section viewport editing attribute is created & a plot is taken.
.Kitchen layout in A4 sheet is created & plot is taken.
.Multiview ports for industrial section drawing is created, scaling & plotting is done.
