Challenge

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

PPooja Agrawal4 Mar 2023

AIM:

To create a layout of the plan and section A of the project in challenge 7 using the Template Tutorial- mArch.dwt

INTRODUCTION:

A layout template is a layout imported from a DWG file. The program has simple layout templates to use when we design a new layout environment.

When you create a layout based on a template, the page setup and paper space objects, including any viewport objects, are used in the new layout. No model space objects are imported.

The layout templates are identified with a .dwt file extension. However, a layout template or layout from any drawing or drawing template can be imported into the current drawing.

COMMANDS USED:

1. View

2. Layout

3. Multiple View

4. Model Space

5. Paper Space

6. Xref

7. Lock

8. Pan

9. Attedit

10. Print

11. Unit

12. Limits.

13. Plot

PROCEDURE:

Step1:

1. Open the Autocad software from the desktop.

2. On the home page of the Autocad click on new drawing.

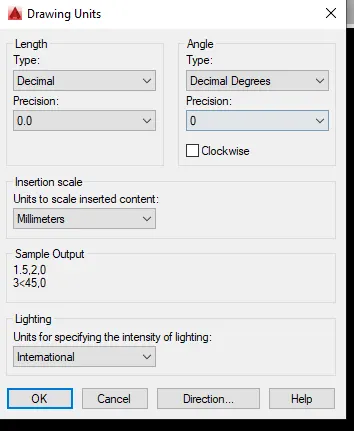

3. Type UN and set the units as Decimal and precision as 0.0

4. Set the units as millimetres in the insertion scale.

5. Type the limits in the command box and set the lower limit as 0,0 and upper limit as 10000,10000.

6. Type Z enter from zoom enter and A enter for zoom all.

Step2:

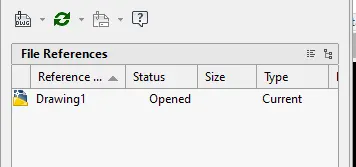

1. Go to external reference by typing Xref in the command box.

2. Then attach the DWG file of the challenge 7 that we created earlier.

Step3:

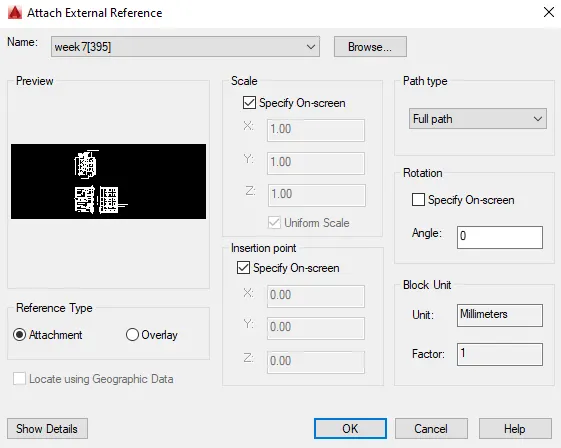

1. Select the DWG file and set the Reference type as an attachment.

2. Specify the scale as on the screen and insertion point as on the screen.

3. Then click ok to the load the challenge 7 drawing into the screen.

Step4:

1. After attaching the drawing, select the drawing and left-click attached drawing.

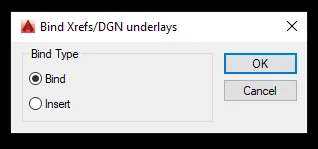

2. Then select bind type as Bind and press ok.

Step5:

1. The layout in the command box to open the new layout.

2. Type new in the command box and rename it as plan and section.

Step6:

1. Right click on the plan and section layout from the layout tab.

2. Select the option called from the template option.

3. Select the template file to load into the drawing.

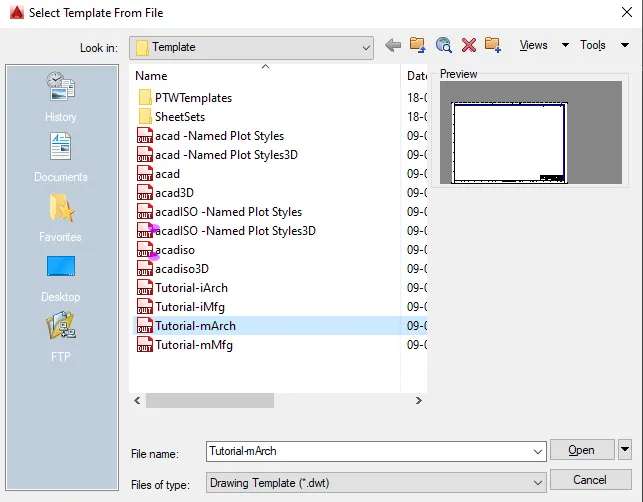

4. Select the template file as Tutorial- mArch.dwt

5. Then click open to load the template into the layout.

Step7:

1. After loading the layout template into the drawing, now we have to change the attributes.

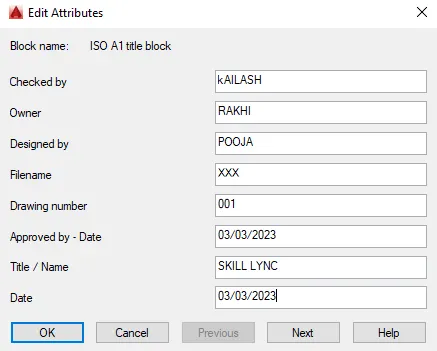

2. type ATTedit in the command box to open the edit attributes dialog box.

3. Rename the title blocks as shown in the figure below.

4. After completing changes in the edit attributes, click on ok to make changes.

Step8:

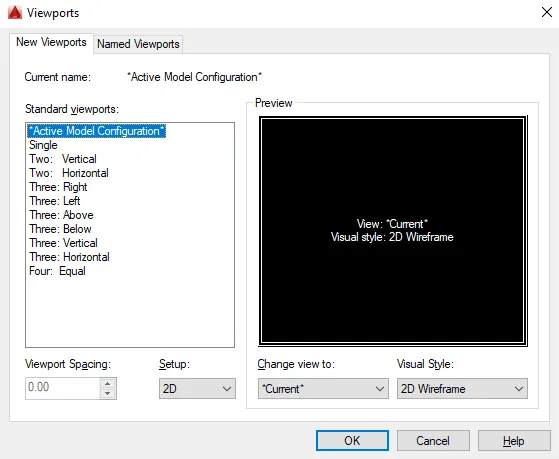

1. Open the viewports dialog box by typing VPO in the command box.

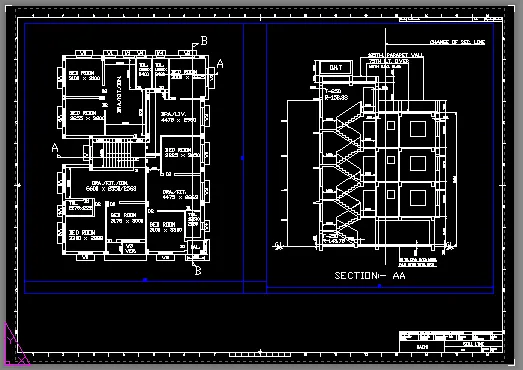

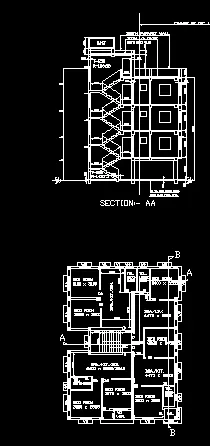

2. Select the viewports type as two: Vertical as shown in the figure below.

3. Adjust the viewports spacing according to the requirement.

Step9:

1. After creating the multiple viewports, now we have to adjust the zooming and scaling.

2. Type MS in the command box to switch the mode into model space.

3. Adjust the visiblity of the plan and section using the Pan tool.

4. Adjust the scaling as per the given requirement.

Step10:

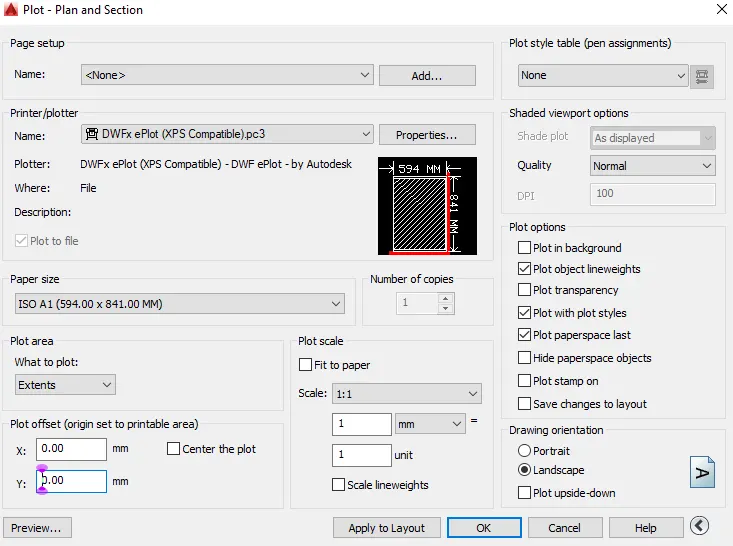

1. Now type the plot in the command box to open the plot and a print dialog box.

2. Select the plot type as DWFx plot.pc3 and paper size as ISO A1

3. Select the plot area as extents and scale as 1:1 as per the given requirement.

Step11:

1. Then click on preview to see the preview of the layout.

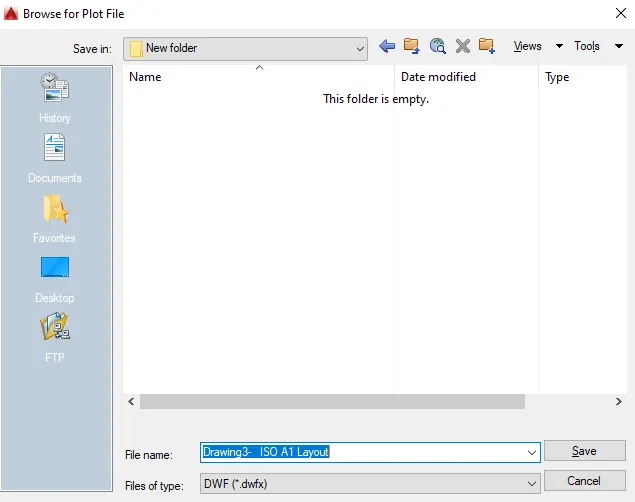

2. After settings have been made, click on ok to print or save it to the local folder.

RESULT:

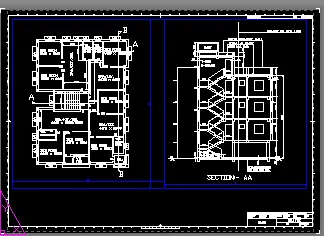

The layout of the plan and section-A has been printed or plotted successfully using the viewports and Tutorial-mArch.dwt template.

AIM:

To create the layout of the kitchen drawn in challenge 9 using the appropriate scale A4 size page

INTRODUCTION:

A layout template is a layout imported from a DWG file. The program has sample layout templates to use when we design a new layout environment.

The kitchen layout is the shape that is made by the arrangement of the countertop, major appliances, and storage areas. The layout and floor plan create the kitchen's primary work triangle, which is the path that you make when moving from the refrigerator to the sink. to the range when preparing a meal.

COMMANDS USED:

1. Viewports

2. Multiple views

3. Model space

4. Paper space

5. Pan

6. Print

PROCEDURE:

Step1:

1. Open the Autocad application from the desktop.

2. On the Autocad homepage, click on open drawing.

3. Open the kitchen layout drawing that we created in the challenge 9.

Step2:

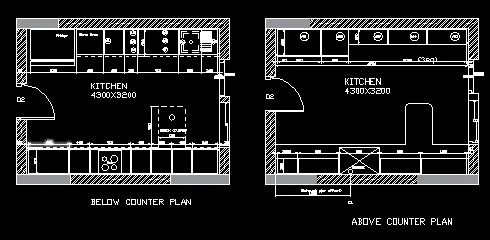

1. Now we have to create the various views of the kitchen layout from the New view command.

2. Now type the New view in the command box.

Step3:

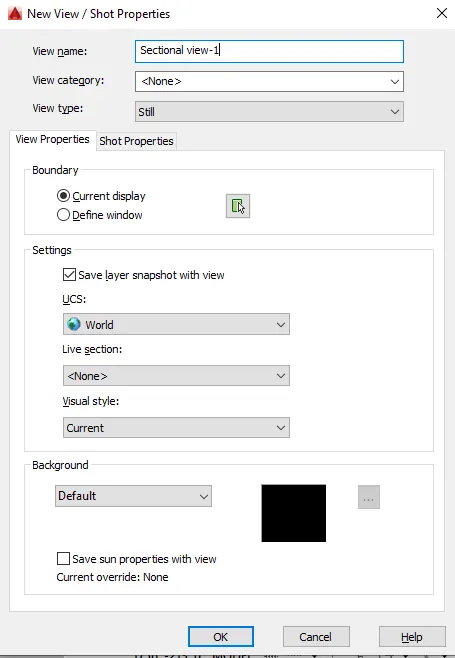

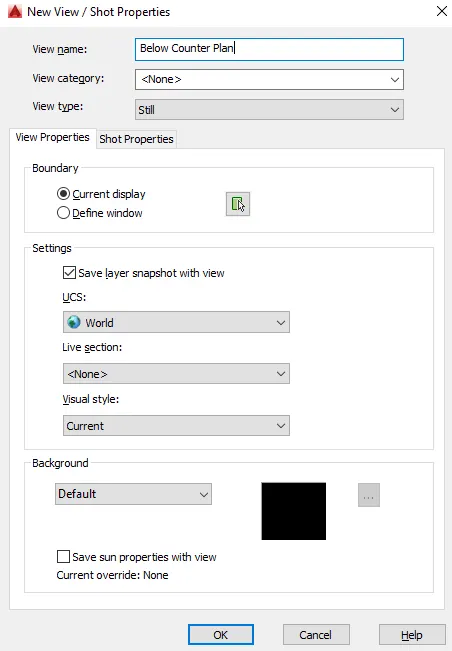

1. After entering Newview in the command box, a new dialog box will appear.

2. Create the view name Below the counter plan and boundary as the current display.

3. After making changes, click on ok and then close the dialog box.

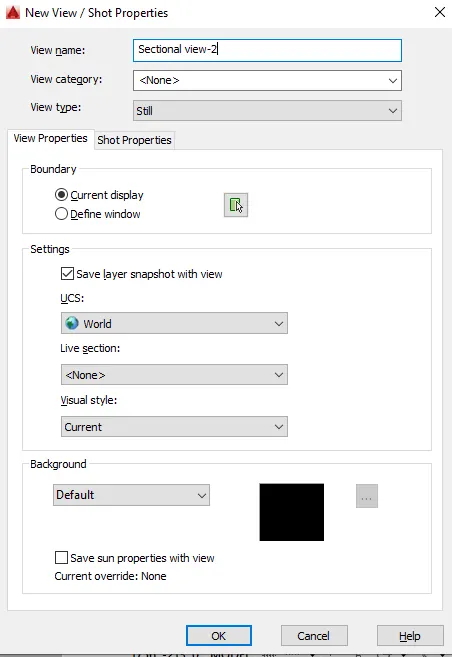

4. Similarly create the other views of the kitchen layout using the NEWVIEW command in the command box.

Step4:

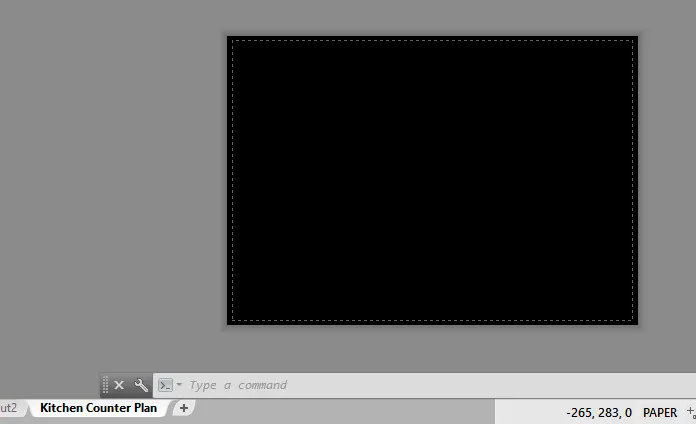

1. Type layout in the command box to open the new layout

2. Type new in the command box and rename it as kitchen counter plan.

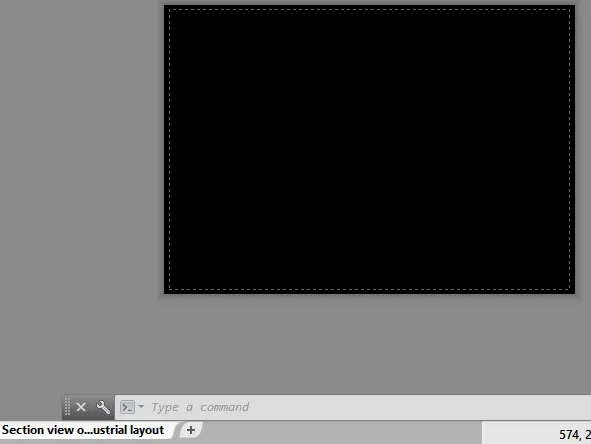

3. After making changes, a new layout will appear on the screen.

Step5:

1. Open the viewports dialog box by typing VPO in the command box.

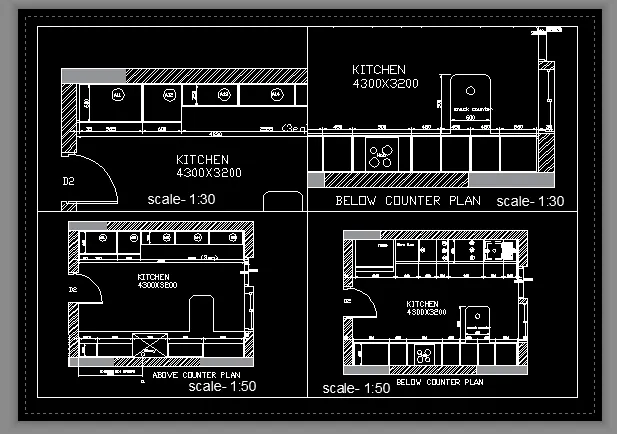

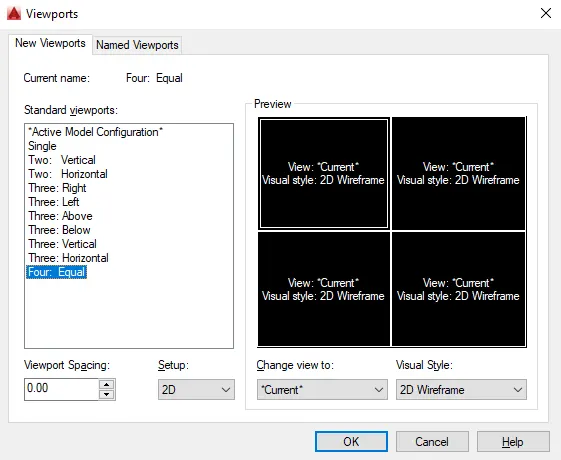

2. Select the viewports type as four:equal as shown in the figure below.

3. Adjust the viewports spacing according to the requirement.

Step6:

1. After creating the multiple viewports, now we have to adjust the zooming and scaling.

2. Type MS in the command box to switch the mode into model space.

3. Adjust the visibility of the plan and section using the pan tool.

4. Adjust the scaling to 1:1 and 1:2 as per the given requirement.

Step7:

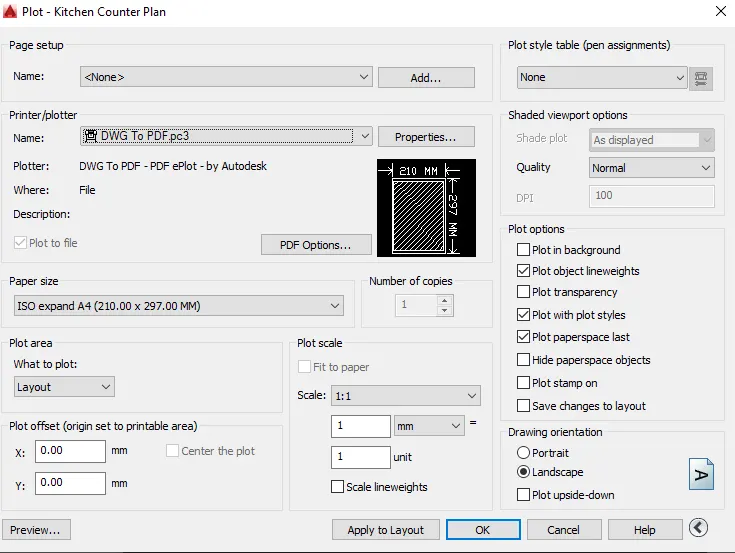

1. Now type Plot in the command box to open the plot and a print dialog box.

2. select the plot type as DWG to PDF,pc3 and paper size as ISO A1

3. Select the plot area as extents and scale as 1:1 and 1:2 as per the given requirement.

Step8:

1. Then click on preview to see the preview of the layout.

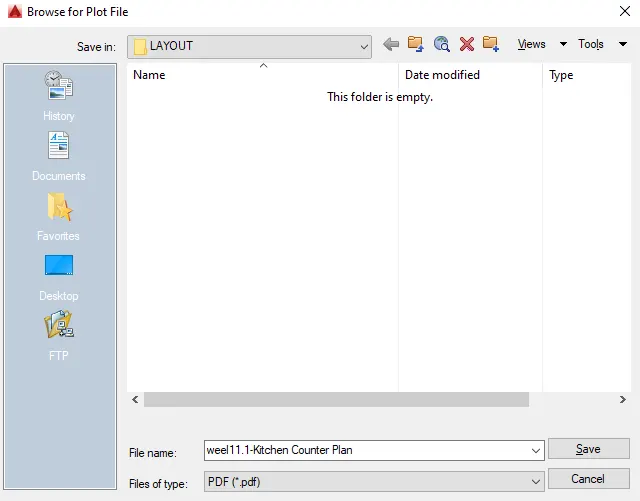

2. After settings have been made, click on ok to print or save it to the local folder.

RESULT:

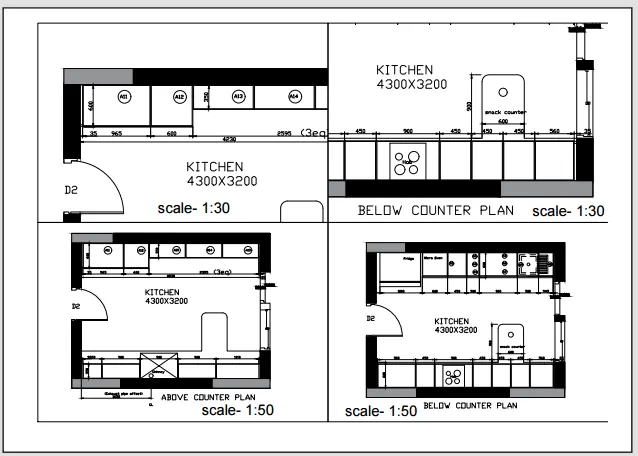

The different view of the kitchen layout have been plotted and printed successfully with four equal viewports using appropriate scaling and an A4 sheet.

AIM:

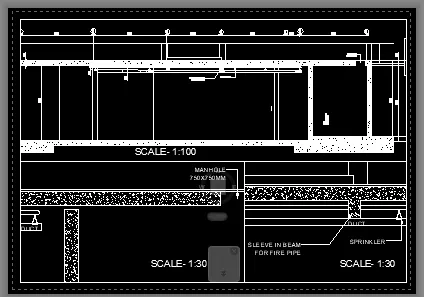

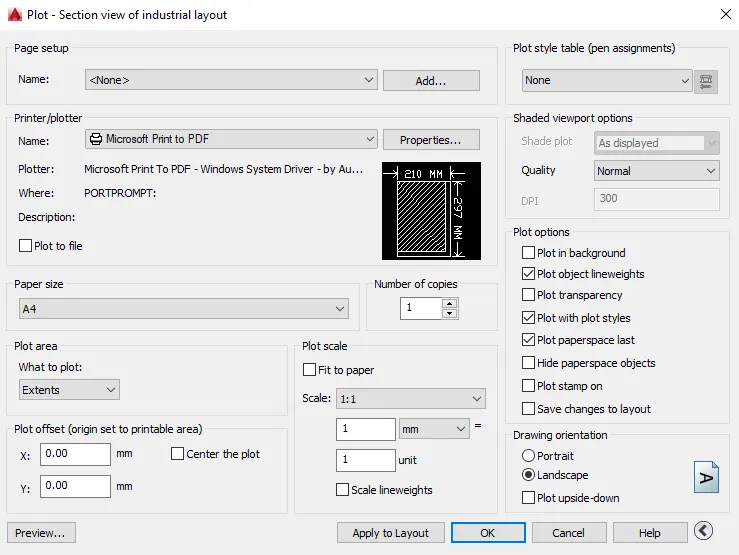

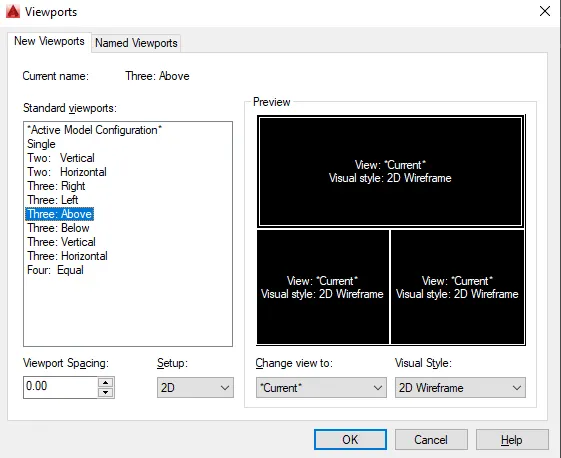

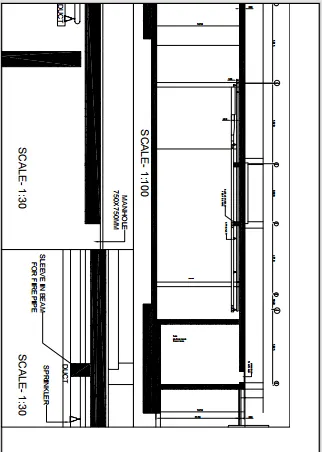

To create the layout of the section created in challenge 9 using appropriate scaling and multiple viewports.

INTRODUCTION:

A section view provides architects and contractors another way of understanding how construction will stand up, as it reveals details of the construction of walls and the thickness and height of beams and other supports. while a floor plan allows for a view of how the walls stand about each other, a section shows where the wall meets the floor and the distance that separates one floor from another.

Finally, section provide a better understanding of how a buiding's spaces will accomodate its future occupants and whether, for example, the ceiling will fill like it looms or soars overhead.

COMMANDS USED:

1. Viewports

2. Multiple viewports

3. Model space

4. Paper space.

5. Pan

6. Print.

PROCEDURE:

Step1:

1. Open the Autocad application frpm the desktop

2. On the Autocad homepage, click on open drawing.

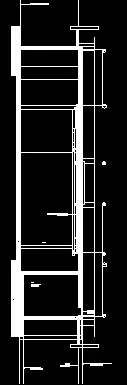

3. Open the section drawing of the industrial plan that we created in challenge 9.
