Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

AIM: To create:

1. Template, inserting text and attributes

2. Door of warehouse and placing it in blocks.

3. Electrical legend and making it blocks.

4. Different types of door for residential project.

5. Drawing bars, making it as block and making it as a table as bar bending schedule.

COMMANDS USED:

1. Block

2. Insert

3. Attributes

4. Field

5. Rectangle

6. Line

7. Text

8. Array

9. Mirror

10. Offset

1)

AIM:- Creating templates, inserting text and attributes

a) Custom1_titleblock

b) Custom2_titleblock

PROCEDURE:

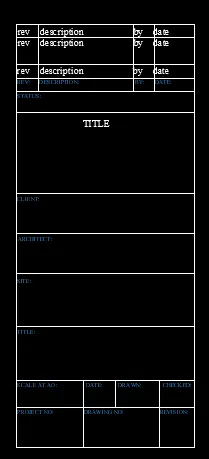

Custom1_titleblock:

Create a rectangle of size 66.63mm and 158mm.

Divide it with line for the text box into columns.

For the rows, take offset of 5,10,5,5,8,30,15,15,20,20,10,15 mm.

By multiline text, type rev, description, by, date on the first row by text height 2.5 and style-Times New Roman.

As it is repeated in the other two rows,take array give column as 1, rows as 3, spacing between rows as 7.

Again, use multiline text and type the required text in caps with text height 1.5 and style as Times New Romans.

Creating Block:-

Command "B"- block definition dialogue box appears- give name as "Custom1_titleblock" - select pick point and select a point in the table- select the object-select the whole table including the text. Give scale uniformly and tick allow exploding. select convert to block option.

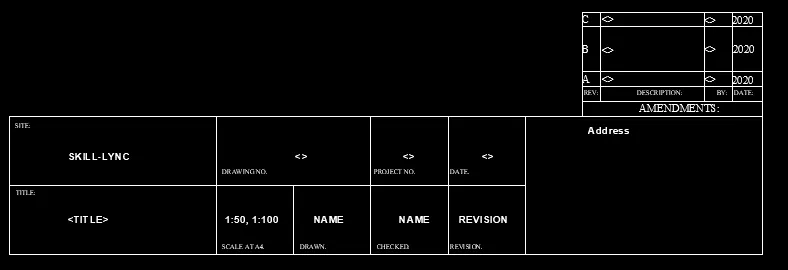

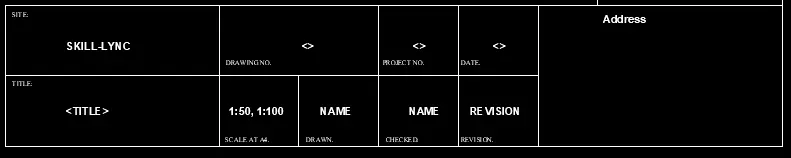

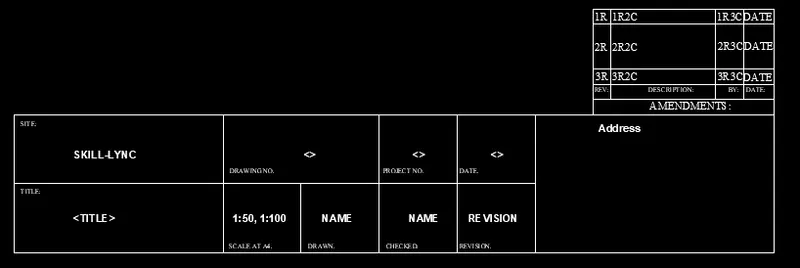

Custom2_titleblock:

Draw a rectangle of 252mm and 46mm with the lines divide to the required rows and columns

with the use of multilines text insert the following height 2.5

Create a small rectangle at the right corner, explode it, create rows and columns.

by attributes, create the text inside it. command "ATT"- attribute defintion dialogue box appears.

insert the tag line- tag we are giving, visible before creating the block.

Prompt- question we need to add what we need to enter.

Default- the value is shown in drawing after making it as a block.

For e.g.: in the first- row 1st column "C" is text to be displayed .

Place the tag line on the place we need to insert 1st row 1st column of the box created. create attributes similarly for the rest of the text. the attributes created are:

Now create a block comand "B" with the name Custom2_titleblock, select the whole title block and make it as a block. after creating it as a block we can see that all attributes will change to their default values.

RESULT:

i) The Custom1_titleblock is created:

ii) The Custom2_titleblock is created:

2)

AIM: Creating doors for warehouse and placing it in blocks:

1. Door1- 2330 x 2750mm

2. Door2- 2330 x 2750mm

PROCEDURE:

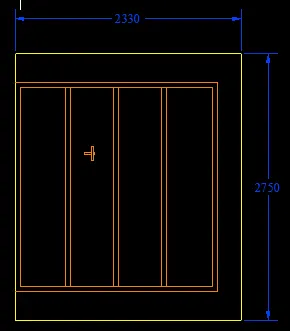

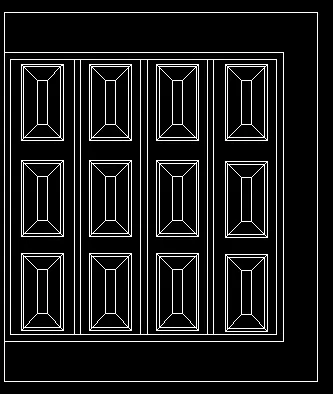

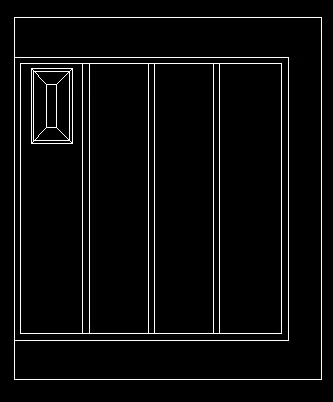

Door1-2330x2750mm:

Create a rectangle of size 2330x2750mm and explode it.

offset 300mm from top and bottom and 250mm from right side of the frame.

now offset 50mm from all the inner sides

By divide "DIV" divide the top line into 4 segments. from the division point, draw lines vertically to divide it into shutters.

Offset 25mm on both sides for the thickness, delete the center line.

Create a rectangle to show the panels. offset 20mm from the 1st rectangle and offset 100mm from the 2nd rectangle. draw lines joining the corners of the outside and inside rectangle.

Create the panel as a block, so that it easy to copy. create lock by rectangle command anmd fillet the corners with radius 5mm.

by using the copy all the frames are copied.

layer is created and all the objects are kept in different layers.

Creating Block:

Commabd "B" - give name as door1- pick point-select corner point-select object- select the full object- ok. select the scale uniformly and allow exploding.

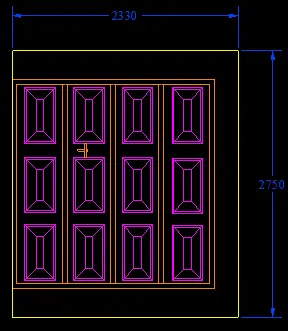

Door2- 2330x2750mm:

Copy all the things which require to making door2.

Create it as a block "B" - pick a corner point-select the whole door-tick the box of a scale uniformly and explode.

RESULT: The door block was created.

1. Door1:

2. Door2:

3)

AIM: To create electrical legend

1. Create each electrical symbol

2. Creating them as a block

3. Arranging them in legends.

PROCEDURE:

Creating electrical symbols

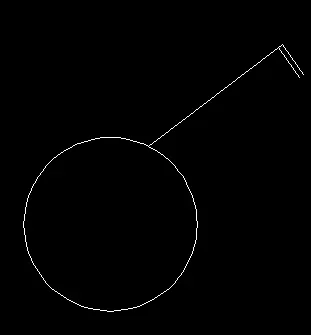

Single gang switch: Draw a circle of radius 64mm and with line drw an inclined line vertical and horizontal line perpendicular to the inclined as required

Double gang switch: Draw circle and draw two horizontal lines and a vertical inclined line.

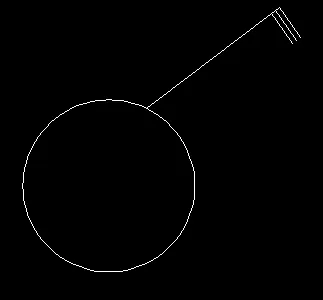

Triple gang switch: Draw circle and draw two horizontal lines and a vertical inclined line.

Single two-way switch: Draw same as single gang switch and with donout command give internal dia as zero and for external diameter select it in the circle.

Double two way switch: Draw same as double gang switch and create donout.

Triple two-way switch: Draw same as triple gang switch and create donout.

Switch cross: Create a circle and donout inside and with line command draw an inclined vertical and perpendicular horizontal. Mirror the line in both directions.

Switch serial: Copy the switch cross and delete two bottom lines, remove the donout also.

Single socket: Create a circle, divide it into half and draw a line at the top.

Single socket for lamp: From the single socket, draw a horizontal line perpendicular to vertical.

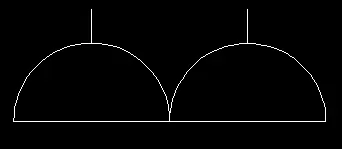

Double socket: Draw the single socket and copy it to create same and place it using snap on.

Floor socket single: Draw a rectangle surrounding single socket.

Floor single socket for lamp: Draw a rectangle surrounding single socket for lamp.

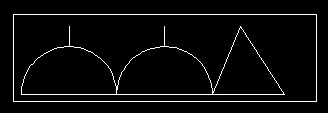

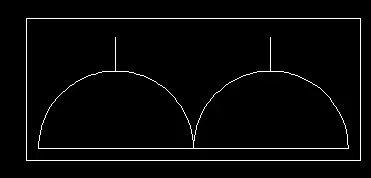

Floor socket double: Create two single socket and place a rectangle surrounding it.

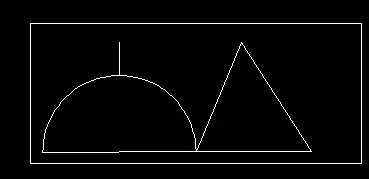

Floor socket single telephone: Draw a single socket, a triangle and surrounded by a rectangle.

Floor socket double, telephone : Draw 2 single socket and a triangle surrounded by a rectangle.

Telephone socket: Draw a triangle

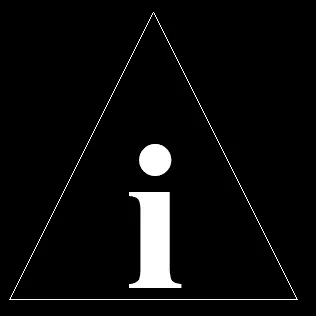

Internet socket: insert "i" in the triangle.

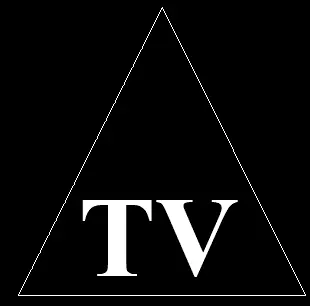

Tv socket: insert text "TV" in the triangle.

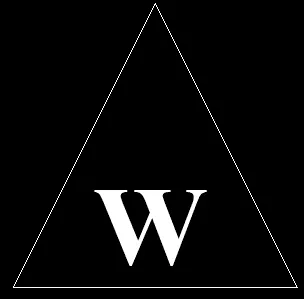

Weatherproof socket: insert text "w" in the triangle.

Duct base section: Draw a rectangle-select the bottom grip point- select add vertex- then pull the vertex to create a bend, with line draw the lines.

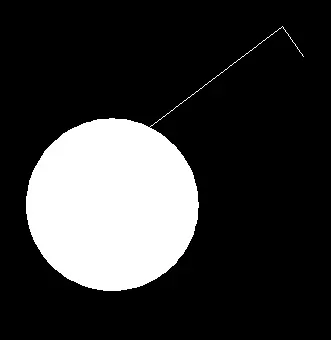

Wall bracket: with rectangle draw the base, create a circle, draw a line connecting the rectangle and circle, draw a cross line inside the circle.

Picture lamp: draw two rectangles connected by a line.

Creating them as a block:

Command "b" give name as single gang switch - pick a point- select object (created single gang switch)- tick scale uniformly and allow exploding options.

Similarly define ech one of them as block giving the respective names. Do the same procedure for the remaining symbols.

Creating and arranging them in layers.

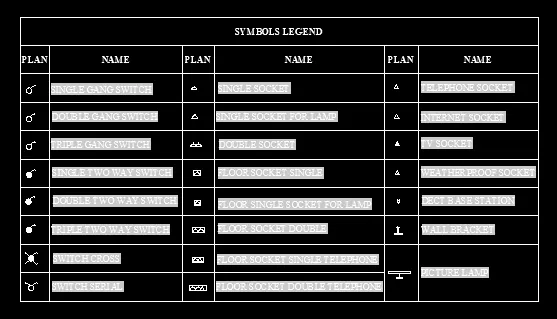

First create a rectangular table having 10 rows and 6 columns.

Place each of the blocks in the respective rows and columns.

To enter text with the block from the insert tab-select field- select object- select block.

E.g. for single gang switch-selct from the field-select uppercase in format.

Place the text in the respective rows give text height to 150. similar place all the title inside the legends.

RESULTS:

4)

AIM: To draw the doors of residential project and create it as a block.

1. D1

2. D2

3. D3

4. D4

5. D5

6. D6

PROCEDURE:

1) D1= 2'10" x 6'11"

Draw a rectangle with dimension 2'10" and 6'11". Draw offset 1.5" for frame. Draw offset 1" for shutter.

Draw lock by two rectangles perpendicular to each other and fillet the corners with radius 0.1" and circle. Write text by multiline text "D1"

Create it as a block "B"- give name as "type-D1"- pick a corner point-select the objecr-then block is created.

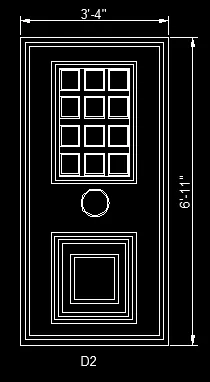

2) D2= 3'4" x 6'11"

Draw a rectangle with dimension 3'4" and 6'11". draw offset 1.5" for frame. Draw offset 1" for shutter.

Draw rectangle for panel 1'11" and 2'9.1", then offset 1" two times. Draw a rectangle 5.4" x 5.7", offset 0.3"

Copy it with copy command "co"- select mode- select the rectangle -select array- enter no: of array as 3- place it as required. copy the 3 rectangles to 4 rows.

For the second panel draw a rectangle of 1'11" x 2'0.6". offset 1" 3 times draw another rectangle inside this of 1'0.8" x 1'1.2" and offset 1"

Draw lock by circle in between the two panels. Write the text by multiline text "D2"

Create it as block "b"-give name as "type-D2"-pick a corner point -select object, then block is created.

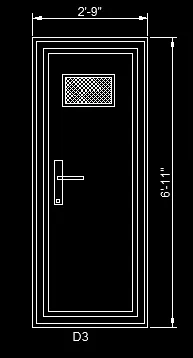

3) D3-2'9" x 6'11"

Draw a rectangle of 2'9" x 6'11"

offset 1" for thickness, 2" offset for frame, 1" thickness. offset 1.5" as shutter thickness.

Draw a rectangle at the top for ventilation 1'3" x 9.3", give offset 1" for thickness. Htach inside the rectangle.

Create lock by rectangle two of them. perpendicular to each other and a circle.

Create it as a block command "B"-give name as type D3-pick point- select object- tick scale uniformly and explode all.

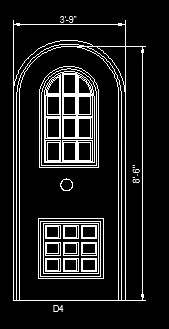

4) D4- 3'9" x 8'6"

Draw a rectangle of "rec" of dimension 3'9" x 6'10". explode it and create an arc with 2-point method with both point as the endpoints. offset the arc and the line with 1.5" and then 1"

offset 8" from arc and rectangle for panel and divide it into two. take 1" offset 2 times to show the thickness on top figure and bottom rectangle. create rectangle inside the panel.

for lock, create a circle.

make it a block, name as typeD4- pick a point and select the object tick the dialogue box of uniform scale and explode all.

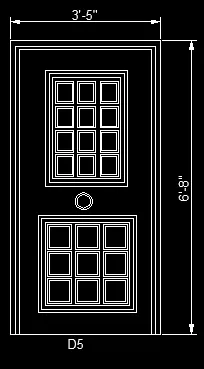

5) D5- 3'5" x 6'8"

Draw a rectangle of 3'5" x 6'8". offset 1.5" for frame. offset 1" as shutter thickness. create another rectangle inside with offset 4.4"

create another rectangle on the bottom 2'2.9" x 2'2.6". offset 1" two times for both rectangles.

create rectangle inside for panels with offset 0.5". copy it for 3 columns and 4 rows. similarly copy it in bottom rectangle for 3 rows and 3 columns.

create it as a block command "b"-give name as type-D5-pick point-select object-tick scale uniformly and explode all.

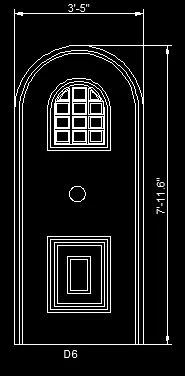

6) D6- 3'5" x 7'11.6"

draw a rectangle "REC" of dimension 3'5" x 7'11.6". explode it and create an arc with 2-point method with both point as the endpoints. offset the arc and the line with 1.5" and then 1" for frame.

offset 8" from arc and rectangle for panel and divide it into two. take 1" offset 2 times to show the thickness on the top figure and bottom rectangle. create rectangles inside the top panel, 3 row and 4 columns.

for bottom panel, offset the rectangles by 1" 3 times as and 3.3" and again 1". for lock, create a circle

make it a block, name as type-D6 -pick a apoint and select the object tick the dialogue box of uniform scale and explode all.

RESULT: The doors are created and are made into blocks.

5)

AIM: To create bar bending schedule and insert it as block.

1. Drawing each shape.

2. Creating it as a block.

3. Inserting it in table as bar bending schedule.

Procedure:

1) Drawing each shapes:

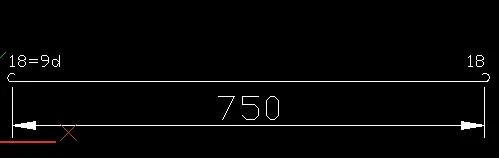

A-20mm:

Draw a line of 750cm for straight bar. create arc for bend. create on one side and mirror it on other side.

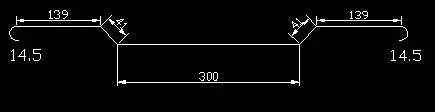

B- 16mm:

Draw a line of 300mm for straight bar. draw vertical line of 41 cm and extend a horizontal line and draw a line inclined at 45 degrees from the base of vertical line upto horizontal line.

Trim off the unwanted lines.copy the same on the other side. draw a horizontal lines of 139cm and copy it on other side. draw bend with arc and mirror the same on the other side.

C- 16mm:

Draw a line of 210cm. draw vertical line of 41cm and extend a horizontal line and draw a line inclined at 45 degree from the base of vertical line upto horizontal line.

Trim off the unwanted lines. copy the same on the other side. draw a horizontal line of 180cm and copy it on other side. draw bend with arc and mirror the same on the other side.

D- 12mm:

Draw a line of 750 cm for straight bar. draw an arc downwards. mirror it on the other side.

E- 10mm:

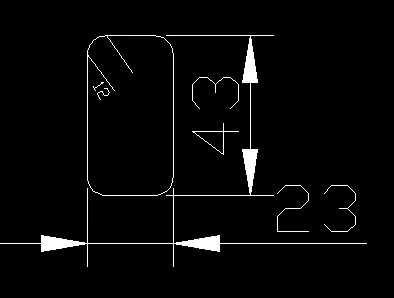

Draw a rectangle of 23cm and 43cm. fillet the corner with fillet radius 5cm. draw two line of 12cm.

Creating each of them as block by using command-"B"-give name as A- pick point-select the object-select delete-tick box of scale uniformly and explode all.

and similarly create 5 blocks: A,B,C,D,E and insert each of the bars as blocks.

Inserting blocks in the table:

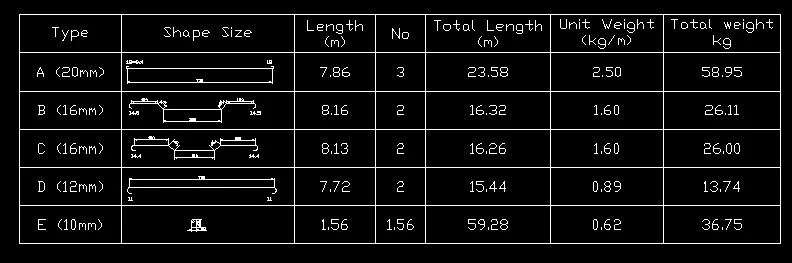

Create a table with rectangle and divide it into 6 rows and 7 column. With multiline text enter type, shape size, length, no, total length, unit weight, total weight and all other text. By commad "i" insert each of the block in respective columns.

RESULT:

RESULT:

Template is drawn and text and attributes are inserted.

Doors of warehouse are drawn and placed it in blocks.

Electrical legend are created and it is made into blocks.

Different types of door for residential project are drawn and are placed in blocks.

Bars are drawn and made it as blocks and inserted it in table as bar bending schedule.
