Creating Kitchen layout, Hatching of Architectural elements and sectional view of an Industrial Building in AutoCad
AIM: To create a kitchen layout and to also, use proper dimensions techniques to dimension the kitchen layout. Also, insert the text wherever required.
All dimesnions are in mm.
PROCEDURE:
Step1:
units are in mm
limits and limax are also set
zoom command is also used.

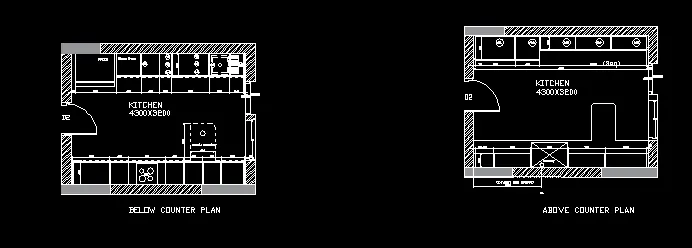

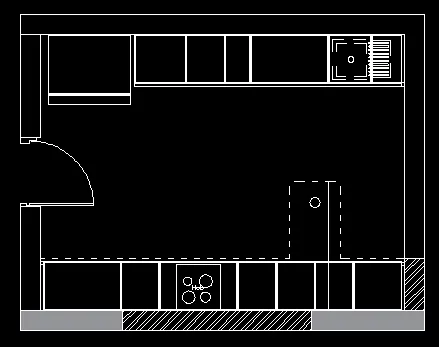

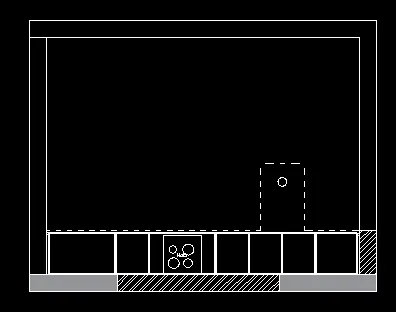

Steps for drawing below counter plan
Open autocad and enter UN (units command) in command box and make the type as decimal.
Select line command and draw a line of 4300 in X direction and a line of 3200 in Y direction and complete the rectangle.
offset 230 towards all sides of the rectangle outside the figure.
Fillet all the offset edges.
offset of 600m from bottom of the room to draw the kitchen platform
Give the offset as follows from left side 35 as first offset- 900mm, 450mm, 900mm, 450mm, 450mm, 450mm, 560mm, amd 35mm as last.
offset of 10mm to both sides in each corner of the room.
\
offset of 600mm from top of kitchen to draw the kitchen platform.
give the offset as follows from left side 90mm as first- 1000mm, 600mm, 450mm, 300mm, 900mm, 500mm, 345mm and as last 10mm.
draw the door as width of 800mm and then do hatch in the required area.
and also text in the drawing which is required as given in question.
and then draw the internal little things of drawings.
Steps for drawing above counter plan
Select line of 4300 in x direction and a line of 3200 in y direction and complete the rectangle.
offset 230mm towards all sides of the rectangle outside the figure.
fillet all the offset edges.
offset of 600mm from top of the room to draw the kitchen platform
give the offset as follows from left side 35 as first and again the offset as 965, 600, 2595(3eq.)
offset 10mm to both sides in each corner of the room.
offset 350mm from bottom of te middle of kitchen to draw the platform.
Now enter offset as follows-35, 450, 900, 900, 900, 1010,35
Hatching of Objects:
Click of home tab- draw panel-hatch
on the properties panel hatch type list, select the type of hatch that you want to use.
on the pattern panel, click a hatch pattern and fill.
on the boundaries panel, specify the how the pattern boundary is selected:
pick points, insert the hatch or fill within a closed area that is bounded by one or more objects.
select boundary objects, insert the hatch or fill with in a closed object.
the selectiom method is retain until you change it.
click on area and object to be hatched.
on the ribbon, make any adjustment as needed.
on the properties panel, you can change the hatch type and colors or modify the transparency level, angle, scale for the hatch.
on the expanded options panel you can change the draw order to specify whether the hatch and its boundary are displayed in front of or behind other objects.
press enter to apply hatch and exit the command.

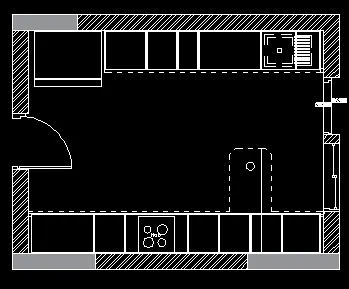

hatch the brick wall with hatch type as ANS132 and hatch other part as solid and grey colour.
RESULT:

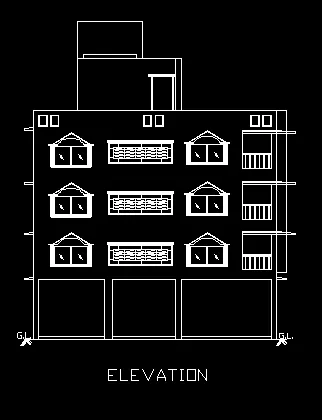

AIM: To create elevation and hatching the structural and non-structural elements of the building like walls, columns etc
PROCEDURE:

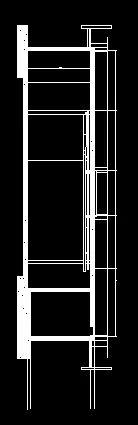

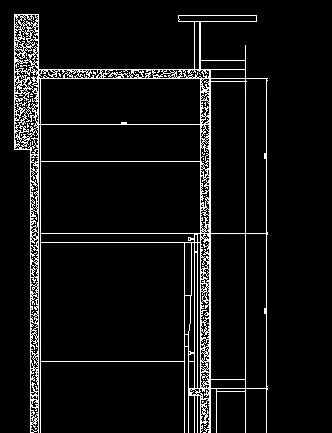

steps for drawing section

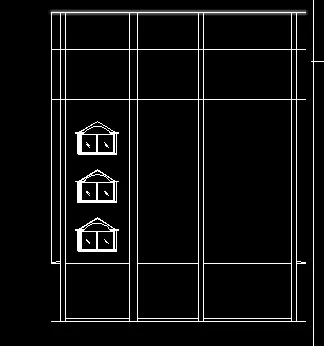

select the line command and extend the lines from the plan in the downward manner to create projections
offset 150mm from the fround level.
offset 2450mm for ground floor.
offset 2680mm for first floor.
offset 2396mm for second floor.
offset 2396mm for third floor.
offset 1077mm for parapet wall
offset 2500mm from terrace level for mumty.
offset 450mm for mumty for parapet wall of mumty.
offset 600 and offset 1200 for O.T.H
for drawing of staircase offset 1250 for tread and offset 143.75 for raise of staircase.
offset 125 below the floor level for slab.
draw the chajjas and windows as per the sizes considered and standards
draw the railing of staircase in dash manner from the layers and chage the layer to ACADIS003W100.
give the dimensions by dim linear or dim continue command.
select The multilinetext for naming of the section.
RESULT:
AIM: To create the section view of an industrial building.
Procedure:
In the command prompt type l to draw the lines.
in the command prompt type rec to draw the rectangle.
in the ribbon bar> hatch> AR. CONC.
in the command prompt type LT to get the dotted lines.
in the command prompt type MT to draft the text.
in the command prompt type C to draw the circle.
in the command prompt type dim to draft the dimensions.
RESULT:
