Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

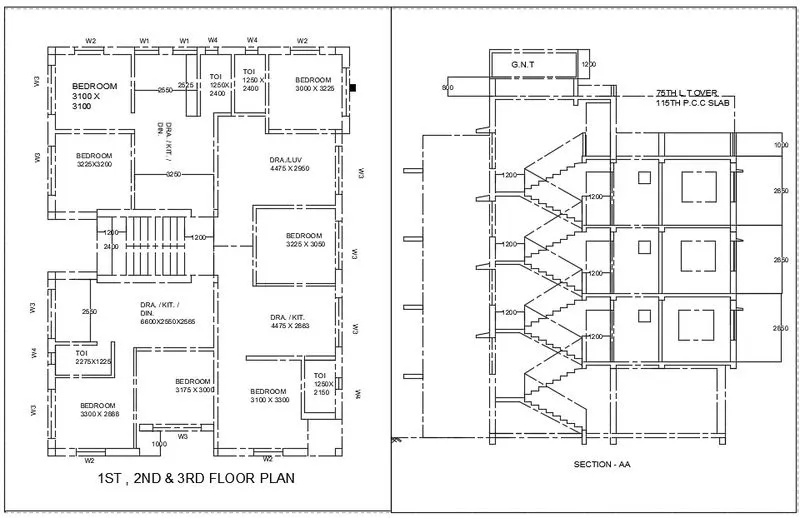

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

Aim ,

To create a layout of the plan and setion A of the projects in challenges 7.

procedure ,

* First click the "LAYOUT" option in the left side corner of the worksheet.

* Then right click on the layout option then select the "Page setup manager" option.

* Set the page size as per required.

* Then scale as given.(1:100)

* Using "MVIEW" option select the port and set the diagram in it.

* Then using "MS" means mspace option to get rid of that port.

Diagram ,

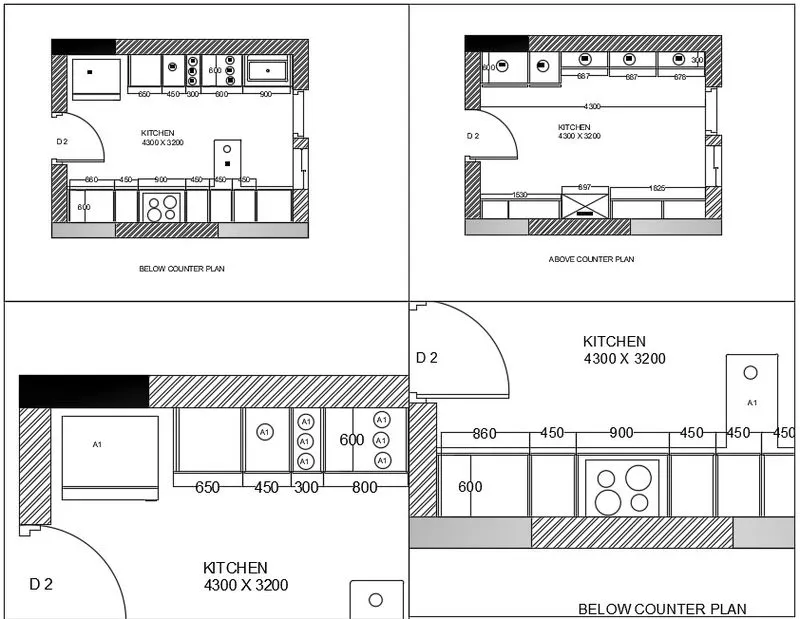

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

Aim ,

To create a layout of the kitchen dran in challenge 9.

procedure ,

* First click the "LAYOUT 2" option in the left side corner of the worksheet.

* Then right click on the layout option then select the "Page setup manager" option.

* Set the page size as per required.

* Then scale as given.(1:30).

* Using "MVIEW" option select the port and set the diagram in it.

* Then using "MS" means mspace option to get rid of that port.

Diagram ,

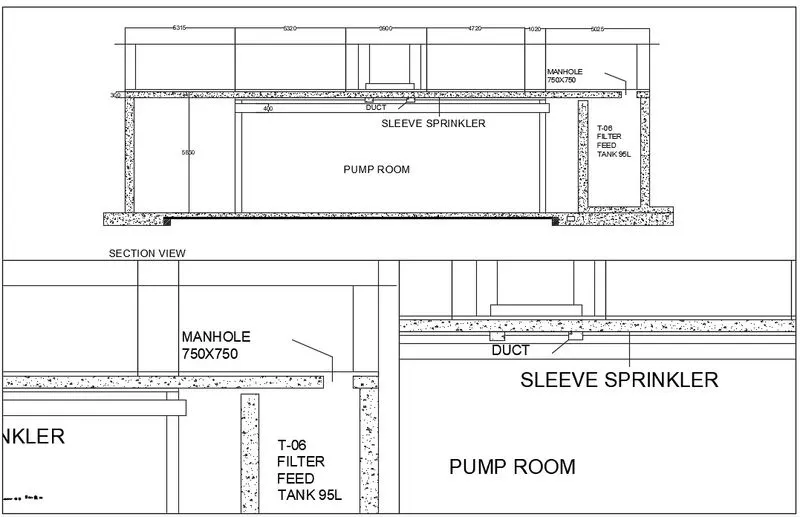

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

Aim ,

To create a layout of the section created in challenge 9.

Procedure ,

*First click the (+) option near the layout 2 option.

* Then right click on the layout option then select the "Page setup manager" option.

* Set the page size as per required.

* Then scale as given.(1:1).

* Using "MVIEW" option select the port and set the diagram in it.

* Then using "MS" means mspace option to get rid of that port.

Diagram ,
