Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

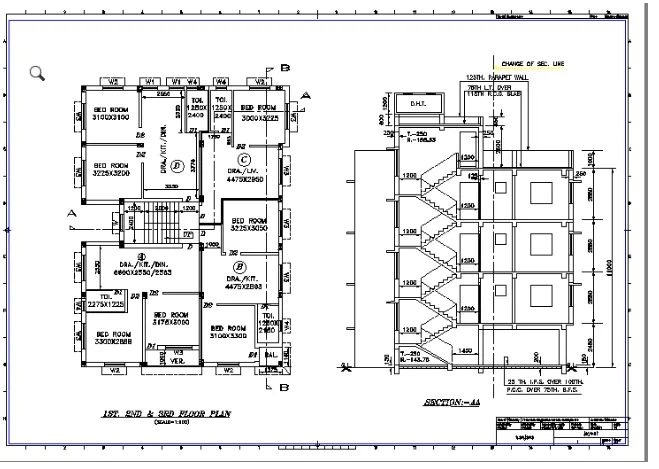

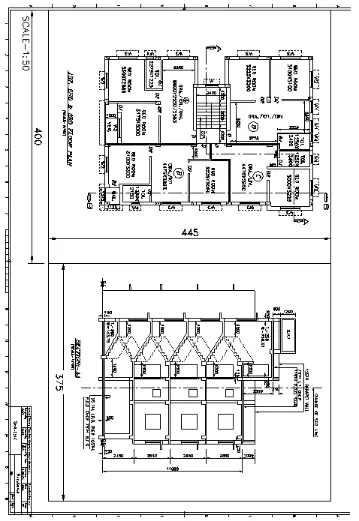

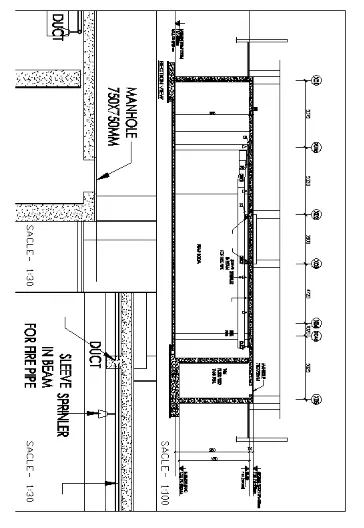

1) Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

Ans :  Step 1 Here we need use following commands, View, Layout , Multiple View , Model Space , Paper Space , Scale , Xref , Lock , Pan , Plot.

We have this drawing , in which we use layout command then new layout and rename it

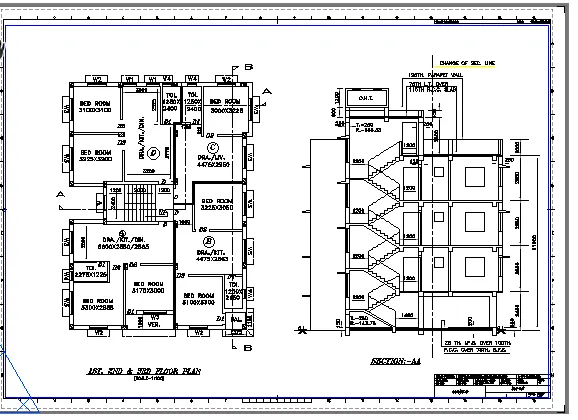

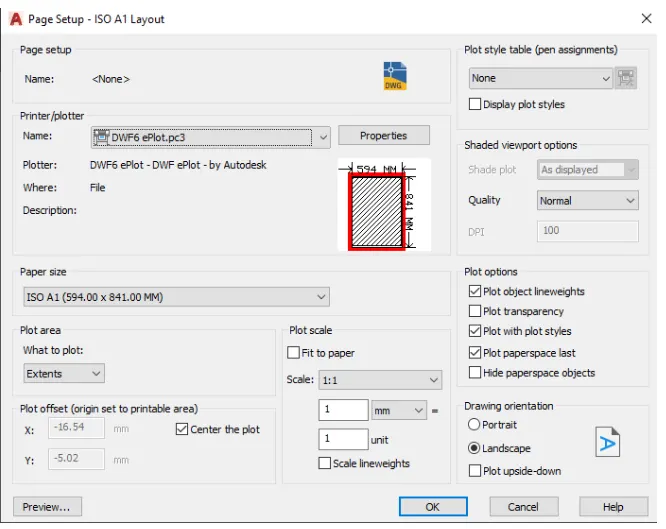

Then use MS command and set the view by using ctr + p and pagesetup command

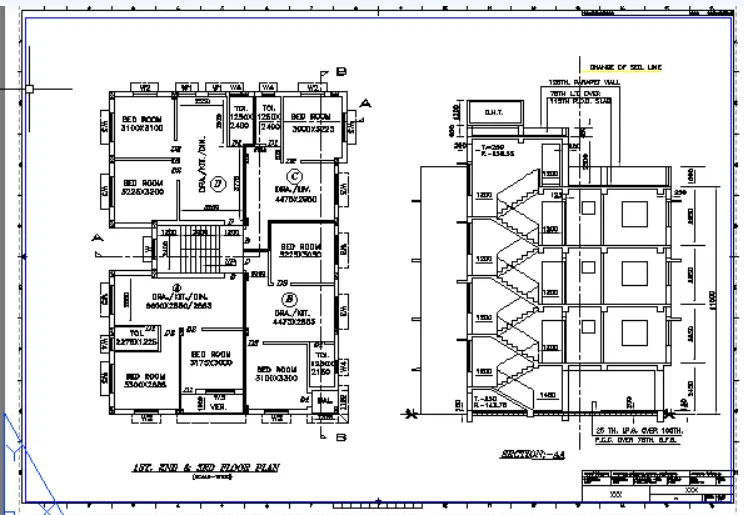

then layout means the paper view is ready

---------------------------------------------------------------------------------------------------------------------------

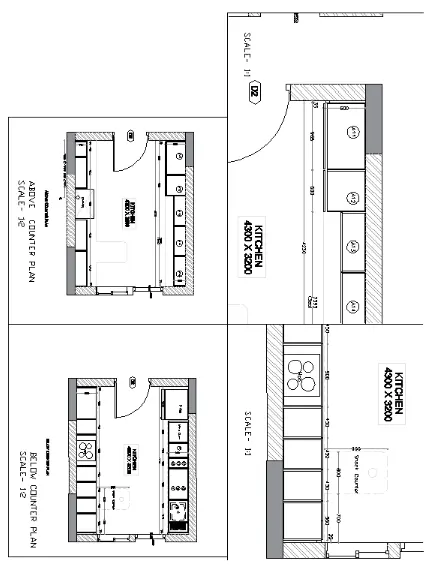

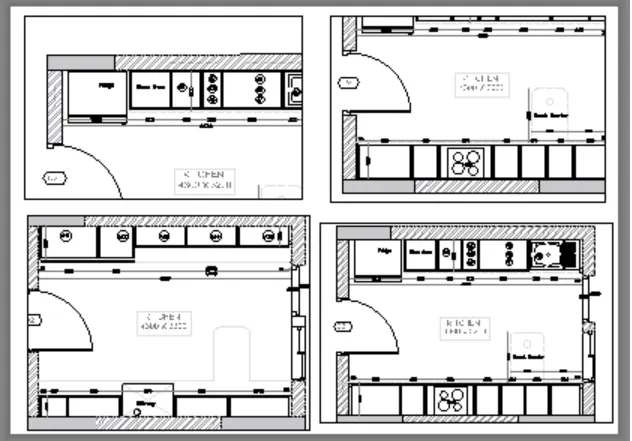

2) Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

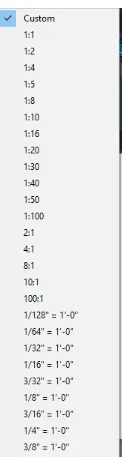

Ans : Step 1 set scale by using arrow beside command prompt and pagesetup

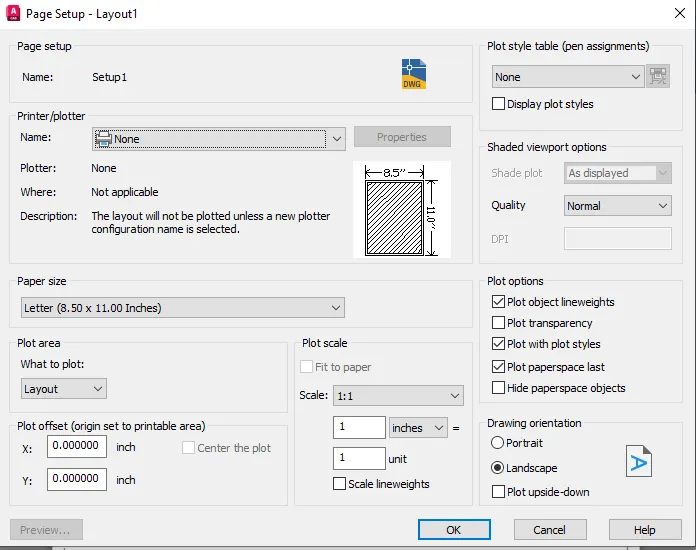

By using pagesetup command

Then layout is created as follow

---------------------------------------------------------------------------------------------------------------------------

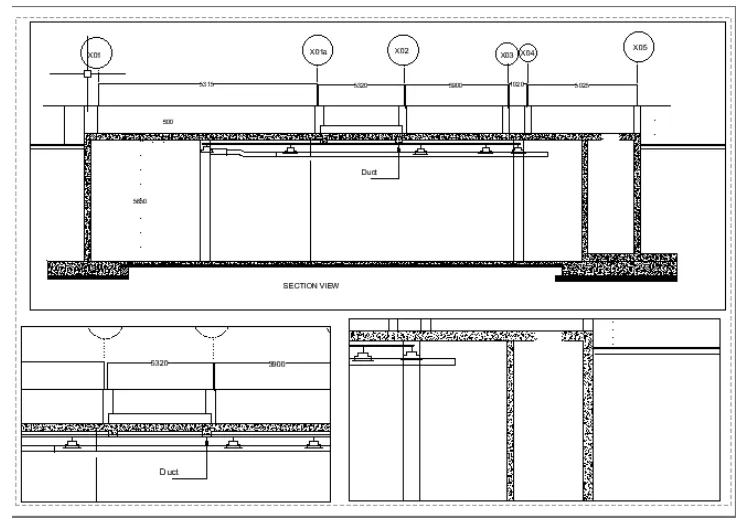

3) Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

Ans : step 1 this drawing we already drawn in challange no. 9

Now open layout in it by using layout command

Then give MV command

Adjust the scale and adjust drawing by using PS and MS command

--------------------------------------------------------------------------------------------------------------------------
