Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

Aim:

To create plan and section layouts, create viewports, edit attributes, and create a drawing.

To create a kitchen layout on an A4 sheet and take a plot

To create multiview ports for industrial section drawing, scaling and rendering.

COMMANDS USED:

View

Layout.

Multiple views.

Model space.

Paper space.

Scale.

Xref.

Lock.

Pan.

Plot.

Procedure:

1).Aim:

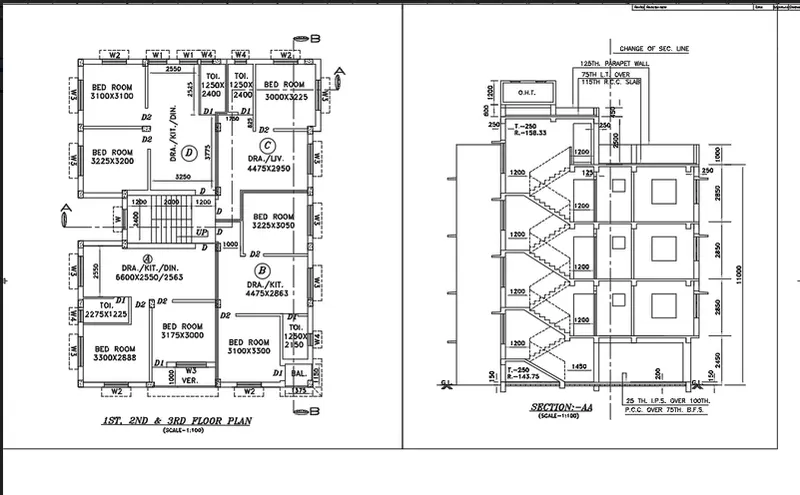

Creating a plan and section layout using the mArch.dwt template. Create a viewport using the MV command with a size of 400x445 and 375x445 and set the scale (1:50)

Editing attributes in the template. Create a drawing using A1 size.

Procedure:

Type "XREF" in the command line and attach Dwg.Attach the drawing to the left corner.

After connecting Left-click on the attached drawing file. Bind the attached file and then unzip the drawing file.

Click on the layout tab, right click on it and create a new layout. Rename the layout tab to Plan and Section. Delete the current viewport displayed in the layout.

To create a template:

Use command "LAYOUT" select template (.dwt) - select "mArch." select the ISO A1 layout from the dialog box and rename it to Plan and Section Layout.

Enter "MS" to activate model space.

To create a viewport:

To create a cutout, draw a rectangle of size 400x455 and 375x445.

Use the command "MV" multiple view - the option to select the object and click on the rectangle, then the drawing will be displayed in the viewport. Do the same for the second rectangle.

Command "MS" for model space and click on the viewport we need to set the drawing. Click on the first viewport and zoom the drawing for the plan and set the scale to 1:50 and lock the viewport so that the next zoom will not change the scale.

Similarly, do this in the second zoom viewport in the section view to make it 1:50 scale and lock it.

Editing attributes in a template:

Go to the drawing space with the "PS" command and click on the template, which is a block. Click on attributes to edit attributes - double click on the attribute text or "ATTEDIT" command, the attribute dialog box will appear.

Enter a value like NAME, DATE, scale, etc.

Type text in multiline text in paper space and with a text height of 20.

Making a drawing using an A1 sheet:

Use the "PLOT" command, a dialog box will appear. Enter the name as "DWG to PDF". Select ISO A1 paper size (594x841 mm).

Select what to render as a layout. Scale is given as 1:1, orientation is given as landscape. Select the pen assignment as "Monochrome" so the print will be missing.

Result:

The layout is created using the m.Arch.dwt template. The viewport is created using the MV command with a size of 400x445 and 375x445mm and the viewport scale is set to 1:50. The attributes in the template are edited. The chart is taken using the A1 size.

2).

AIM:

To get a different view of the kitchen for the layout in the model space, create a layout with four cut-outs, with an A4 sheet, create a drawing.

PROCEDURE:

Type "XREF" in the command line and attach Dwg.Attach the drawing to the left corner.

After connecting Left-click on the attached drawing file. Bind the attached file and then unzip the drawing file.

Take different views for layout in model space. Open the drawing, use the "VIEW" command to create new views. The view manager dialog will appear. click on a model, click on new to create a new view.

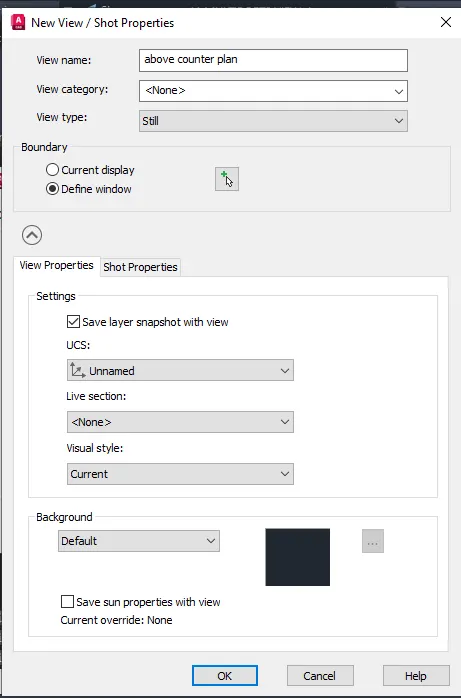

Another new view dialog will appear, enter the view name as "above counter plan", select the boundary as the definition window and select it using the window picker from the drawing.

Click OK and the view named above the counter plan and the selected drawing will be created. Similarly, create views for the counter plan, hob and cabinets A11 to A14.

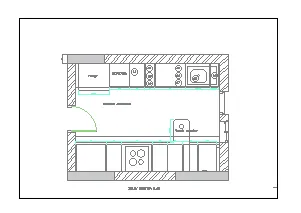

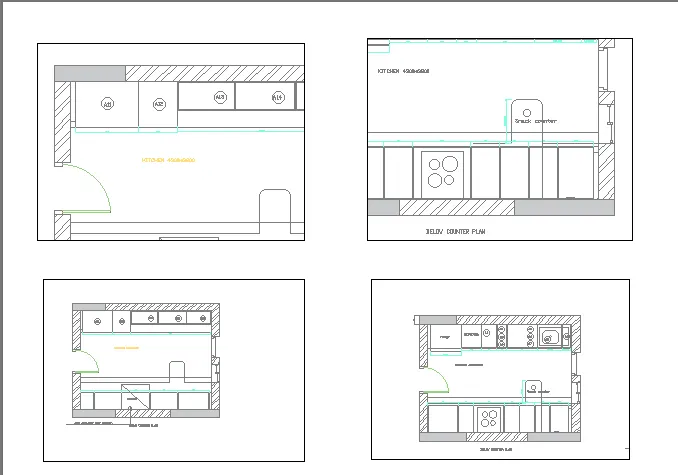

Create a layout with four viewports with an A4 sheet. Open the layout tab, rename the layout to kitchen layout. Delete the existing viewport

The default is A4 paper. Use the "MV" command to create 4 viewports by creating a window.

On the layout tab, type "VIEW", select the desired view and click on the viewport where you want it to appear, and lock each viewport.

Select cabinet view A11 to A14 in the first viewport, zoom and pan to fit the viewport

Go to the drawing space with the Text command type SCALE 1:1.

Enter the command "MS" click on the second viewport. Enter the command "VIEW" and select the display name snack counter

Zoom and pan the viewport so that the view fits within the viewport. Lock the cutout. Go to the drawing area and use the "T" command to enter the text SCALE 1:1.

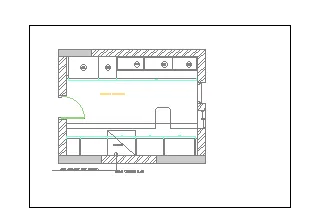

Similarly, in model space, click on the third viewport. Enter the view above the counter plan. Zoom in and move the viewport to fit the drawing.

Lock the viewport. Go to the drawing space and use the "T" command to enter text as ABOVE COUNTER PLAN and SCALE 1:2 with a text height of 3.5.

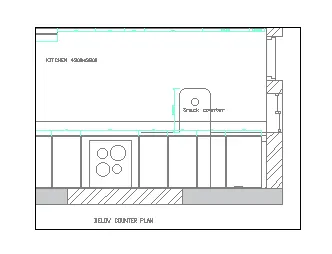

Similarly, in model space, click on the third viewport. Enter the view below the counter plan. Zoom in and move the viewport to fit the drawing.

Lock the viewport. Go to the drawing space and use the "T" command to enter the text as BELOW COUNTER PLAN and SCALE 1:2 with a text height of 3.5.

Creating a plot Use the "PLOT" command, a plot dialog box will appear. The paper size is selected as A4 and the name is given as A4, printer name and print to pdf

Select what to render as a layout and select the pen assignment as black and white. Preview the print. Select OK to convert to PDF.

Result:

A different view of the kitchen is created for layout in the model space, a layout with four cut-outs is created, with an A4 sheet, a chart is created.

3).

AIM:

Create a section layout of an industrial building, create a viewport with the MV (Multiview port) command, and the scale of 1:30 and 1:100 is given to get the layout plot.

PROCEDURE:

Type "XREF" in the command line and attach Dwg.Attach the drawing to the left corner.

After connecting Left-click on the attached drawing file. Bind the attached file and then unzip the drawing file.

Creating a layout of an industrial building section:

Open a section drawing of an industrial building. Take the layout card. Rename the tab to the industrial section.

Right-click on the tab and select the page settings manager option. Click on new - enter a name, the page settings dialog will appear.

Click Edit. In the page setup dialog box, specify the paper size as A3. Make it current, the paper size will change to A3.

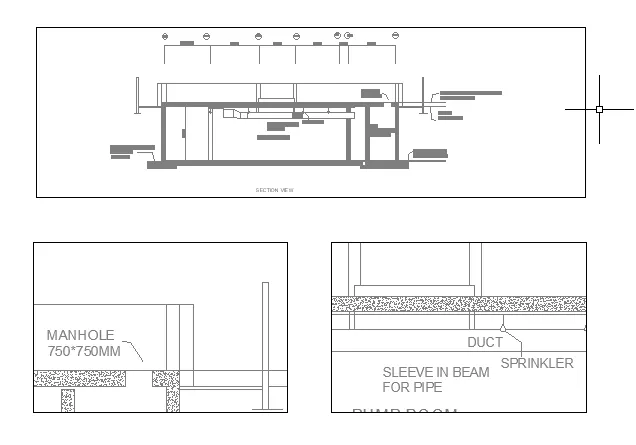

Use the "MV" command and create 3 cutouts accordingly.

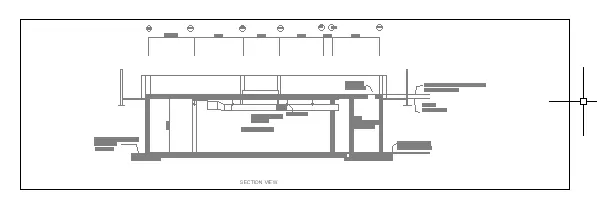

Use the "MS" command for model space, click on the first viewport. Set the scale to 1:100 from the bottom toolbar or right click and properties, we can change the scale from there as well.

Use the pan command to insert the drawing into the viewport. Using the text command, type the text as SCALE1:100 with a text height of 6 and lock the viewport.

Go to model view and create views for the next two viewports.

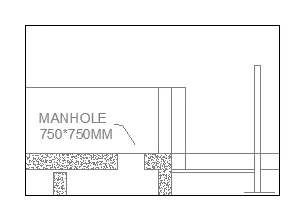

The command "VIEW" will appear -the view manager dialog will appear -create new -enter the name as shaft view -select the Definition window and select the view we need to create, press enter.Similarly create a view for the sprinkler named as sprinkler view .

Now go to the layout industrial section and command "MS" and click on the left model space. Now use the "view" command - select the shaft view - and click on set stream.

Then the view will appear in the model space Select scale to 1:30 from the bottom toolbar

For multi-line text, enter the text as SCALE 1:30 with a text height of 6. Lock the viewport from the lock symbol on the bottom toolbar.

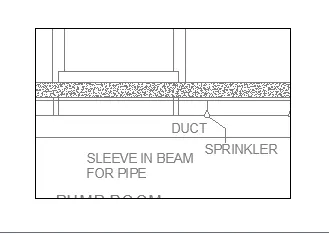

Type "MS" and click on the third viewport. Use the "VIEW" command to select the sprinkler view and set it current.

From the bottom toolbar, select Scale to 1:30. Using multiline text, insert text as SCALE1:30 with a text height of 6. Lock the viewport.

Create a slice chart. Enter the “PLOT” command. A dialog box will appear, select the paper size as A3, what to draw as the layout. The pen assignment must be a single color

Result:

The section layout of the industrial building is created, the section is created by the MV command and the scale 1:30 and 1:100 is specified.

A plot of disposition is taken.

RESULT:

Plan and section layouts, viewports, editing attributes are created and the drawing is executed.

Kitchen layout in A4 sheet is created and plot is taken.

Multiview ports for industrial section drawing is created, scaling and plotting is done.
