Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1.

AIM:

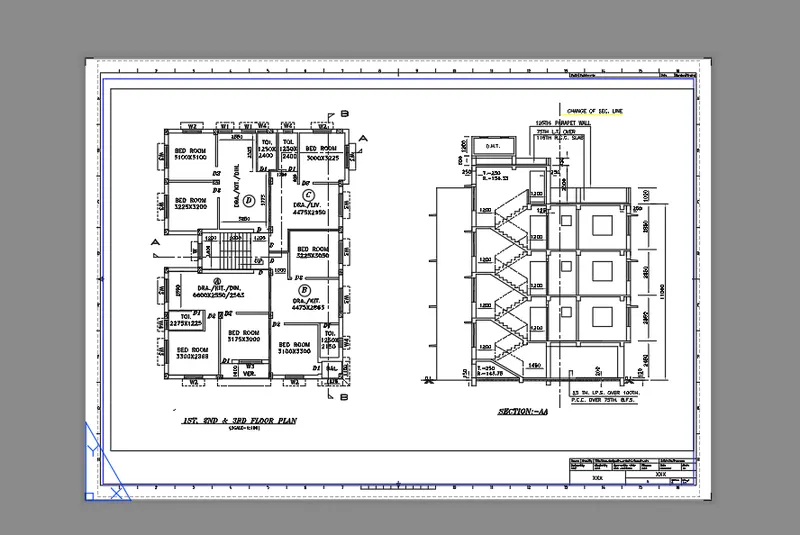

1. To create the layout of the plan and section, create viewports, edit attributes, and take a plot.
2. To create a kitchen layout in A4 sheet and take a plot
3. To create Multiview ports for industrial section drawing, scaling it, and taking a plot.

COMMANDS USED:

1. View
2. Layout.
3. Multiple View.
4. Model Space.
5. Paper Space.
6. Scale.

PROCEDURE:

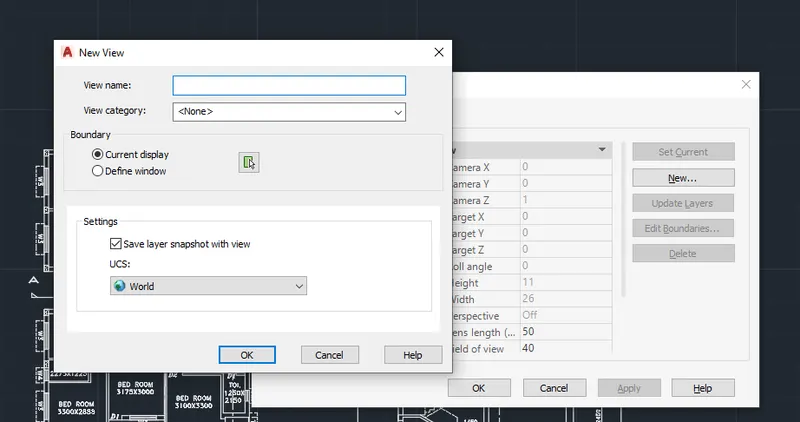

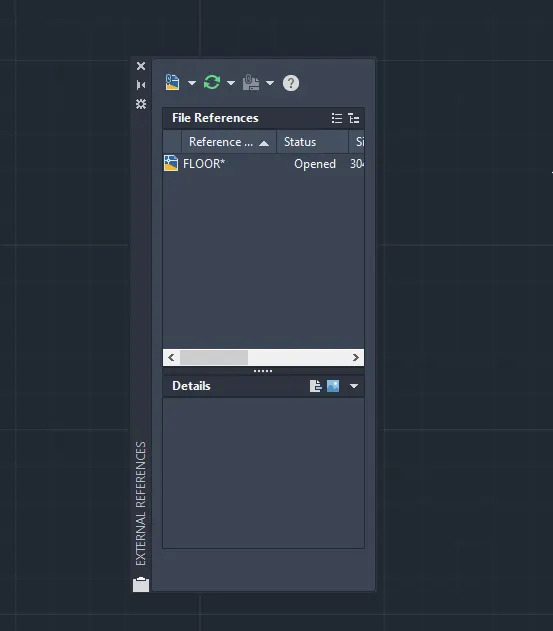

• Type, in the command prompt type V, to create the model view of the plan and section.
• Then provide the view name and choose the boundary option.

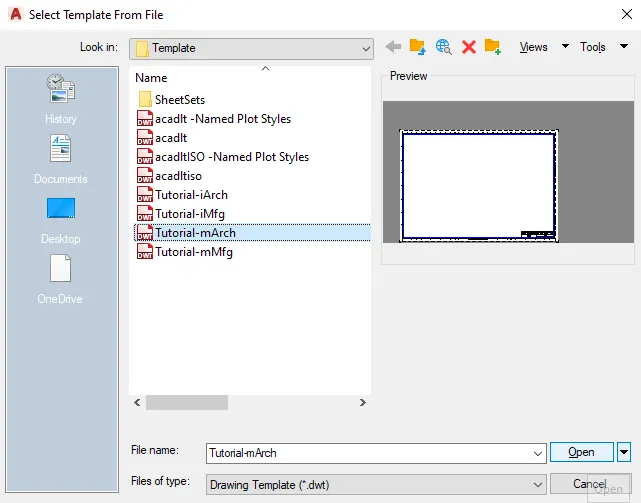

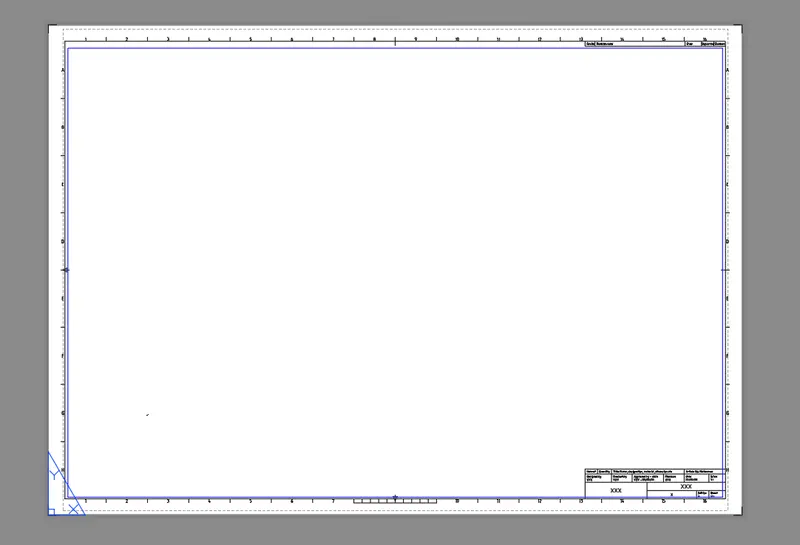

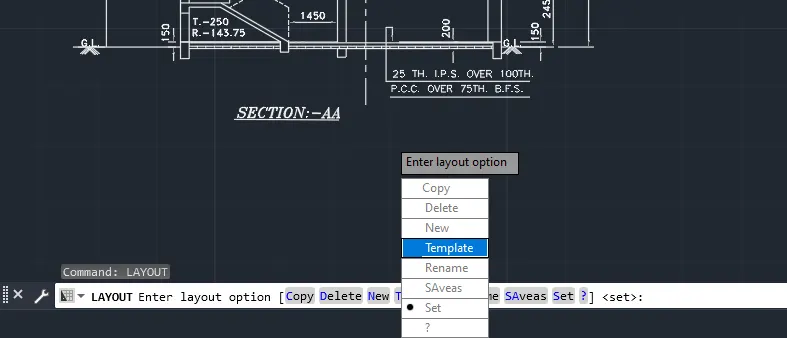

• Now, in the command prompt type layout then choose template. From that select Tutorial-mArch and insert it.

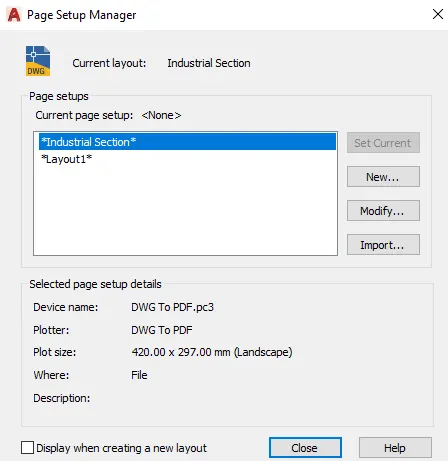

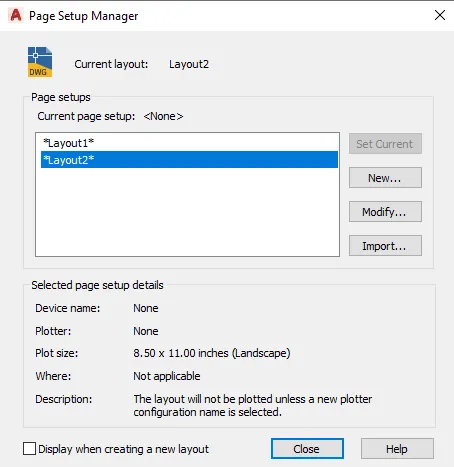

• Now, click ok and then close the page setup manager dialogue box.

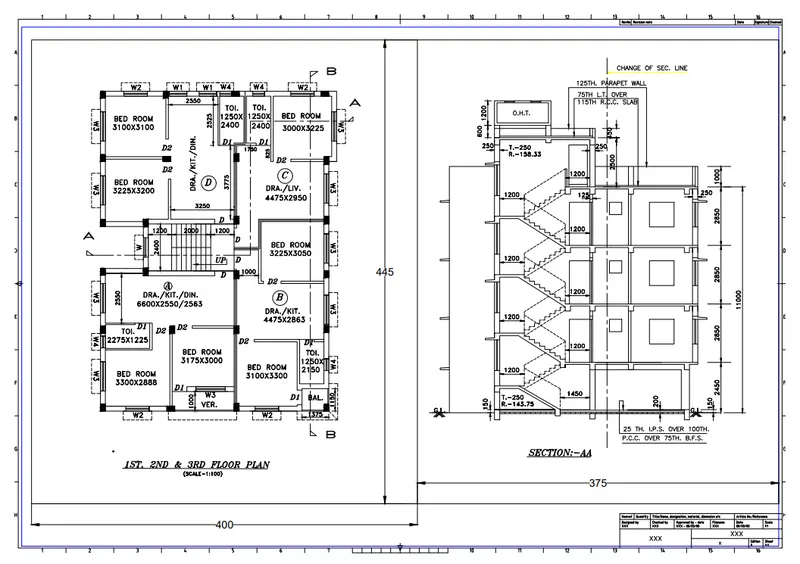

• Now, use the command MV to create multiple viewports and create the viewports as given in the question.

2.

Aim:

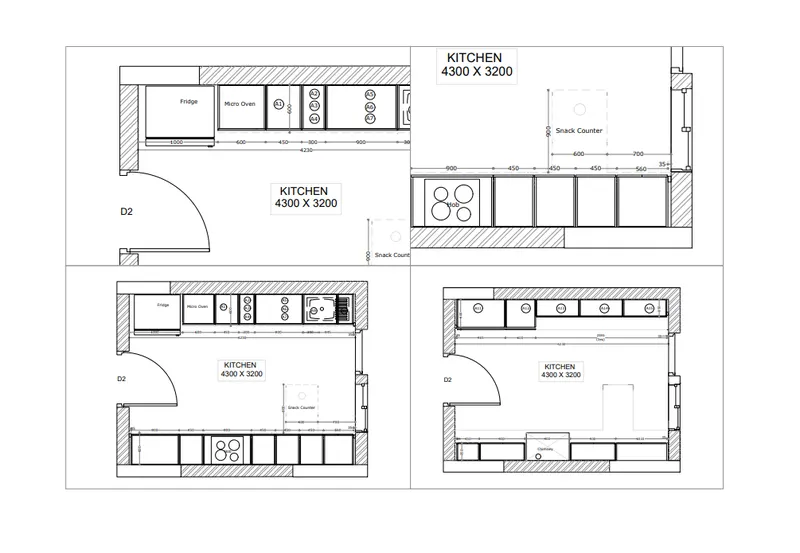

To take different views of the kitchen for layout in model space, create the layout with four viewports, with an A4 sheet, and create a plot.

Procedure:

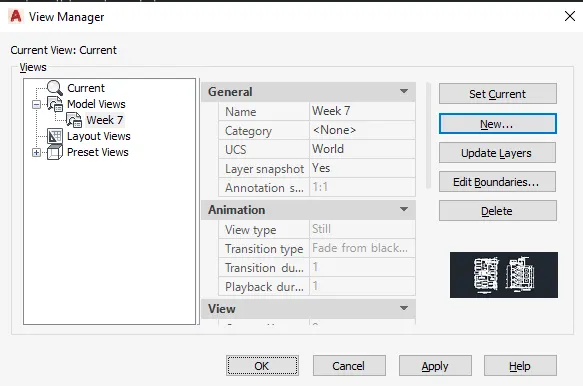

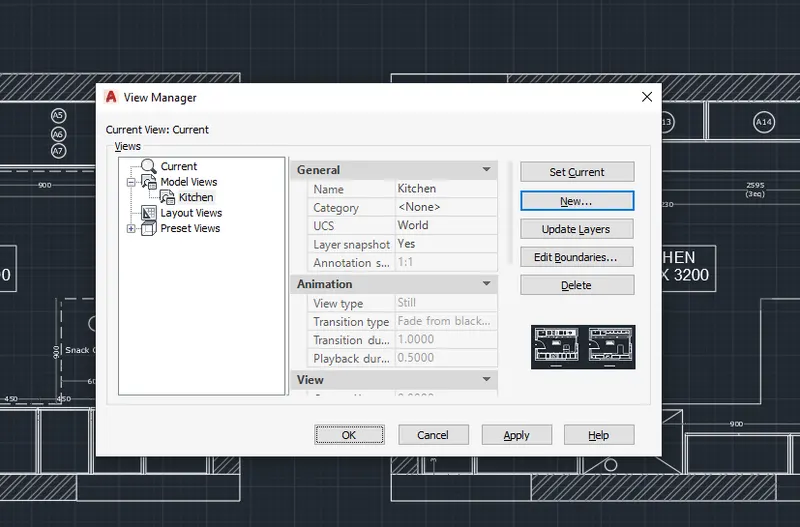

• Type, in the command prompt type V, to create the model view of the plan.

• Now, click ok then apply, and again ok.
• Hence, the model view is created.
• Now, go to the layout option in the window.

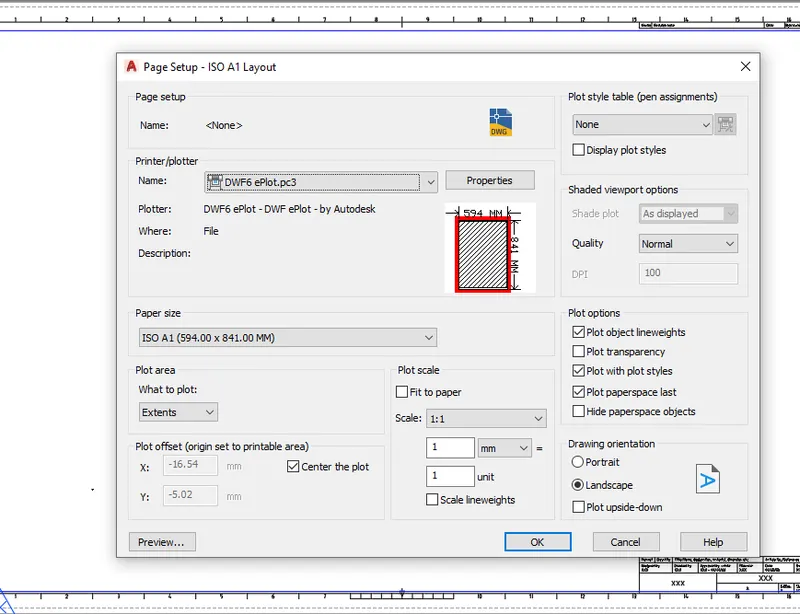

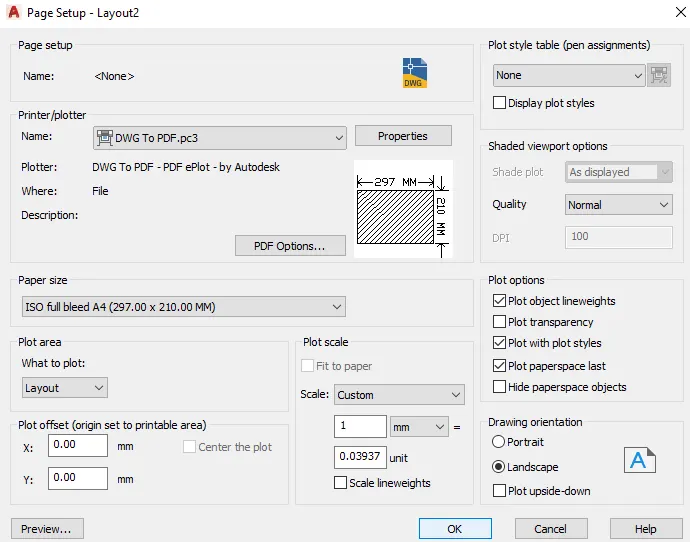

• Then modify the settings- provide the size of the paper(A4), then provide the plot area as layout and then click ok.

• Then type ms in the command prompt to zoom in and out the views in the viewport.

3.

Aim:

To create the layout of the section created in challenge 9 and to take the plot.

Procedure:

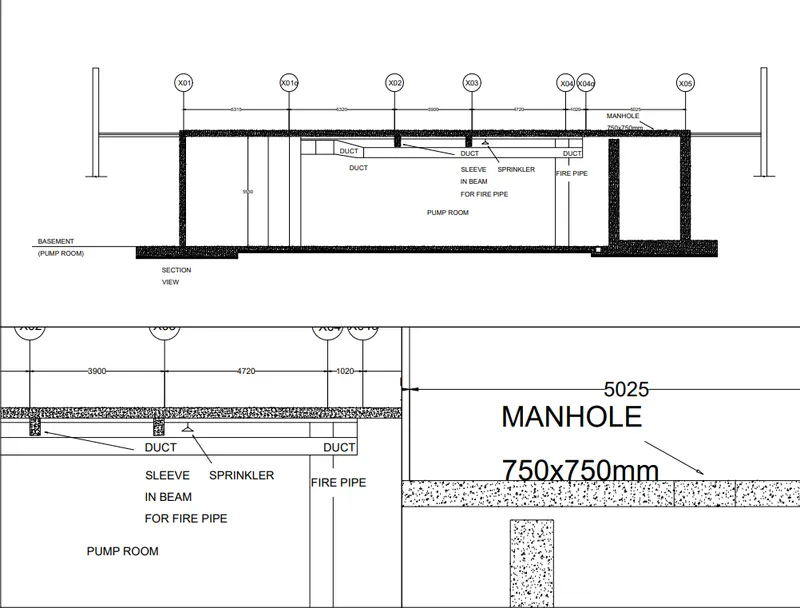

• To create the viewport, initially take the 9th-week challenge that is already created, and in that take the industrial section.

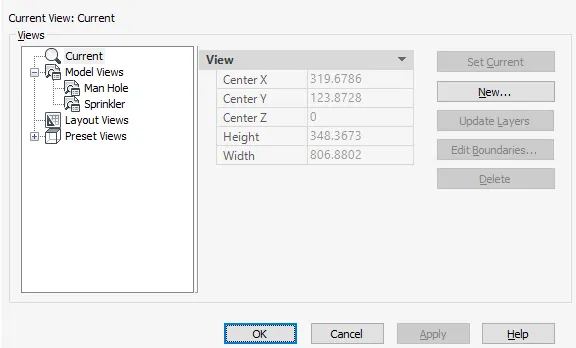

• Type in the command prompt type V to create the model view of the section.

• Now, click ok then apply, and again ok.
• Hence, the model view is created.
• Now, go to the layout option and select new and type the name of the layout as Section.
