Creation of geometries by Coordinate system methods using AutoCad

Q: Create the geometries from P1 to P2 using all the coordinates system methods. You need to use the Line tool to create the geometries. Where required you need to use the circle tool.

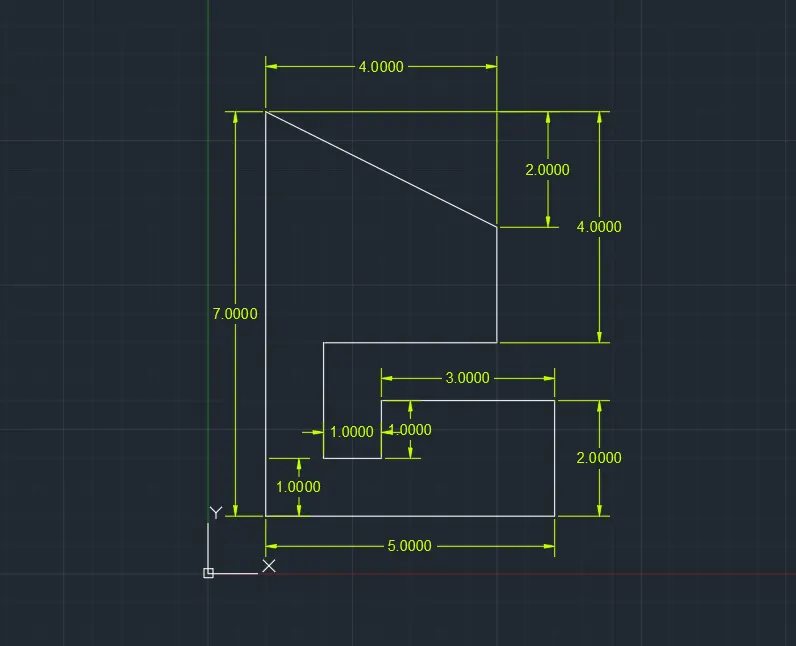

1: Absolute Co-ordinate system:

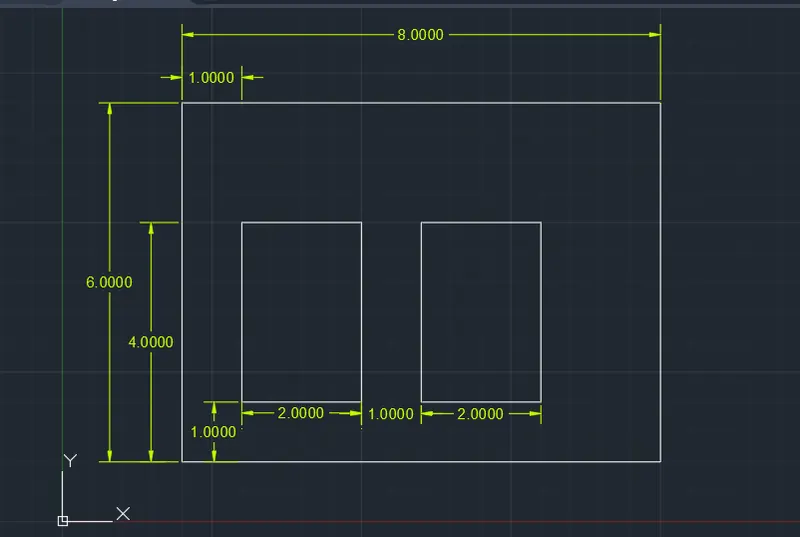

P-1

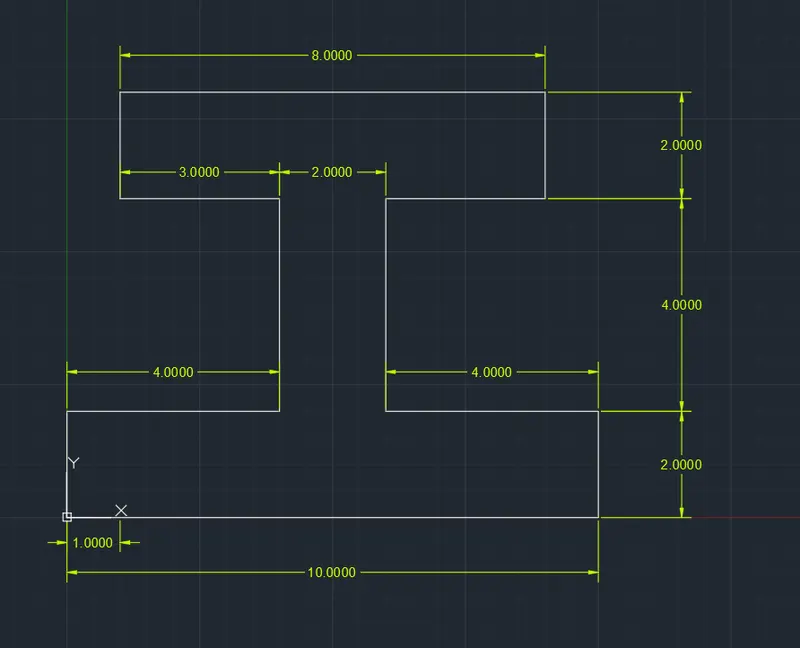

P-2 ( drawn using Absolute Co-ordinate system)

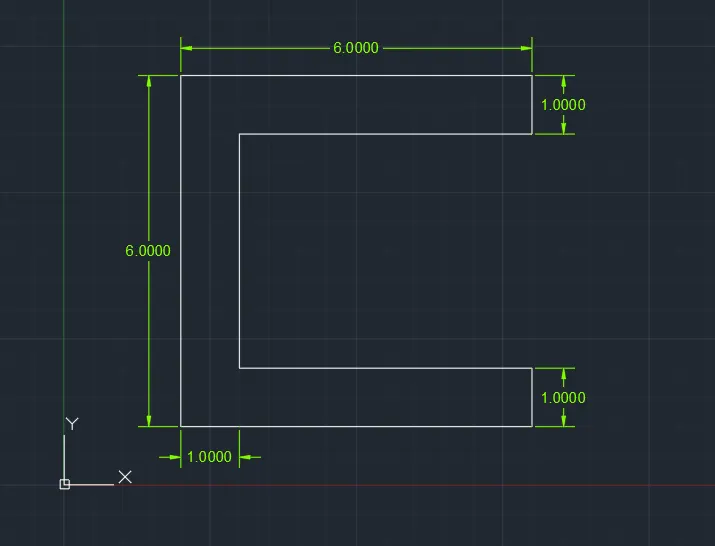

P-4 ( drawn using Absolute Co-ordinate system)

P-5 ( drawn using Absolute Co-ordinate system)

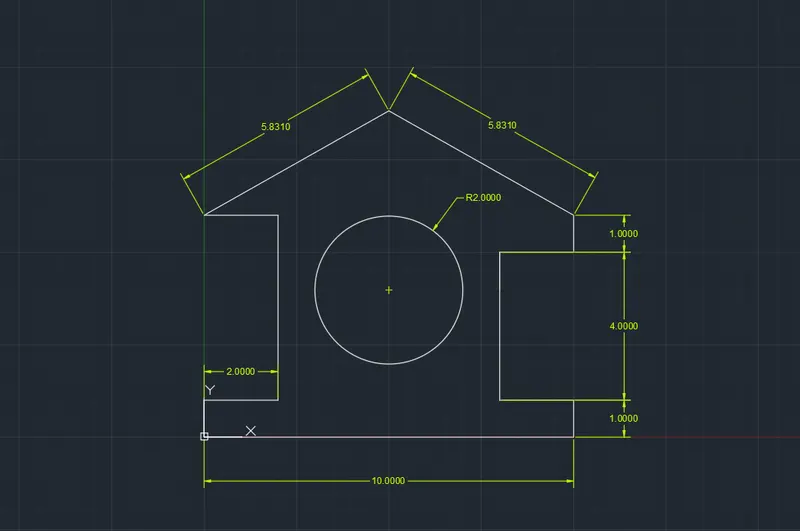

P-7 (Drawn using the relative polar coordinate system)

P-8 (Drawn using the relative polar coordinate system)

P-9 (Drawn using the relative polar coordinate system)

P-10 (Drawn using the relative polar coordinate system)

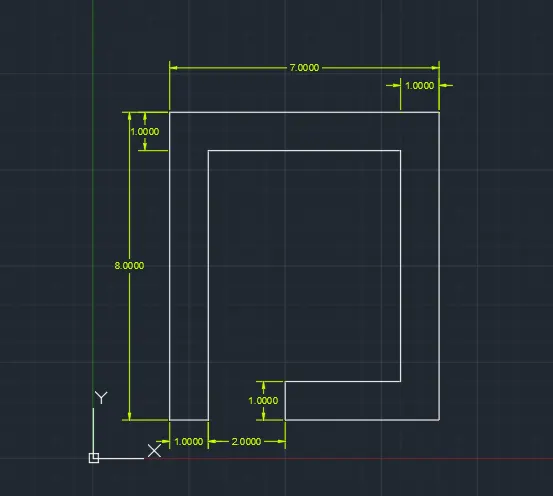

2: Relative rectangular coordinate system:

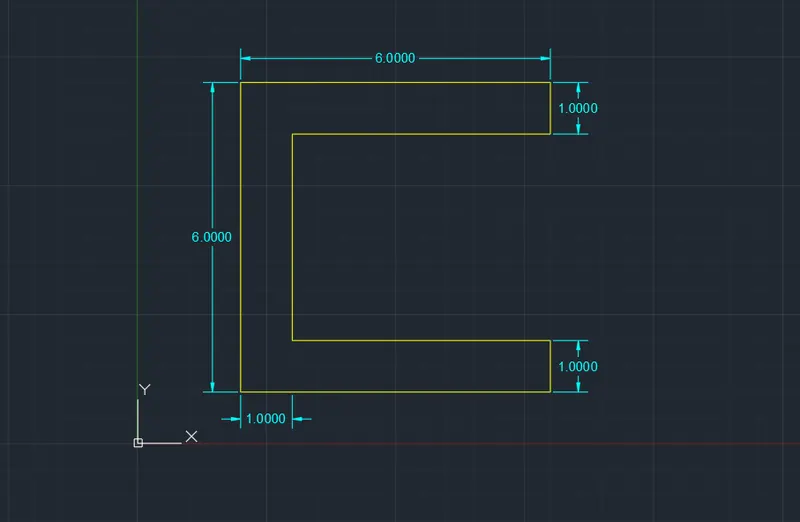

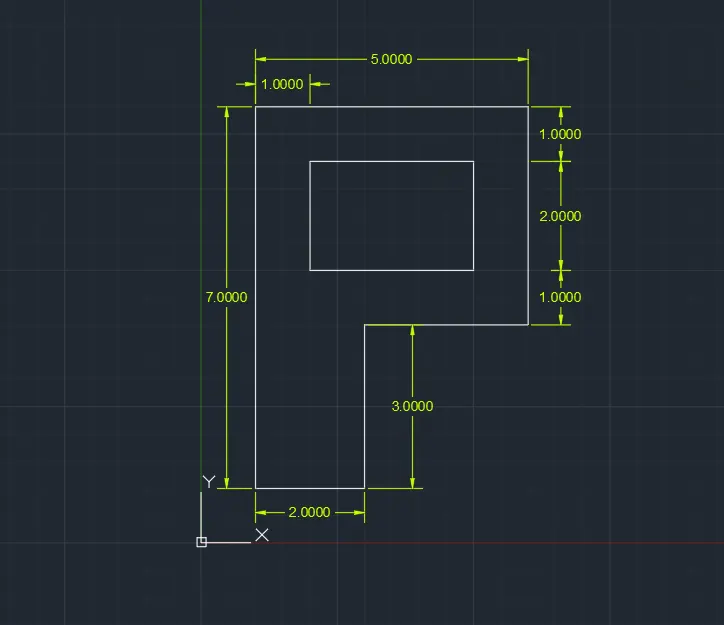

P-1

coordinates are (2,1) (@6,0) (@0,1) (@-5,0) (0,4) (@5,0) (@0,1) (@-6,0)

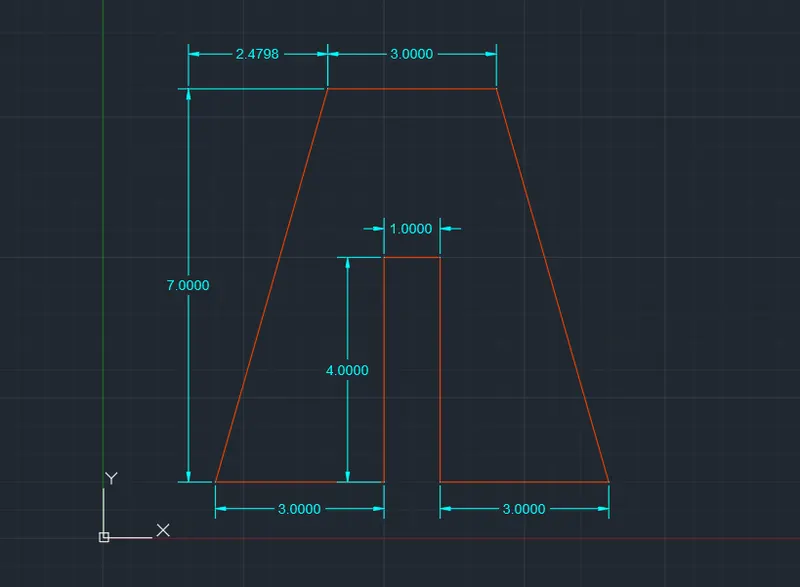

P-2

coordinates are (2,1) (@3,0) (@0,4) (@1,0) (0,-4) (@3,0) (@-2,7) (@-3,0) (@-2,-7)

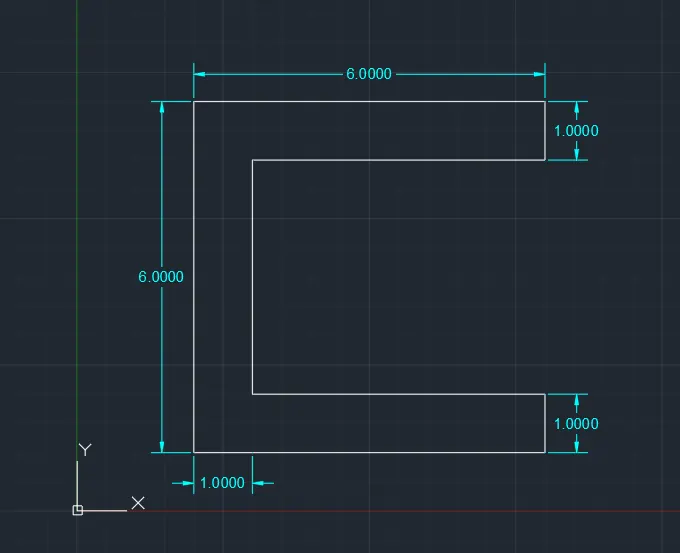

3: Relative polar coordinate system

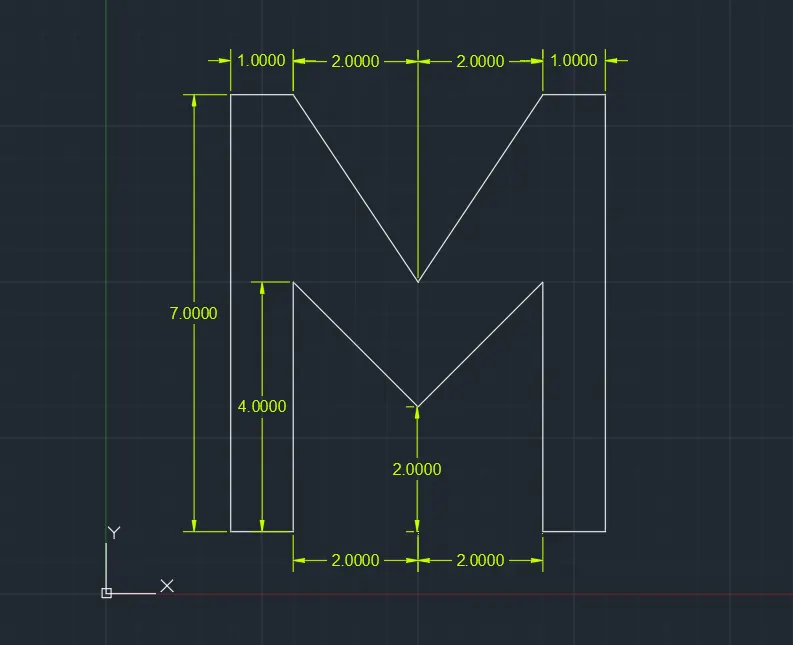

P-1:

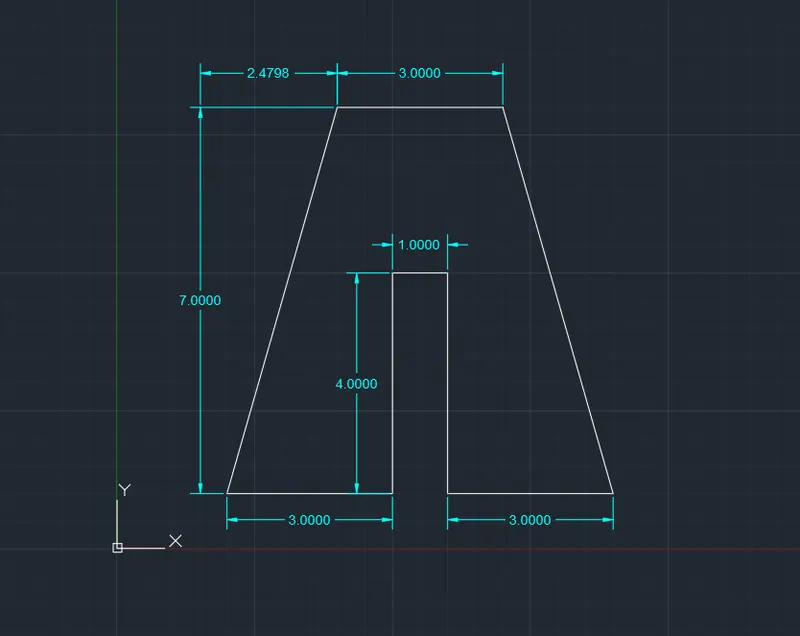

P-2:

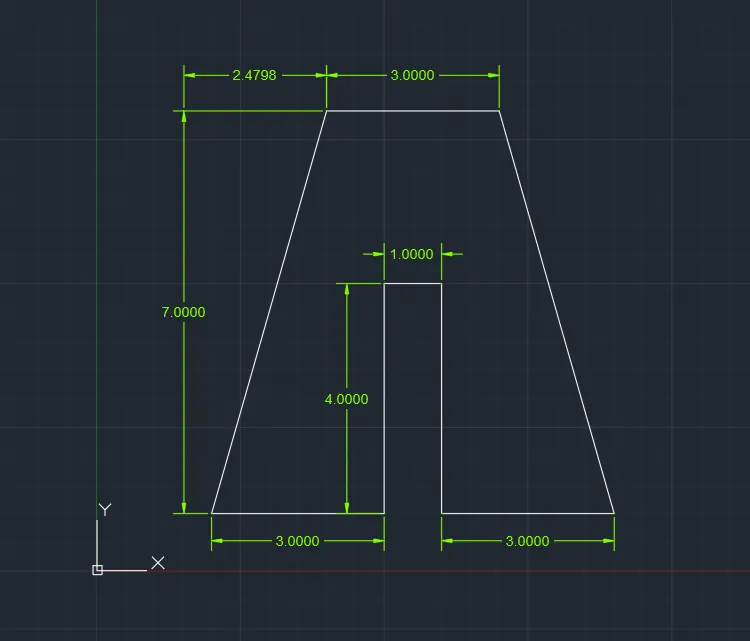

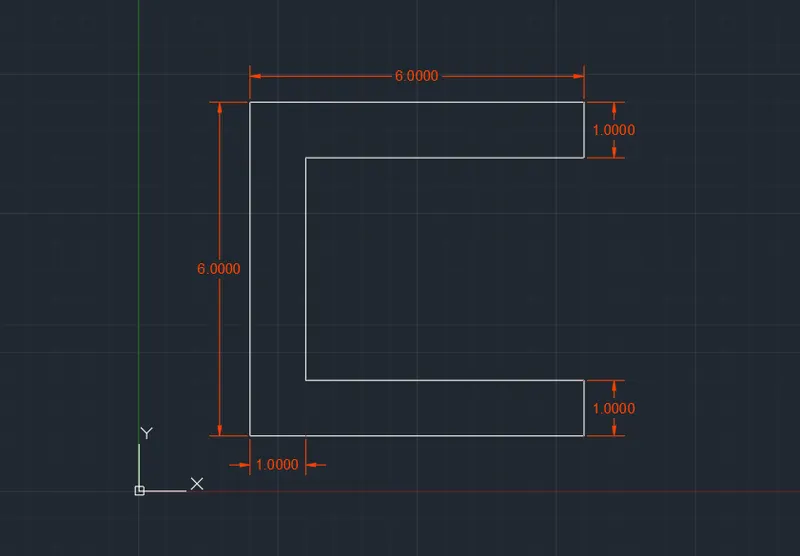

Direct distance entry:

P-1:

P-2:

Civil Related Problems
Draw the profile and the trusses using any coordinate system methods. The dimensions are there for references

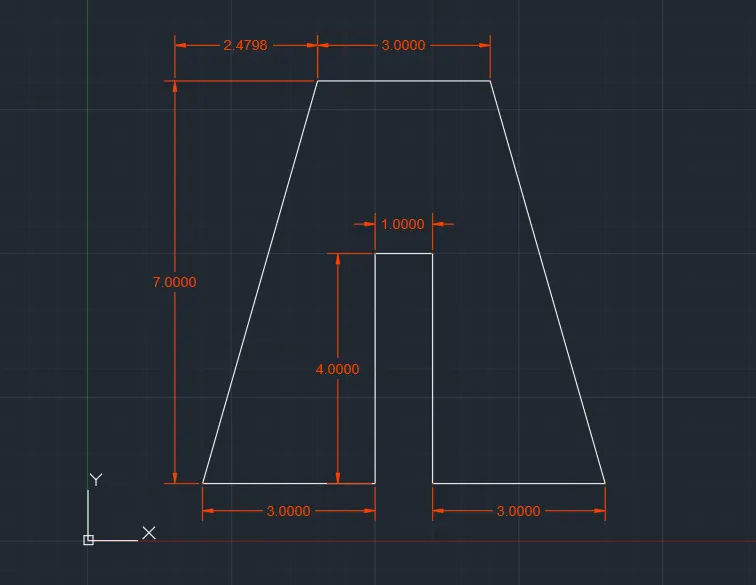

Profile wood:

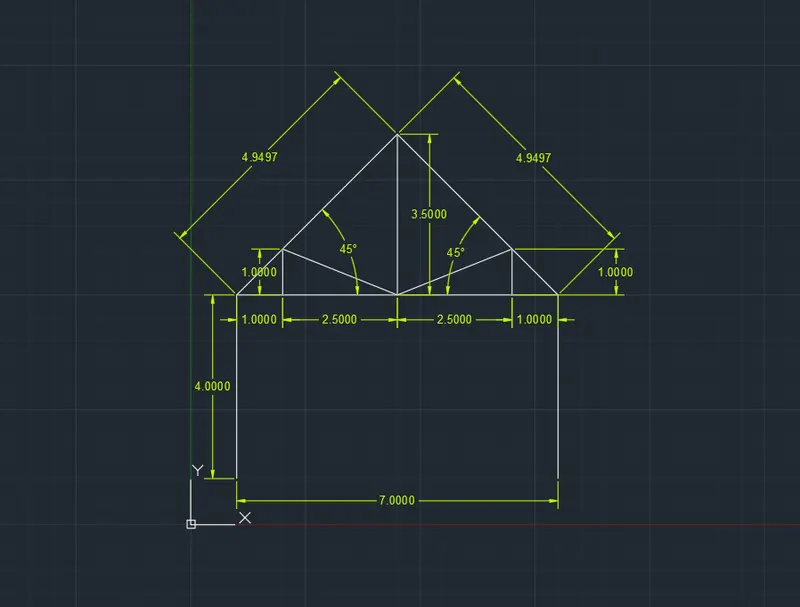

Queen post Truss:

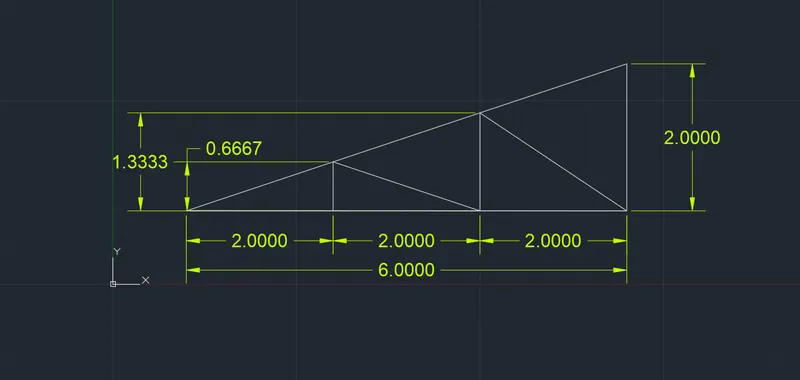

Mono Pitch:
