Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1):

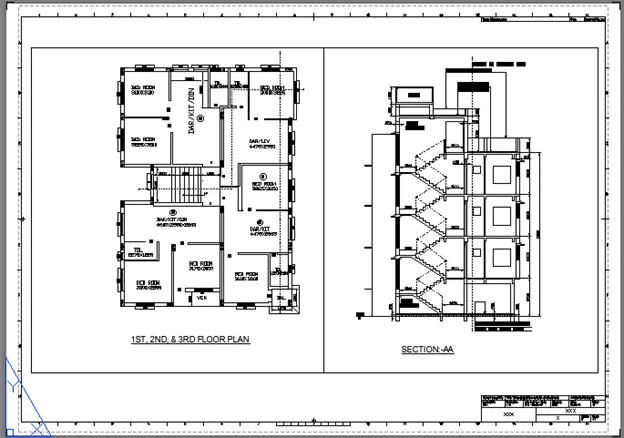

Aim: To Create a layout of the Plan and Section A of the project in Challenges 7

Introduction: To Create a layout of the Plan and Section A of the project in Challenges 7. By using AutoCad

Procedure:

Step1:

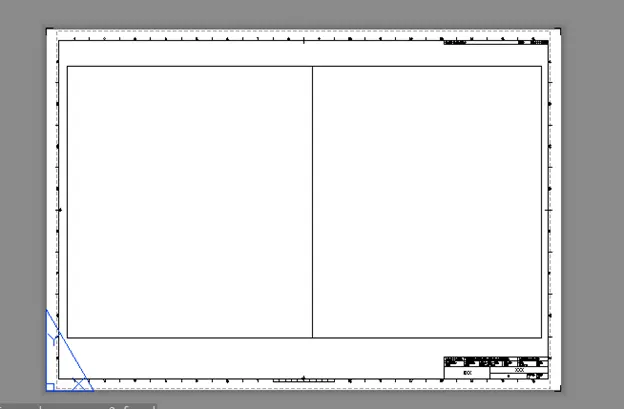

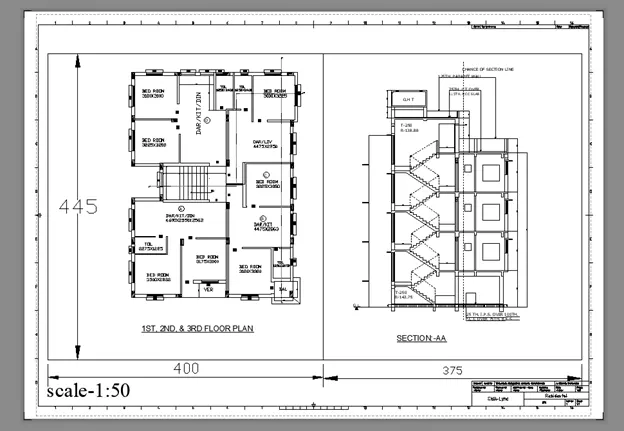

• TO CREATE A TEMPLATE:
• Go to command layout select the template dwt – mArch – ISO A1
• Next take the command rec and draw a rectangle of (400x445) and (375x445)

Step2:

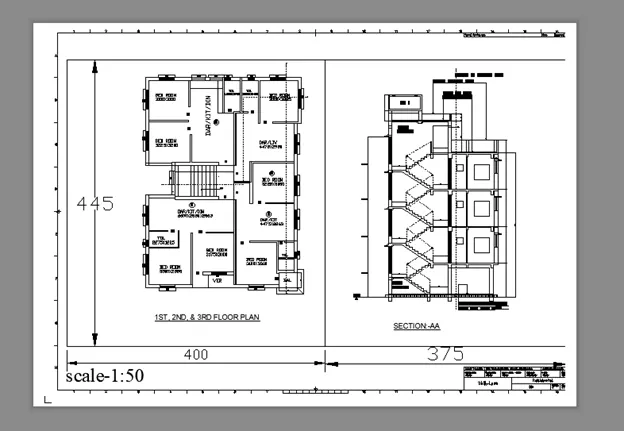

• Now take the command MV and select the object and drawing will display In the viewport
• Next set the drawing for per need or requirement and set the scale as 1:50

Step3:

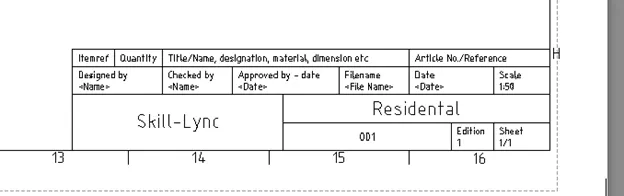

• EDITTING ATTRIBUTES IN THE TEMPLATE:

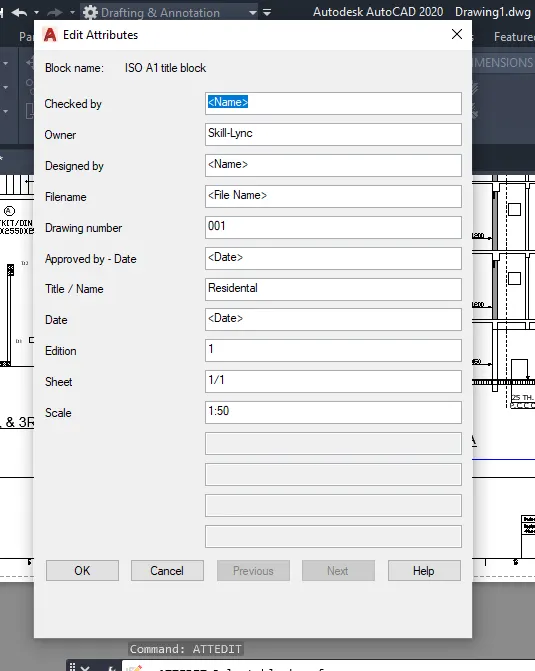

• Go to the command “ATTEDIT” attribute dialogue will appears now give the attributes name or data

Step4:

• ADDING TEXT TO PAPER SHEET
• Take the command MTEXT write the text or data as per the requirement
• Give the text height as 20 unit

Step5:

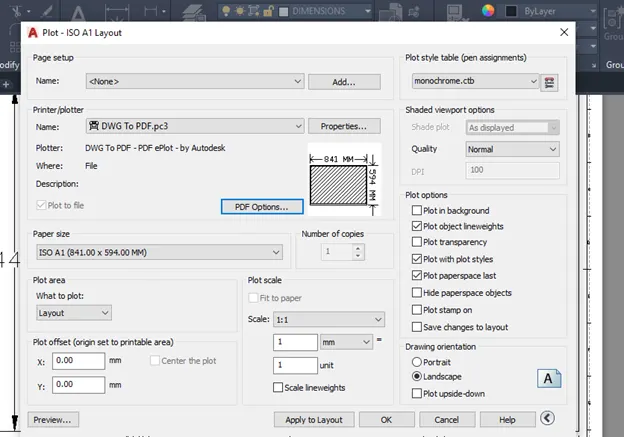

• TAKING PLOT:

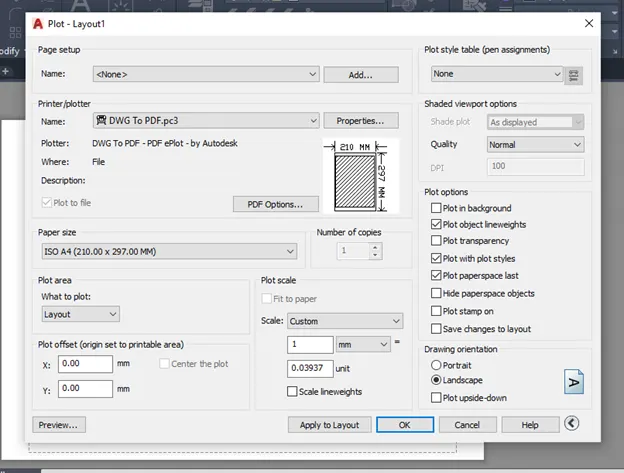

• Take the command plot
• Give the name as DWG to PDF
• Select the paper size as ISOA1 (594x841)

Result:

2):

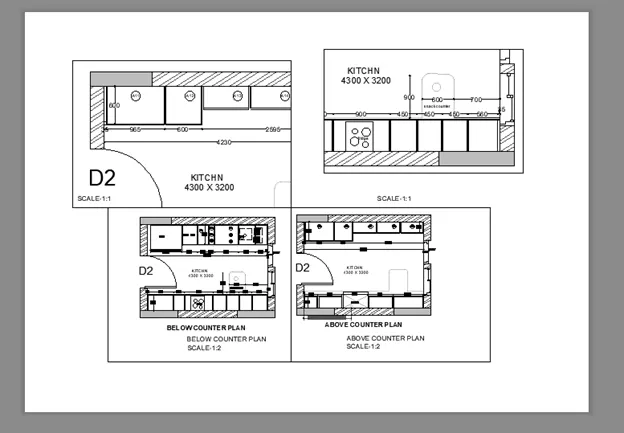

Aim: To create a layout of the Kitchen drawn in Challenge 9 Using A4 Size page for the layout.

Introduction: To create a layout of the Kitchen drawn in Challenge 9 Using A4 Size page for the layout. By using AutoCad

Procedure:

Step1:

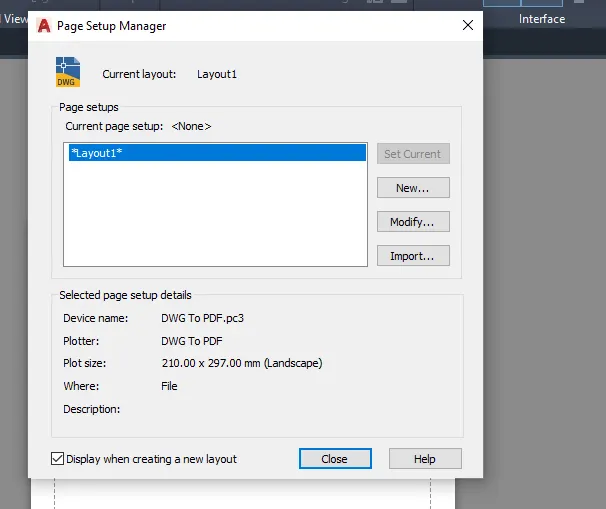

• First go to layout and set the page to the A4 size paper

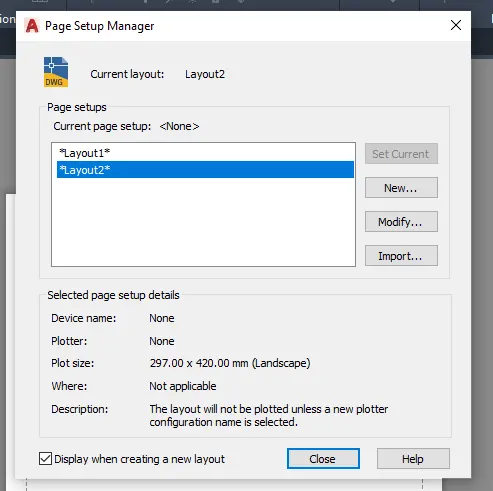

• Take the command page setup and select the page as A4 size

Step2:

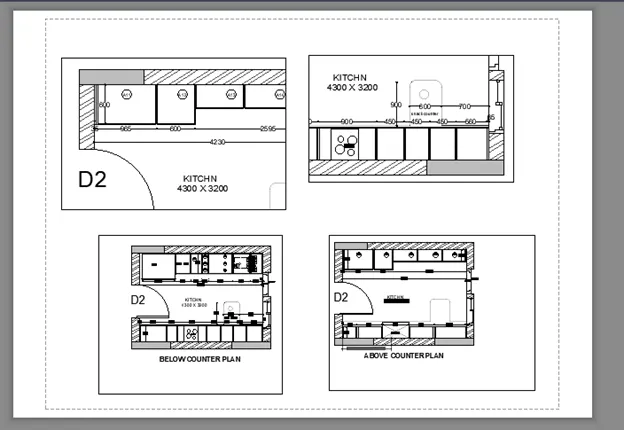

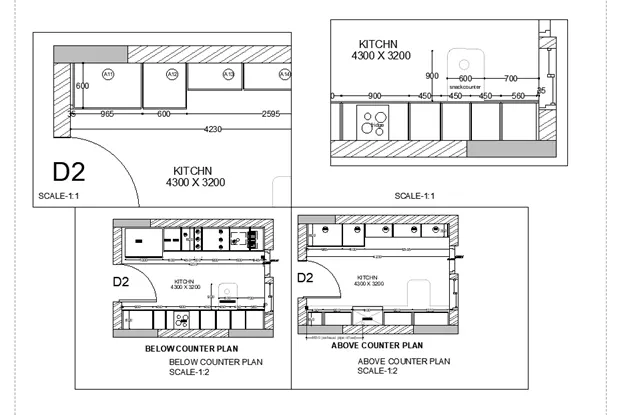

• Now take the command MV and select the new and drawing will display In the viewport
• Next set the drawing for per need or requirement and set the scale as 1:1

Step3:

• Next take the command MS and adjust the scale and drawing in the view port
• And write text by using mtext command

Step4:

• TAKING PLOT:
• Take the command plot
• Give the name as DWG to PDF
• Select the paper size A4(210x297)

Result:

3):

Aim: To create a layout of the section created in Challenges 9

Introduction: To create a layout of the section created in Challenges 9. By using AutoCad

Procedure:

Step1:

• First go to layout and set the page to the A3 size paper
• Take the command page setup and select the page as A3 size

Step2:

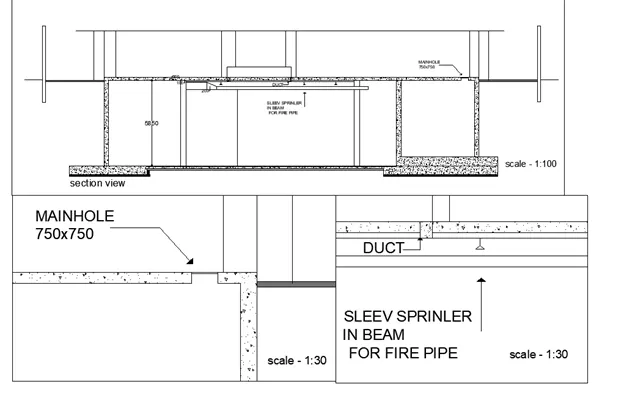

• Now take the command MV and select the draw a rectangle and drawing will display In the viewport
• Next set the drawing for per need or requirement and set the scale as 1:100

Step3:

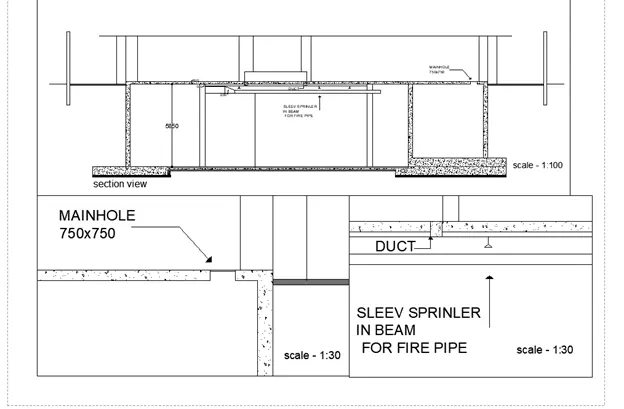

• Similarly create the next two view port

Step4:

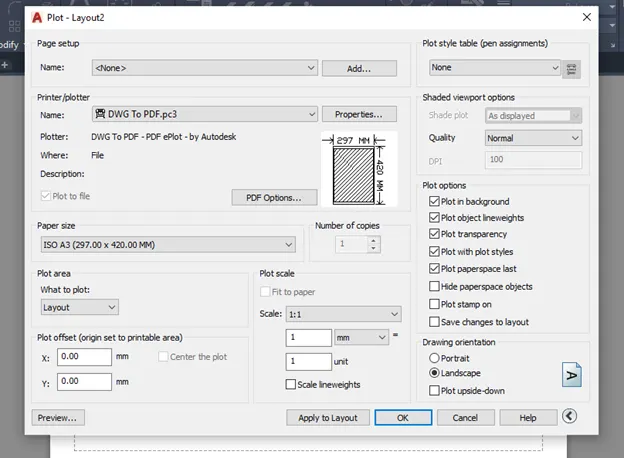

• TAKING PLOT:
• Take the command plot
• Give the name as DWG to PDF
• Select the paper size A3(297x420)

Result:
