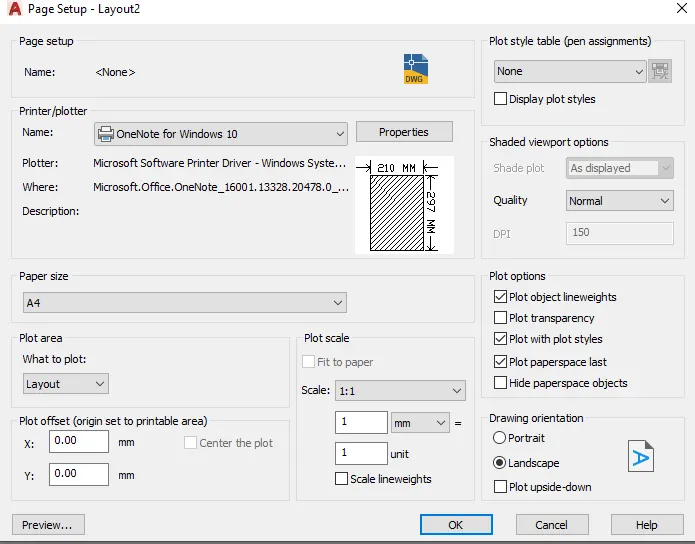

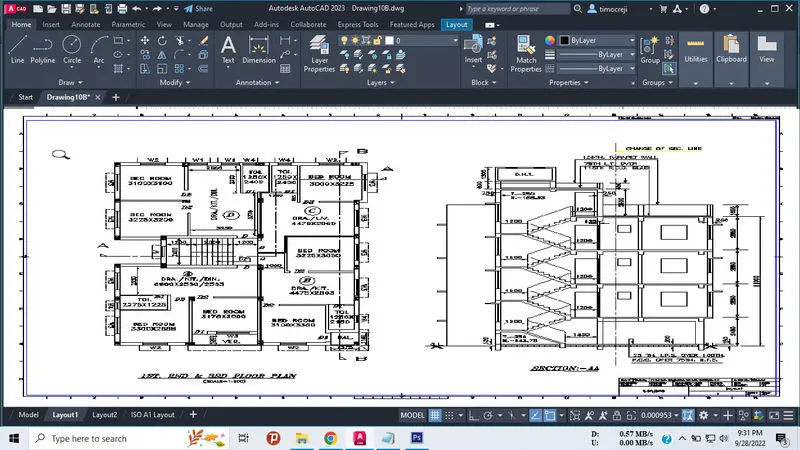

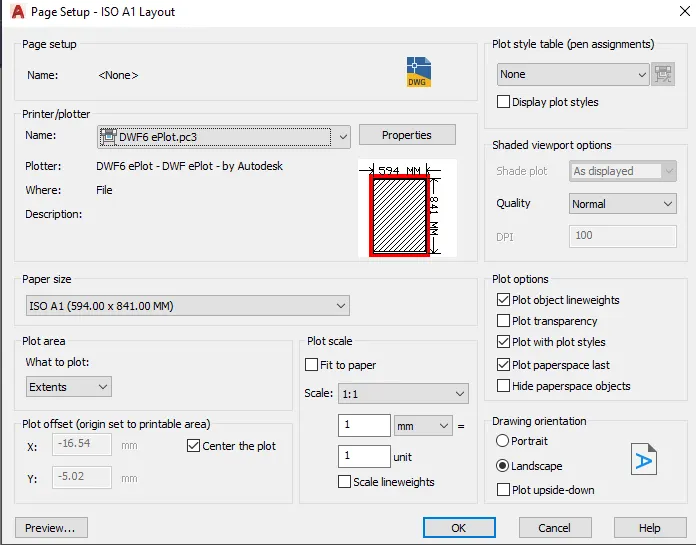

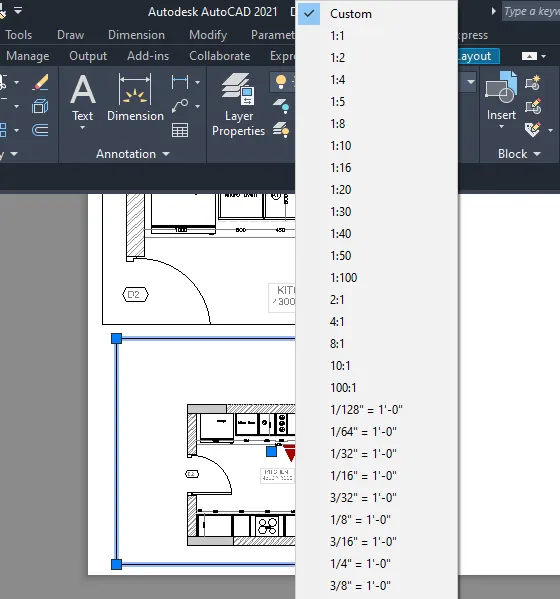

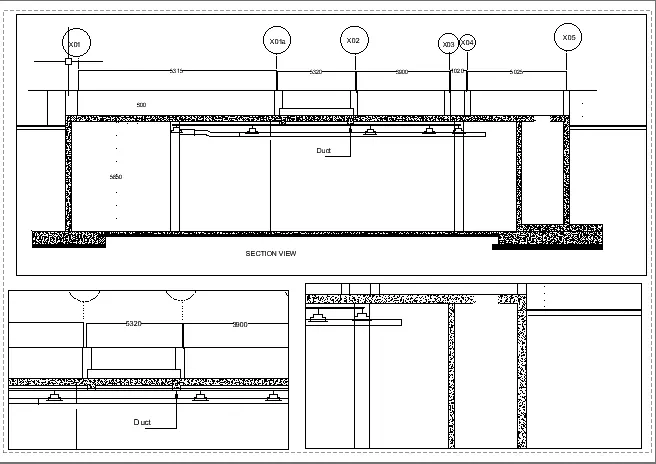

Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

AIM:- To Create and Analyse the given building in ETABS 2018, the structural model has to be prepared in accordance with IS 1893 and as per IS 13920. To design the pile cap and pile reinforcement details,Tie  beam  connecting the pile caps, to sketch the column reinforcements, to produce the framing plan and beam detailing…

1. Aim:  To Model the isolated footing provided in week 11 challenge on SAFE and to analyze and design it to verify the size, depth and steel provided as per calculations.  Introduction: CSI SAFE (Slab Analysis by the Finite Element Method) is the best tool for designing concrete slabs and foundations.…

ANSWER:- Aim:- To design the square footing using the given details. Introduction:- Footings which are provided under each column independently are called as Isolated footings. They are usually square, rectangular or circular in section. Footing is laid on PCC. Before laying PCC, termite control liquid is sprayed on top…

AIM : To create a model of g+7 building given in the arhitectural drawing as per the provisions of IS 1893 and IS 13920 followed by response spectrum analysis. PROCEDURE: > Plan is plotted according to the dimensions given in the architectural plan using grids and storeys.   > Now the material properties are added such…

Aim: To run the analysis and design the RCC shear walls shown in the etabs model. Step 1: 1) Open the ETABS file. 2) After the analysis click Concrete frame design. Step 2: 1) Need to check there is any failures occurs 2) Click Shear wall design tool 3) select Display info and choose PM failure  Step 3: 1) Click any wall…

 Answer:    The Maximum Asc for the column 3A to be considered as per the ETABS design is; The highest of the Longitudinal reinforcement of the column from the Base to Terrace; That is the highest of 7027,6926,4800,4213,3525 = 7027mm2 is Provided for the Column.   The reinforcement detailing for the…

Aim:- To design the beams in detail from the Etabs 2018.             To provide details of longitudinal and shear reinforcement for the given two continuous beams.             To calculate the value of maximum shear force in any one of the spans in the continuous…

AIM: TO MODEL AND ANALYZE MULTIPLE BUILDINGS WITH DIFFERENT FLOOR LEVELS AND DESIGN PARAMETERS USING ETABS SOFTWARE AND COMPARE THE RESULTS TO UNDERSTAND THEIR OVERALL SEISMIC BEHAVIOUR.  INTRODUCTION: The structural configuration of the building plays a major role in determining the overall response during an earthquake.…

Aim: to model and analyse a 25 storey building with given specifications and to cross check the parameters as per IS 1893 provisions. Procedure: Open the ETABS software. Click the file menu and choose to create a new model option. After choosing a new model a dialogue box will appear as model intialization.  Choose…

1.ans   STRCTURE (a) > For this structure is considered as it is asymmetric in nature. > Here cannot to be considered as a horizontal irregularities and the shear wall shape like L. > There is some uncertainty concerning certain features of the seismic response of non-rectangular walls. > It occurs lack…

1. ans :- 1.Symmertry Having a look over the aspects of symmetry of the framing plan, it is observed that the distribution of mass,Stiffness is across the plan;it is observed that the distribution of mass, stiffness is across the plan.It is considered for one of the good Symmetrical aspects.This tends to reduce the horizontal…

ANS: Aim: To compute the values of seismic parameters based on the given structural data            Note  Ln, Mn, Tn values are calculated for each of the 5 modes The base shear force for each of the 5 modes is obtained. Effective modal mass and the modal mass participating ratio for…

 1. AIM:- To Differentiate Between Static analysis and Dynamic analysis Static Analysis:-  In Static analysis we analysis static load means “a force that has constant size, position and direction on or within a structure. Study of static load help determine the maximum allowable load to be applied to the structure. In…

1.a) > This crack will be formed due to the flexural failure of a beam. The flexural strength, known as modulus of rupture, bend strength, or fracture strength, is a material property, defined as the stress in a material just before it yields in a flexure test. > The flexural strength…

A)  AIM: To use the architecture/structural project file developed from week 6-8, Export the Revit file to Navisworks cache file. TOOLS/COMMANDS USED : Architectural file. file. Open Export. NWC. Navisworks. View.  3D view.  PROCEDURE : 1.the Revit file which is to be exported to the Navisworks file…

Introduction: Dynamo is an open source visual programming language for Revit, written by designers and construction professionals. Its a programminglanguage that allows you to type lines of code;  while also creating an algorithm that consist of nodes.   Using dynamo work can be carried out with enhanced…

1). Ans : From the above the options of type of structure to build a building, i want to pick a multi-unit residential Apartment. 2).    Ans : The geographical and location details for my project modelling, based on assumptions of multi-unit residential Apartment. Selected identify the modelling requirements…

1) AIM : To model a Ceiling from the architecture tab above the walls at the first-floor level. INTRODUCTION : The creation of Ceilings within Revit is a very similar process to that of Floors and Roofs- ie you can let Revit do most of the work and “guess” where you want the boundaries to be,Or you…

AIM :- Creating a 3D rendered model for a Residential Building in AutoCad. INTRODUCTION :- COMMANDS USED FOR DRAWING THE 3D RENDERED VIEW OF BUILDING ARE AS FOLLOWS. Extrude :-This AutoCAD 3D Extrude command allows the user to create a 3D object by extruding a 2D face along a line or path.  Location: Draw > Modeling…

CHALLENGE:-1 Q1.  AIM:- To create a 3D isometric view of the given building with plan and elevation.    INTRODUCTION:-  An isometric drawing is a 3D representation of an object, room, building or design on a 2D surface. One of the defining characteristics…

1. AIM : To create a 3D Furniture elements using the various commands in Auto CAD. INTRODUCTION BY 3D VIEW The process of creating a mathematical representation of any surface of an object in three dimensions by using special software. A 3D model can even be represented as a two dimensional image by using the 3D …

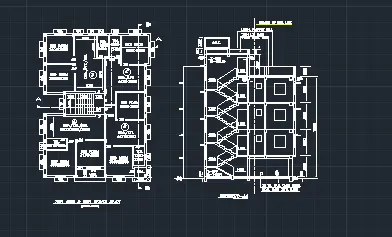

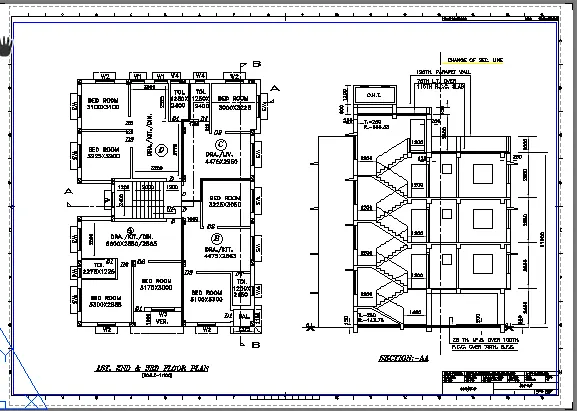

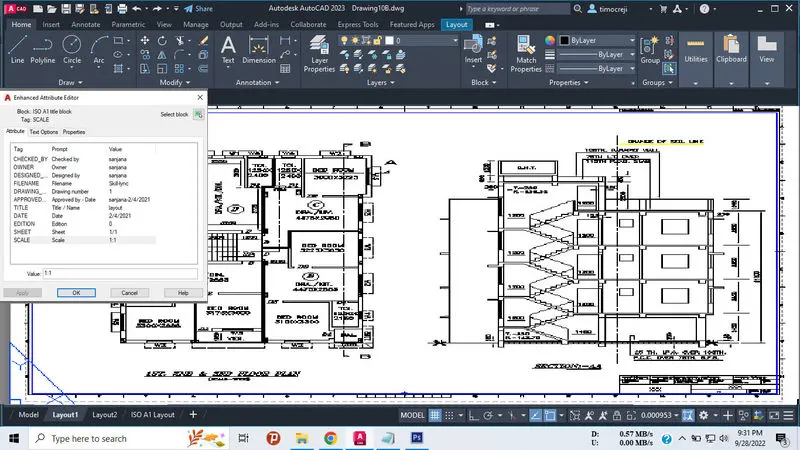

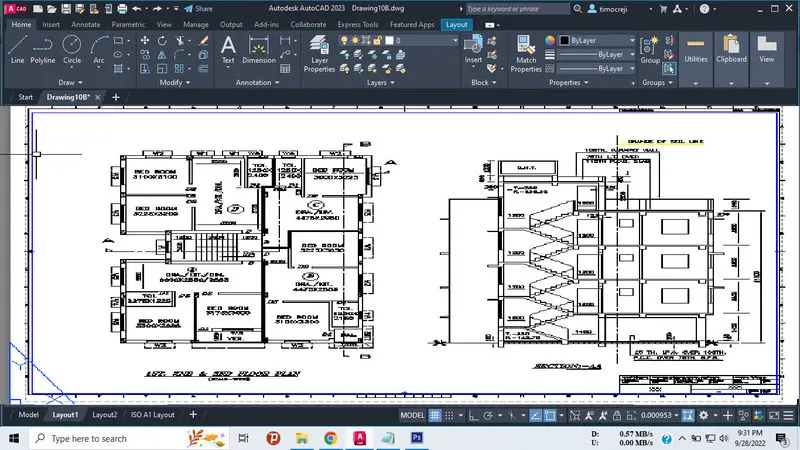

1) Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial- mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the…

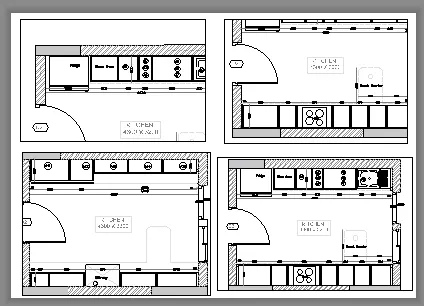

1) Create the layouts of the Kitchen and provide hatches pattern as shown. Also, use blocks wherever required. Provide appropriate dimensions in the plan. Assume the size of doors, appliances and others as per the standards. Aim: To Create the Kitchen Layout and to  Also, use proper dimension techniques…

1. AIM: To Create Custom1_titleblock and Custom2_titleblock using Attributes and block command from Autocad software. Step 1 ( custom1_tittleblock) In the command prompt type L to draw the lines.  In ribbon tab > Annotate > Mtline ( to draft the text ). go to properties tab to change the colour.   In the…

Aim: To draw 1. Architectural drawing of a residential building: > Plan of a residential building.        > Elevation of a residential building. > Section of a residential building. 2. Structural drawing: > Column plan layout of the building. > Footing plan layout of the building.…

Aim:- To draw the floor plans and sections using the proper dimension techniques and dimension styles to document the project. Introduction:- Plan and Sections are different types of drawings used by architects to graphically represent a building design and construction. A plan drawing is a drawing on a horizontal…

1. AIM: To Draw the elevation and details of a wardrobe as shown in the Figure below. After sketching and to provide the dimensions and text with the use of layers. PROCEDURE:• Using unit command Units are set to mm.• Using limit command limits and lim-max are also set.• In the command line type rec of dimensions…

Aim: To create a column schedule as shown in the figure with the help of lines text i.e Dtext command or Single Line text. Introduction : 1. Column (C1) is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia.2. Column Cla and Column C3 are provided with 12 bars of 16 mm dia bars. 3. Column C2 is provided with 8…

AIM: To draw the given residential plan with the details given. INTRODUCTION:Residential Layout is ideal for students and practitioners of urban design, planning, engineering, architecture and landscape seeking a comprehensive guide to the theory and practice of designing and laying out residential areas Following are…

AIM: To draw the given geometry in autocad using Chamfer and Fillet tool. INTRODUCTION Fillet Tool :- A fillet can be created between two objects of the same or different object types: 2D polylines, arcs, circles, ellipses, elliptical arcs, lines, rays, splines, and xlines. If the two selected objects are on the same layer,…

Aim : To Create a Floor plan, Footing detail and Isometric view using AutoCad. Introduction : Following Tools were used in this project :- 1. Line Tool 2. Rectangle Tool 3. Offset Tool 5. Isoplane Left/Right 6. Draft Setting. 7. Direct Distance Entry Some Definition are as below : Rectangle Tool : The rectangle command…

 Aim :- To create the geometries from P1 to P10 using line tool and all the coordinates system methods. Introduction :-Line Tool : The line in AutoCAD is drawn by specifying the starting and ending point through the cursor.To invoke a line tool1. Command : L or Line2. From Ribbon : Line Cordinate System : There are…

Introduction : Following drawing shown below are the G+1 Residential floor plan according to the Vastu Shastra.        Lets The dimention of the room is given below. Assume that size ofMaster Bedroom : 9m X 7mBath : 5m X 7mKitchen : 7m X 7mLiving Room : 9m X 8mDining Room : 7m X 4mBalcony : 2m X 4mMandir : 3m X 5mStorage…

Ans : Design Mix M35 concrete with Fly AshI. Stipulations for proportioning:a) Grade designation : M35b) Type of cement: OPC 43 grade conforming to IS 8112.c) Type of mineral admixture: Fly ash conforming to IS 3812 (Part 1).d) Maximum nominal size of aggregate : 20 mme) Minimum cement content: 340 kg/m^3 (From Table 5…
