Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1. ANS

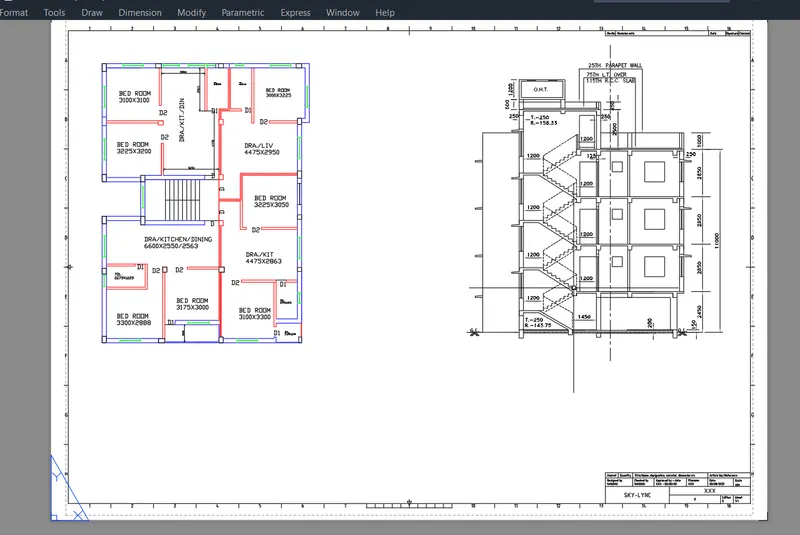

AIM: to create the multiple view ports as weak 7 challenge

steps:

1. open the auto cad and select the units as metric

2. click on start button and open the weak 7 challenge created the plan and section

select the new layout select the new template as Tutorial-mArch.dwt and open

3.set the scale is 1:50 and place the diagram

4.select attributes and edited

2.ANS

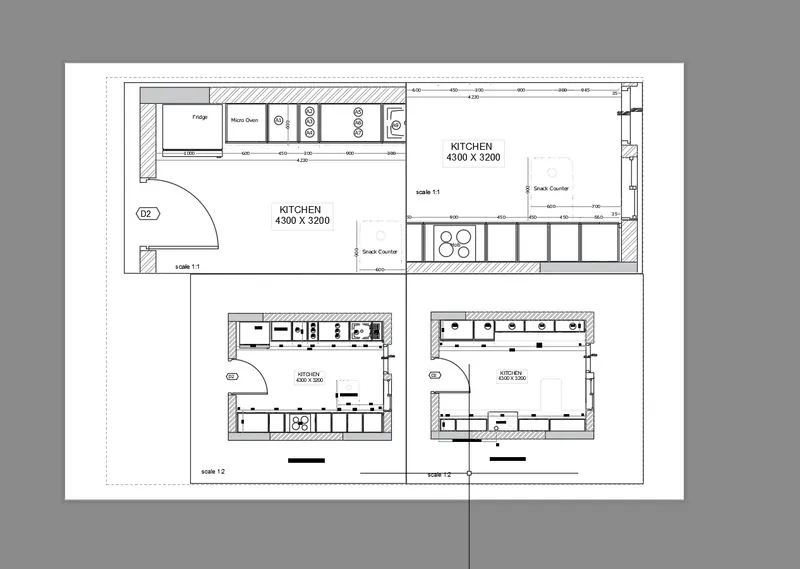

AIM; creating the multiple view ports and plotting the a4 size paper

introduction:

1.select the kitchen plan file open

2.select the layout the and set the page manger as A4 size paper as 210x297 mm size paper

3. select the rectangle and draw the rectangle and enter mv command select the object and set the scale as 1:1

4. draw rectangle in paper space and select the mv command and select the object and set the scale as 1;1

5. same as select the rec, select the object and model set the scale as 1:2

6. select the plotting and set the print plotter model and style as monochrome, preview the plotting

3.ANS

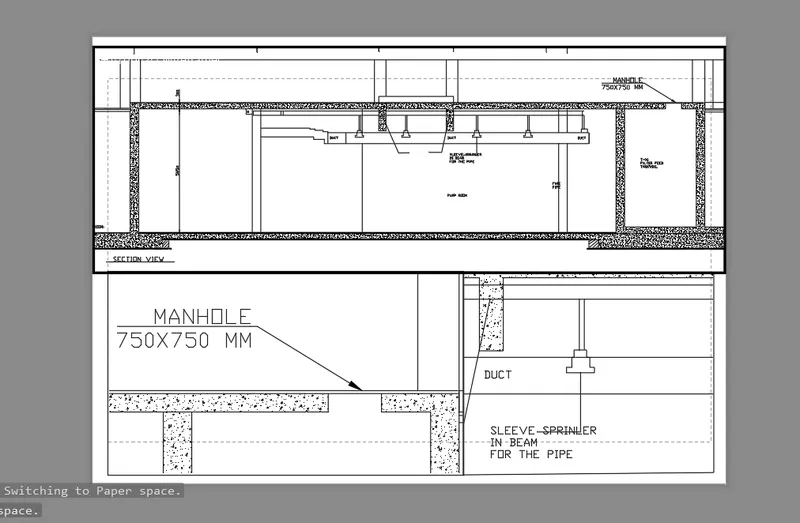

AIM: creating the multiple view ports as weak 9 challenge

steps:

1. select the layout

2. set page size as A4

3. select the rectangle and draw

4. command mv and object the select the rec an enter model space set scale as 1:100

5.select the rec and draw, command mv and select the object and model space set as 1:30 scale
