Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

1. Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size shown in Figure. Also, use ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

Aim: -

• To create a layout of the plan and section using template tutorial-mArch.dwt. To create a viewport by editing attributes in templates and taking a plot.

Introduction:

A layout is a 2D working environment for creating drawing sheets. The area within a layout is called paper space, where you can add a title block, display scaled views of model space within layout viewports, and create tables, schedules, notes, and dimensions for your drawing.

Procedure: -

• First, Go to LAYOUT command and select new layout and rename it as Plan and Section.
• And delete the current Viewport.

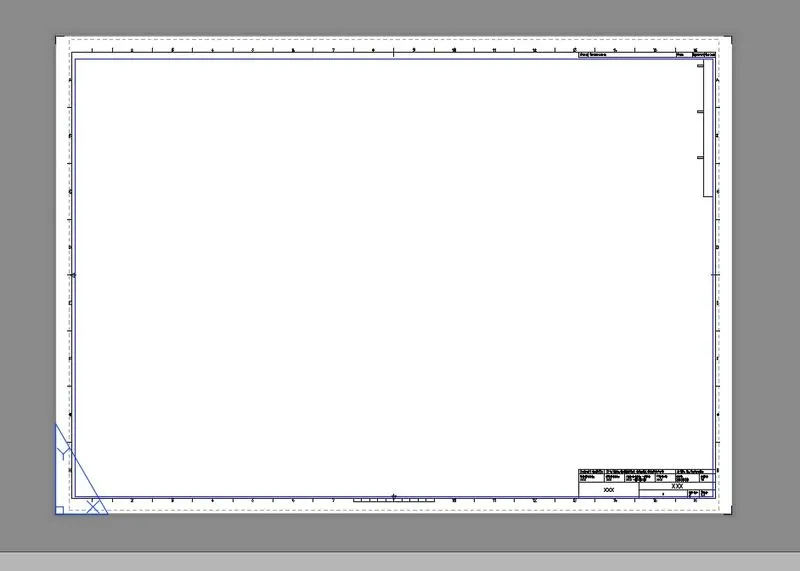

• Type LAYOUT command and select template option and select Tutorial-mArch sheet and select ISO A1 Layout and rename it as Plan and Section.
•
• Type MS command to activate Model Space.
• Draw the rectangle of size 400 X 445 and 375 X 445.
• Type MV command, then insert the drawing by selecting rectangles.
• Do the same process in the second drawing too.
• Type MS command and click on first viewport zoom the plan and give the scale as 1:50 and lock the View.
• Do the same process for the second viewport.
•

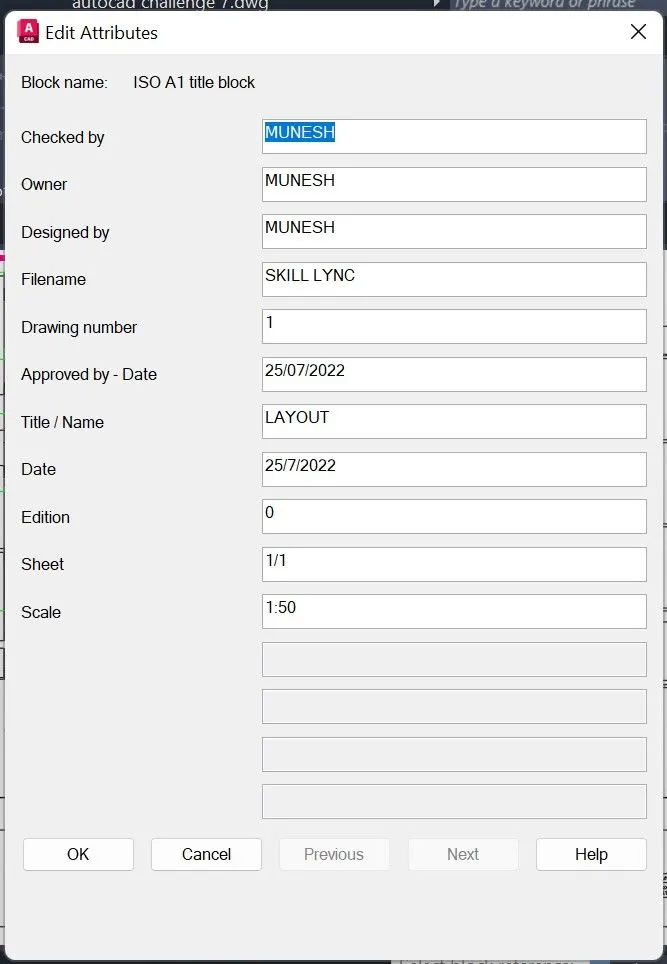

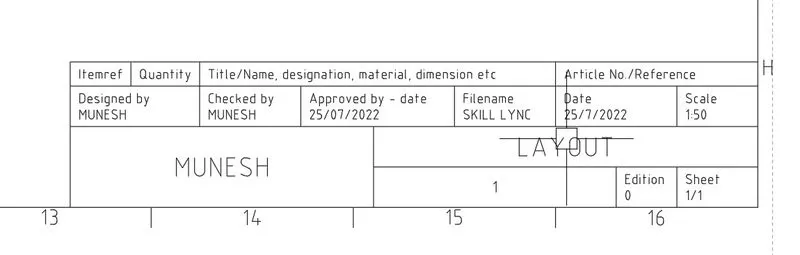

• edit the attributes by ATTEDIT command and select the block of sheet.
• And enter the MTEXT of scale with the height of 15
•
•

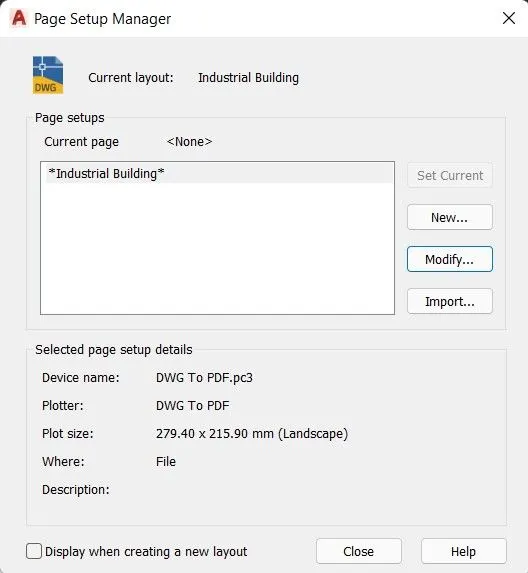

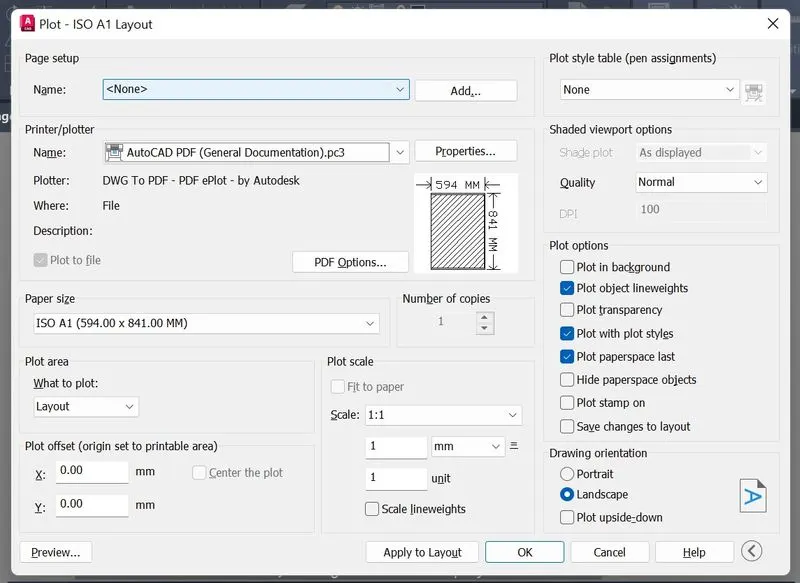

• To plot the Sheet, right click on layout and select plot.
• Give the name DWG to PDF.
• Select the paper size ISO A1.
•

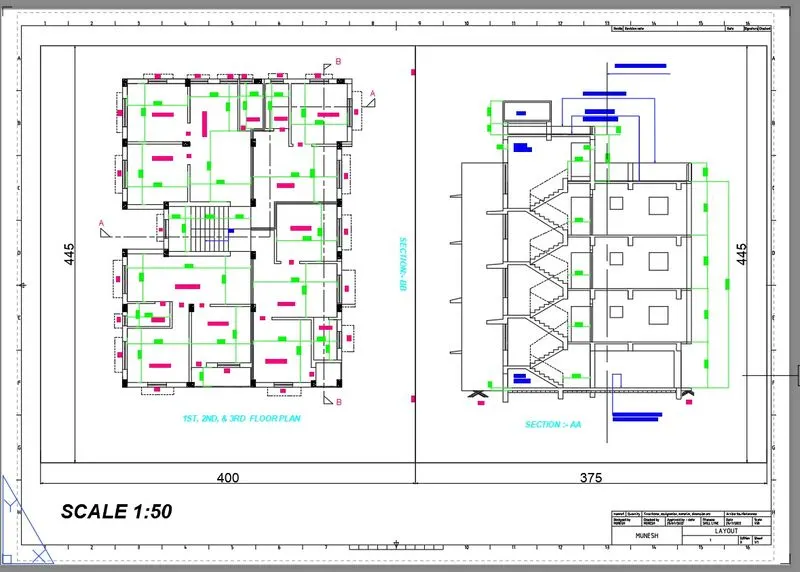

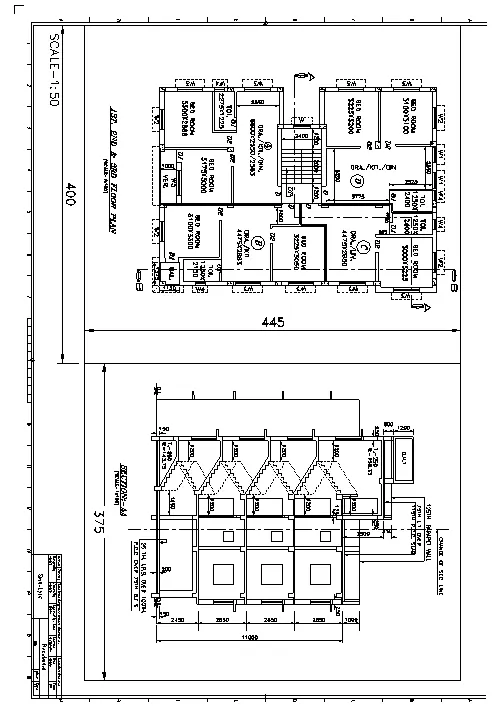

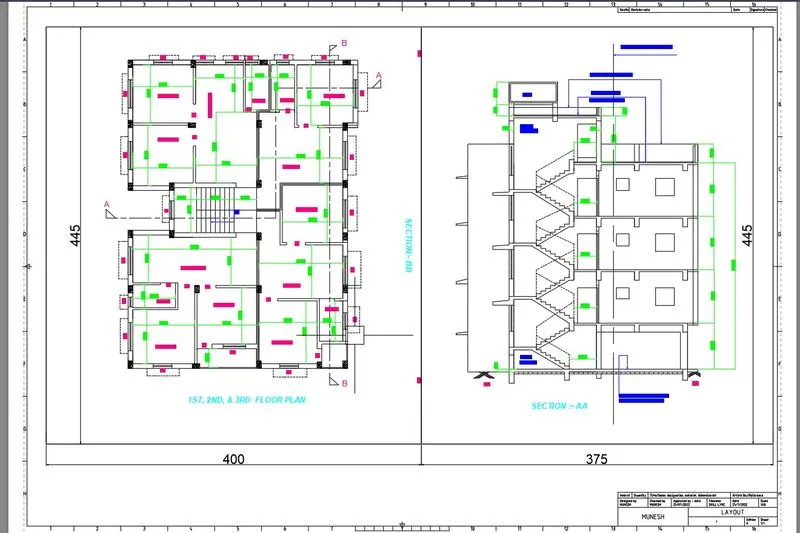

Result: -

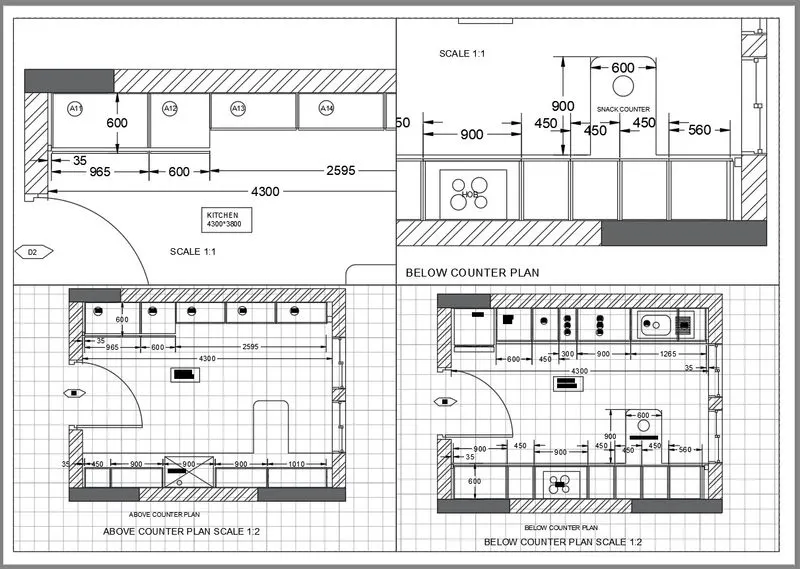

2. Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use A4 Size page for the layout. Take a plot.

Aim: To create the layout of the kitchen of the project in challenge 9 as shown in the figure above in AutoCAD

Introduction: The layout is created in Auto CAD by using the scale given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.

Procedure:

• To create a layout of this drawing, firstly we have to create the views of the drawings.

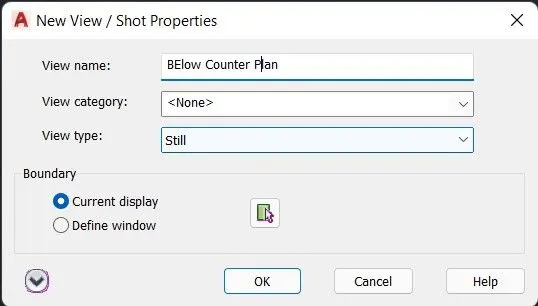

• For that Goto VIEW Command-> New -> Then type the view name -> Define the window of the view -> Ok.

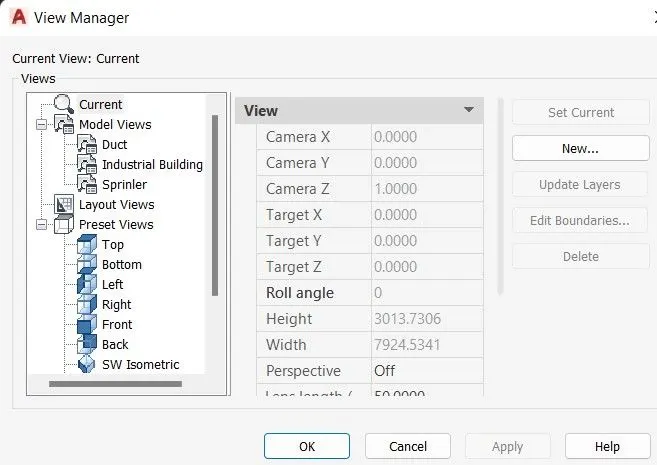

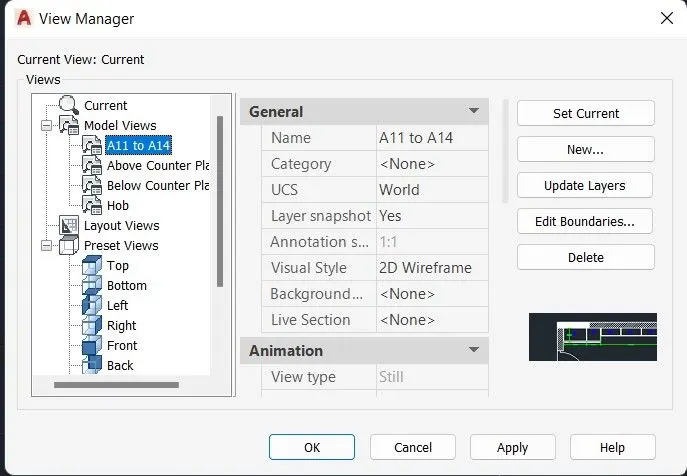

• Open the View Manager from Insert and there will be the views.
• Create all similar views that are going to use.

• Now create the layout with A4 Sheet.
• Type MV command to create 4 viewports by making window.
• And insert all 4 views in all 4 windows by selecting the windows and with the use of VIEW command.
• Select the first drawing of kitchen cabinet in viewport and set it.
• Set the Scale as 1:1.
• Select the first drawing of Hob and Snack Counter in viewport and set it.
• Set the Scale as 1:1.
• Select the first drawing of Above Counter Plan in viewport and set it.
• Set the Scale as 1:2.
• Select the first drawing of Below Counter Plan in viewport and set it.
• Set the Scale as 1:2.

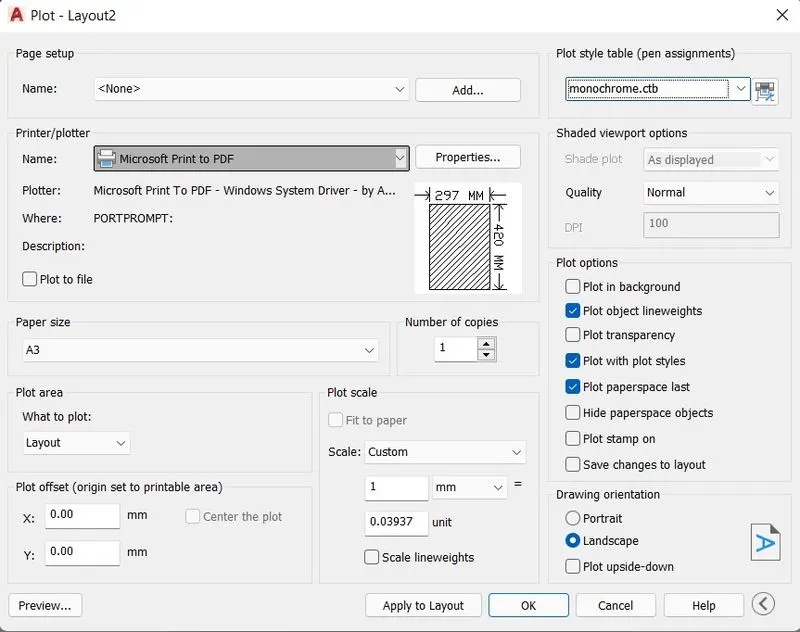

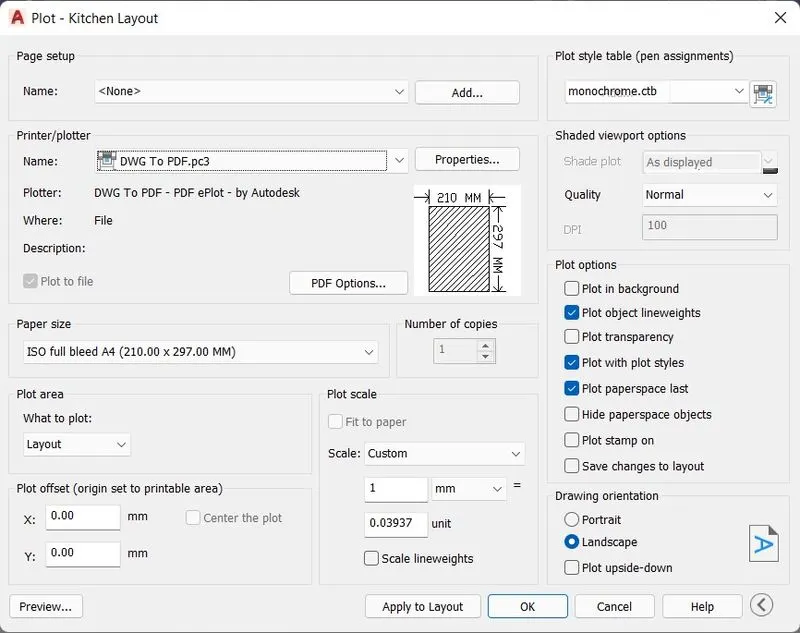

• Now for plotting of drawing, Use PLOT command.
• Select paper size as A4.
• Plot as Layout.
• Ok,

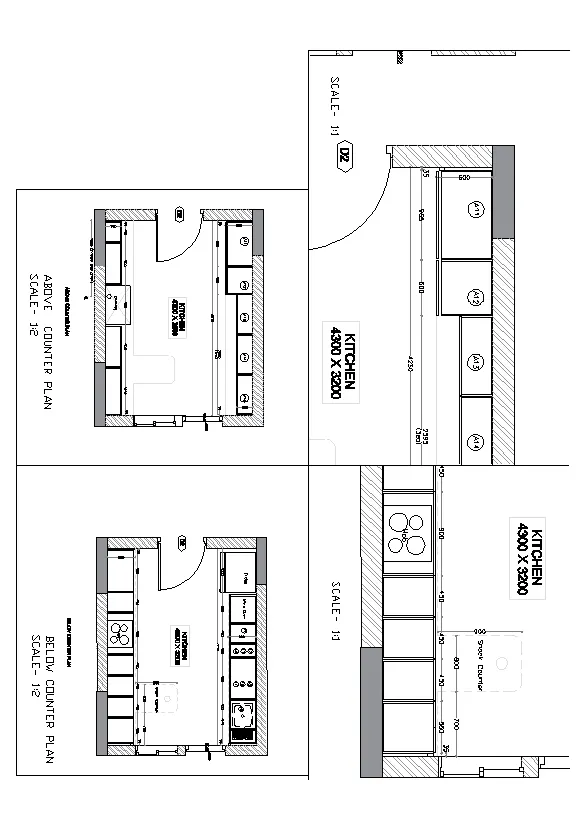

Result :-

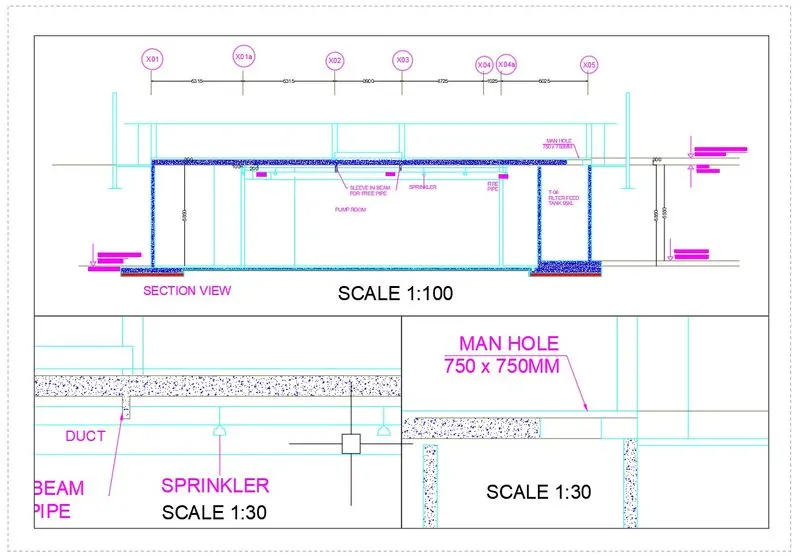

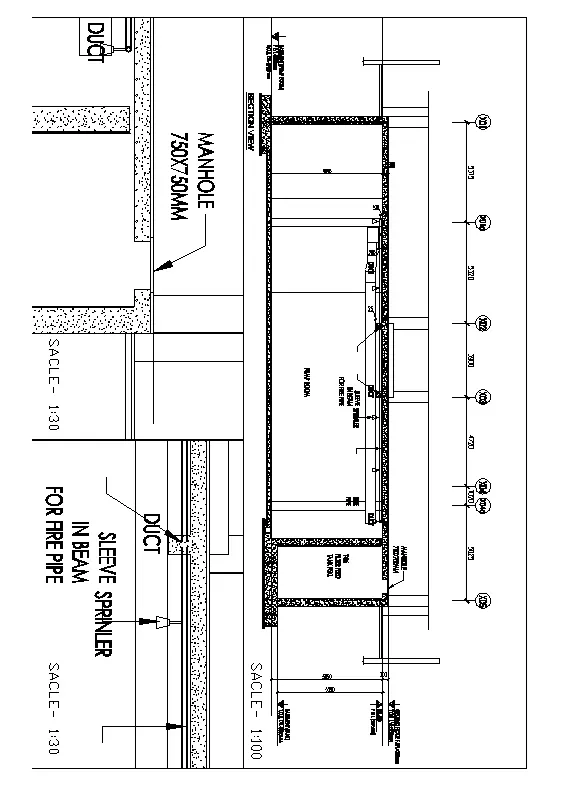

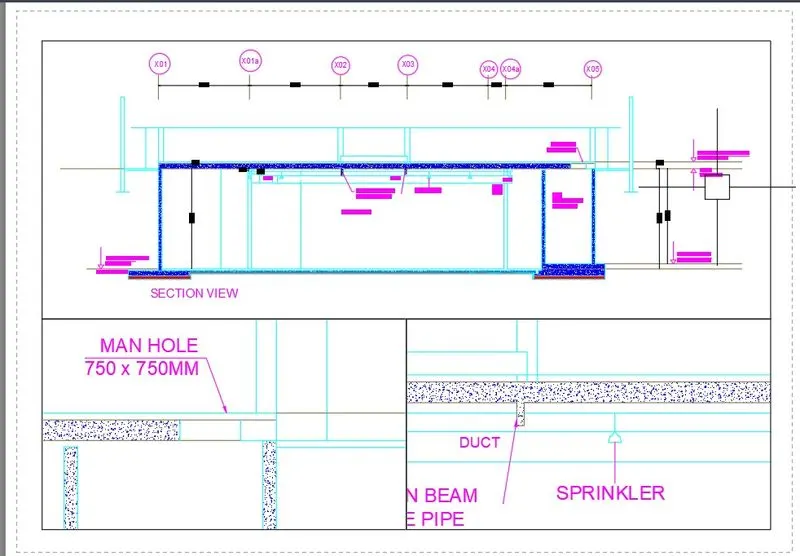

3. Create a layout of the section created in Challenges 9.

Use scale as mentioned in the Figure. Use MV command create multiple viewports. Take a plot.

Aim: To create the layout of the kitchen of the project in challenge 9 as shown in the figure above in AutoCAD

Introduction: The layout is created in Auto CAD by using the scale given in the figure. The procedure is explained in detail with diagrams of each step and the final result is given.
