Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

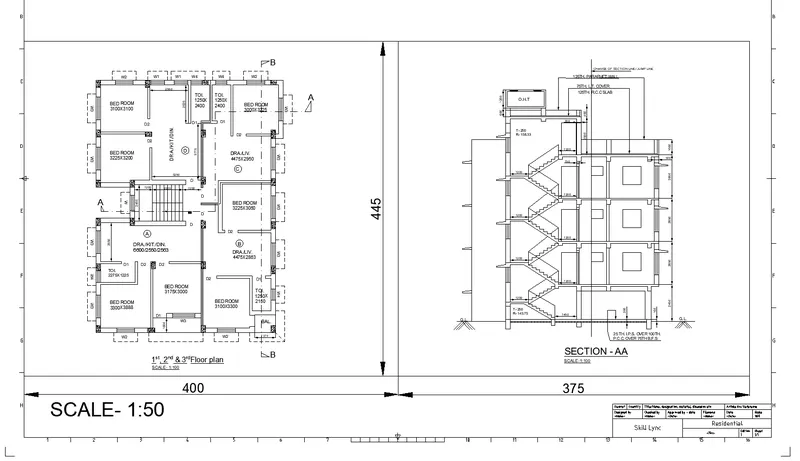

1) AIM: To create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure.

PROCEDURE:

• Open cad application in the pc and set all the limits required.
• Set the units as required for drawing. Set units in decimal and scale in Millimeters.
• Now here no need of drawing the drawing again because the drawing has been previously drawn in other challenges.

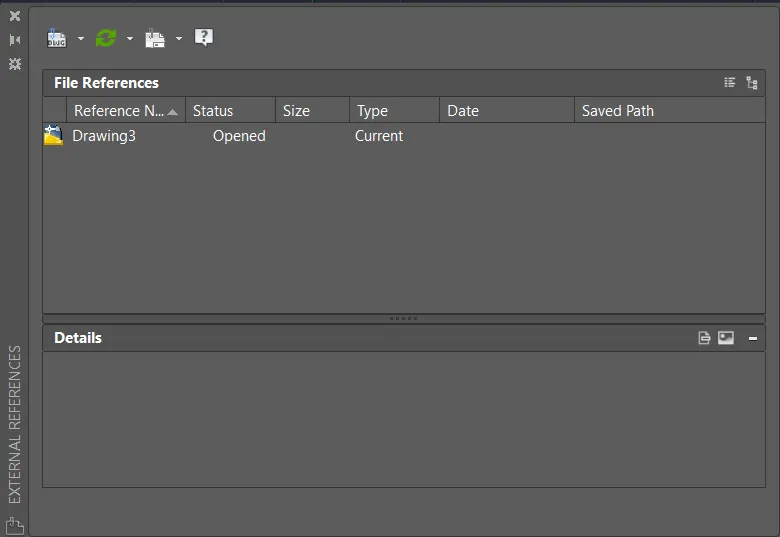

• To bring that drawing back we have a command XREF so type that in the command box and a dialogue box will appear.
•
• Here in top left select the type of file. We can attach any type of file here.
• So we now need to attach the dwg file so select it.

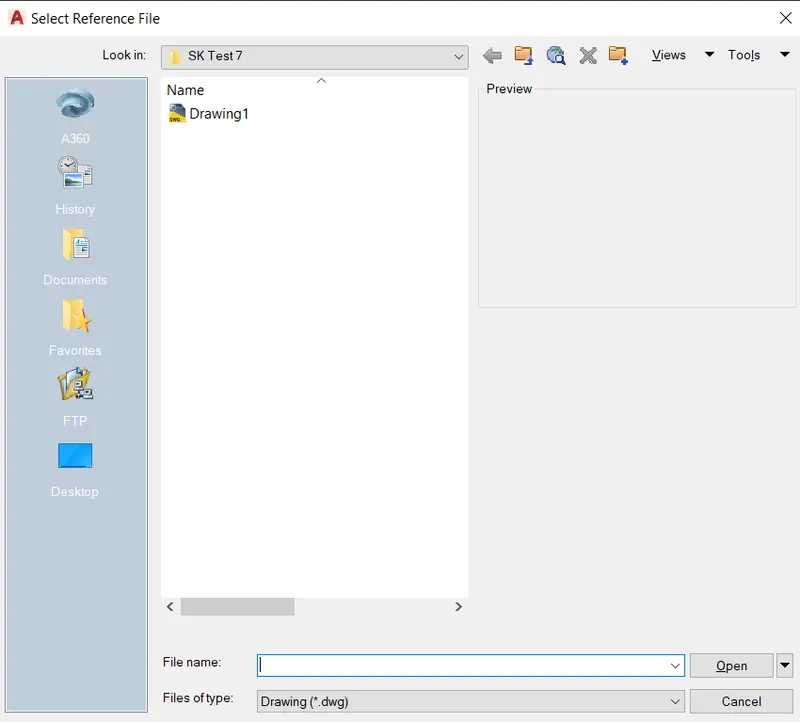

• Again a dialogue box will appear where we have to browse the drawing file and select it.
•
• After browsing select the file and click open.

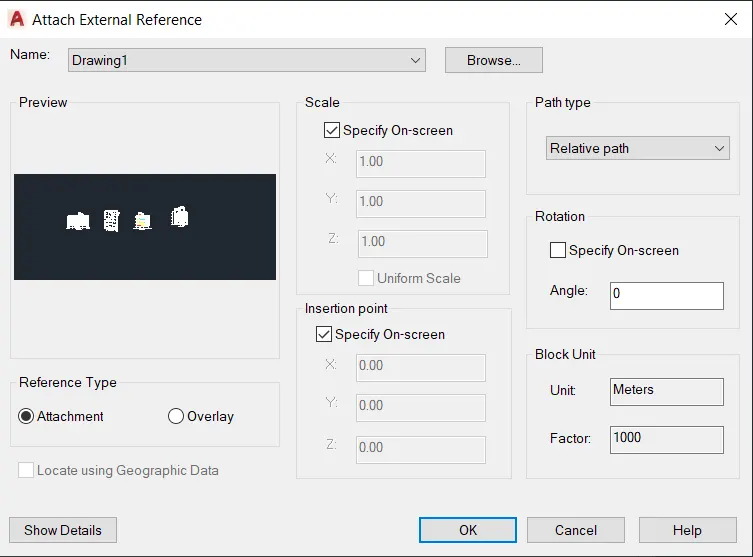

• Now again another dialogue box will appear there we have several options to make it clearer and easier.
•
• Here we can change the scale of drawing.
• Change the angle of rotation, Insertion point and path type etc.
• Next something’s we cannot imagine simply so we can select the option Specify in screen.
• After all the settings and selections the drawing will appear in the cad screen.
• Once the drawing is in the screen now go to layout.
• In layout right click and select the layout template which is mentioned in the question part.
• Next comeback to model space and create the views which will make easier in layout.
•
• Create as many as views required. Here we need only two so create two views.
• Go to layout draw a rectangle and go to model space.

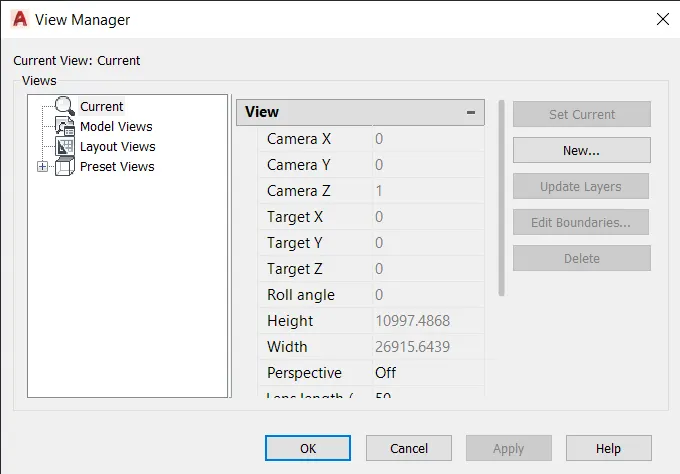

• Again go to view dialogue box and select the saved views and set current it will appear.
• Here they have mentioned scale so lock the drawing and do the scaling.
• Here once we have to see the present scale and then set it.
• Next we have to mention the scale in the layout box so select Text command.
• Specify the height and type the name or scale.
• Once the naming part is finished now do the naming inside the template.
• The template texts are almost made of Attributes so that are very easy just answer all the questions and that are displayed in template.
• Next go to plot and there select the layout and plot it.

RESULT:

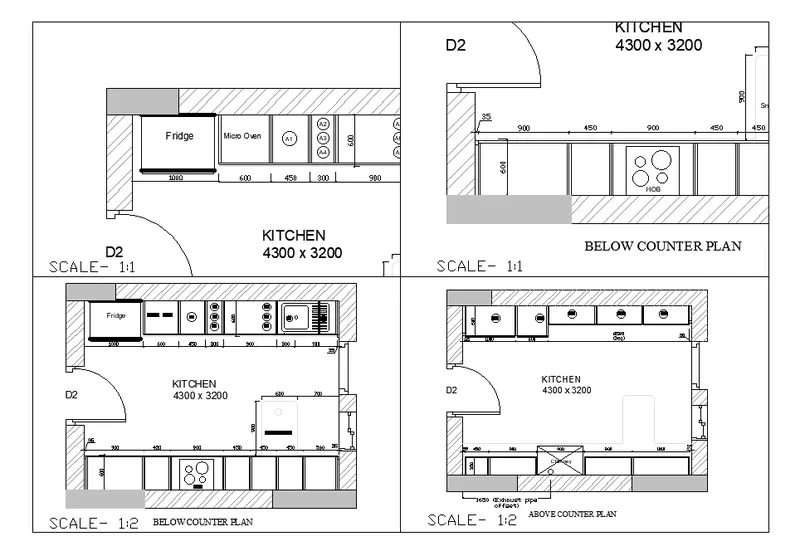

2) AIM: To create a layout of the Kitchen drawn in Challenge 9 and use the scale as mentioned. Use A4 Size page for the layout.

PROCEDURE:

• Open cad application in the pc and set all the limits required.
• Set the units as required for drawing. Set units in decimal and scale in Millimeters.
• Now here no need of drawing the drawing again because the drawing has been previously drawn in other challenges.
• To bring that drawing back we have a command XREF so type that in the command box and a dialogue box will appear.
•
• Here in top left select the type of file. We can attach any type of file here.
• So we now need to attach the dwg file so select it.
• Again a dialogue box will appear where we have to browse the drawing file and select it.
•
• After browsing select the file and click open.
• Now again another dialogue box will appear there we have several options to make it clearer and easier.
•
• Here we can change the scale of drawing.
• Change the angle of rotation, Insertion point and path type etc.
• Next something’s we cannot imagine simply so we can select the option Specify in screen.
• After all the settings and selections the drawing will appear in the cad screen.
• Once the drawing is in the screen now go to layout.
• In layout right click and select the layout template which is mentioned in the question part.
• Next comeback to model space and create the views which will make easier in layout.
•
• Create as many as views required. Here we need only two so create two views.
• Go to layout draw a rectangle and go to model space.
• Again go to view dialogue box and select the saved views and set current it will appear.
• Here they have mentioned scale so lock the drawing and do the scaling.
• Locking the drawing helps scaling it expands or contracts with the vp line.
• Here once we have to see the present scale and then set it.
• Next we have to mention the scale in the layout box so select Text command.
• Specify the height and type the name or scale.
•

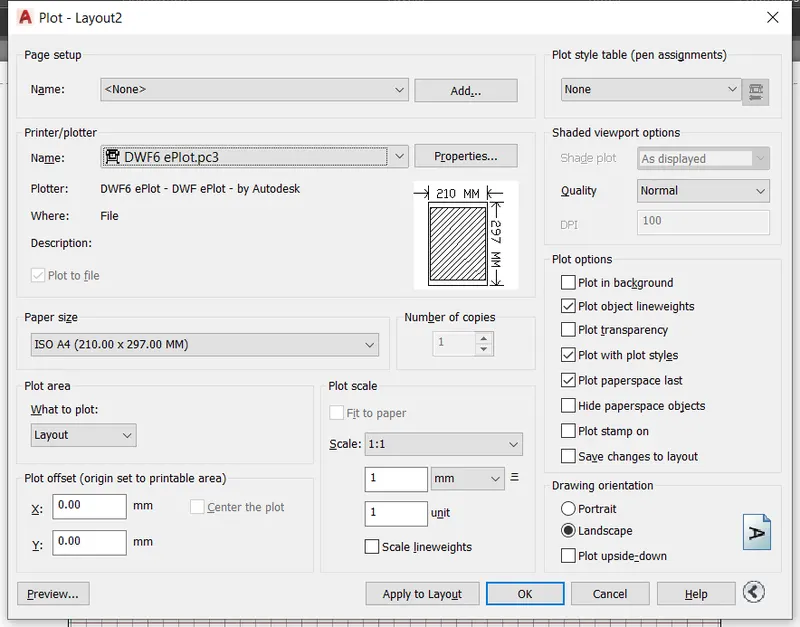

• Next go to plot and there select the layout and plot it.
• Here we have to select what we want to have like pdf or dwg or jpj etc.
• Select the paper size as mentioned in the question. In what to plot section we have several options.
• Like windows and layout or extends etc.
• In plot style table we can have different type of drawing printout.
• After all the selections we have preview option where we can see our drawing with respect to the selections just before plotting or saving in required formate.

RESULT:

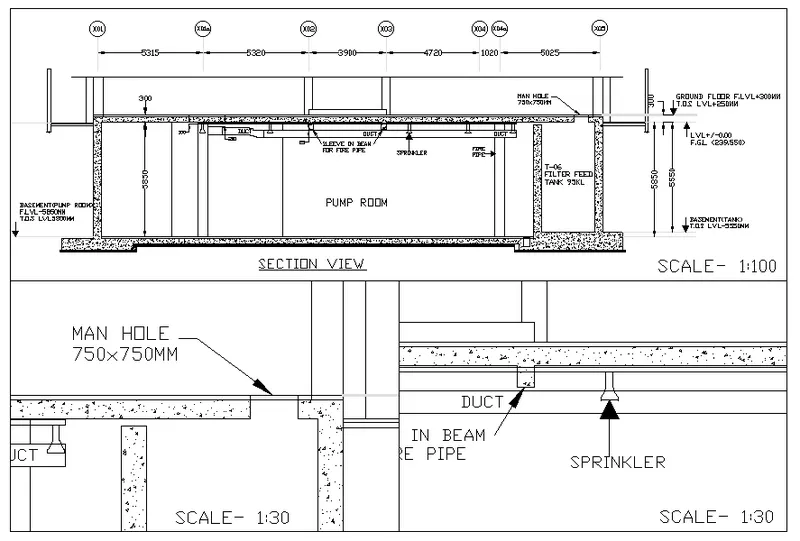

3) AIM: To create a layout of the section created in Challenges 9. Use scale as mentioned in the Figure. Cretae using myultiple views in MV command

PROCEDURE:

• Open cad application in the pc and set all the limits required.
• Set the units as required for drawing. Set units in decimal and scale in Millimeters.
• Now here no need of drawing the drawing again because the drawing has been previously drawn in other challenges.
• To bring that drawing back we have a command XREF so type that in the command box and a dialogue box will appear.
•
• Here in top left select the type of file. We can attach any type of file here.
• So we now need to attach the dwg file so select it.
• Again a dialogue box will appear where we have to browse the drawing file and select it.
•
• After browsing select the file and click open.
• Now again another dialogue box will appear there we have several options to make it clearer and easier.
•
• Here we can change the scale of drawing.
• Change the angle of rotation, Insertion point and path type etc.
• Next something’s we cannot imagine simply so we can select the option Specify in screen.
• After all the settings and selections the drawing will appear in the cad screen.
• Once the drawing is in the screen now go to layout.
• Next comeback to model space and create the views which will make easier in layout.
•
• Create as many as views required. Here we need only two so create two views.
• Go to layout draw a rectangle and go to model space.
• While drawing a rectangle before that we have a option so that all the four boxes made at a time together.
• In this we have to make less effort and times is also saved.
• We can use that method for both horizontal or vertical once.
• Again go to view dialogue box and select the saved views and set current it will appear.
• Here they have mentioned scale so lock the drawing and do the scaling.
• Locking the drawing helps scaling it expands or contracts with the vp line.
• Here once we have to see the present scale and then set it.
• Next we have to mention the scale in the layout box so select Text command.
• Specify the height and type the name or scale.
•
• Next go to plot and there select the layout and plot it.
• Here we have to select what we want to have like pdf or dwg or jpj etc.
• Select the paper size as mentioned in the question. In what to plot section we have several options.
• Like windows and layout or extends etc.
• In plot style table we can have different type of drawing printout.
• After all the selections we have preview option where we can see our drawing with respect to the selections just before plotting or saving in required formate.

RESULT:
