Creation of Multiple viewports, Scaling the drawing and setting in Template in AutoCad

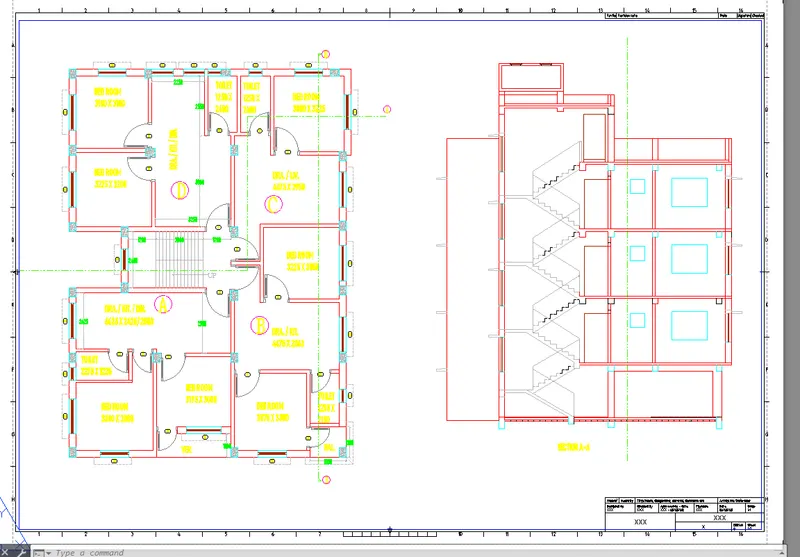

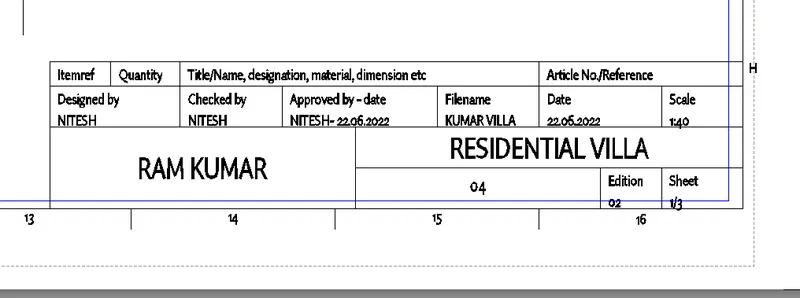

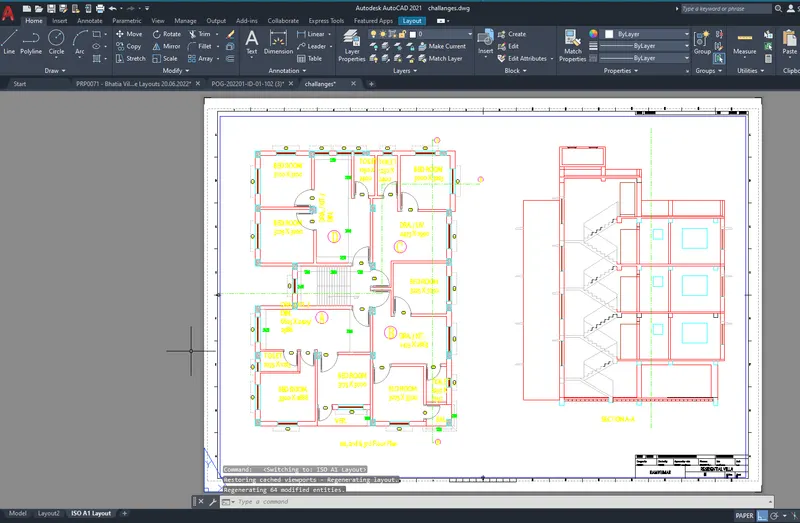

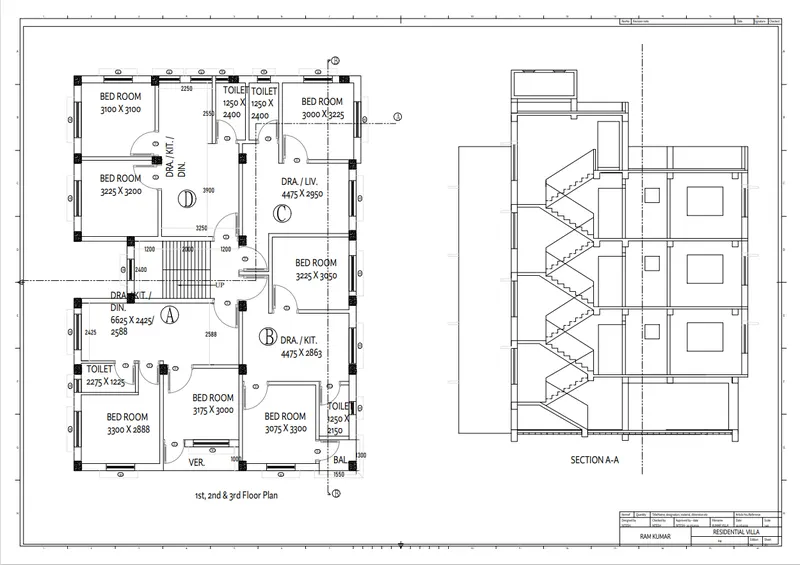

Q 1). Create a layout of the Plan and Section A of the project in Challenges 7, using the template Tutorial-mArch.dwt in a scale as given in the Figure. Use the MV command to create the viewport of the size as shown in Figure. Also, use the ATTEDIT command to edit the information in the title block. Use A1 size for the layout. Take a plot.

Aim:- To create a layout of the Plan and Section A of the project in challenges 7.

Procedure:-

1. open the challenge 7 cad file

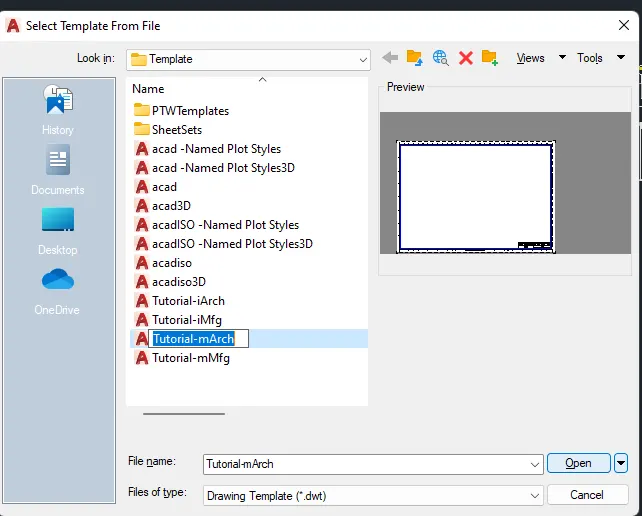

2. on command prompt type, Layout>T (templet)> Tutorial-mArch
3.
4. use the MV command to add a viewport.

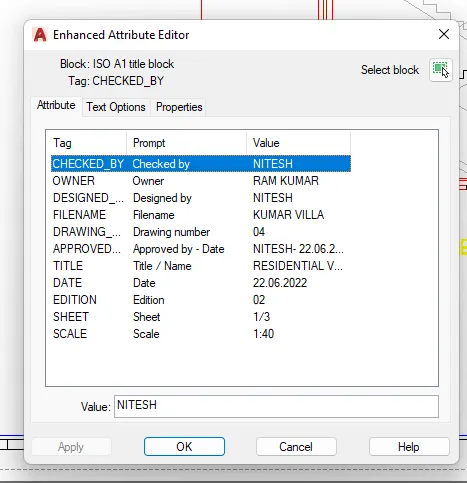

5. edit the title box.

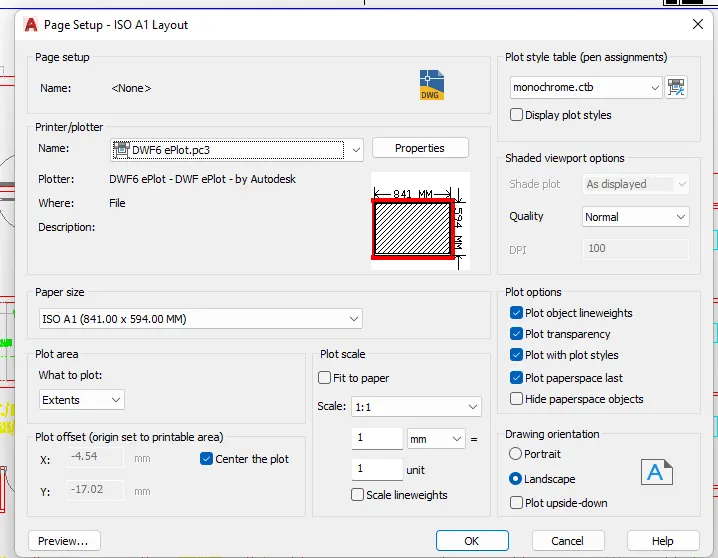

6. on the command prompt type, 'pagesetup' and set up the page.
7. use keyboard shortcut key Ctrl+P to print the layout.

Result:-

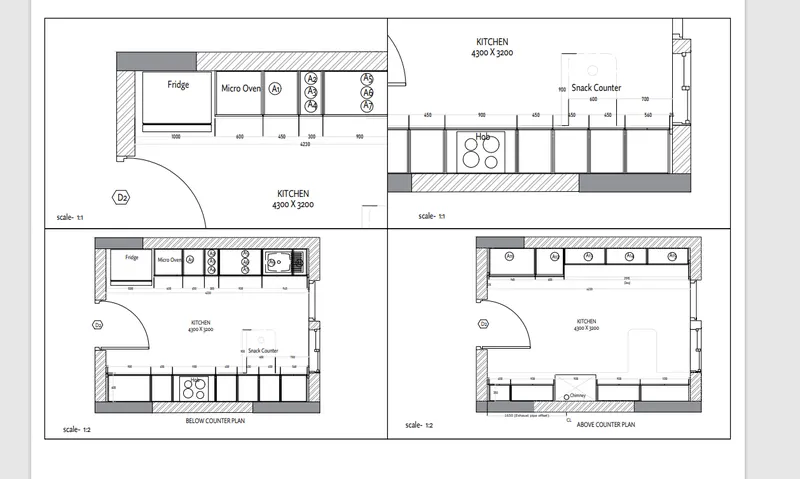

Q 2). Create a layout of the Kitchen drawn in Challenge 9 as shown in Figure. Use the scale as shown in the Figure. Use an A4 Size page for the layout. Take a plot.

Aim:-To create a layout of the Kitchen drawn in Challenge 9.

Procedure:-

1. open the challenge 9 cad file

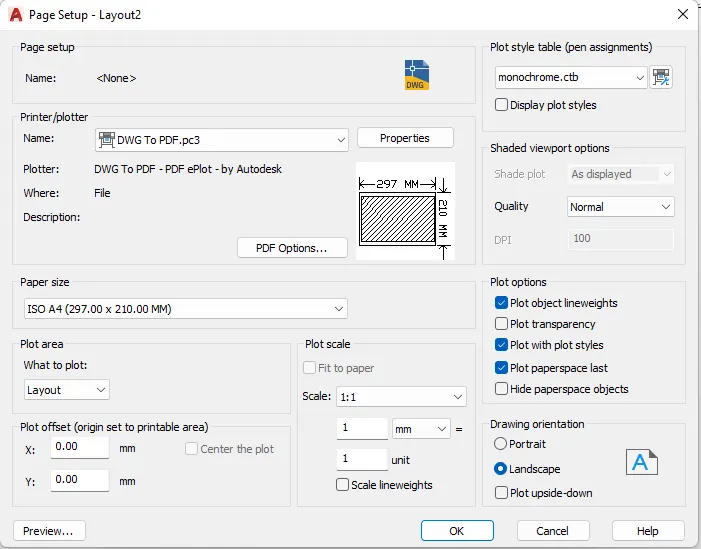

2. go to layout and use pagesetup to make the size to A4.

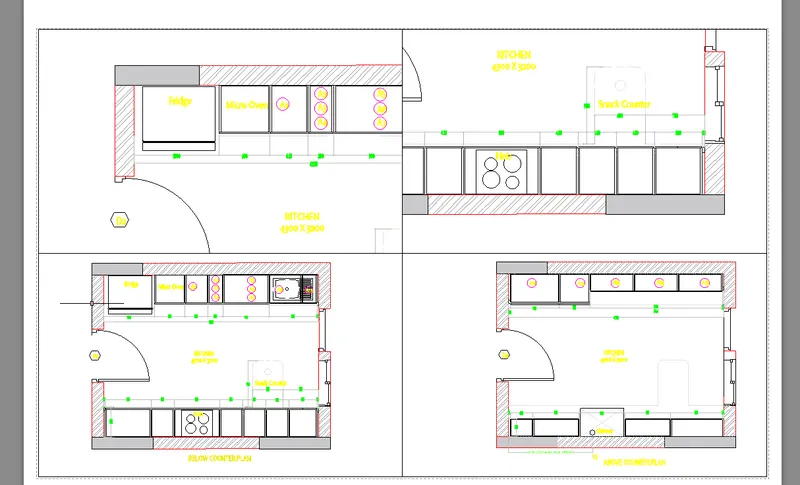

3. use the MV command to add a viewport.
4. on the command prompt type MS & PS to adjust the viewport. and adjust the scale as per required.

Result:-

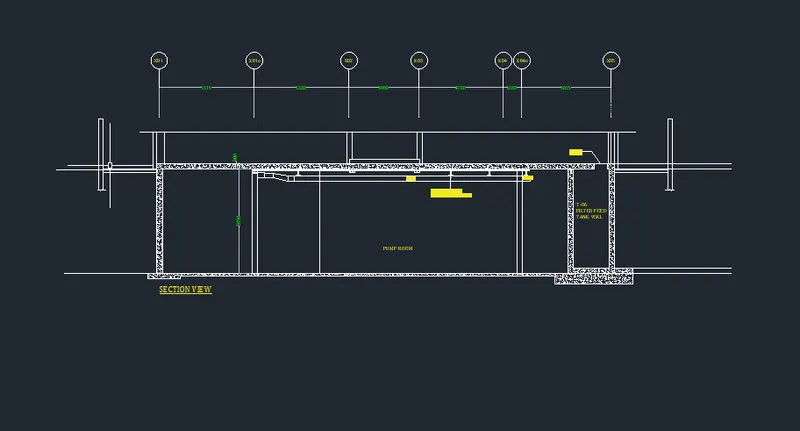

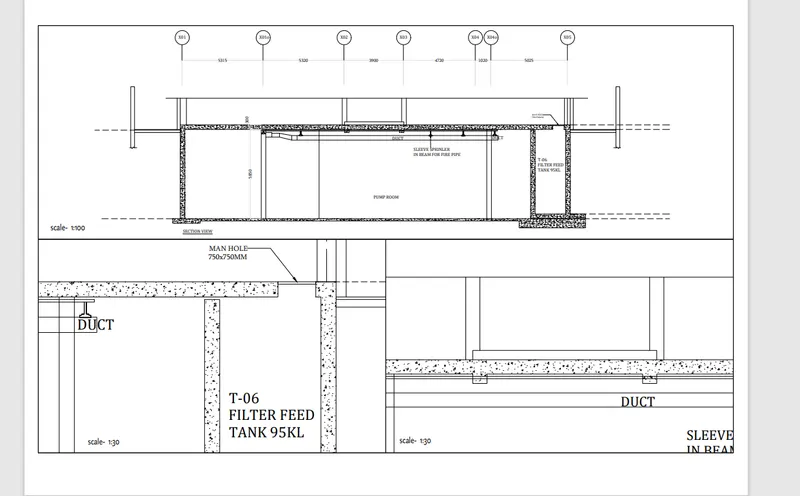

Q 3). Create a layout of the section created in Challenges 9. Use the scale as mentioned in the Figure. Use the MV command to create multiple viewports. Take a plot.

Aim:- To create a layout of the section created in Challenges 9

Procedure:-

1. open the cad file in which challenge 9 is drawn.

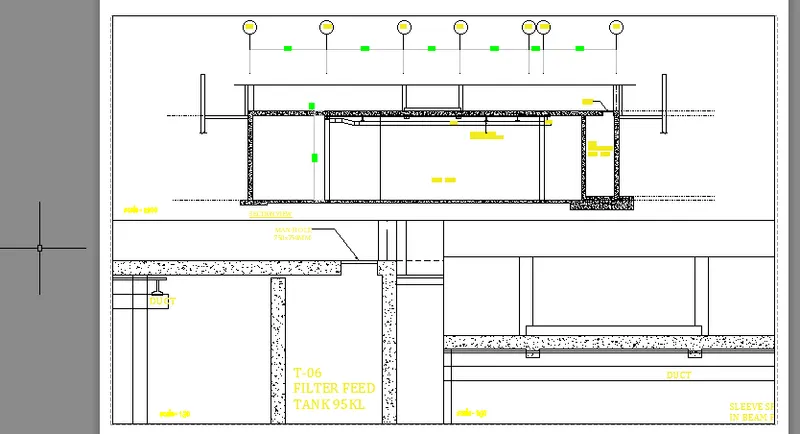

2. go to the layout in the command prompt and type MV and set the viewport.
3. change the scale accordingly.
4. to adjust view type MS & PS in command prompt.

Result:-
