Creation of geometries by Coordinate system methods using AutoCad

TASK 1:

AIM:

(A) To Create the geometries from P1 to P2 using all the coordinates system methods and P3 to P10 by any one coordinate system

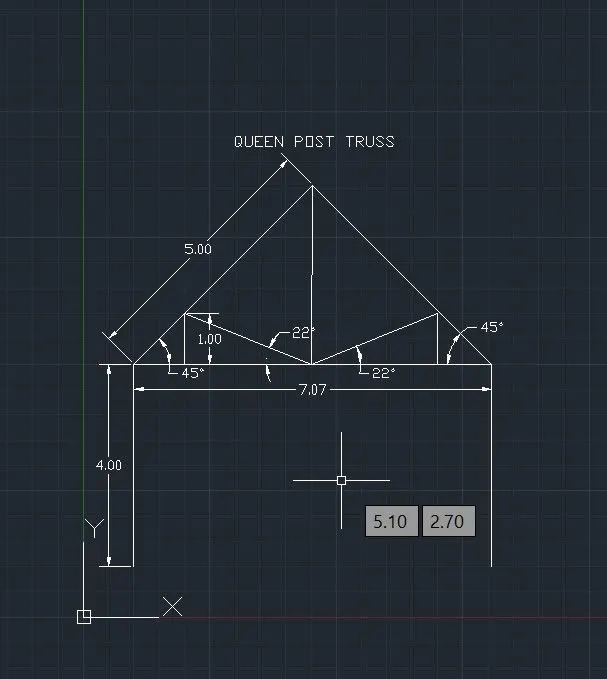

(B) To Draw the profile and the trusses using any coordinate system methods. The dimensions are there for reference.

PROCEDURE:

The Coordinate system methods are

• Absolute Coordinate System,
• Relative Coordinate System,

a) Relative rectangular coordinates,

b) Relative polar coordinates,

• Direct Distance Entry.

Commands used:

• Line command,
• Dimlinear command,
• Text command,
• Circle command.

Starting AutoCAD software:

• Go to START MENU, select AutoCAD 2023
• Click on START DRAWING .DWG File
• In the Command line type in: STARTUP [ENTER]
• Enter new value of startup: 1
• Go to Application Menu and select New
• In the 'Create New Drawing' dialog box, select the 'Imperial system in the 'Start from Scratch' option.
• Next select the 'Decimal unit system from the 'Advanced Setup' option.
• Set the limits by entering LIMITS in the Command tab. The lower-left corner is specified as 0,0, and the upper-right corner is specified as 100,100.

[Note: The above procedure is followed each time a new drawing is to be created.]

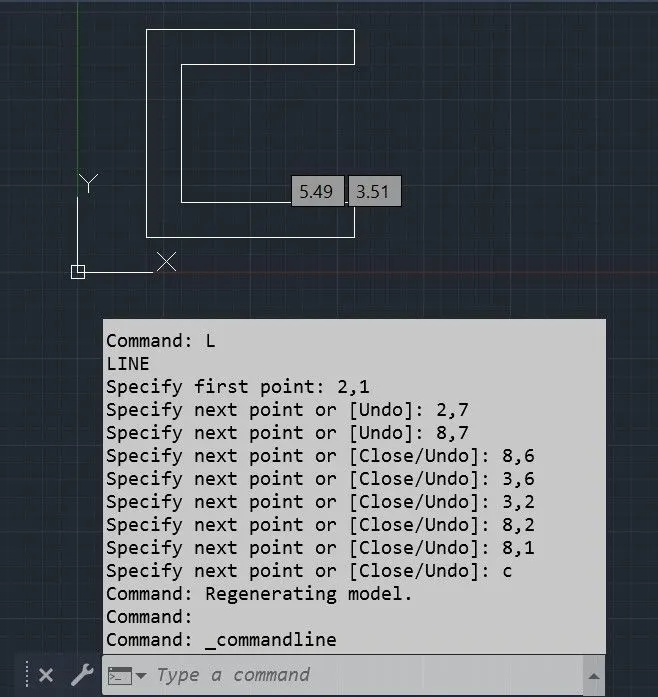

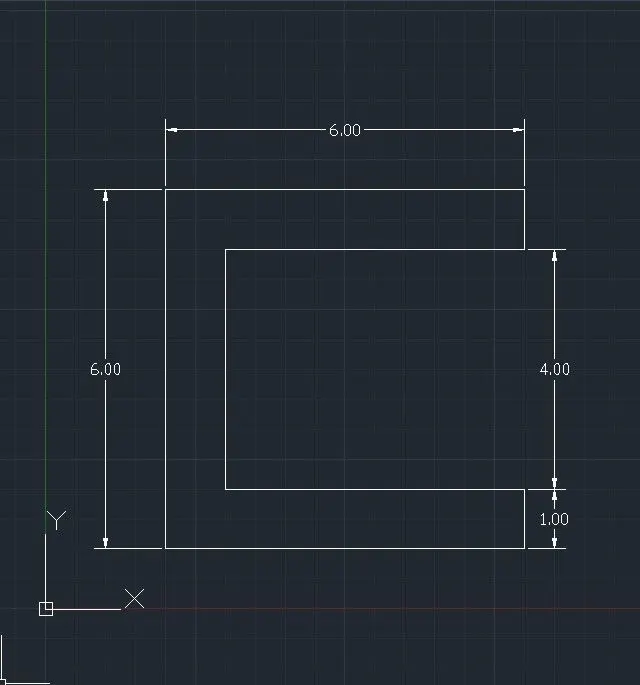

Absolute Coordinate System: P - 1

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as 2,7
• Specify the next coordinate of point 3 as 8,7
• Specify the next coordinate of point 4 as 8,6
• Specify the next coordinate of point 5 as 3,6
• Specify the next coordinate of point 6 as 3,2
• Specify the next coordinate of point 7 as 8,2
• Specify the next coordinate of point 8 as 8,1
• Then for the last point, Click 'C' on the Command Line to Close.

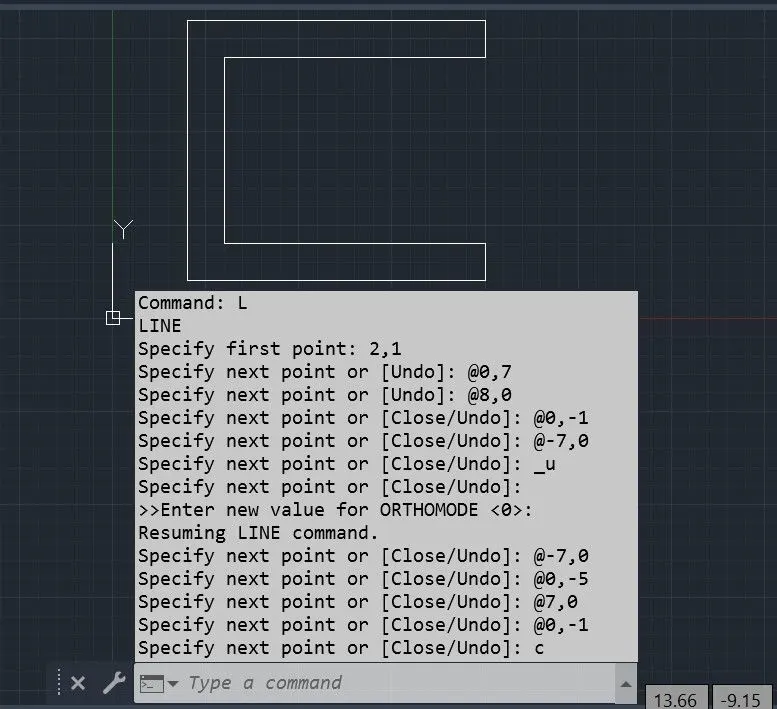

Relative Rectangular Coordinates:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 0,7
• Specify the next coordinate of point 3 as @ 8,0
• Specify the next coordinate of point 4 as @ 0,-1
• Specify the next coordinate of point 5 as @ -7,0
• Specify the next coordinate of point 6 as @ 0, -5
• Specify the next coordinate of point 7 as @ 7,0
• Specify the next coordinate of point 8 as @ 0,-1
• Then for the last point, Click 'C' on the Command Line to Close.

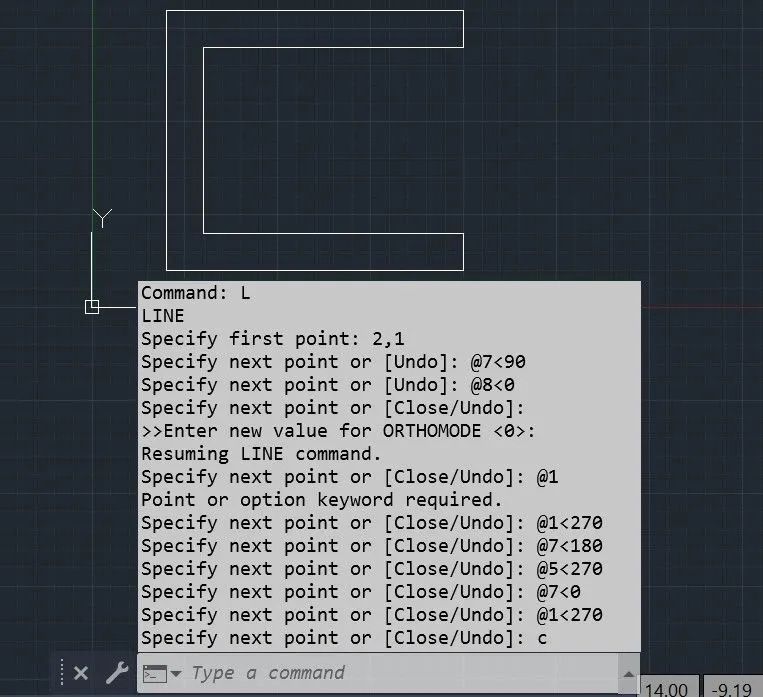

Relative polar coordinates:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 7 < 90
• Specify the next coordinate of point 3 as @ 8 < 0
• Specify the next coordinate of point 4 as @ 1 < 270
• Specify the next coordinate of point 5 as @ 7 < 180
• Specify the next coordinate of point 6 as @ 5 < 270
• Specify the next coordinate of point 7 as @ 7 < 0
• Specify the next coordinate of point 8 as @ 1 <270
• Then for the last point, Click 'C' on the Command Line to Close.

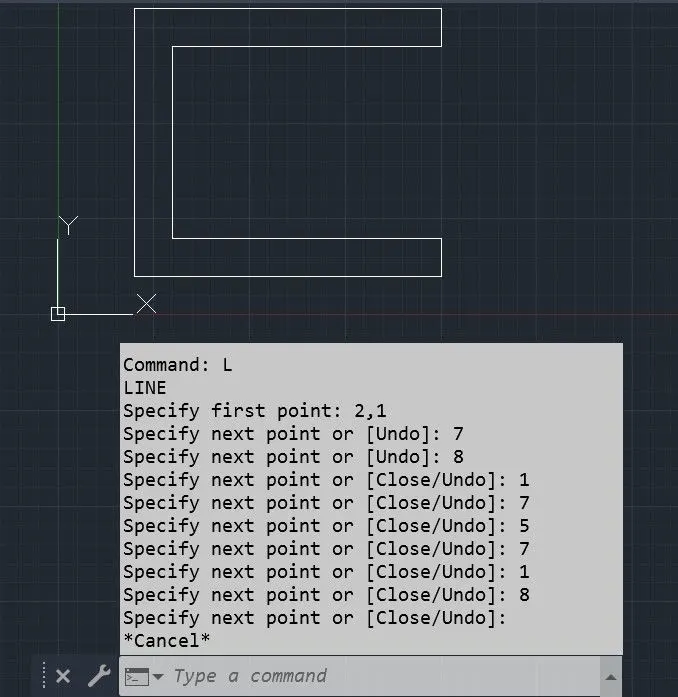

Direct Distance Entry:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as 7
• Specify the next coordinate of point 3 as 8
• Specify the next coordinate of point 4 as 1
• Specify the next coordinate of point 5 as 7
• Specify the next coordinate of point 6 as 5
• Specify the next coordinate of point 7 as 7
• Specify the next coordinate of point 8 as 1
• Then for the last point, Click 'C' on the Command Line to Close.



Dimensions:

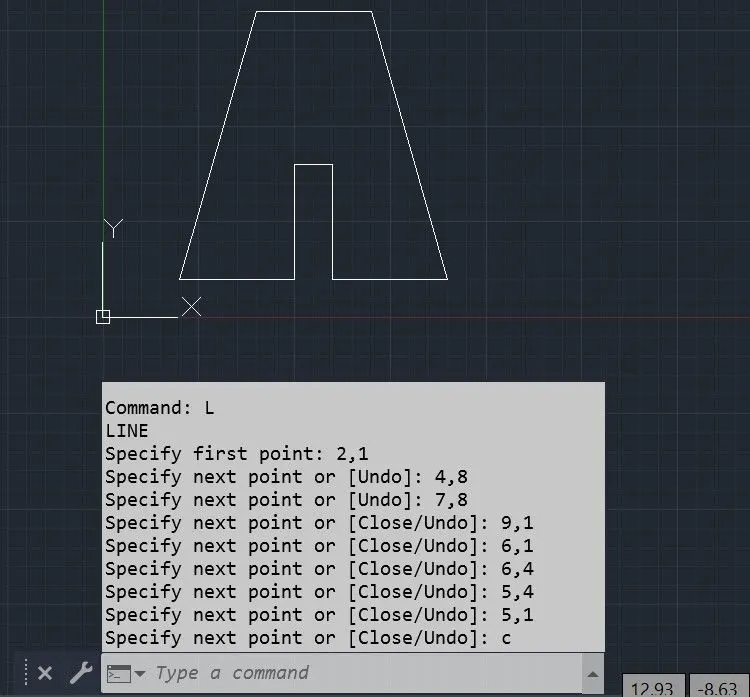

Absolute Coordinate System: P - 2:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as 4,8
• Specify the next coordinate of point 3 as 7,8
• Specify the next coordinate of point 4 as 9,1
• Specify the next coordinate of point 5 as 6,1
• Specify the next coordinate of point 6 as 6,4
• Specify the next coordinate of point 7 as 5,4
• Specify the next coordinate of point 8 as 5,1
• Then for the last point, Click 'C' on the Command Line to Close.

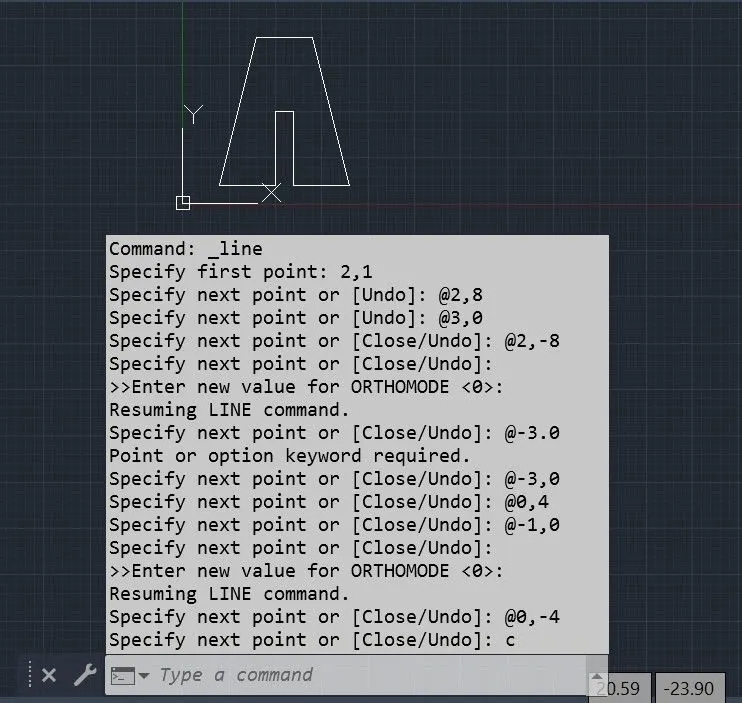

Relative Rectangular Coordinates:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 2,8
• Specify the next coordinate of point 3 as @ 3,0
• Specify the next coordinate of point 4 as @ 2,-8
• Specify the next coordinate of point 5 as @ -3,0
• Specify the next coordinate of point 6 as @ 0,4
• Specify the next coordinate of point 7 as @ -1,0
• Specify the next coordinate of point 8 as @ 0,-4
• Then for the last point, Click 'C' on the Command Line to Close.

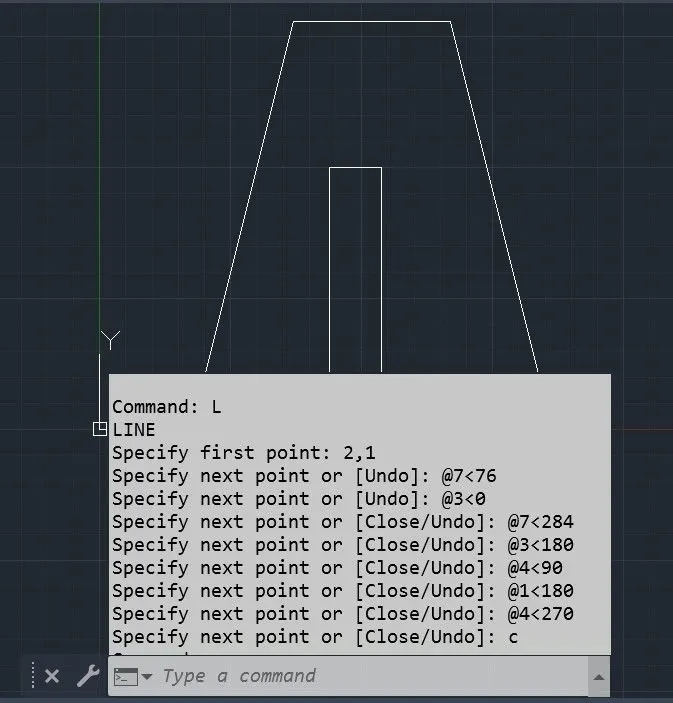

Relative polar coordinates:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 8 < 76
• Specify the next coordinate of point 3 as @ 3 < 0
• Specify the next coordinate of point 4 as @ 8 < 284
• Specify the next coordinate of point 5 as @ 3 < 180
• Specify the next coordinate of point 6 as @ 4 < 90
• Specify the next coordinate of point 7 as @ 1 < 180
• Specify the next coordinate of point 8 as @ 4 <270
• Then for the last point, Click 'C' on the Command Line to Close.

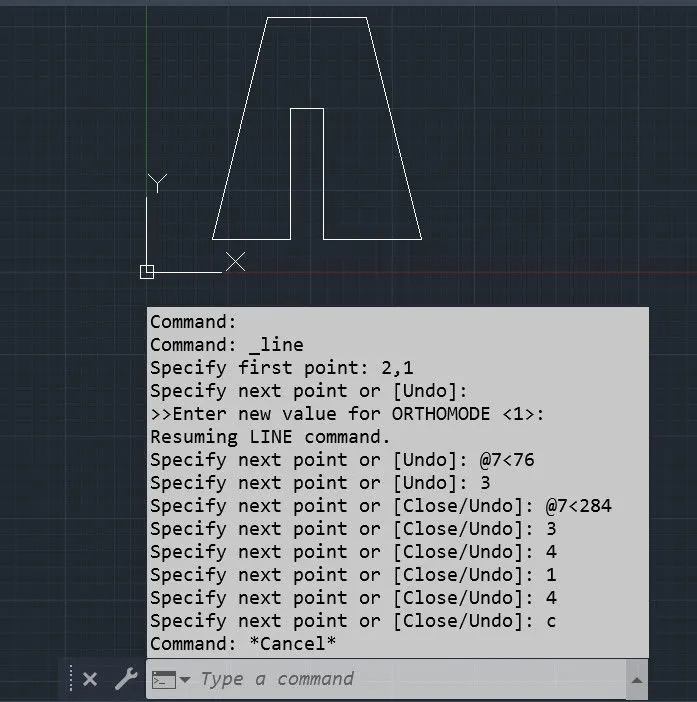

Direct Distance Entry:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 7 < 76
• Specify the next coordinate of point 3 as 3
• Specify the next coordinate of point 4 as @ 7<284
• Specify the next coordinate of point 5 as 3
• Specify the next coordinate of point 6 as 4
• Specify the next coordinate of point 7 as 1
• Specify the next coordinate of point 8 as 4
• Then for the last point, Click 'C' on the Command Line to Close.

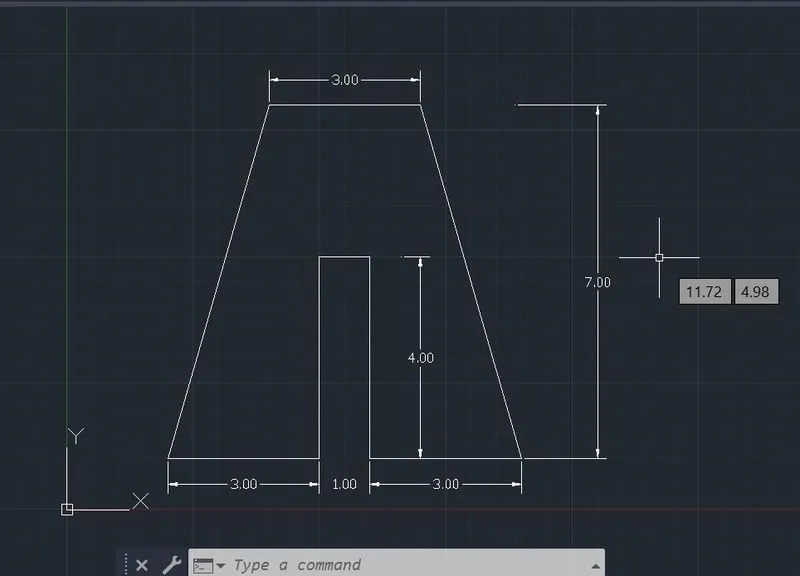

Dimension:

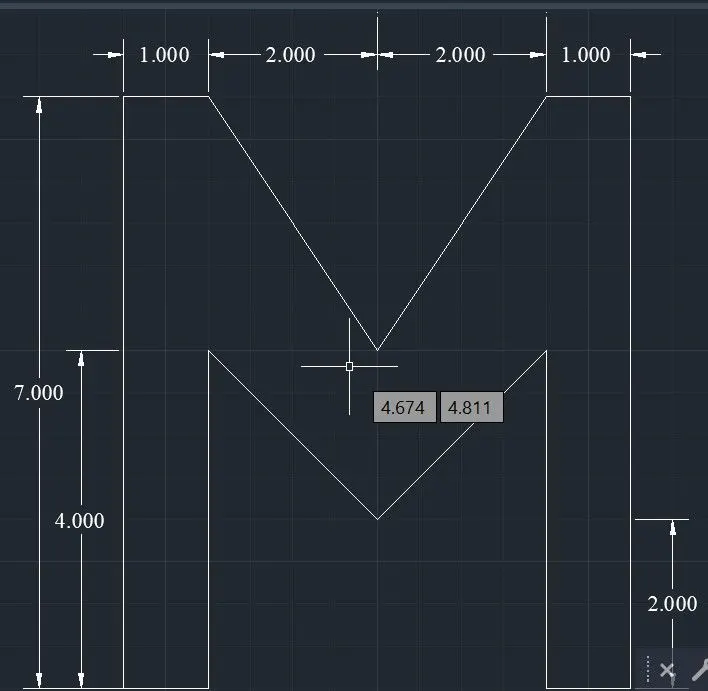

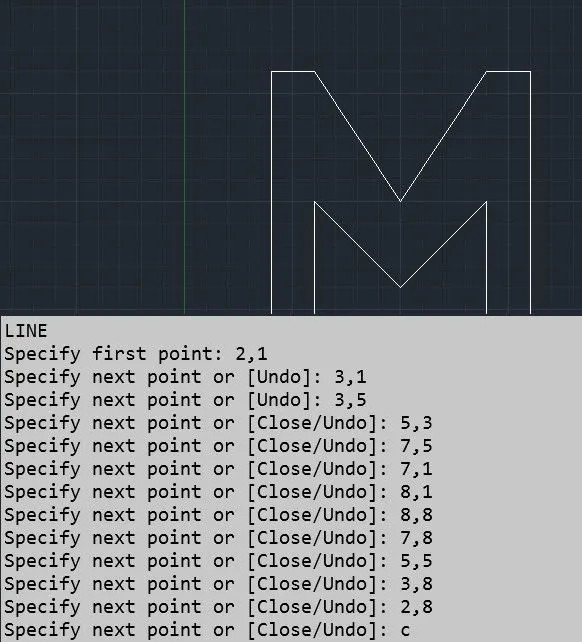

Absolute Coordinate System: P - 3

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as 3,1
• Specify the next coordinate of point 3 as 3,5
• Specify the next coordinate of point 4 as 5,3
• Specify the next coordinate of point 5 as 7,5
• Specify the next coordinate of point 6 as 7,1
• Specify the next coordinate of point 7 as 8,1
• Specify the next coordinate of point 8 as 8,8
• Specify the next coordinate of point 9 as 7,8
• Specify the next coordinate of point 10 as 5,5
• Specify the next coordinate of point 11 as 3,8
• Specify the next coordinate of point 12 as 2,8
• Then for the last point, Click 'C' on the Command Line to Close.

Dimensions:

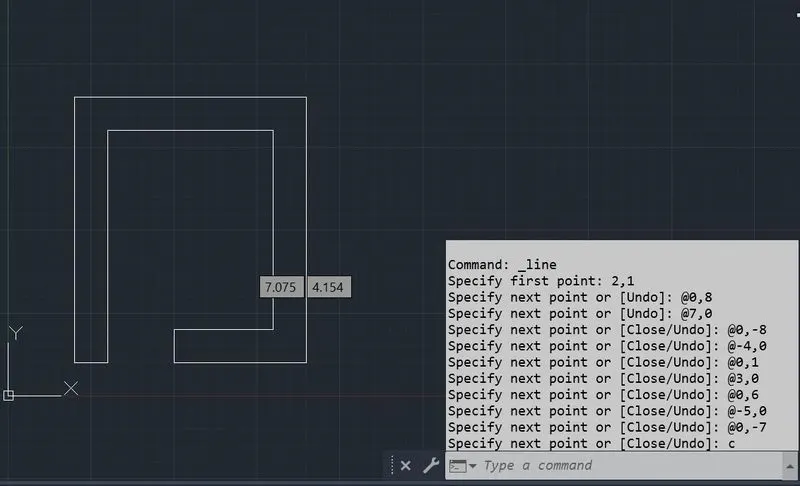

Relative Rectangular Coordinates: P - 4

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as @ 0,8
• Specify the next coordinate of point 3 as @ 7,0
• Specify the next coordinate of point 4 as @ 0,-8
• Specify the next coordinate of point 5 as @ -4,0
• Specify the next coordinate of point 6 as @ 0,1
• Specify the next coordinate of point 7 as @ 3,0
• Specify the next coordinate of point 8 as @ 0,6
• Specify the next coordinate of point 9 as @ -5,0
• Specify the next coordinate of point 10 as @ 0,-7
• Then for the last point, Click 'C' on the Command Line to Close.

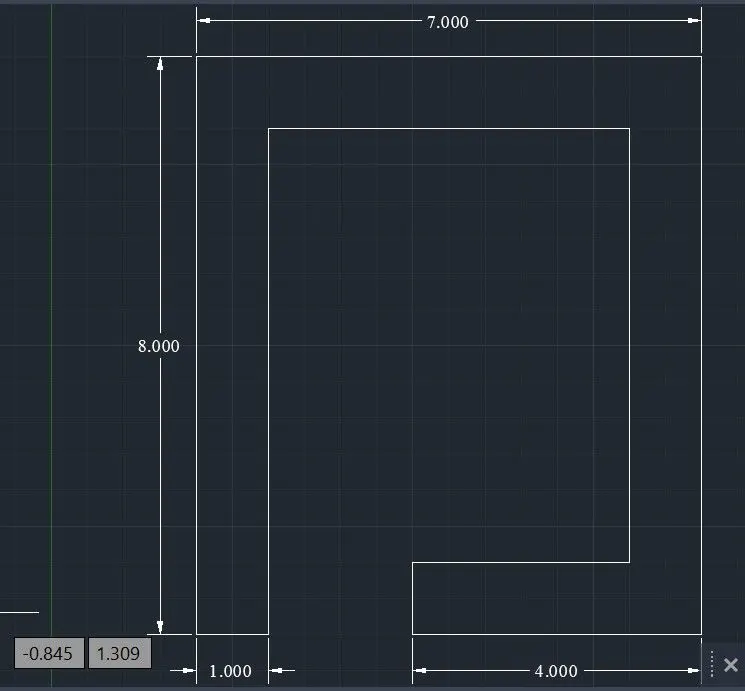

Dimesions:

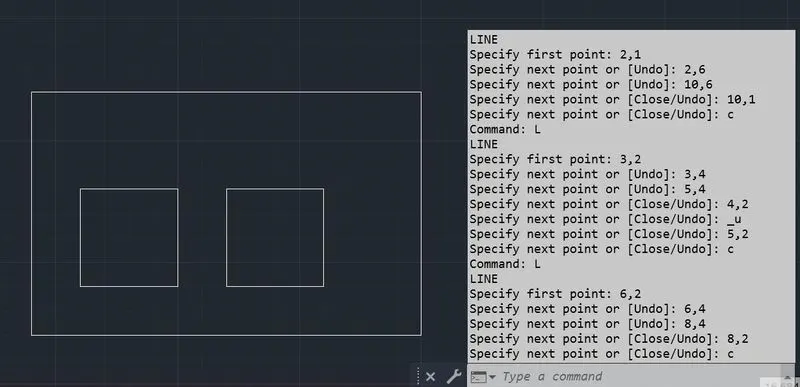

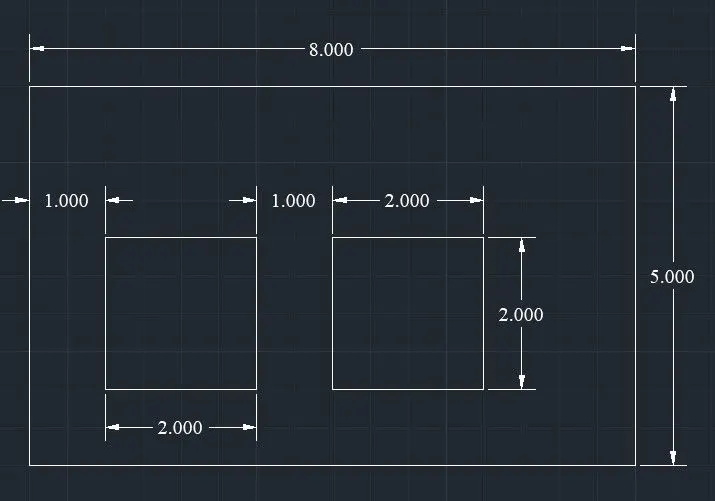

Absolute Coordinate System: P - 5

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,1
• Specify the next coordinate of point 2 as 2,6
• Specify the next coordinate of point 3 as 10,6
• Specify the next coordinate of point 4 as 10,1
• Then for the last point, Click 'C' on the Command Line to Close.
• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 3,2
• Specify the next coordinate of point 2 as 3,4
• Specify the next coordinate of point 3 as 5,4
• Specify the next coordinate of point 4 as 5,2
• Then for the last point, Click 'C' on the Command Line to Close.
• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 6,2
• Specify the next coordinate of point 2 as 6,4
• Specify the next coordinate of point 3 as 8,4
• Specify the next coordinate of point 4 as 8,2
• Then for the last point, Click 'C' on the Command Line to Close.

Dimensions:

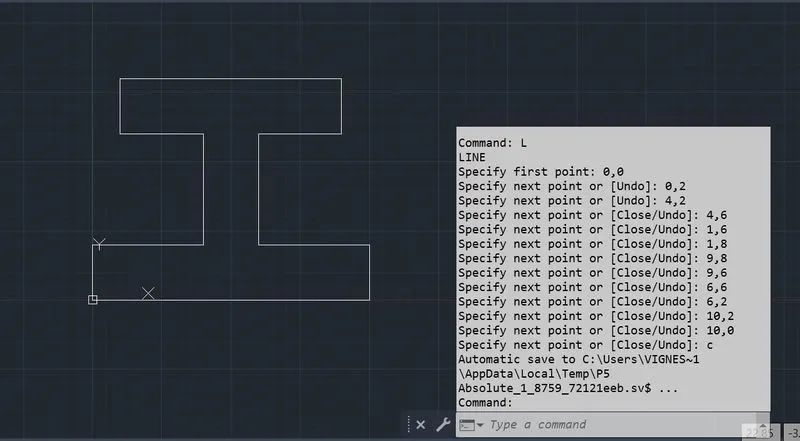

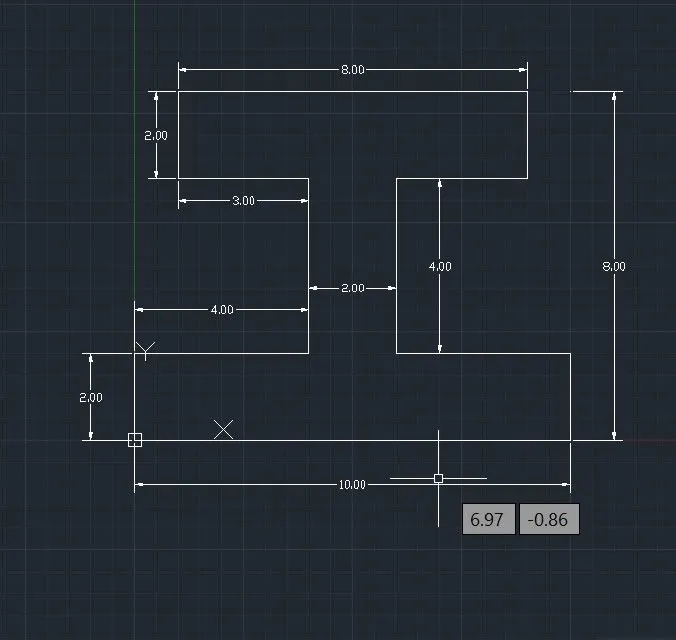

Absolute Coordinate System: P - 6

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 0,0.
• Specify the next coordinate of point 2 as 0,2.
• Specify the next coordinate of point 3 as 4,2.
• Specify the next coordinate of point 4 as 4,6.
• Specify the next coordinate of point 5 as 1,6.
• Specify the next coordinate of point 6 as 1,8.
• Specify the next coordinate of point 7 as 9,8
• Specify the next coordinate of point 8 as 9,6
• Specify the next coordinate of point 9 as 6,6
• Specify the next coordinate of point 10 as 6,2
• Specify the next coordinate of point 11 as 10,2
• Specify the next coordinate of point 12 as 10,0
• Then for the last point, Click 'C' on the Command Line to Close.

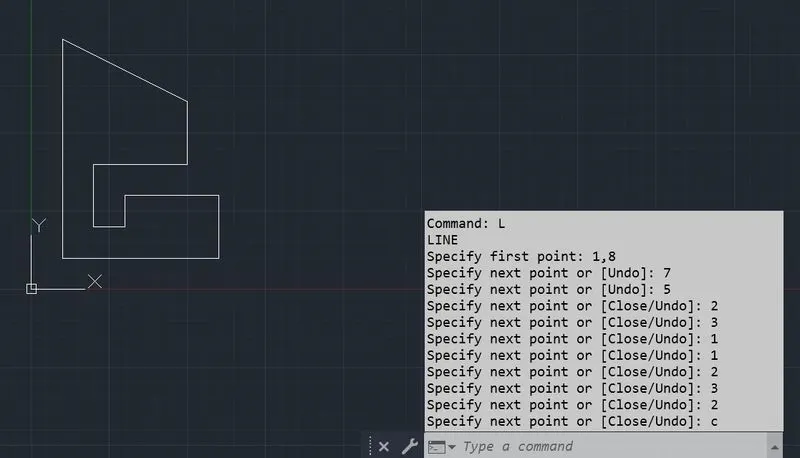

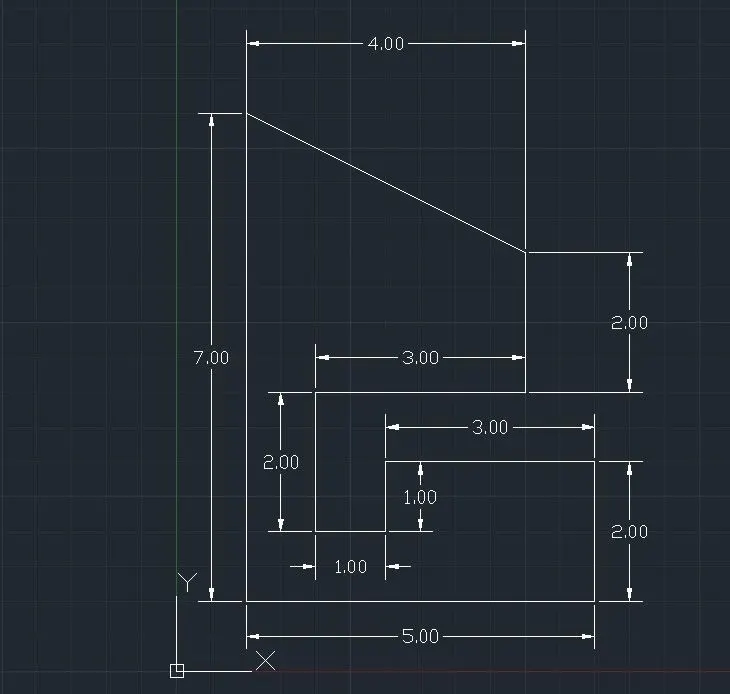

Direct Distance Entry:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 1,8
• Specify the next coordinate of point 2 as 7
• Specify the next coordinate of point 3 as 5
• Specify the next coordinate of point 4 as 2
• Specify the next coordinate of point 5 as 3
• Specify the next coordinate of point 6 as 1
• Specify the next coordinate of point 7 as 1
• Specify the next coordinate of point 8 as 2
• Specify the next coordinate of point 9 as 3
• Specify the next coordinate of point 10 as 2
• Then for the last point, Click 'C' on the Command Line to Close.

Dimensions:

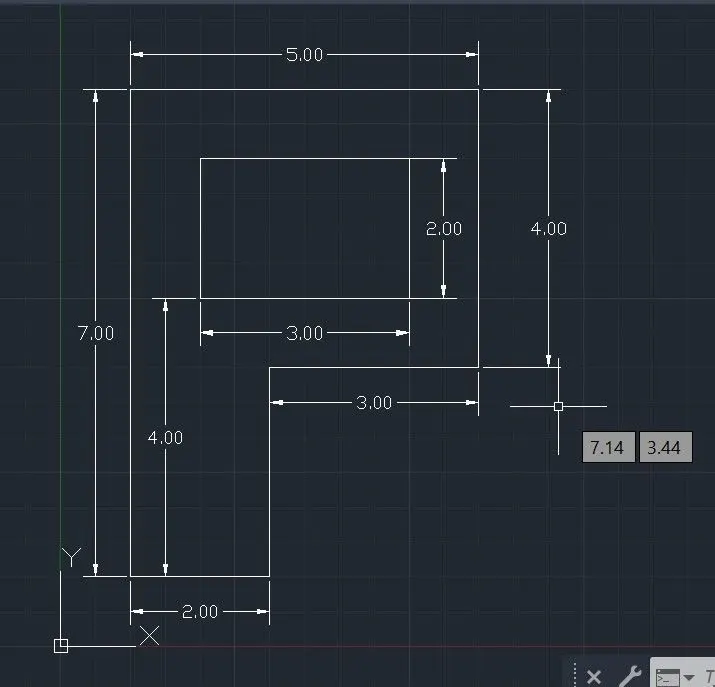

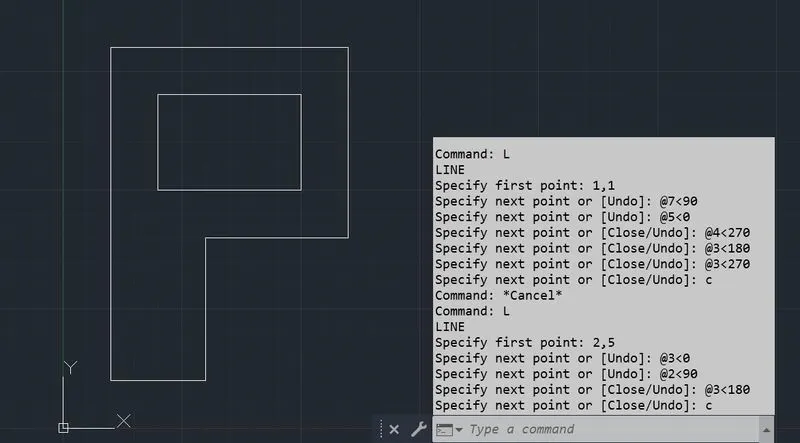

Relative polar coordinates - P - 8

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 1,1
• Specify the next coordinate of point 2 as @ 7 < 90
• Specify the next coordinate of point 3 as @ 5 < 0
• Specify the next coordinate of point 4 as @ 4 < 270
• Specify the next coordinate of point 5 as @ 3 < 180
• Specify the next coordinate of point 6 as @ 3 < 270
• Then for the last point, Click 'C' on the Command Line to Close.


• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 2,5
• Specify the next coordinate of point 2 as @ 3 < 0
• Specify the next coordinate of point 3 as @ 2 < 90
• Specify the next coordinate of point 4 as @ 3 < 180
• Then for the last point, Click 'C' on the Command Line to Close.



Dimensions:

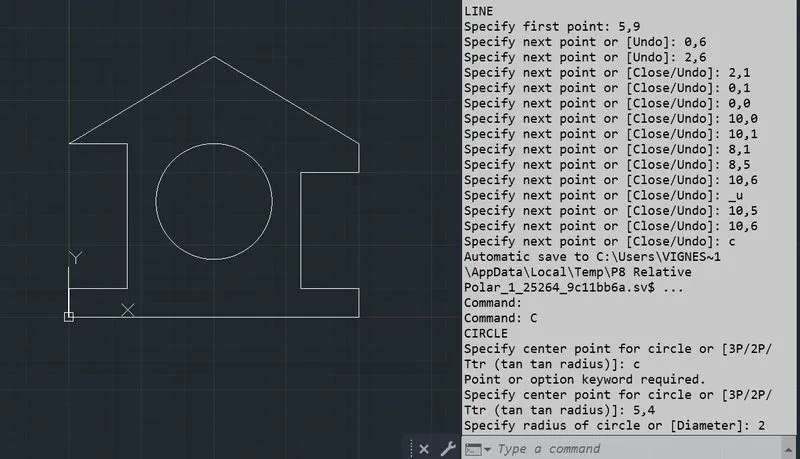

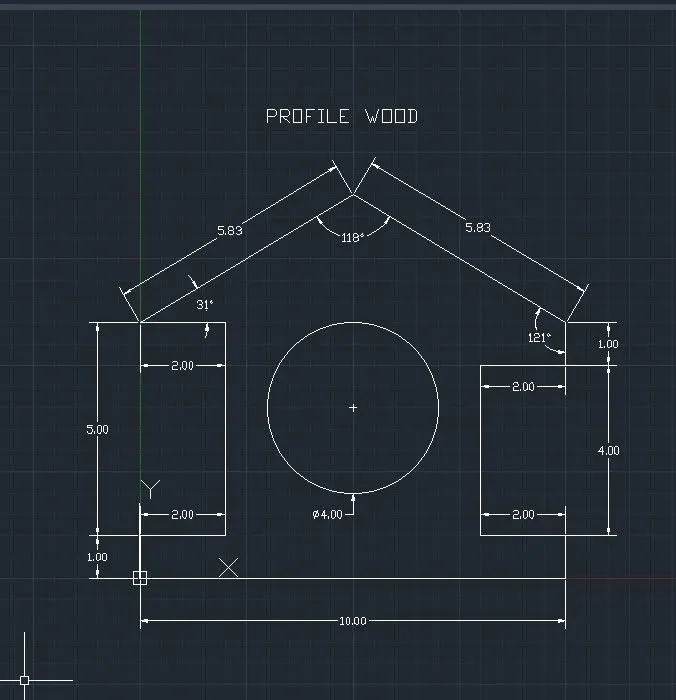

CIVIL RELATED PROBLEMS - PROFILE WOOD

Absolute Coordinate System:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 5,9.
• Specify the next coordinate of point 2 as 0,6.
• Specify the next coordinate of point 3 as 2,6.
• Specify the next coordinate of point 4 as 2,1.
• Specify the next coordinate of point 5 as 0,1.
• Specify the next coordinate of point 6 as 0,0.
• Specify the next coordinate of point 7 as 10,0
• Specify the next coordinate of point 8 as 10,1
• Specify the next coordinate of point 9 as 8,1
• Specify the next coordinate of point 10 as 8,5
• Specify the next coordinate of point 11 as 10,5
• Specify the next coordinate of point 12 as 10,6
• Then for the last point, Click 'C' on the Command Line to Close.
• Select the circle tool from the ribbon tab or by entering the 'c' command in the command tab.
• Specify the starting coordinate of point 1 as 5,4.
• Specify the radius of the circle as 2.

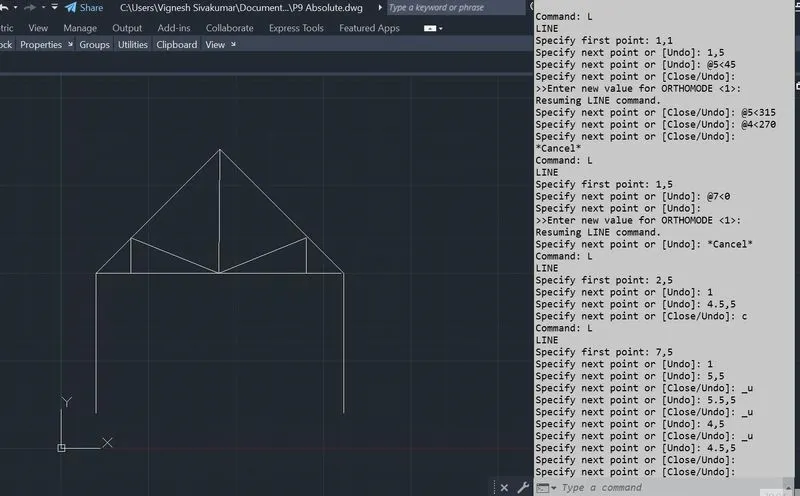

QUEEN POST TRUSS:

Select the line tool from the ribbon tab or by entering the 'l' command.
Specify first coordinate of point 1 as 1,1
Specify next coordinate of point 2 as 1,5
Specify next coordinate of point 3 as @5<45
Specify next coordinate of point 4 as @5<315
Specify next coordinate of point 5 as@4<270
Then for the last point, Click 'C' on the Command Line to Close.

Select the line tool from the ribbon tab or by entering the 'l' command.
Specify first coordinate of point 1 as 1,5
Specify next coordinate of point 2 as @7<0
Then for the last point, Click 'C' on the Command Line to Close.

Resuming LINE command.
Specify first coordinate of point 1 as 2,5
Specify next coordinate of point 2 as 1
Specify next coordinate of point 3 as 4.5,5
Then for the last point, Click 'C' on the Command Line to Close.

Command: L
Specify first coordinate of point 1 as 7,5
Specify next coordinate of point 2 as 1
Specify next coordinate of point 3 as 5,5
Specify next coordinate of point or [Close/Undo]: _u
Specify next coordinate of point or [Undo]: 5.5,5
Specify next coordinate of point or [Close/Undo]: _u
Specify next coordinate of point or [Undo]: 4,5
Specify next coordinate of point or [Close/Undo]: _u
Specify next coordinate of point 4 as 4.5,5
Then for the last point, Click 'C' on the Command Line to Close.

Dimensions:

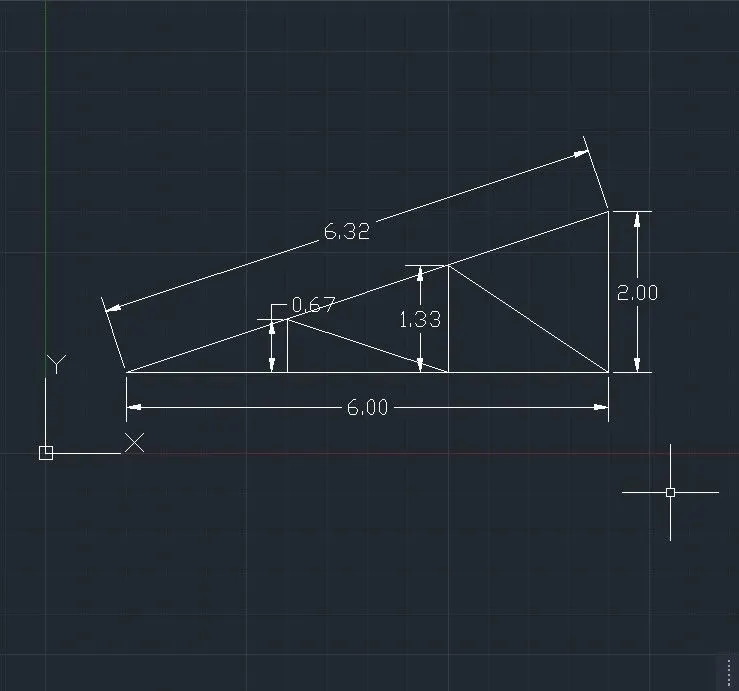

Mono Pitch:

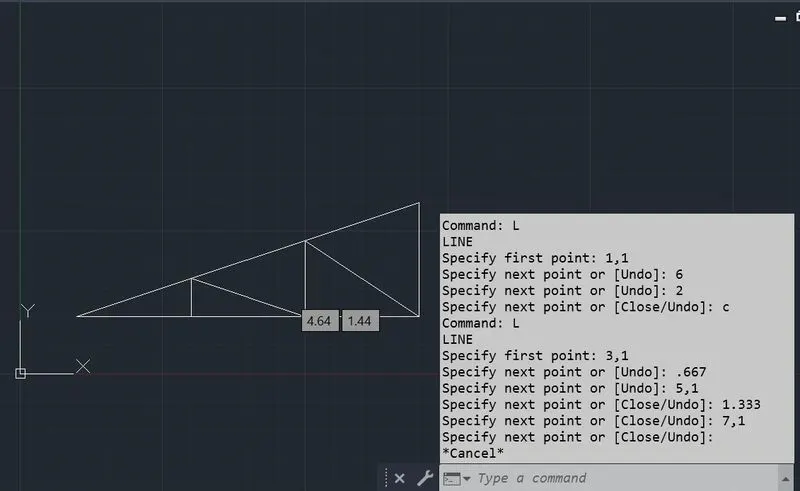

Direct Distance Entry:

• Select the line tool from the ribbon tab or by entering the 'Line' command in the command tab.
• Specify the starting coordinate of point 1 as 1,1
• Specify the next coordinate of point 2 as 6
• Specify the next coordinate of point 3 as 2
• Then for the last point, Click 'C' on the Command Line to Close.
• Specify the starting coordinate of point 1 as 3,1
• Specify the next coordinate of point 2 as 0.667
• Specify the next coordinate of point 3 as 5,1
• Specify the next coordinate of point 4 as 1.333
• Specify the next coordinate of point 5 as 6,1
• Then for the last point, Click 'C' on the Command Line to Cancel.





Thus the Task 1 is Completed.
