Creation of geometries by Coordinate system methods using AutoCad

YYogendra Meena15 Jun 2021

Aims & Introduction:

Drawing of the given dimensions using various coordinates system is a very basic part of any drawing in AutoCAD. There are different coordinates systems and each coordinate system has respective pros and cons. Using of correct coordinate system for each drawing makes work easier and aesthetic from architectural point of view. A good architecture always makes work smarter and aesthetically good so it meets the exactly the requirements of the client.

In this Exercise, I will be drawing some simple geometrics using the various coordinate system in AutoCAD.

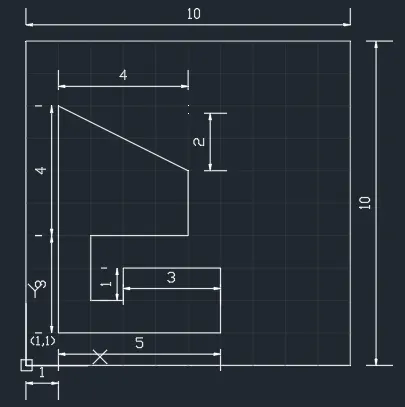

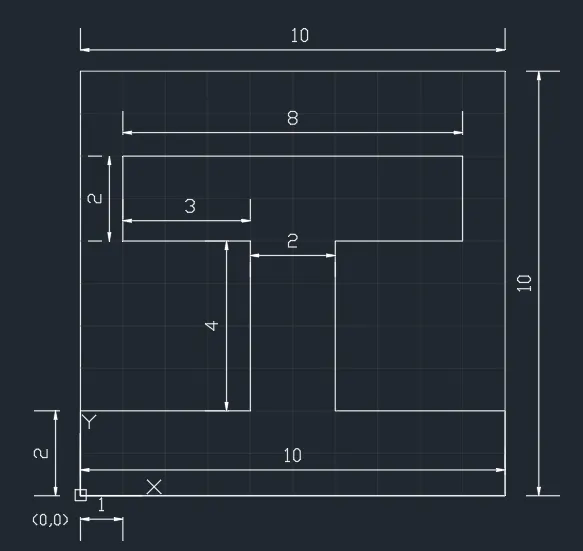

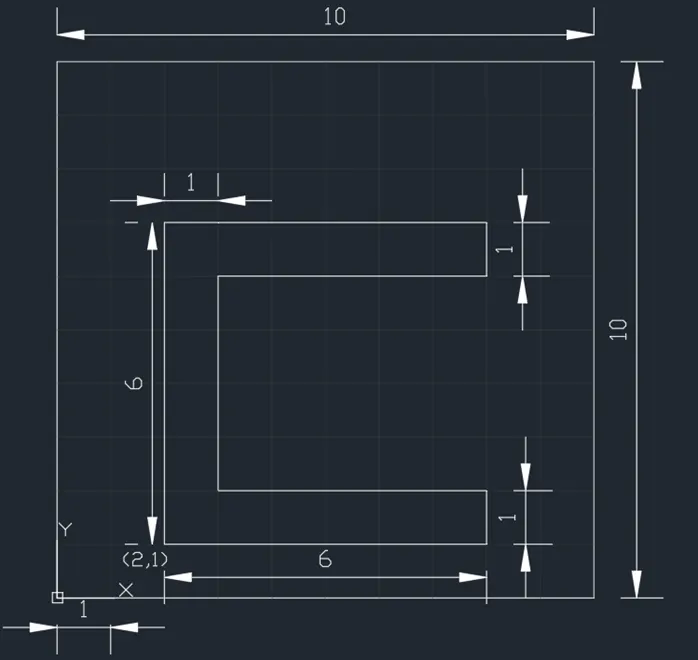

Drawings of P1

Procedure for P1 Drawing Using Absolute Cartesian Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: 10,0
  4. Specify next point or [Undo]: 10,10
  5. Specify next point or [Close/Undo]: 0,10
  6. Specify next point or [Close/Undo]: c

Start Drawing the P1 drawing using Absolute Cartesian Coordinates system and Line command

  1. Command: _line
  2. Specify first point: 2,1
  3. Specify next point or [Undo]: 8,1
  4. Specify next point or [Undo]: 8,2
  5. Specify next point or [Close/Undo]: 3,2
  6. Specify next point or [Close/Undo]: 3,6
  7. Specify next point or [Close/Undo]: 8,6
  8. Specify next point or [Close/Undo]: 8,7
  9. Specify next point or [Close/Undo]: 2,7
  10. Specify next point or [Close/Undo]: c
  11. Command: DIMLIN
  12. DIMLINEAR
  13. Specify first extension line origin or <select object>:
  14. Specify second extension line origin:
  15. Specify dimension line location or
  16. Dimension text = 1
  17. Command:
  18. DIMLINEAR
  19. Specify first extension line origin or <select object>:
  20. Specify second extension line origin:
  21. Specify dimension line location or
  22. Dimension text = 6
  23. Command:
  24. DIMLINEAR
  25. Specify first extension line origin or <select object>:
  26. Specify second extension line origin:
  27. Specify dimension line location or
  28. Dimension text = 1
  29. Command:
  30. DIMLINEAR
  31. Specify first extension line origin or <select object>:
  32. Specify second extension line origin:
  33. Non-associative dimension created.
  34. Specify dimension line location or
  35. Dimension text = 6
  36. Command:
  37. DIMLINEAR
  38. Specify first extension line origin or <select object>:
  39. Specify second extension line origin:
  40. Specify dimension line location or
  41. Dimension text = 1
  42. Command: DIMLIN
  43. DIMLINEAR
  44. Specify first extension line origin or <select object>:
  45. Specify second extension line origin:
  46. Specify dimension line location or
  47. Dimension text = 10
  48. Command:
  49. DIMLINEAR
  50. Specify first extension line origin or <select object>:
  51. Specify second extension line origin:
  52. Specify dimension line location or
  53. Dimension text = 10
  54. Command:
  55. DIMLINEAR
  56. Specify first extension line origin or <select object>:
  57. Specify second extension line origin:
  58. Specify dimension line location or
  59. Dimension text = 1

Result:

Procedure for P1 using Relative Cartesian Coordinate systems

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: @10,0
  4. Specify next point or [Undo]: @0,10
  5. Specify next point or [Close/Undo]:@ -10,0
  6. Specify next point or [Close/Undo]: c

Start Drawing the P1 drawing using Relative Cartesian Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @6,0
  5. Specify next point or [Undo]: @0,1
  6. Specify next point or [Close/Undo]: @-5,0
  7. Specify next point or [Close/Undo]: @0,4
  8. Specify next point or [Close/Undo]: @5,0
  9. Specify next point or [Close/Undo]: @0,1
  10. Specify next point or [Close/Undo]: @-6,0
  11. Specify next point or [Close/Undo]: c

Result:

Procedure for P1 Drawing Using Absolute Polar Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: 10<0
  4. Specify next point or [Undo]: 14.142<45
  5. Specify next point or [Close/Undo]: 10<90
  6. Specify next point or [Close/Undo]: c

Start Drawing the P1 drawing using Absolute Polar Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: 8.062<7.125
  5. Specify next point or [Undo]: 8.246<14.037
  6. Specify next point or [Close/Undo]: 3.606<33.691
  7. Specify next point or [Close/Undo]: 6.708<63.437
  8. Specify next point or [Close/Undo]: 10<36.871
  9. Specify next point or [Close/Undo]: 10.630<41.187
  10. Specify next point or [Close/Undo]: 7.280<74.057
  11. Specify next point or [Close/Undo]: c

Result:

Procedure for P1 Drawing Using Relative Polar Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: @10<0
  4. Specify next point or [Undo]: @10<90
  5. Specify next point or [Close/Undo]: @10<180
  6. Specify next point or [Close/Undo]: c

Start Drawing the P1 drawing using Relative Polar Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @6<0
  5. Specify next point or [Undo]: @1<90
  6. Specify next point or [Close/Undo]: @-5<180
  7. Specify next point or [Close/Undo]: @5<180
  8. Specify next point or [Close/Undo]: @4<90
  9. Specify next point or [Close/Undo]: @5<0
  10. Specify next point or [Close/Undo]: @1<90
  11. Specify next point or [Close/Undo]: @6<180
  12. Specify next point or [Close/Undo]: c

Result:

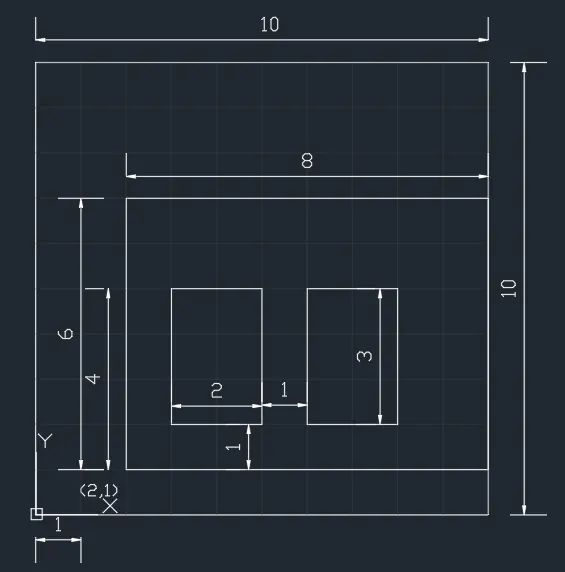

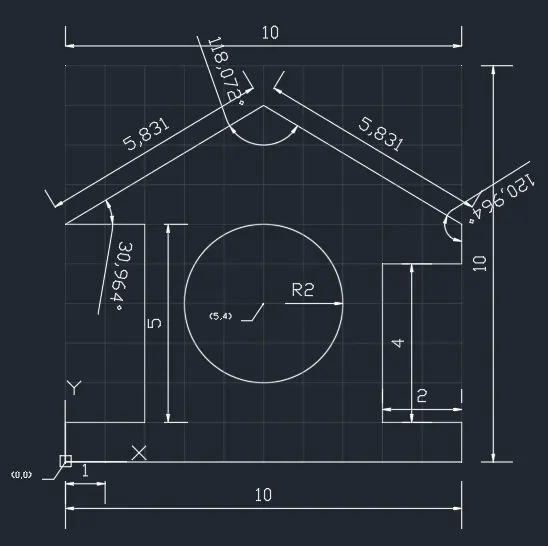

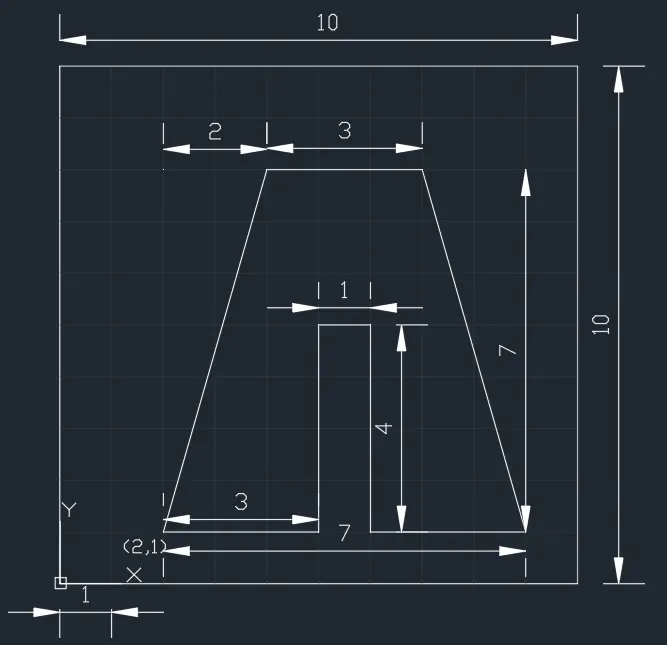

Drawings of P2

Procedure for P2 Drawing Using Absolute Cartesian Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: 10,0
  4. Specify next point or [Undo]: 10,10
  5. Specify next point or [Close/Undo]: 0,10
  6. Specify next point or [Close/Undo]: c

Start Drawing the P2 drawing using Absolute Cartesian Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: 5,1
  5. Specify next point or [Undo]: 5,5
  6. Specify next point or [Close/Undo]: 6,5
  7. Specify next point or [Close/Undo]: 6,1
  8. Specify next point or [Close/Undo]: 9,1
  9. Specify next point or [Close/Undo]: 7,8
  10. Specify next point or [Close/Undo]: 4,8
  11. Specify next point or [Close/Undo]: c

Result:

Procedure for P2 Drawing Using Relative Cartesian Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: @10,0
  4. Specify next point or [Undo]: @0,10
  5. Specify next point or [Close/Undo]: @0,-10
  6. Specify next point or [Close/Undo]: c

Start Drawing the P2 drawing using Relative Cartesian Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @3,0
  5. Specify next point or [Undo]: @0,4
  6. Specify next point or [Close/Undo]: @1,0
  7. Specify next point or [Close/Undo]: @-4,0
  8. Specify next point or [Close/Undo]: @3,0
  9. Specify next point or [Close/Undo]: @7,-2
  10. Specify next point or [Close/Undo]: @0,-3
  11. Specify next point or [Close/Undo]: c

Result:

Procedure for P2 Drawing Using Absolute Polar Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: 10<0
  4. Specify next point or [Undo]: 14.142<45
  5. Specify next point or [Close/Undo]: 10<90
  6. Specify next point or [Close/Undo]: c

Start Drawing the P2 drawing using Absolute Polar Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: 5.099<11.310
  5. Specify next point or [Undo]: 7.071<45
  6. Specify next point or [Close/Undo]: 7.810<39.807
  7. Specify next point or [Close/Undo]: 6.803<9.463
  8. Specify next point or [Close/Undo]: 9.055<6.340
  9. Specify next point or [Close/Undo]: 10.630<48.816
  10. Specify next point or [Close/Undo]: 8.944<63.437
  11. Specify next point or [Close/Undo]: c

Result:

Procedure for P2 Drawing Using Relative Polar Coordinate System:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: @10<0
  4. Specify next point or [Undo]: @10<90
  5. Specify next point or [Close/Undo]: @10<180
  6. Specify next point or [Close/Undo]: c

Start Drawing the P2 drawing using Relative Polar Coordinates system and Line command

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @3<0
  5. Specify next point or [Undo]: @4<90
  6. Specify next point or [Close/Undo]: @1<0
  7. Specify next point or [Close/Undo]: @4<270
  8. Specify next point or [Close/Undo]: @3<0
  9. Specify next point or [Close/Undo]: @7.280<105.945
  10. Specify next point or [Close/Undo]: @3<180
  11. Specify next point or [Close/Undo]: c

Result:

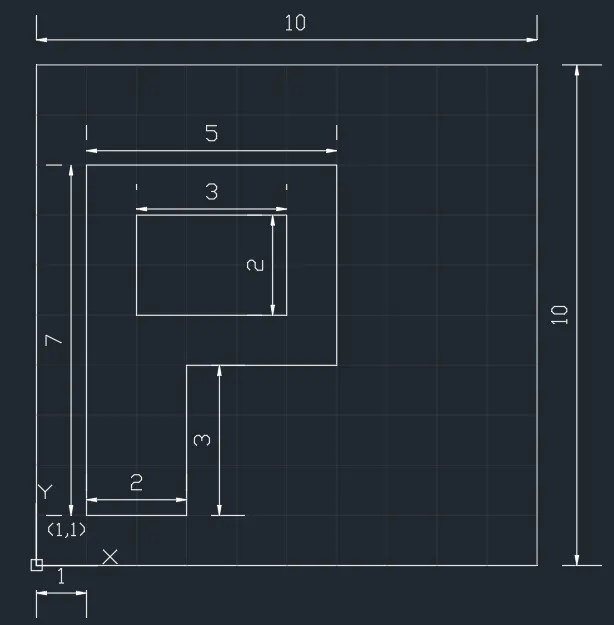

Drawings of P4

Procedure for P4 Drawing:

Open a workspace in the AutoCAD

Draw Boundary of 10x10

  1. Command: _line
  2. Specify first point: 0,0
  3. Specify next point or [Undo]: @10<0
  4. Specify next point or [Undo]: @10<90
  5. Specify next point or [Close/Undo]: @10<180
  6. Specify next point or [Close/Undo]: c

Start Drawing the P4

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: 3,1
  5. Specify next point or [Undo]: @0,4
  6. Specify next point or [Close/Undo]: @2,-2
  7. Specify next point or [Close/Undo]: @2,2
  8. Specify next point or [Close/Undo]: @0,-4
  9. Specify next point or [Close/Undo]: @1,0
  10. Specify next point or [Close/Undo]: @0,7
  11. Specify next point or [Close/Undo]: @-1,0
  12. Specify next point or [Close/Undo]: @-2,-3
  13. Specify next point or [Close/Undo]: @-2,3
  14. Specify next point or [Close/Undo]: @-1,0
  15. Specify next point or [Close/Undo]: c

Results:

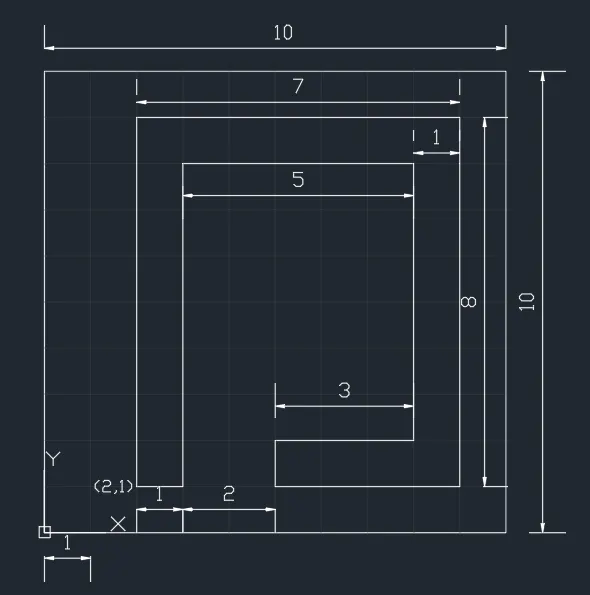

Drawings of P5

Procedure for P5 Drawing:

Start Drawing the P5

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @1,0
  5. Specify next point or [Undo]: @7<90
  6. Specify next point or [Close/Undo]: @5,0
  7. Specify next point or [Close/Undo]: @6<-90
  8. Specify next point or [Close/Undo]: @3<180
  9. Specify next point or [Close/Undo]: @1<-90
  10. Specify next point or [Close/Undo]: @4,0
  11. Specify next point or [Close/Undo]: @0,8
  12. Specify next point or [Close/Undo]: @-7,0
  13. Specify next point or [Close/Undo]: c

Results:

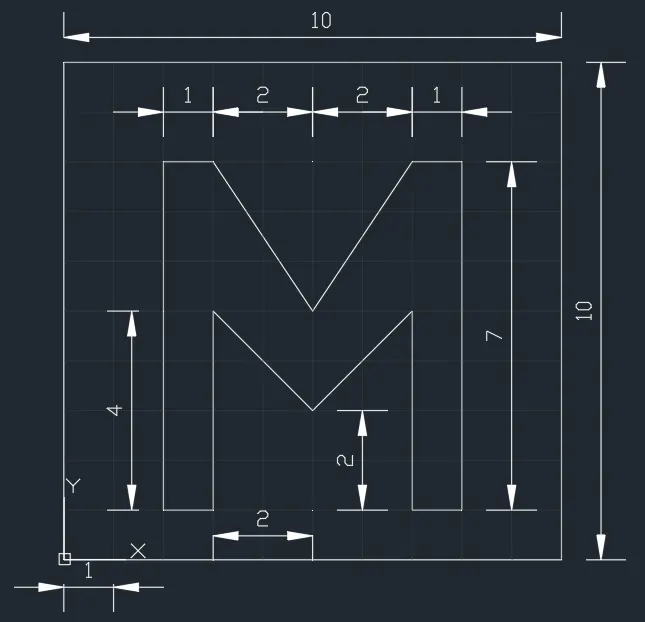

Drawings of P7

Procedure for P7 Drawing:

Start Drawing the P7

  1. Command: L
  2. LINE
  3. Specify first point: 2,1
  4. Specify next point or [Undo]: @8,0
  5. Specify next point or [Undo]: @0,6
  6. Specify next point or [Close/Undo]: @-8,0
  7. Specify next point or [Close/Undo]: c
  8. Command: L
  9. LINE
  10. Specify first point: 3,2
  11. Specify next point or [Undo]: @2,0
  12. Specify next point or [Undo]: @0,3
  13. Specify next point or [Close/Undo]: @-2,0
  14. Specify next point or [Close/Undo]: c
  15. Command: L
  16. LINE
  17. Specify first point: 6,2
  18. Specify next point or [Undo]: @2,0
  19. Specify next point or [Undo]: @0,3
  20. Specify next point or [Close/Undo]: @-2,0
  21. Specify next point or [Close/Undo]: c

Results:

Drawings of P8

Procedure for P8 Drawing:

Start Drawing the P7

  1. Command: L
  2. LINE
  3. Specify first point: 0,0
  4. Specify next point or [Undo]: @10,0
  5. Specify next point or [Undo]: @0,2
  6. Specify next point or [Close/Undo]: @-4,0
  7. Specify next point or [Close/Undo]: @0,4
  8. Specify next point or [Close/Undo]: @3,0
  9. Specify next point or [Close/Undo]: @0,2
  10. Specify next point or [Close/Undo]: @-8,0
  11. Specify next point or [Close/Undo]: @0,-2
  12. Specify next point or [Close/Undo]: @3,0
  13. Specify next point or [Close/Undo]: @0,-4
  14. Specify next point or [Close/Undo]: @-4,0
  15. Specify next point or [Close/Undo]: @0,-2
  16. Specify next point or [Close/Undo]:

Results:

Drawings of P9

Procedure for P9 Drawing:

Start Drawing the P9

  1. Command: L
  2. LINE
  3. Specify first point: 1,1
  4. Specify next point or [Undo]: @5,0
  5. Specify next point or [Undo]: @0,2
  6. Specify next point or [Close/Undo]: @-3,0
  7. Specify next point or [Close/Undo]: @0,-1
  8. Specify next point or [Close/Undo]: @-1,0
  9. Specify next point or [Close/Undo]: @0,2
  10. Specify next point or [Close/Undo]: @3,0
  11. Specify next point or [Close/Undo]: @0,2
  12. Specify next point or [Close/Undo]: @-4,2
  13. Specify next point or [Close/Undo]: c

Results:

Drawings of P10

Procedure for P10 Drawing:

Start Drawing the P10

  1. Command: L
  2. LINE
  3. Specify first point: 1,1
  4. Specify next point or [Undo]: @2,0
  5. Specify next point or [Undo]: @0,3
  6. Specify next point or [Close/Undo]: @3,0
  7. Specify next point or [Close/Undo]: @0,4
  8. Specify next point or [Close/Undo]: @-5,0
  9. Specify next point or [Close/Undo]: 1,1
  10. Specify next point or [Close/Undo]:
  11. Command: L
  12. LINE
  13. Specify first point: 2,5
  14. Specify next point or [Undo]: @3,0
  15. Specify next point or [Undo]: @0,2
  16. Specify next point or [Close/Undo]: @-3,0
  17. Specify next point or [Close/Undo]: c

Results:

Drawings of Profile Wood

Procedure:

Start Drawing

  1. Command: L
  2. LINE
  3. Specify first point: 0,0
  4. Specify next point or [Undo]: @10,0
  5. Specify next point or [Undo]: @0,1
  6. Specify next point or [Close/Undo]: @-2,0
  7. Specify next point or [Close/Undo]: @0,4
  8. Specify next point or [Close/Undo]: @2,0
  9. Specify next point or [Close/Undo]: @0,1
  10. Specify next point or [Close/Undo]: @5.831<149.036
  11. Specify next point or [Close/Undo]: @5.831<210.964
  12. Specify next point or [Close/Undo]: @2,0
  13. Specify next point or [Close/Undo]: @0,-5
  14. Specify next point or [Close/Undo]: @-2,0
  15. Specify next point or [Close/Undo]: c
  16. Command: CIRCLE
  17. Specify center point for circle or [3P/2P/Ttr (tan tan radius)]: 5,4
  18. Specify radius of circle or [Diameter]: 2

Results:

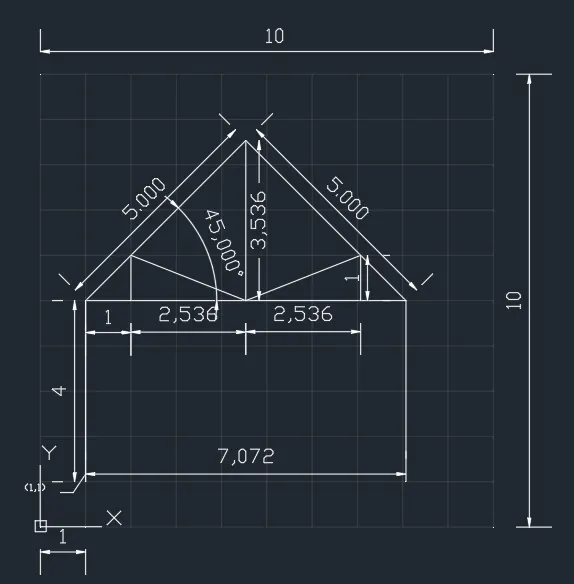

Drawings of Queen Post Truss

Procedure:

Start Drawing

  1. Command: L
  2. LINE
  3. Specify first point: 1,1
  4. Specify next point or [Undo]: @0,4
  5. Specify next point or [Undo]: @7.072,0
  6. Specify next point or [Close/Undo]: @-3.536,3.536
  7. Specify next point or [Close/Undo]: 1,5
  8. Specify next point or [Close/Undo]: c
  9. Command: L
  10. LINE
  11. Specify first point: 2,5
  12. Specify next point or [Undo]: @0,1
  13. Specify next point or [Undo]: @2.536,-1
  14. Specify next point or [Close/Undo]: @2.536,1
  15. Specify next point or [Close/Undo]: @0,-1
  16. Specify next point or [Close/Undo]:
  17. Command: L
  18. LINE
  19. Specify first point: 4.536,5
  20. Specify next point or [Undo]: @0,3.536
  21. Specify next point or [Undo]:
  22. Command: L
  23. LINE
  24. Specify first point: 8.072,5
  25. Specify next point or [Undo]: @0,-4
  26. Specify next point or [Undo]:

Results:

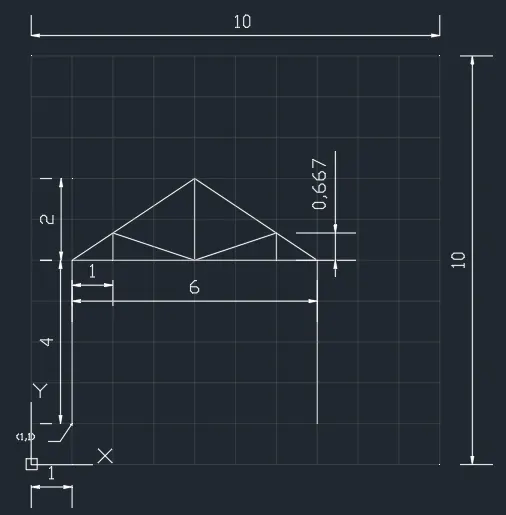

Drawings of Howe Truss

Procedure:

Start Drawing

  1. Command: L
  2. LINE
  3. Specify first point: 1,1
  4. Specify next point or [Undo]: @0,4
  5. Specify next point or [Undo]: @6,0
  6. Specify next point or [Close/Undo]: @-3,2
  7. Specify next point or [Close/Undo]: @-3,-2
  8. Specify next point or [Close/Undo]:
  9. Command: L
  10. LINE
  11. Specify first point: 2,5
  12. Specify next point or [Undo]: @0,0.667
  13. Specify next point or [Undo]: @2,-0.667
  14. Specify next point or [Close/Undo]: @2,0.667
  15. Specify next point or [Close/Undo]: @0,-0.667
  16. Specify next point or [Close/Undo]:
  17. Command: L
  18. LINE
  19. Specify first point: 4,5
  20. Specify next point or [Undo]: @0,2
  21. Specify next point or [Undo]: c
  22. Command: L
  23. LINE
  24. Specify first point: 7,5
  25. Specify next point or [Undo]: @0,-4
  26. Specify next point or [Undo]:

Results:

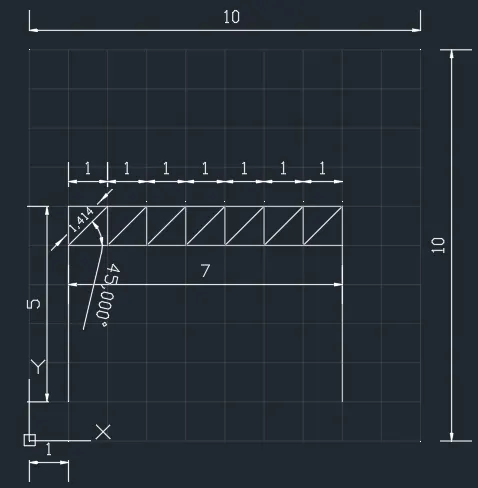

Drawings of Truss 3

Procedure:

Start Drawing

  1. Command: L
  2. LINE
  3. Specify first point: 1,1
  4. Specify next point or [Undo]: @0,5
  5. Specify next point or [Undo]: @7,0
  6. Specify next point or [Close/Undo]: @0,-5
  7. Specify next point or [Close/Undo]:
  8. Command: L
  9. LINE
  10. Specify first point: 1,5
  11. Specify next point or [Undo]: @7,0
  12. Specify next point or [Undo]:
  13. Command: L
  14. LINE
  15. Specify first point: 1,5
  16. Specify next point or [Undo]: @1.414<45
  17. Specify next point or [Undo]: @1<270
  18. Specify next point or [Close/Undo]: @1.414<45
  19. Specify next point or [Close/Undo]: @1<270
  20. Specify next point or [Close/Undo]: @1.414<45
  21. Specify next point or [Close/Undo]: @1<270
  22. Specify next point or [Close/Undo]: @1.414<45
  23. Specify next point or [Close/Undo]: @1<270
  24. Specify next point or [Close/Undo]: @1.414<45
  25. Specify next point or [Close/Undo]: @1<270
  26. Specify next point or [Close/Undo]: @1.414<45
  27. Specify next point or [Close/Undo]: @1<270
  28. Specify next point or [Close/Undo]: @1.414<45
  29. Specify next point or [Close/Undo]: c

Results:

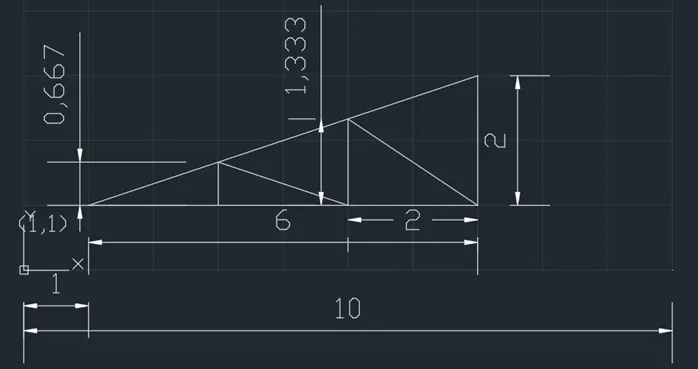

Drawings of Mono Pitch

Procedure:

Start Drawing

  1. LINE
  2. Specify first point: 1,1
  3. Specify next point or [Undo]: @6,0
  4. Specify next point or [Undo]: @0,2
  5. Specify next point or [Close/Undo]: 1,1
  6. Specify next point or [Close/Undo]:
  7. Command: L
  8. LINE
  9. Specify first point: 3,1
  10. Specify next point or [Undo]: @0,0.667
  11. Specify next point or [Undo]: @2,-0.667
  12. Specify next point or [Close/Undo]: @0,1.333
  13. Specify next point or [Close/Undo]: @2,-1.333
  14. Specify next point or [Close/Undo]: c

Results:

Conclusion:

All the given simple geometric design has been drawn using advised coordinates system and end result of each drawing has been enclosed with respective drawing taken from AutoCAD under result section.

Your portfolio, next

Ship work like this
in your own course.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.

Talk to a career counsellor

Free 20-minute call. We'll map the right course to where you want to work.

By submitting you agree to our Terms and Privacy Policy.
