Creation of Column Schedule and Drawing Template using AutoCad

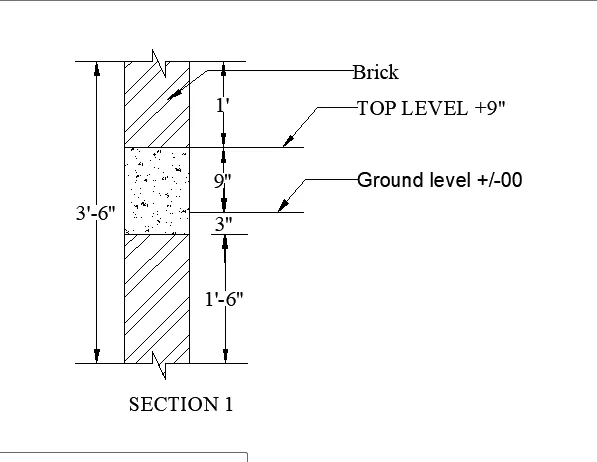

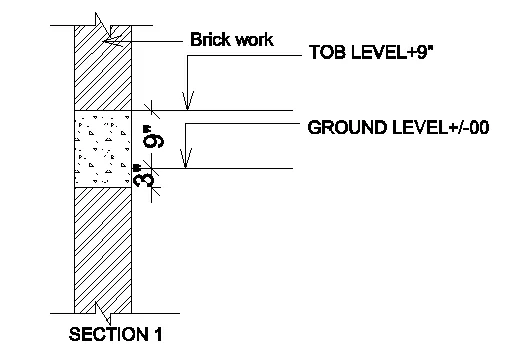

AIM:Create the Beam detail

INTRODUCTION: given beam with brick work and levels .

PROCEDURE:

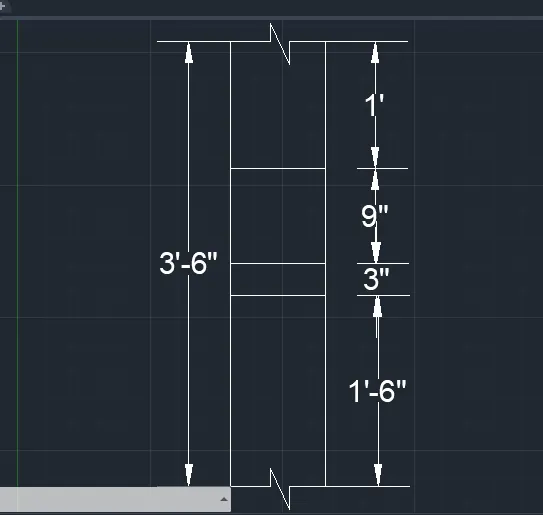

• enter L for line command and draw a horizontal line.
• repeat the command and draw a vertical line of height 3.6".
• offset the vertical line at distance of 9".
• offset horizontal line with distance 1.5',1.8',2.5' and 3.5'.
• provide the break line on both ends.

• use LEADER command for test with arrow indication.
• enter H for hatchs-select ASI32 for brick work with scale 10 and select pick point.
• similarly for Arc-CONC with scale factor-0.5

RESULT:

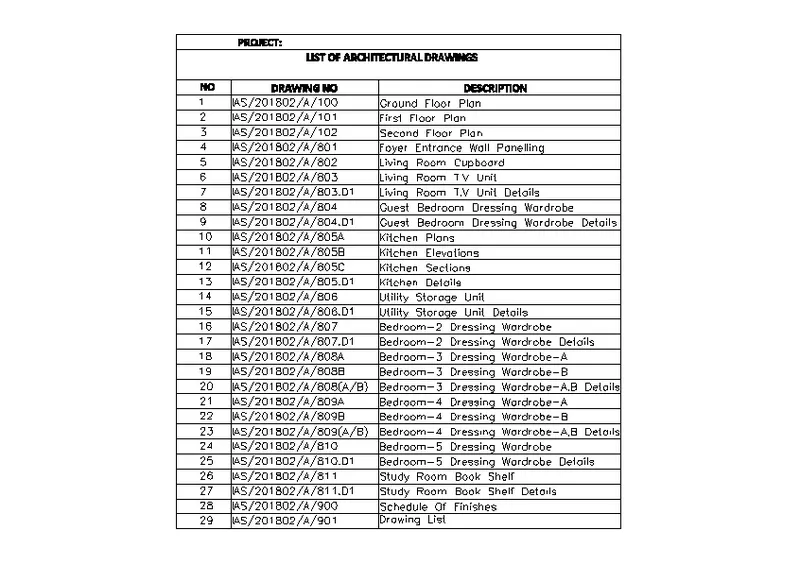

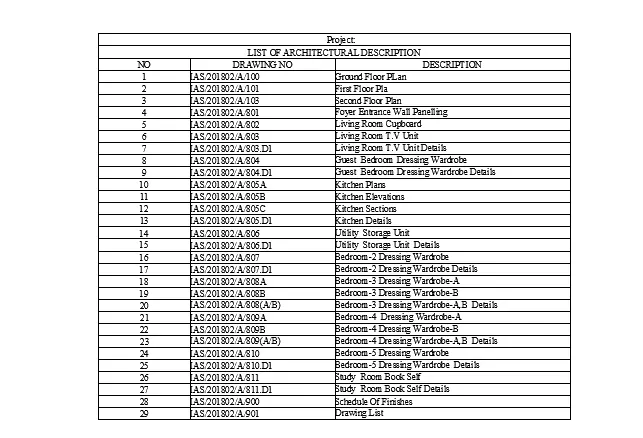

AIM:Create the list of drawing schedule

INTRODUCTIO: above table consist of list of architecural drawing with specified drawing nubers and description, which helps during planning and constrcution process.

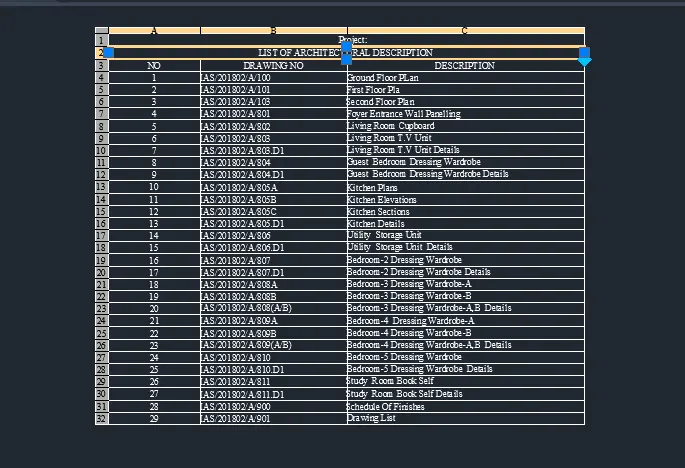

PROCEDURE:

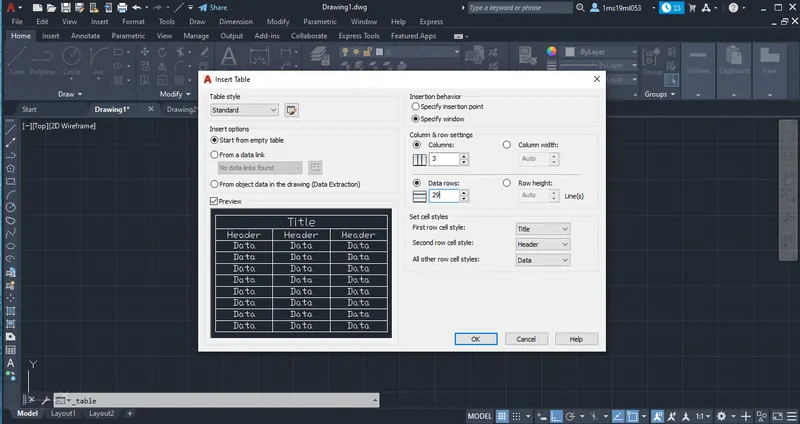

• enter TAB for table option and edit as per required.
• click on first line (Title)add insert below line option.

• enter the given details using text option.
• to copy paste property or text, scrool blue arrow head grid down.

RESULT:

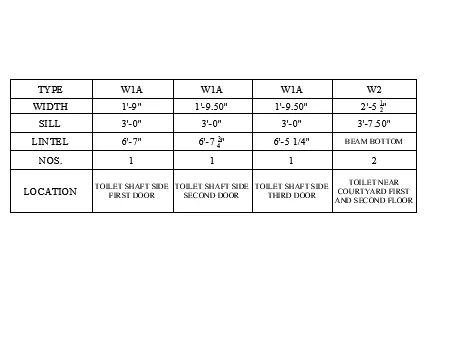

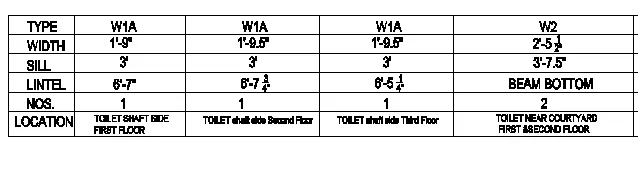

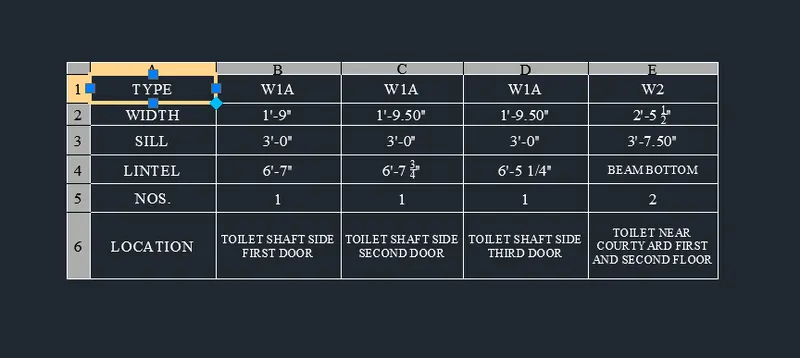

AIM:Create a window schedule

INTRDOUCTION: above table consists of details of different windows.

details holds its width,silla nd lintel with number of windows of that type and location of placing windows.

PROCEDURE:

• enter TAb for table option,set row=6 and column=5 with title head deleted.
• set text style AS TIMES NEW ROMAN,height AS 2" in tableedit option and justification middle centre.
• click on particular cell and type the given information.

RESULT:

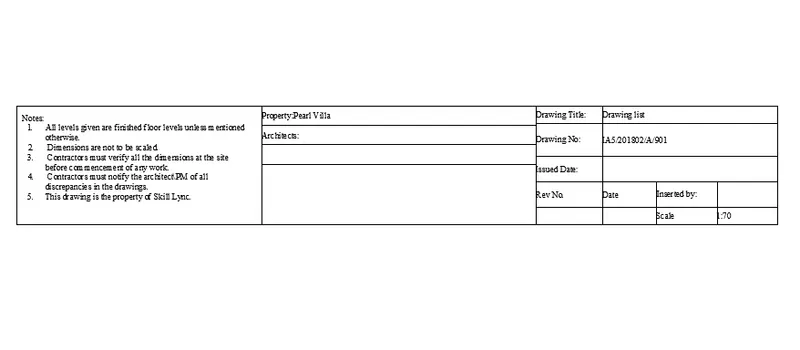

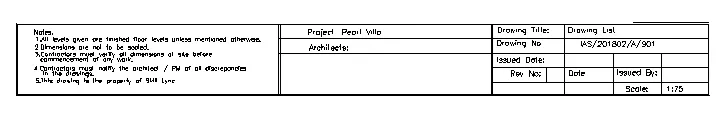

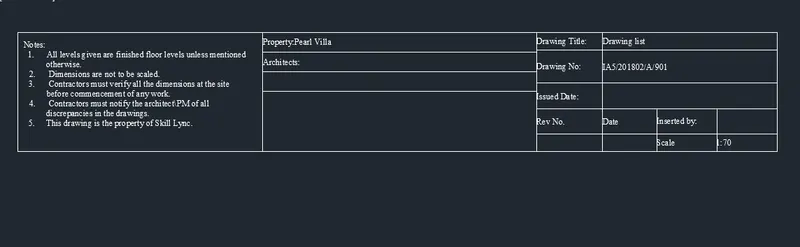

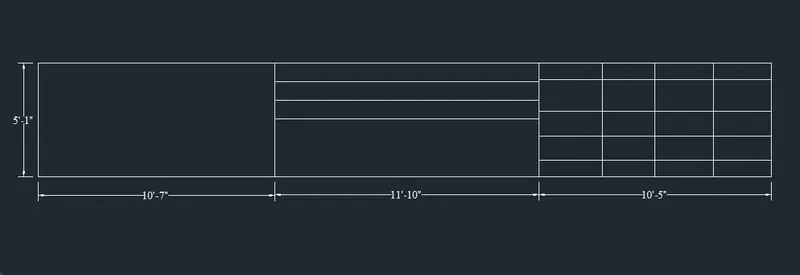

AIM:Create the drawing template

INTRODUCTION: drawing template depends on type of drawing provided like it varies for architecural,electrical,water supply etc.,

It holds the notes which required to be followed during constrcution.

also holds details like project name,adress,date,architect name,company name etc.,

like making a plot,drafting are placed inside drawing template.

PROCEDURE:

• Select table from annotation tool bar and set text style as time new roman with text height and justification as 1" and middle center.
• set rows as 2 and column 1 for middle table portion.
• repeat the table command, set rows-4 and column 3 and place next to previous column.
• now draw a rectangle of same height as table with certain distance.

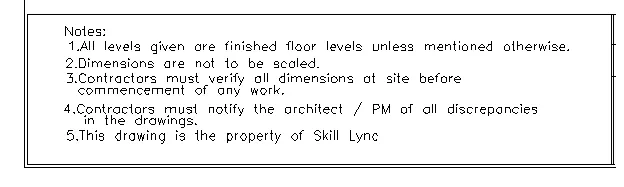

• Use mutliline text command for notes content in left box with text height-3".
• enter the data in cells .
• select cell to be merged in right table.

RESULT:

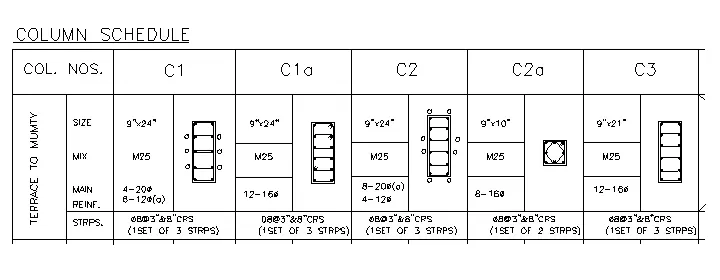

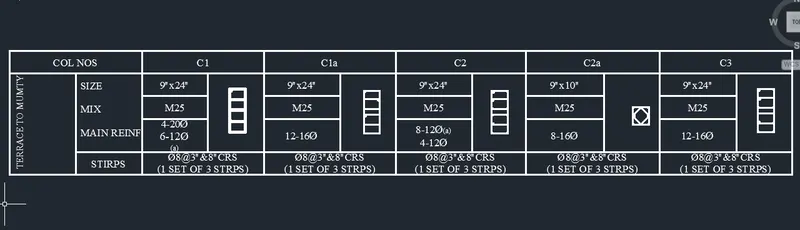

AIM:Create a column schedule

INTRODUCTION: In in above table, a bar bending schedule of column of size 9"x24" are given including dia,length details.

commands used are- lines and circle for column drawing and table command for bar bending schedule.

from the table above,

• C1 column is provided with 6 bars of 12mm dia and 4 bars of 20 mm dia, 12mm dia is mentioned as "a".
• C1a column is provided with 12 bars of 16mm dia.
• C2 column is provided with 8 bar of 20mm dia and 4 bars of 12mm dia.
• C2a column is provided with 12 bars of 16mm dia.
• C3 column is provided with 12 bar of 16mm dia.
• lets assume column cover as 2"(approx 50mm).

PROCEDURE:

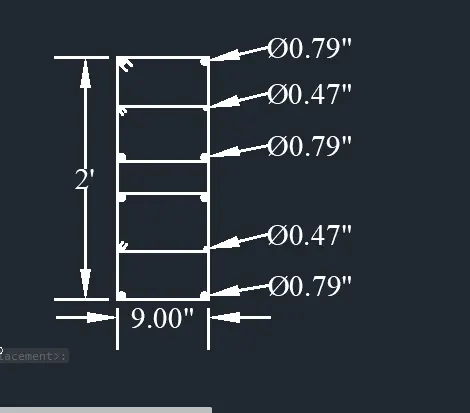

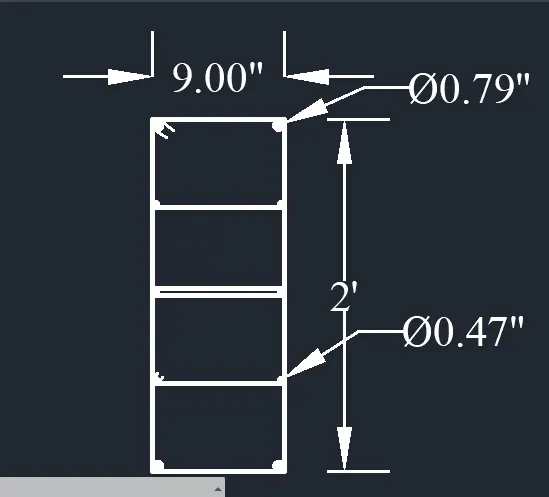

for drafting of C1 column:

• set the units as enfineering with 0 precision
• select LINE command from draw pannel and specify a corner point.
• specify first coordinate as 24" @ +ve y-axis.
• specify next coordinate as 9" @ +ve x-axis.
• specify nextcoordinate as 24" @ -ve y-axis.
• click for close command.
• provide lightweight for column of 0.30mm and select display buttom in setting.
• divide column into 4 parts at distance of 6".
• select circle with daimeter,draw two circles of dia 0.7874 and 0.4725 inches.
• copy paste at required edges of columns.
• similarly follow same procedure for remaining column making.

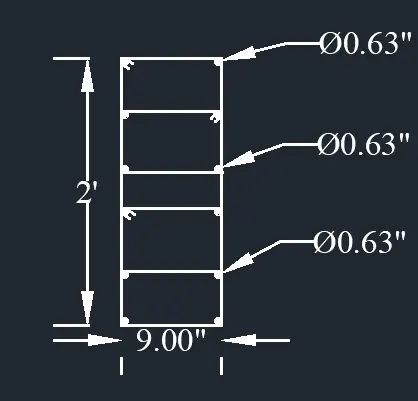

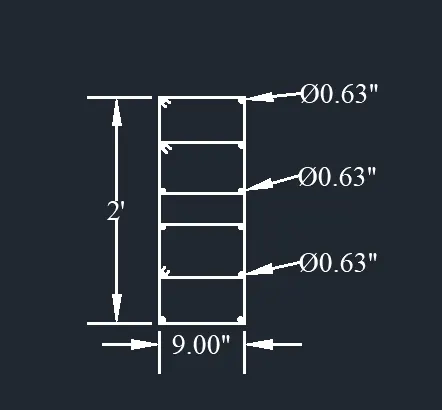

• for C1a column, circle with diamter 0.63 and divide into 5 lines.

• for C2 colum,circle with dia 0.787 and o.434 at given a places.

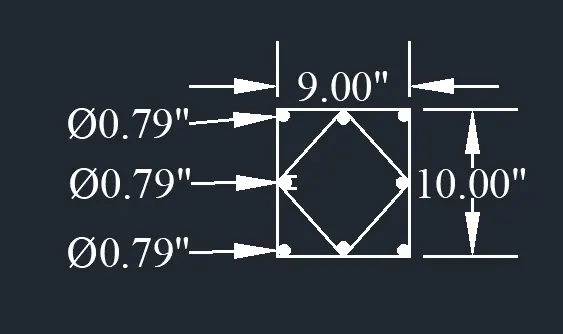

• for C2a make a rectangle of 10"x9" and circle of dia 0.79.

• making C3 is similar to C1 column but rebar dia is 0.63.

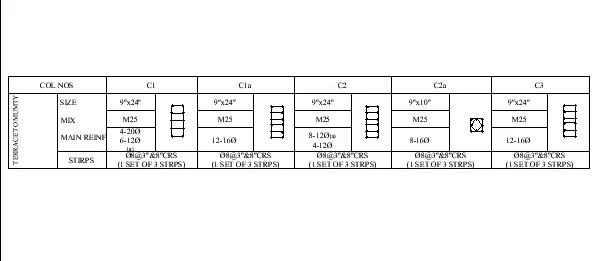

• select a table command from annotation panel, specify in text edit style as time new roman and height 2".
• enter rows as 4 and columns as 12.
• merge the required cells by selecting them and merge option on table edit.

• enter the data of column detials.
• select column drafted and move to required cell.

RESULT:
