Creation of Column Schedule and Drawing Template using AutoCad

AIM: Creation of Column Schedule and Drawing Template using AutoCad.

Introduction: In this challenge i have draft the above meationed drawing i.e, Creation of Column Schedule and Drawing Template using AutoCad. here in this challange i have attached all the drawings in a image format and with the proper procedure as possible.

The comman commands which are used in this challange are discussed below

Selecting of Tools:

• Line: Ribbon< Home< Line, Command: Line or L, Home< Draw< Line.
• Polyline: Ribbon< Home< Polyine, Command: polyline or pl, Home< Draw< polyline.
• Rectangle: Ribbon< Home< rectangle, Command: rectangle or rec, Home< Draw< rectangle.
• Ploygon: Ribbon< Home< Ploygon, Command: Ploygon or pol, Home< Draw< Ploygon.
• Circle: Ribbon< Home< Circle, Command: Circle or C, Home< Draw< Circle.
• Fillet: Ribbon< Home< Fillet, Command: Fillet or F, Home< modify< Fillet.
• Chamfer: Ribbon< Home< Chamfer, Command: Chamfer or cha, Home< modify<Chamfer.
• Move: Ribbon< Home< move, Command: move or M, Home< modify<Move.
• Copy: Ribbon< Home< Copy, Command: Copy or co, Home< modify<Copy. etc

------------------------------------------------------------------------------------------------------------------------------------------------------

Question 1:

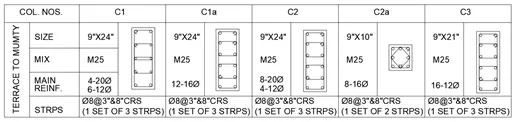

Create a column schedule as shown in the figure.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.Hint: Use font name: romans.shx; Height: 8”, Justify: Left

ANS: Here i have attached the image which i have made in autocad 2019,

Procedure:

The procedure for creating the above shown column shedule in autocad is discussed below,

Procedure:

Step 1: for creating the above shown shedule table using line tool in autocad is discussed below,

Procedure:

1. open autocad 2019 and select a new file and saved as challange 5 and saved in the skill-lync folder.
2. set the unit of drawing by giving command un in command and selected Engineering with precion 0'-0.0".
3. select limit by giving command limmax and giving the limit 20',20' and entre.
4. adjust the dimension size by giving command d and selecting the same unit as mentioned that is Engineering.
5. Select the XL command and draft the two lines a vertical and horizontal and interset each other.
6. Select the offset option and given the data as shown in the images.
7. After giving the proper offset trim the excess.
8. Give the command panel and select the trim option and trim the excess.
9. creat a box as shown in the question.

Step 2: for creating the column and reinforcement detail using different tools in autocad is discussed below,

Procedure:

1. use Rectangle option and give the size as 9"x24" as shown in above figure.
2. select a offset option as 1" and offset inword
3. use fillet tool with radius as 0.2" fillet the all four edges.
4. select a circle tool and give a dia of 0.5 and place that circle at the edge as shown.
5. use mirror option and mirror the circle in opposite direction.
6. use array tool and use path with proper spacing by selecting 3 components as shown above.
7. use the line tool and draw the stirrup and is anchor as shown.
8. simillary do all the drawing with same procedure.

Step 3: for creating the complete column and reinforcement detail using different tools in autocad is discussed below,

Procedure:

1. Use move tool and place all the drawings drawn in the proper places.
2. use Mtext option and type which ever required or shown.
3. after editing the text copy the text and placed in columns or where ever required as shown above.
4. edit the copied text by giving commant textedit and star editing the copied text.
5. after completing the drawing check the question as complete every thing.
6. this completes the question 1.

--------------------------------------------------------------------------------------------------------------------------------------------------------

Question 2:

Create a window schedule as shown in the figures:, Window Schedule

ANS: Here i have attached the image which i have made in autocad 2019,

Procedure:

The procedure for creating the above shown Window shedule in autocad is discussed below,

Procedure:

Step 1: for creating the above shown shedule table using line tool in autocad is discussed below,

Procedure:

1. Select the line option and draw a straight line of 5' horizontal
2. take offset command and give ofset of 3" vetically upto 6 times.
3. select the vertical line and join all horozontal lines at the edge as shown in figure.
4. Select a offset of 1' and give vertically and create the table as shown in figure.
5. After giving the proper offset trim the excess.
6. Give the command panel and select the trim option and trim the excess.

Step2: for creating the complete Window Schedule detail using different tools in autocad is discussed below,

Procedure:

1. use Mtext option and type which ever required or shown.
2. after editing the text copy the text and placed in columns or where ever required as shown above.
3. edit the copied text by giving commant textedit and star editing the copied text.
4. after completing the drawing check the question as complete every thing.
5. this completes the question 2.

-----------------------------------------------------------------------------------------------------------------------------------------------------

Question 3:

Create the drawing template as shown in the figure:< Use the Notes as in the figure>

ANS: Here i have attached the image which i have made in autocad 2019,

Procedure:

The procedure for creating the drawing template as shown in the figure in autocad is discussed below,

Procedure:

1. use Mtext option and type which ever required or shown.
2. after editing the text copy the text and placed in columns or where ever required as shown above.
3. edit the copied text by giving commant textedit and star editing the copied text.
4. after completing the drawing check the question as complete every thing.
5. and use rectangle tool and draw the rectangle around the texts
6. whith proper lining drwa as shown in the question.

--------------------------------------------------------------------------------------------------------------------------------------------------

Question 4:

Create the list of drawing schedule as shown in the figure:

ANS: Here i have attached the image which i have made in autocad 2019,

Procedure:

The procedure for creating the list of drawing schedule as shown in the figure in autocad is discussed below,

Procedure:

1. Use Mtext option and type which ever required or shown.
2. after editing the text copy the text and placed in columns or where ever required as shown above.
3. edit the copied text by giving commant textedit and star editing the copied text.
4. after completing the drawing check the question as complete every thing.
5. and use rectangle tool and draw the rectangle around the texts.
6. whith proper lining drwa as shown in the question.

--------------------------------------------------------------------------------------------------------------------------------------------

Question 5:

Create the Beam detail as shown in the figure and provide text wherever given:

ANS: Here i have attached the image which i have made in autocad 2019,

Procedure:

The procedure for creating the Beam detail as shown in the figure in autocad is discussed below,

Procedure:

1. Select a rectangular tool and draw a rectangle as shown.
2. explode the Rectangle and select centre line.
3. give the offset 3" as shown in figure.
4. Give offset 9" from from the line recently drawn
5. hatch the centre rectangle and select concrete and select a proper scale.
6. and use line command to create a breake line above and bottom.
7. select a above and below rectangle brick wall hatch and entre.
8. use the qleader Top level, and ground level at proper +/-00
9. Dimension should be given properly and that complete my drawing.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

END
