Creation of Column Schedule and Drawing Template using AutoCad

Creation of Column Schedule and Drawing Template using AutoCad

1)

AIM:

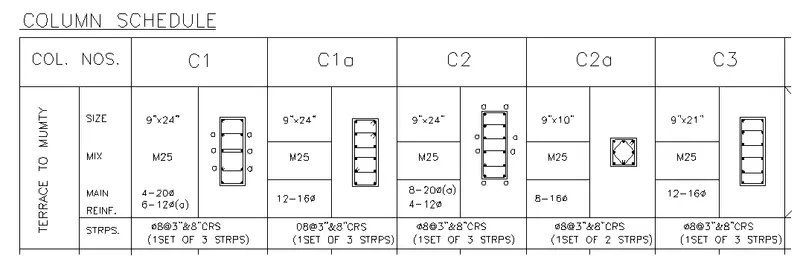

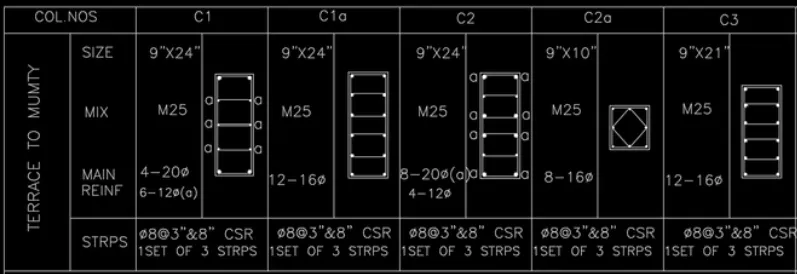

To create a column schedule as shown in the figure using AutoCad.

Note: Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

Hint: Use font name: romans.shx; Height: 8”, Justify: Left

PROCEDURE:

• Open AutoCad software and start a new drawing
• Using RECTANGLE command and LINE command draw the tables as shown in the figure
• For text use MTEXT command and define the closed space where the text is needed
• As mentioned above change the font to romans.shx of height 8".
• We can get the diameter symbol by typing %%c or through symbols in the ribbon bar of MTEXT
• Also draw the diagrams of C1,C1a,C2,C2a and C3 as shown using RECTANGLE, LINE and CIRCLE commands
• The required diagram is plotted, using AutoCad.

RESULT:

2)

AIM:

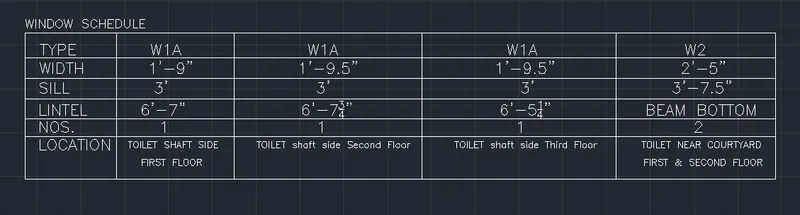

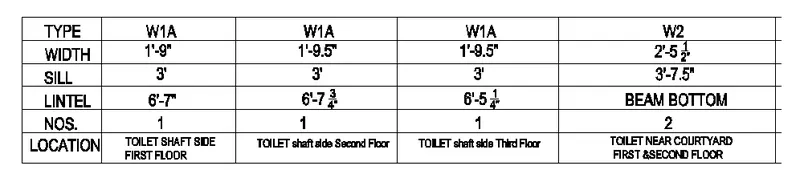

To create a window schedule as shown in the figures using AutoCad

Window Schedule:

PROCEDURE:

• Open AutoCad software and start a new drawing
• Using RECTANGLE and LINE commands plot the table as shown
• Then using MTEXT command type the text where it is needed
• Font to be used is romans.shx of height 8"
• The required diagram is plotted, using AutoCad.

RESULT:

3)

AIM:

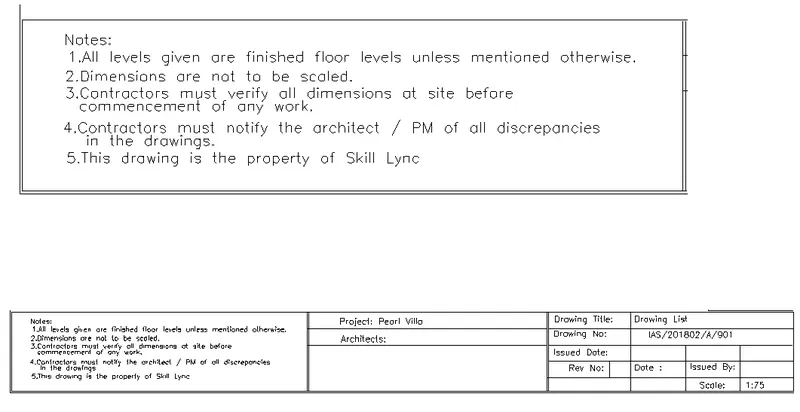

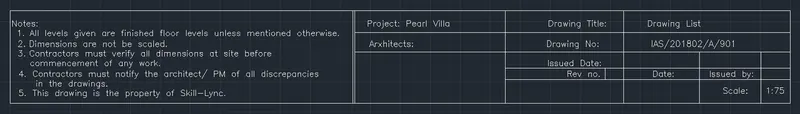

To create the drawing template as shown in the figure:< Use the Notes as in the figure>

PROCEDURE:

• Open AutoCad software and start a new drawing
• Using RECTANGLE and LINE commands plot the table as shown
• Then using MTEXT command type the text where it is needed
• Font to be used is romans.shx of height 8"
• The required diagram is plotted, using AutoCad.

RESULT:

4)

AIM:

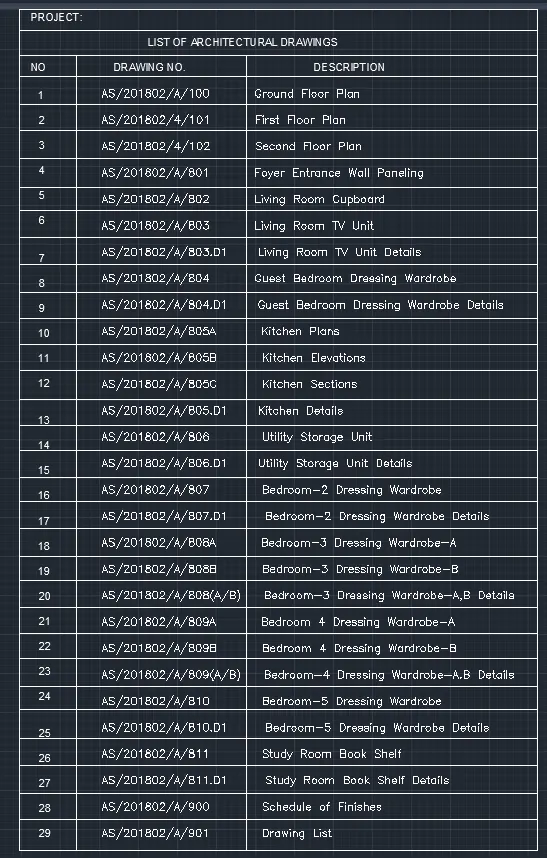

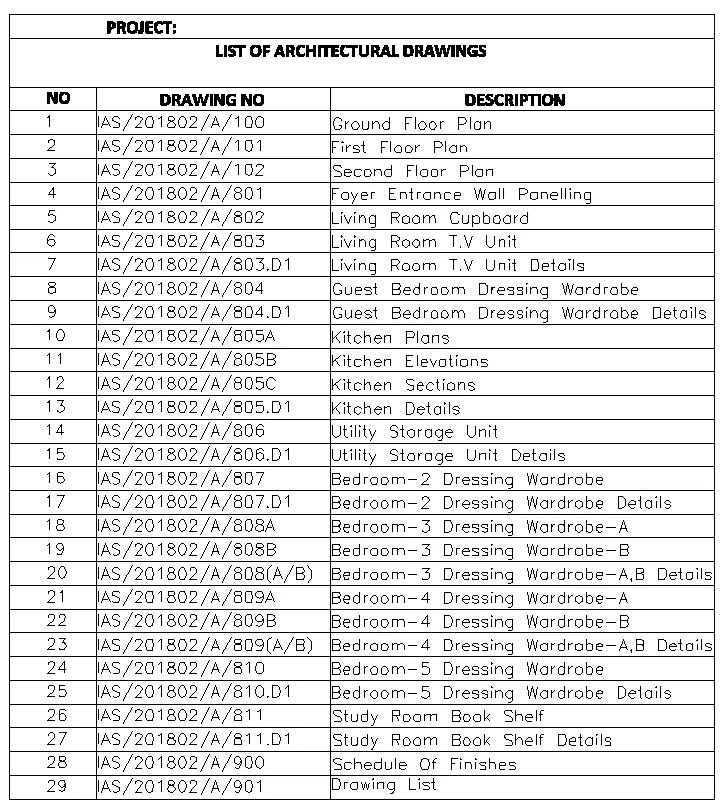

To Create the list of drawing schedule as shown in the figure using AutoCad.

PROCEDURE:

• Open AutoCad software and start a new drawing
• Using RECTANGLE and LINE commands plot the table as shown
• Then using MTEXT command type the text where it is needed
• Font to be used is romans.shx of height 8"
• The required diagram is plotted, using AutoCad.

RESULT:

5)

AIM:

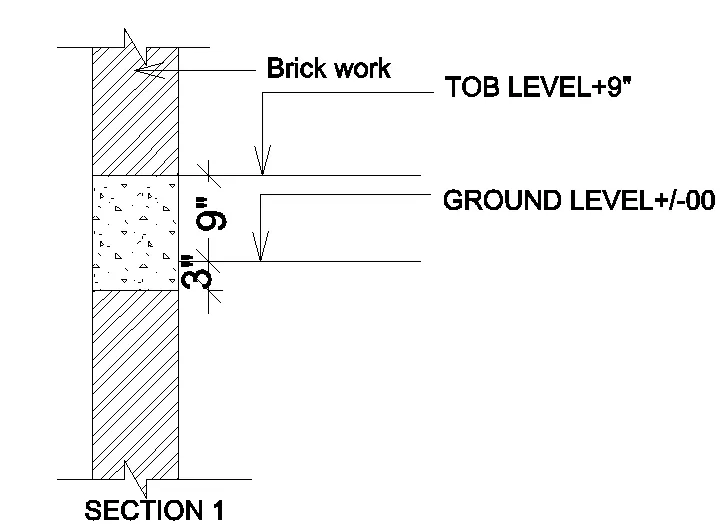

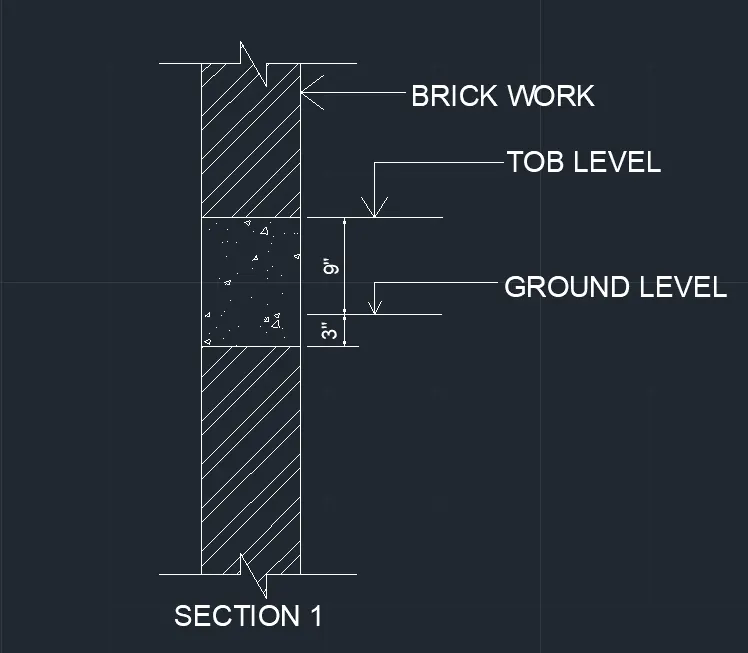

To create the Beam detail as shown in the figure and provide text wherever given using AutoCad.

PROCEDURE:

• Open AutoCad software and start a new drawing
• Using RECTANGLE command with height 12" and with some width draw a rectangle
• Now using LINE command extend the top corners of the rectangle to a certain height on both sides of the rectangle
• Join the lines and close the figure
• Using BREAK command break at two points in the centre of brickwork and using LINE make a marking to show it is continuous on both sides
• Now using HATCH command, take ANSI32 for brickwork and AR-CONC for the concrete part.
• Using DIMS command mark the dimensions and using MTEXT type out what is shown in the figure.
• The required diagram is done, using AutoCad.

RESULT:
