Creation of Column Schedule and Drawing Template using AutoCad

Q.1

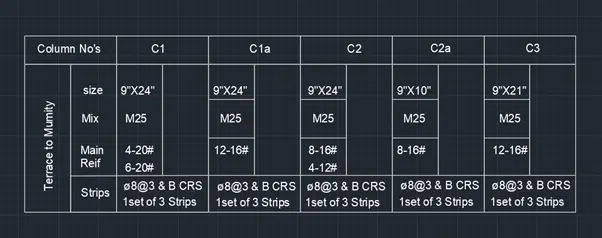

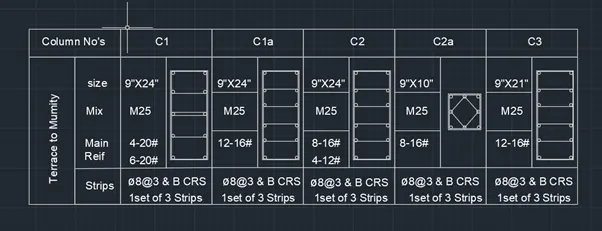

Aim: To Create Column Schedule as Shown In the Figure Using Auto Cad

Procedure:

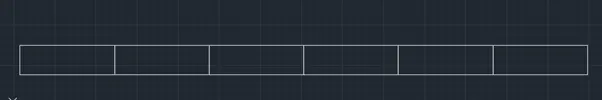

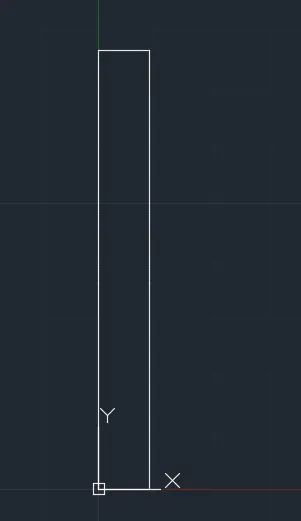

• Give the Command of Rectangle Rec Enter
• Specify the StartingPoint and Give the Length and Breadth Press Enter
• Press Esc.,
•
• Select the Object and Give the Command of Copy and Press Enter
• Select the Left Bottom Corner Point Select the Array and Give the No’s as 5 Press Enter
• Keep the Cursorn on Right Bottom Point click
•
• Specify the Text Tool From the Ribbon Tab
• Select Single Line Text
• Keep the Pointer in the Left Box and Click as Per the Alignment Required
• Type Column No’s Press Enter
• Keep the Pointer in in the Next Box and Click as Per The Alignment Required
• Type C1 and Press enter
• Keep the Pointer in the Next Box and Click as Per the alignment Required
• Type C1a and Press Enter
• Keep the Pointer in the Next Box and Click as Per the alignment Required
• Type C2 and Press Enter
• Keep the Pointer in the Next Box and Click as Per the alignment Required
• Type C2a and Press Enter
• Keep the Pointer in the Next Box and Click as Per the alignment Required
• Type C3 and Press Enter
• Give the command of Rectangle as REC Enter
• Specify the Starting Point as Left Corner of Column No’s and Specify the Length and width Press Enter
• Keep the Pointer in the Rec Box and Click as Per the alignment Required

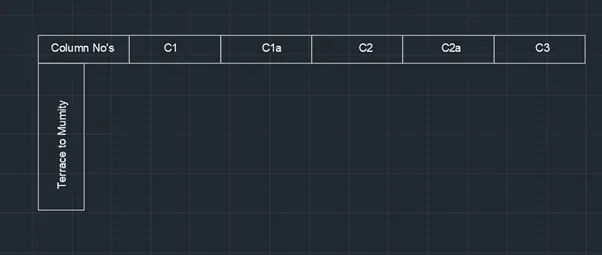

• Type Terrace to Mummity and Press Enter
•
• Select the previous Object and Give the Command of Copy and Press enter
• Specify the Corner Point and Give the Length and Breadth as per requirement Press Enter
• Repeat the Procedure as Per Requirement Press Esc
•
• Give the Command of Text as DT and Press enter
• Now the Keep the Pointer in the 1^st Box Click as Per Alignment Required
• Type Size and Press Enter
• Now the Keep the Pointer in the 1^st Box Click as Per Alignment Required
• Type Mix and Press Enter
• Now the Keep the Pointer in the 1^st Box Click as Per Alignment Required

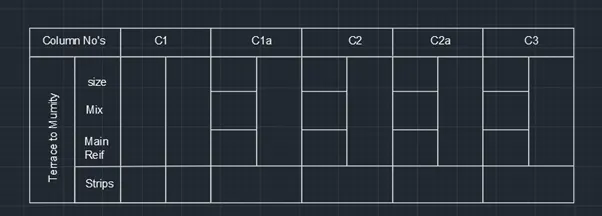

• Type Main Rein and Press Enter
• Now the Keep the Pointer in the 1^st Box Click as Per Alignment Required
• Type Strips Rein and Press Enter
•
• Select Text Tool from the Ribbon Tab
• Select Single Line Text Toll from the Ribbon Tab
• Now Keep the Pointer in the Left Box of C1 Column and Click as Per the Alignment Required
• Type 9”X24” Press Enter
• Now Keep the Pointer in the Left Box of C1 Column and Click as Per the Alignment Required
• Type M25 Press Enter
• Now Keep the Pointer in the Left Box of C1 Column and Click as Per the Alignment Required
• Type 4-20#Press Enter
• Now Keep the Pointer in the Left Box of C1 Column and Click as Per the Alignment Required
• Type 6-20#Press Enter
• Now Keep the Pointer in the Left Box of C1 Column and Click as Per the Alignment Required
• Type 8@3& B CRS Strips Press Enter
• Now Keep the Pointer in the Left Box of C1a Column and Click as Per the Alignment Required
• Type 9”X24” Press Enter
• Now Keep the Pointer in the Left Box of C1a Column and Click as Per the Alignment Required
• Type M25 Press Enter
• Now Keep the Pointer in the Left Box of C1a Column and Click as Per the Alignment Required
• Type 12-16# Press Enter
• Now Keep the Pointer in the Left Box of C1a Column and Click as Per the Alignment Required
• Type 8@3& B CRS Strips Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 9”X24” Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type M25 Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 8-16# Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 4-12# Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 8@3& B CRS Strips Press Enter
• Now Keep the Pointer in the Left Box of C2a Column and Click as Per the Alignment Required
• Type 9”X10” Press Enter
• Now Keep the Pointer in the Left Box of C2a Column and Click as Per the Alignment Required
• Type M25 Press Enter
• Now Keep the Pointer in the Left Box of C2a Column and Click as Per the Alignment Required
• Type 8-16# Press Enter
• Now Keep the Pointer in the Left Box of C2a Column and Click as Per the Alignment Required
• Type 8@3& B CRS Strips Press Enter
• Now Keep the Pointer in the Left Box of C3 Column and Click as Per the Alignment Required
• Type 9”X21” Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type M25 Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 12-16# Press Enter
• Now Keep the Pointer in the Left Box of C2 Column and Click as Per the Alignment Required
• Type 8@3& B CRS Strips Press Enter
•
• Give the Command of Rectangle as Rec Press enter
• Draw a rectangle as per Reinforcement Specification
• Divide the Rectangle as Four Equal Parts Press Enter By Using Line Tool
• Give the Command of Circle as Cir Press enter
• Give the Specific Point as Respective Place
• Select Previously Created Object in the work Space Give the Command of Copy and Press Enter

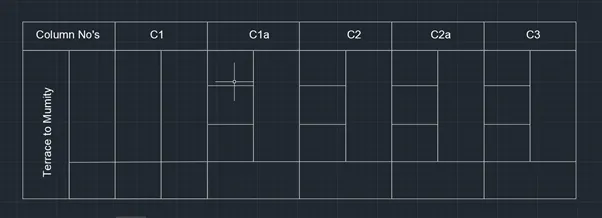

• Specify the Left Bottom Corner Point and Move the Cursor to X Plane in C1a, C2 and C3 and Press enter
•

Result:

•

Q.2

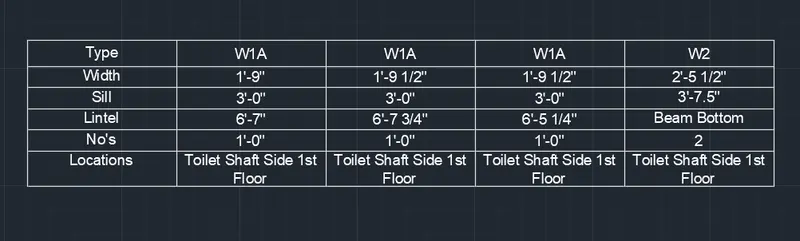

Aim:- To Create a window schedule

Procedure:-

• Select a Rectangle Tool From Ribbon Tab

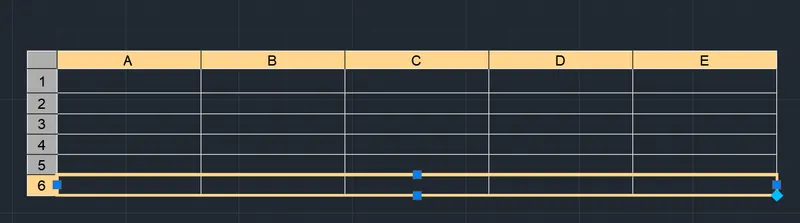

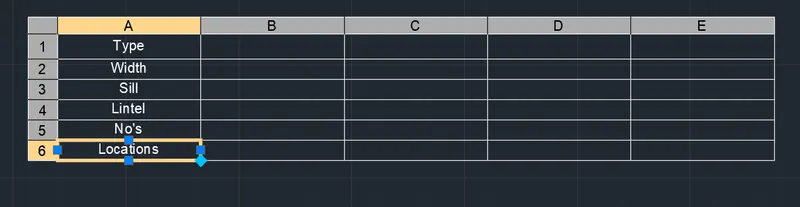

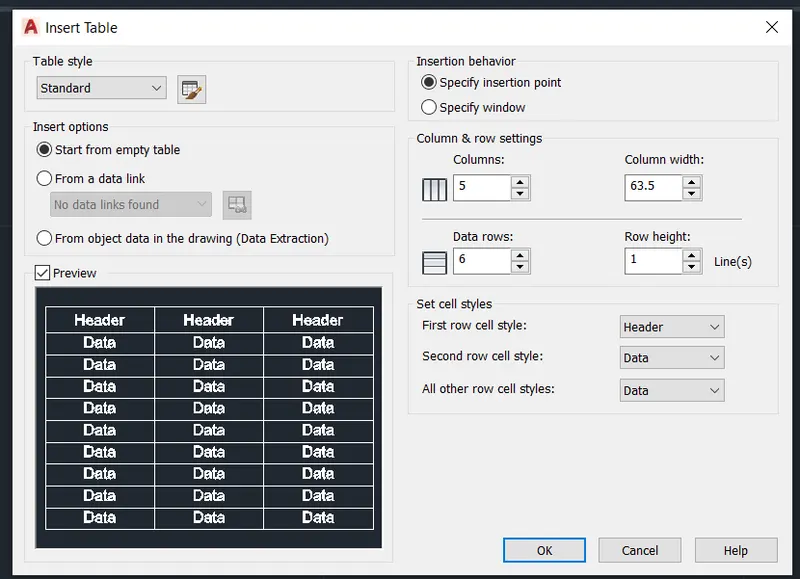

• Its Shows a Insert Table Select the No. of Rows as 6 and Columns as 5
• Select a 1st Row Cell Style as Header
• 2nd Row Cell Style and Remaining Cells Styles as Data
• Select the table Style and row Heighrt as Per Requirtement and Press Ok
•
• Specify the Starting Point and Press Enter
•
• Selec the A Row 1st Column Give the Text as "TYPE" and Press Enter
• Give the Text as in Next Row "Width" and Press Enter
• Give the Text as in Next Row "Sill" and Press Enter
• Give the Text as in Next Row "Lintel" and Press Enter
• Give the Text as in Next Row "No's" and Press Enter
• Give the Text as in Next Row "Location" and Press Enter
•

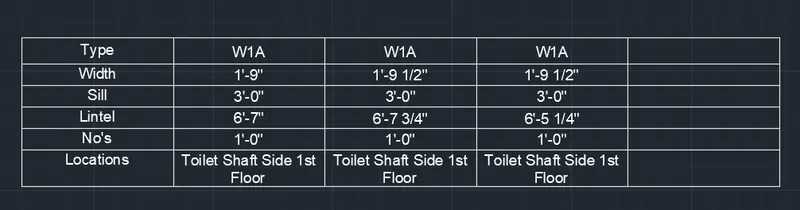

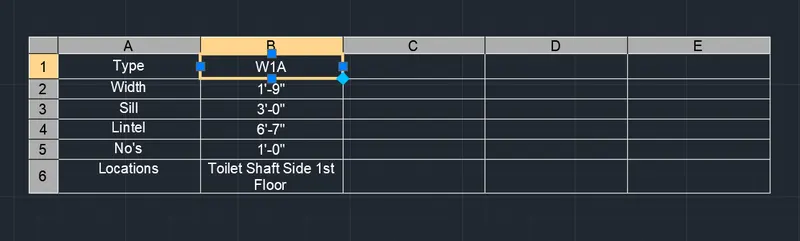

• Select the B Column 1st Row Give the Text as "W1A" and Press Enter
• Give the Text as in Next Row "1'-9"" and Press Enter
• Give the Text as in Next Row "3' " and Press Enter
• Give the Text as in Next Row "6'-7" " and Press Enter
• Give the Text as in Next Row "1' " and Press Enter
• Give the Text as in Next Row "Toilet Shaft side 1st Floor" and Press Enter
•

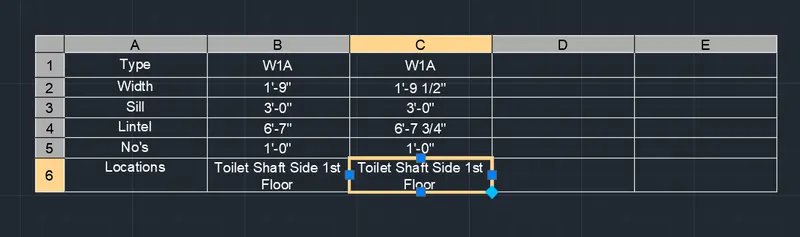

• Select the C Column 1st Row Give the Text as "W1A" and Press Enter
• Give the Text as in Next Row "1'-9 1/2" " and Press Enter
• Give the Text as in Next Row "3' " and Press Enter
• Give the Text as in Next Row "6'-7 3/4" " and Press Enter
• Give the Text as in Next Row "1' " and Press Enter
• Give the Text as in Next Row "Toilet Shaft side 1st Floor" and Press Enter
•
• Select the D Column 1st Row Give the Text as "W1A" and Press Enter
• Give the Text as in Next Row "1' -9 1/2" " and Press Enter
• Give the Text as in Next Row "3' " and Press Enter
• Give the Text as in Next Row "6'-5 1/4" " and Press Enter
• Give the Text as in Next Row "1' " and Press Enter
• Give the Text as in Next Row "Toilet Shaft side 1st Floor" and Press Enter
•

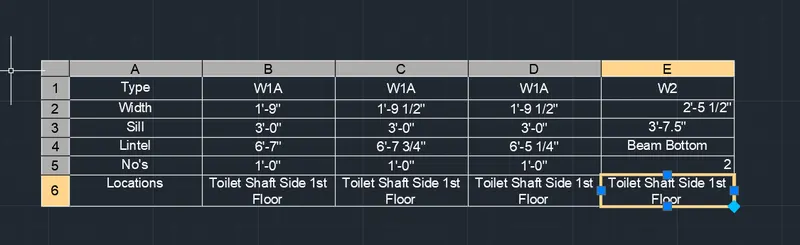

• Select the E Column 1st Row Give the Text as "W1A" and Press Enter
• Give the Text as in Next Row "2'-5 1/2" " and Press Enter
• Give the Text as in Next Row "3'-7.5" " and Press Enter
• Give the Text as in Next Row "Beam Bottom " and Press Enter
• Give the Text as in Next Row "2' " and Press Enter
• Give the Text as in Next Row "Toilet Shaft side 1st Floor" and Press Enter
•

Result:

Q.3

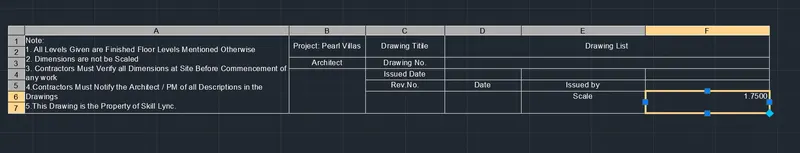

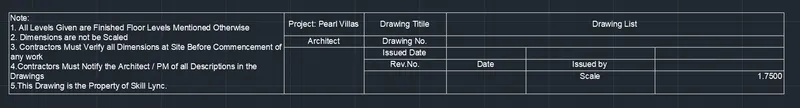

Aim: To Create the drawing template

Procedure:-

• Select a Rectangle Tool From Ribbon Tab

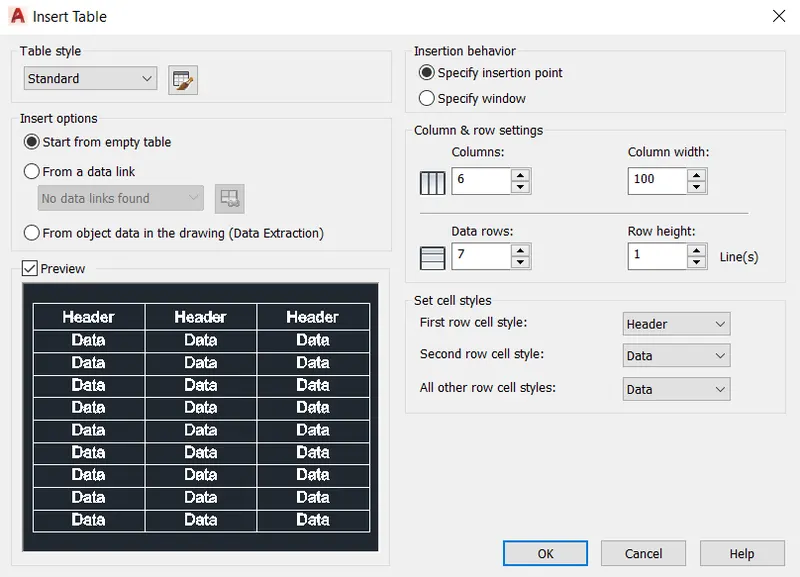

• Its Shows a Insert Table Select the No. of Rows as 7 and Columns as 6
• Select a 1st Row Cell Style as Header
• 2nd Row Cell Style and Remaining Cells Styles as Data
• Select the table Style and row Heighrt as Per Requirtement and Press Ok
•

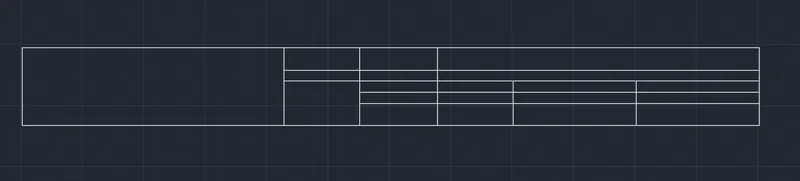

• Select Merge tool From Ribbon Tab
• Merge the Rows and Clounmns As Per Reqirement
•

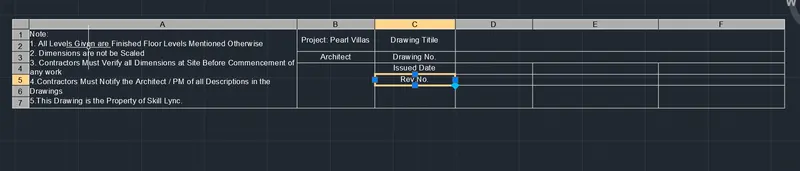

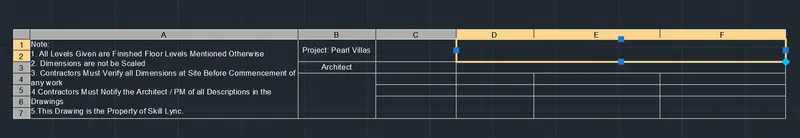

• Select the First Coluns First Row From table enter Note text Press Enter
• Select the 2nd Column 1st Row Give the Text as Project: Pearl Villas Press Enter
• Give the Text in 2nd Row as "Architect" Press Enter
•
• Select the 3rd Column 1st Row Give the Text as "Drawing Title " Press Enter
• Give the Text in Next Row as "Drawing No" Press Enter
• Give the Text in Next Row as "Issued date" Press Enter
• Give the Text in Next Row as "Rev No" Press Enter
•
• Select the Next Column 1st Row Give the Text as "Drawing List" Press Enter
• Give the Text in Next Row as "Date" Press Enter
• Give the Text in Next Row as "Issued by" Press Enter
• Give the Text in Next Row as "Scale" Press Enter
• Give the Text in Next Row as "1.7500" Press Enter
•

Result:-

•

Q.4

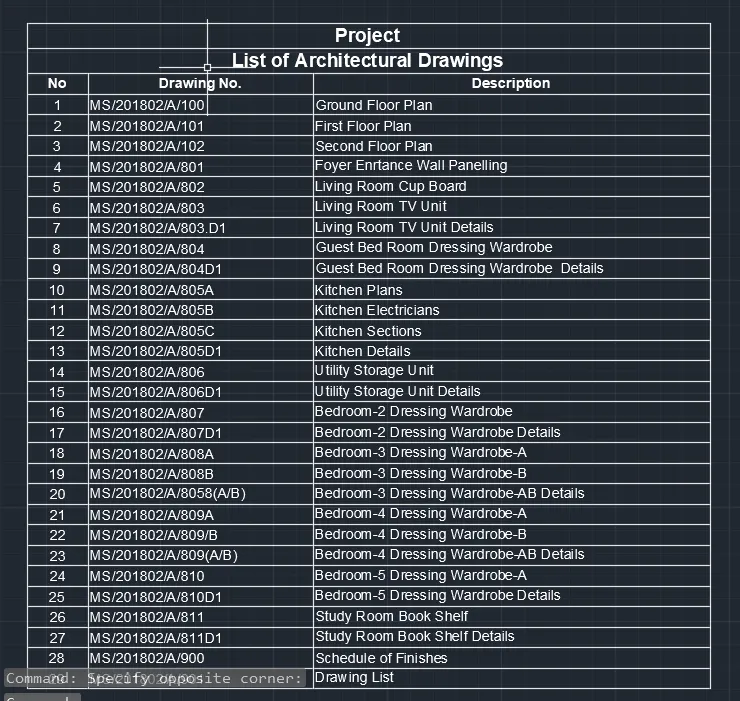

Aim: To Create the list of drawing schedule

Procedure:

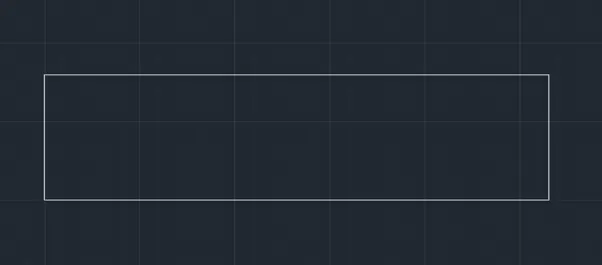

• Select a Rectangle Tool From Ribbon Tab

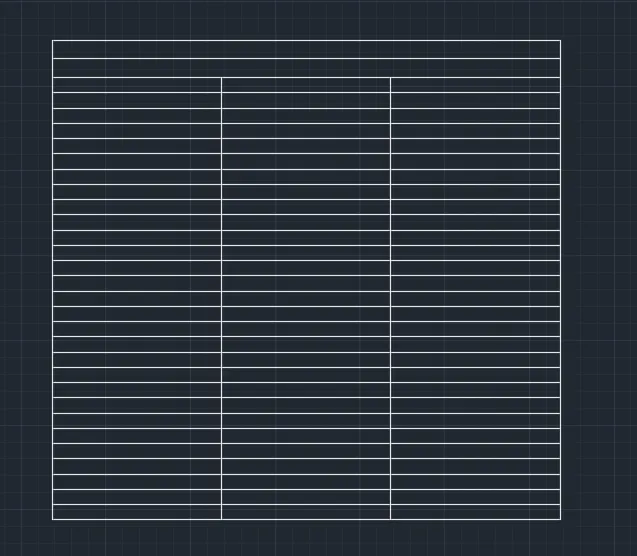

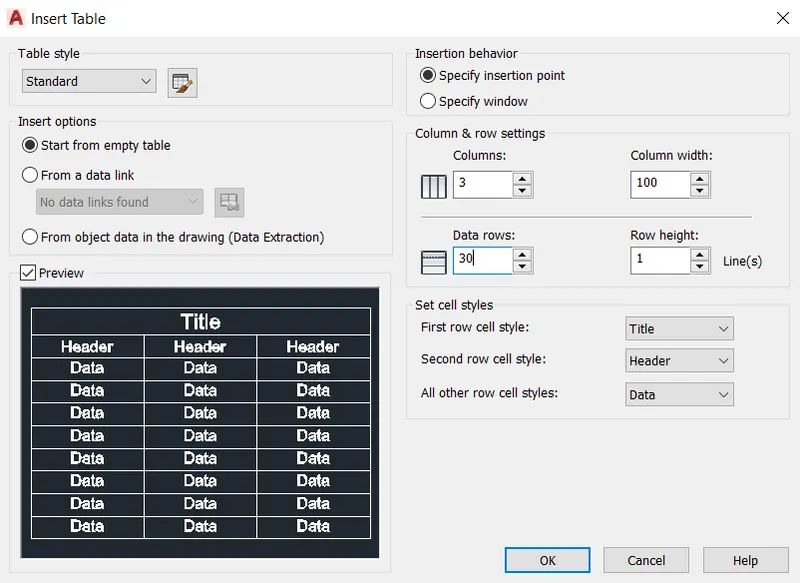

• Its Shows a Insert Table Select the No. of Rows as 30 and Columns as 3
• Select a 1st Row Cell Style as Title
• 2nd Row Cell Style as Headert
• Remaining Cells Styles as Data Select the table Style and row Heighrt as Per Requirtement and Press Ok
•
• Specify Insertion Point Press Enter
•
• Select the Title Bar Give the Text as " Project"
• Select the Next Title Bar Give the Text as " List of Architectural Drawing" Press Enter Seclect Both Titile Bars Select as Bold Text Enter
• Give the Text as Per Table For Entire Table as per Requiremnet Attached Below
•

Result.

•

Q.5

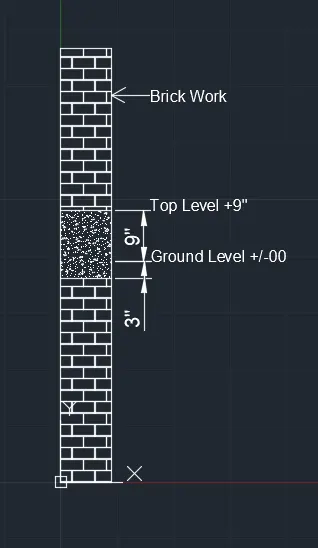

Aim. To Create the Beam detail as shown in the figure and provide text wherever given.

Procedure.

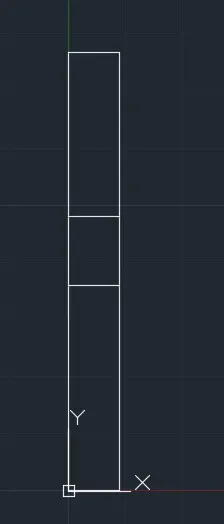

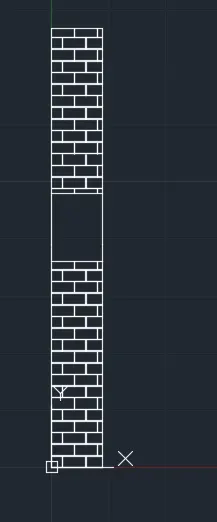

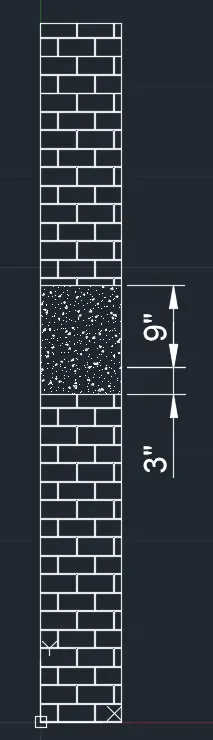

• Give the Command of Line as "L'' Enter
• Specify the Starting Point as 0,0 Enter
• Keep Ortho On
• Move the Cursor Up Ward and Give the Length as 3' Enter
• Stay Cursor Up Ward Give Length as 3" Enter
• Stay Cursor Up Ward Give Length as 9" Enter
• Stay Cursor Up Ward Give Length as 2.4' Enter
• Move the Cursor +X Direction and Give the Length as 9" Enter
• Move the Cursor to -Y Direction and Give the Length as 2.4' Press Enter
• Stay Cursor -Y Direction Give Length as 9" Enter
• Stay Cursor -Y Direction Give Length as 3" Enter
• Stay Cursor -Y Direction Give Length as 3'Enter
• Move the Cursor -X Direction and Give the Length as 9" Enter
•
• Give the Command of Line as "L'' Enter
• Specify the Starting Point as 0,3' Press Enter
• Move the Cursor to +X direction Give the Length as 9" press Enter
• Press Esc .
• Give the Command of Line as "L'' Enter
• Specify the Starting Point as 0,4' Press Enter
• Move the Cursor to +X direction Give the Length as 9" press Enter
• Press Esc
•

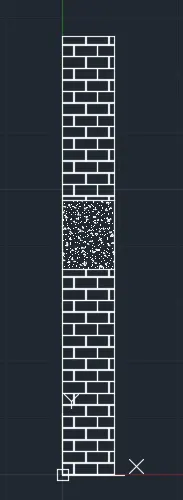

• Give the Hatch Command and Press Enter
• Hatch Creation tool Box Opens
• Select the Suitable Hatch in the Figure Represent Brick Work
• move the Pointer to Closed to Area to be hatched
• Adjust the Scale to View the Hatch
•
• Give the Hatch Command and Press Enter
• Hatch Creation tool Box Opens
• Select the Suitable Hatch in the Figure Represent Brick Work
• move the Pointer to Closed to Area to be hatched
• Adjust the Scale to View the Hatch
•

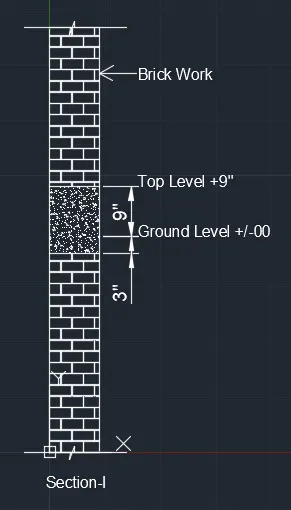

• Give the Dimensions Comamnd of Dim Press Enter
• Specify the Starting and End Point Now Displays the Dimensions
•
• Select the Text tool From the Ribbon Tab and Slect Single Line text and Enter The Height and Angle of Alignment of Text Press Enter
•

Result.

•
