Creation of Column Schedule and Drawing Template using AutoCad

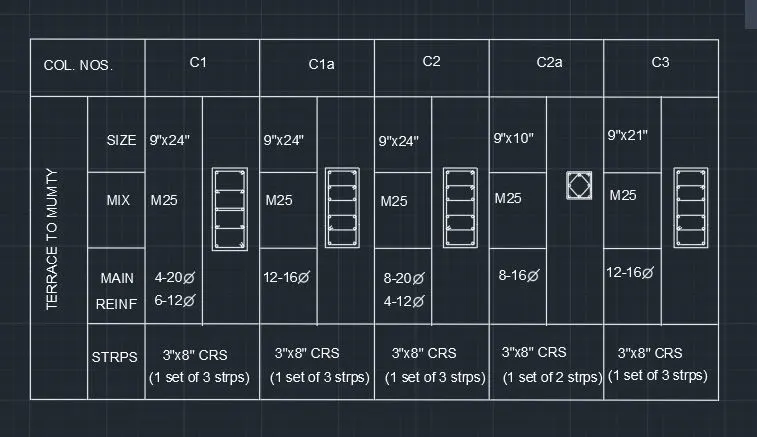

1) Aim:- To create a column schedule as shown in the figure

procedure :

1. start a new page in autocad with units as inches.
2. create a column as required using the line option and offset option while keeping the orthomode on.
3. using Dtext, roman style and height of text as 8 inches, write down the texts as given.
4. next we have to draw the column schedule using the line tool, fillet option and circle option.
5. the resulting table is as given as below.

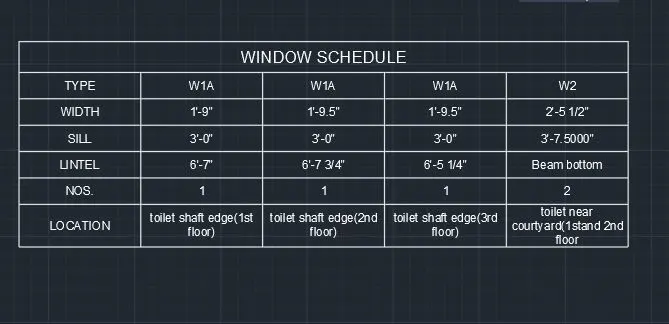

2) Aim:- To create a window schedule as shown in the question

procedure :

1. start a new page in autocad with units as inches.
2. create a column as required using the table option with 5 columns and 7 rows.
3. enter the texts as required in the table created by double clicking each cell.
4. align the texts im center middle
5. the resulting table is as given as below.

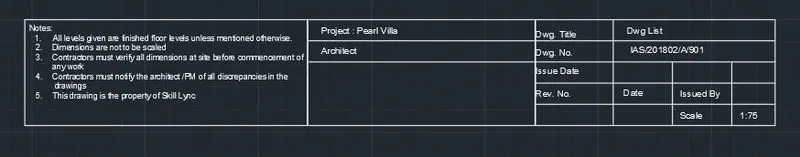

3) Aim:- To create a drawing template as shown in the figure

procedure :

1. start a new page in autocad with units as inches.
2. create a column as required using the line option and offset option while keeping the orthomode on.
3. using Dtext, write down the texts as given
4. to create the notes use mtext and write down th edetails a sgiven in the question
5. align the texts im center middle
6. the resulting table is as given as below

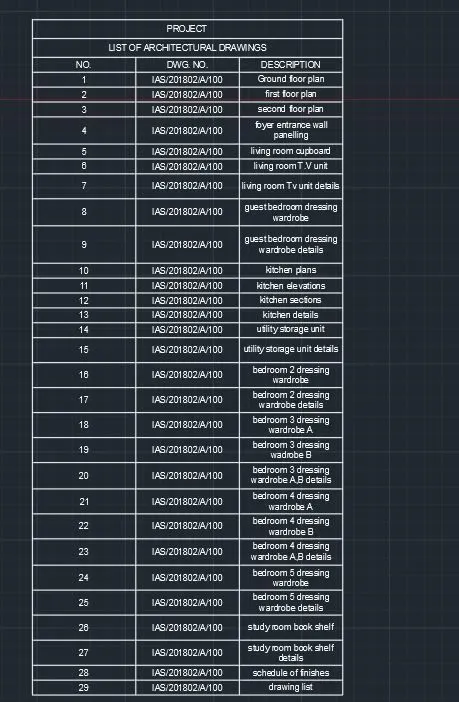

4) Aim :- To create the list of drawing schedule as shown in the question

procedure :-

1. start a new page in autocad with units as inches.
2. create table using table option with 3 columns and 29 rows
3. enter the texts as given in the question by double clicking on the cells.
4. align the texts as center and middle
5. the resulting table is given as below.

5) Aim:- To create the beam details as given in the question

procedure :-

1. create new autocad page with unit in inches
2. draw a rectangle with line option and offset horizontal line two times to make the concrete section .
3. draw lines to mark ground level and top level
4. using text option, write down the required texts
5. using hatch option hatch the brick wall and concrete wall. scale the hatched portion such that the hatch is seen properly
6. mark dimensions using dimension option
7. the resulting figure is given as below.
