Creation of Column Schedule and Drawing Template using AutoCad

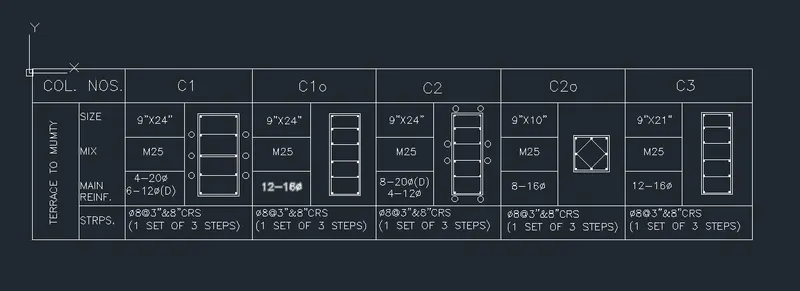

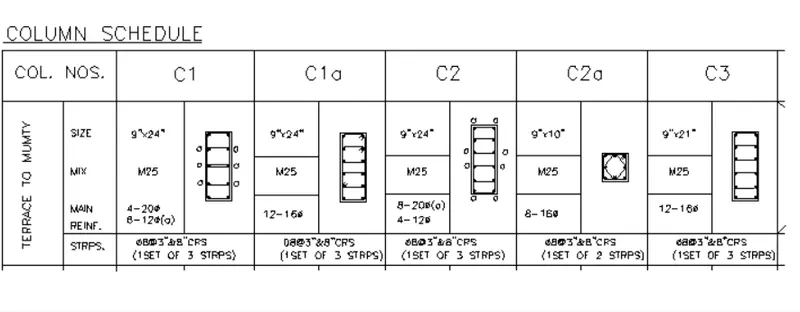

1. COLUMMN SCHEDULE

AIM:

Create a column schedule with the help of lines. Also, insert text with the help of Dtext command or Single Line text.

INTRODUCTION:

PROCEDURE:

• Open AutoCAD application.
• Create a New Sheet.
• Use TABLE command.
• Create a Table as given above.
• Then Use REC command.

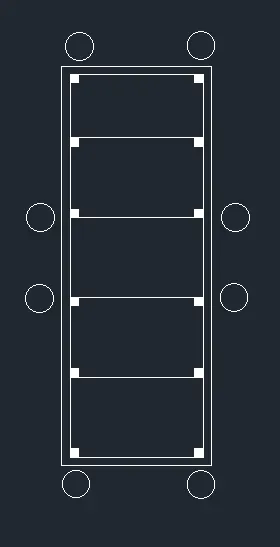

• Then Draw seperately the Bar diagrams as below.
• The REC is 4'x8'.
• Then Use OFFSET command and create the lines at 2" each.

• Again use REC command and draw a rectangle at dimension of 3.5'x8'.
• Then Use OFFSET command and create the lines at 1.6' each.

• Use REC command again and create a rectangle at a dimension of 4'x4'.
• OFFSET is for 2".

• Use REC command again and create a rectangle at a dimension of 3.5'x8'.
• Then Use OFFSET command and create the lines at 1.6'' each.
• Use Circle command and draw a circle.

• The Use COPY command copy it and place it in the Table.
• Now use DTEXT command and Type it as given.
• Text style is Romans.shx;
• Text height is 8" and for titles 10".
• It is Justify as Left.

RESULT:

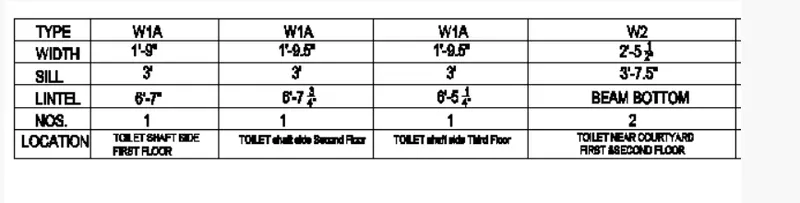

2. WINDOW SCHEDULE

INTRODUCTION:

PROCEDURE:

• Open AutoCAD application.
• Create a New Sheet.
• Use TABLE command.
• Create a Table as given above.
• Column-5, Row-6.

• Now use MTEXT command and type the words as given.
• Text style is Verdana.
• Text height is 5".

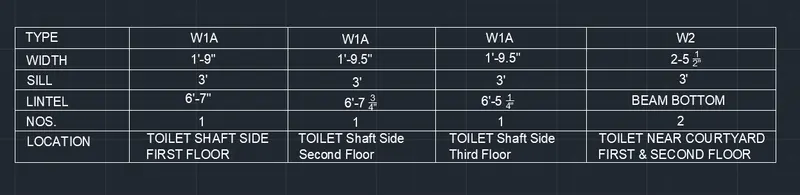

RESULT:

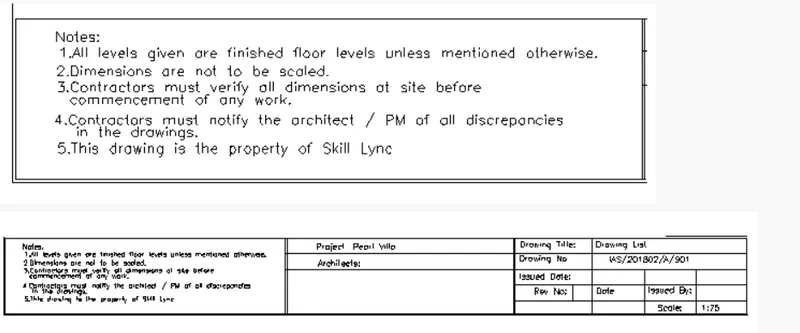

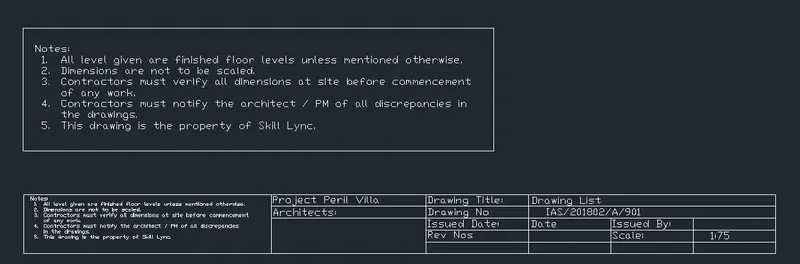

3. Create the drawing template as shown in the figure.

INTRODUCTION:

PROCEDURE:

• Open AutoCAD application.
• Create a New Sheet.
• Create a Box using REC or TABLE command.

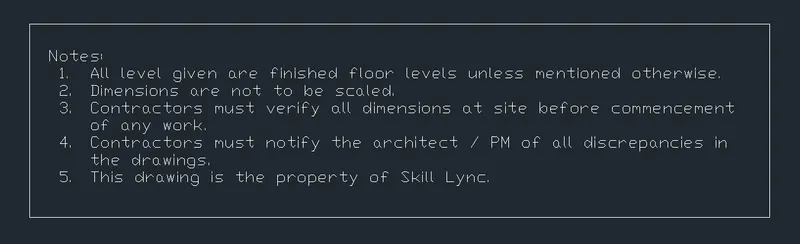

• Use MTEXT command and write as given above.
• Text style is Romans.shx;
• Text height is 5".

• Again use TABLE command and create a Table as given.
• Use MTEXT command and write as given above.

RESULT:

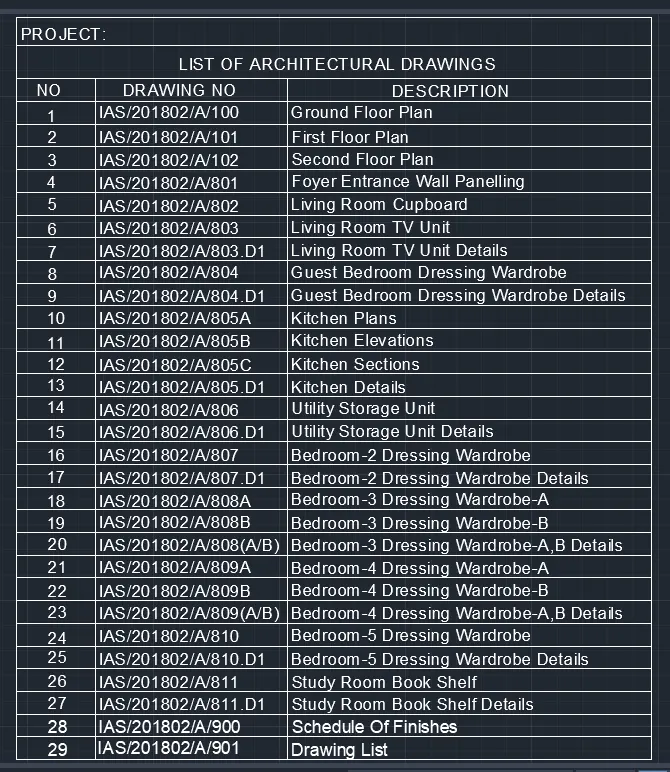

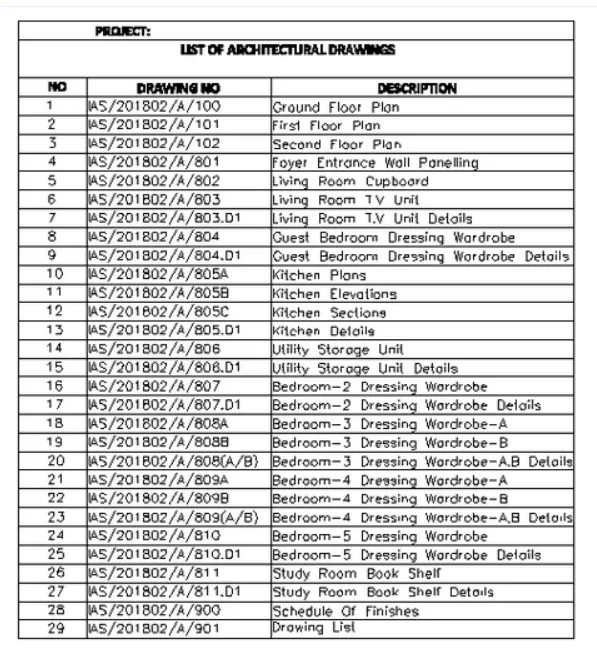

4. Create the list of drawing schedule as shown in the figure

INTRODUCTION:

PROCEDURE:

• Open AutoCAD application.
• Create a New Sheet.
• Use TABLE command.
• Create a Table as given above.
• Use MTEXT command and write as given above.
• Text style is Verdana.
• Text height is 5".
• Title Height is 8".

RESULT:

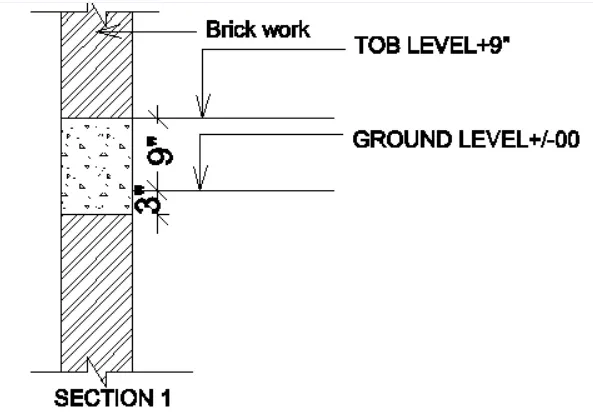

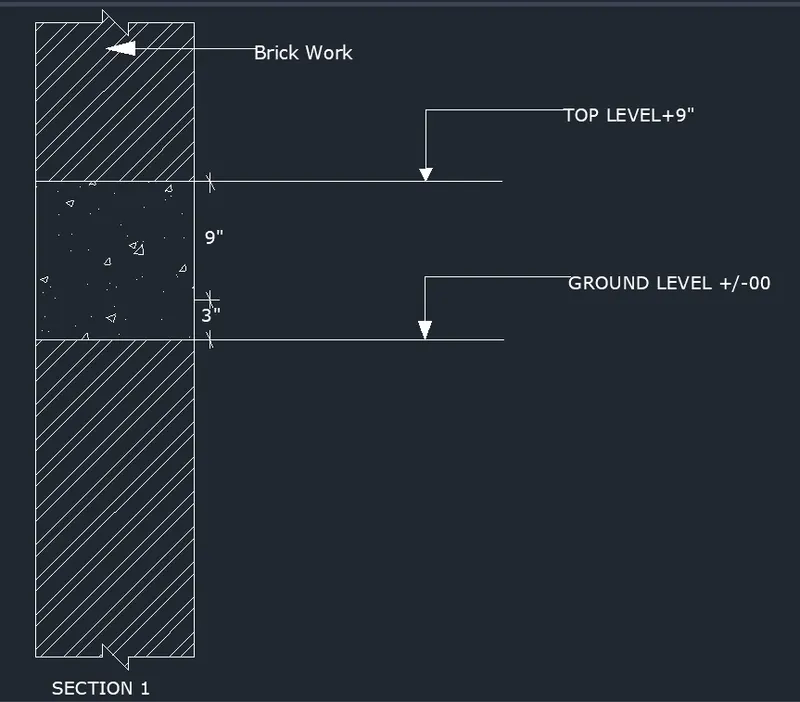

5. Create the Beam detail as shown in the figure and provide text wherever given.

INTRODUCTION:

PROCEDURE:

• Open AutoCAD application.
• Create a New Sheet.
• Use Line command and draw a section at a dimension of 1' x 4'.
• And use OFFSET command and offset it for 2', 3" and 9".
• Use POLYLINE for Arrows.
• Use MTEXT command and write it as above diagram.
• Use HATCH command and ANSI32 for Brick work and AR-CONC for Concrete.

RESULT:
