Creation of Column Schedule and Drawing Template using AutoCad

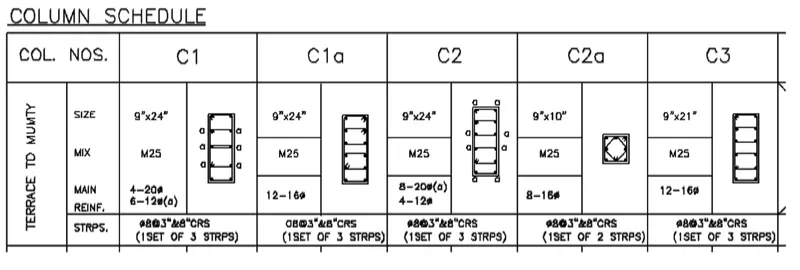

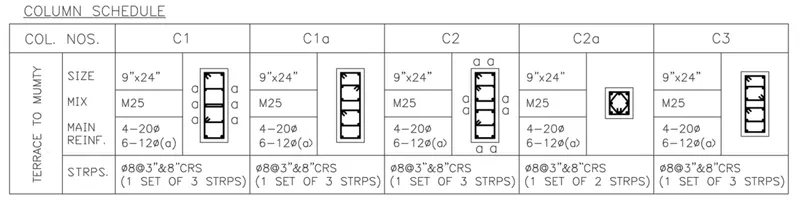

`bb"1. Create a column schedule as shown in figure"`

`bbb"INTRODUCTION"`

1. Column C1 is provided with 4 bars of 20 mm dia. and 6 bars of 12 mm dia. The 12 mm dia bars are marked with 'a'.
2. Column C1a and Column C3 are provided with 12 bars of 16 mm dia bars.
3. Column C2 is provided with 8 bars of 20 mm dia and 4 bars of 12 mm dia. The 20 mm dia bars are marked with 'a'.
4. Column C2a is provided with 8 bars of 16 mm dia.
5. All columns are provided with 8 mm dia stirrups with 3" spacing c\c near the ends and 8" c\c in mid-length.
6. The clear cover for all the columns is assumed to be 1.5" (approx 40 mm). As per IS 256, the minimum cover to the column should not be less than 40 mm

`bbb"PROCEDURE"`

1. Open a new AutoCAD file in Imperial units.
2. Convert the diameter of the bars into inches. The following table contains conversion (Divide by 25.4)

Values in mm	Values in Inches
20	0.7874
16	0.6299
12	0.4725
8	0.3150

`tt"Instructions for steps 3" to tt"7:"`
A. The dimensions for the bars on the left are the same as that of the bars on the right.
B. The longitudinal and stirrups are hatched with a white solid fill.

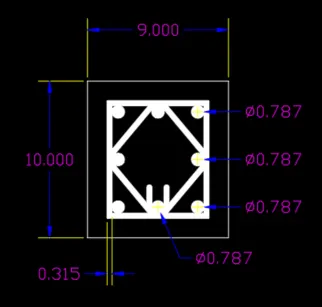

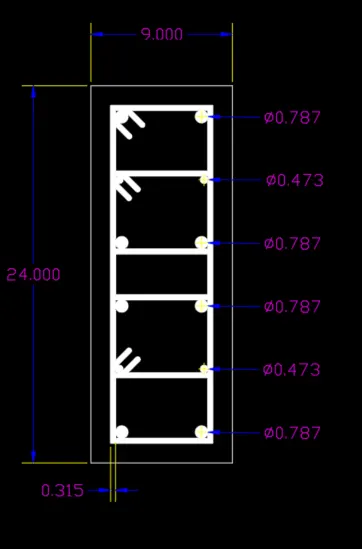

3. Make the column C1 as shown.

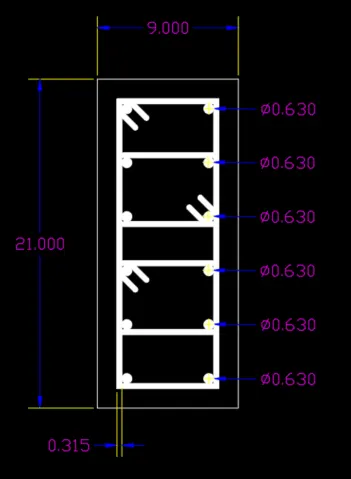

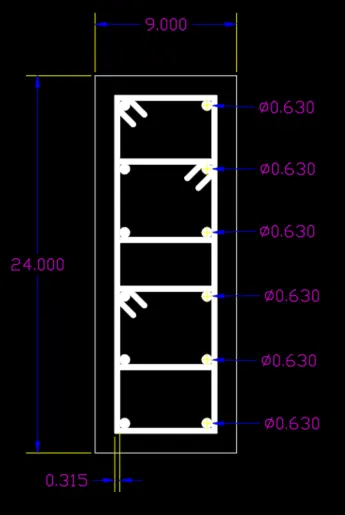

4. Make the column C1a as shown.

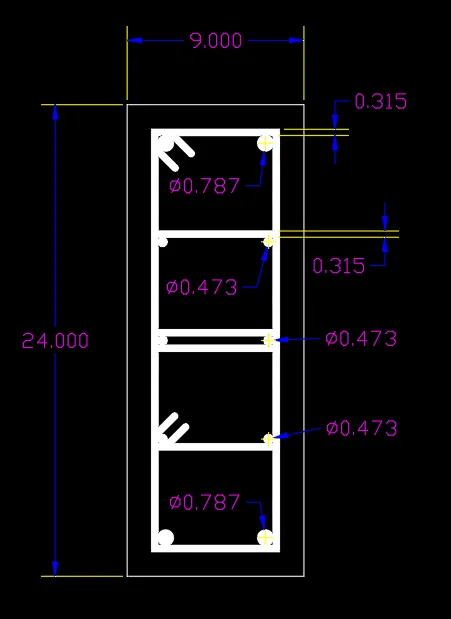

5. Make the column C2 as shown.

6. Make column C2a as shown.

7. Make the column 3 as shown.

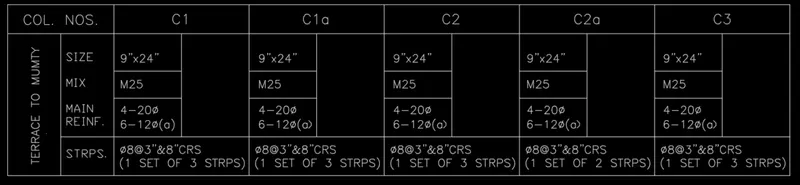

8. Make this table as shown.

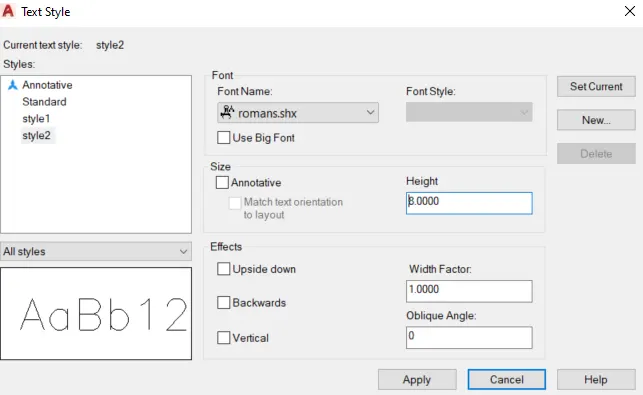

9. Make a new text style with the font - romans.shx and height 8"

10. Using this text style, fill the table using single line text as shown. (Rotate "Terrace to mumty" by 90 degrees)

11. Scale the columns made in steps 3-7 by a factor of 3.2 in order to fit them in their respective place.
12. Move the columns one by one to their respective places.

13. Give the heading Column Schedule using multi-line text and underline it.

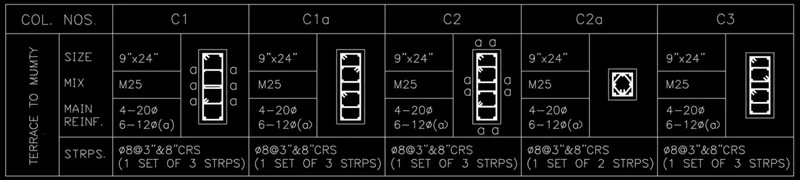

`bbb"RESULT"`

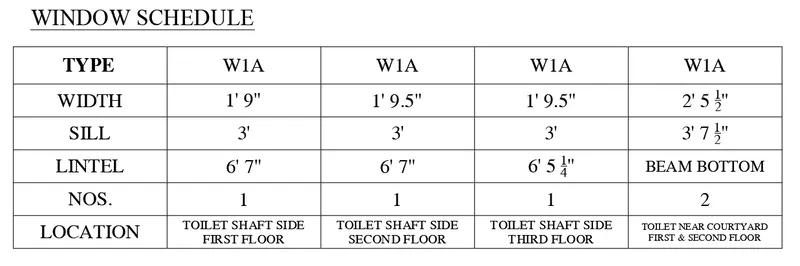

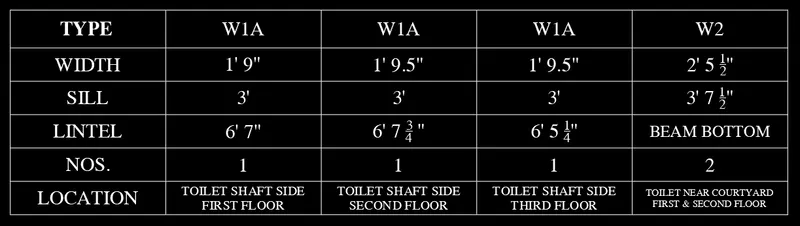

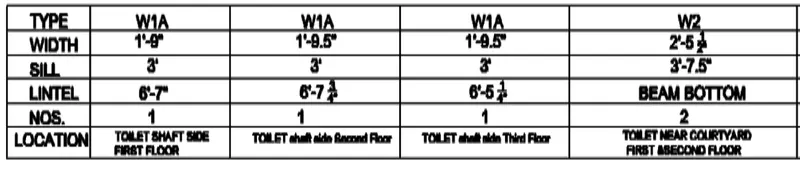

`bb"2. Create a window schedule as shown in the figure."`

`bbb"INRODUCTION"`

The table contains the width, sill and lintel height, their numbers and respective location for different types of beams.

`bbb"PROCEDURE"`

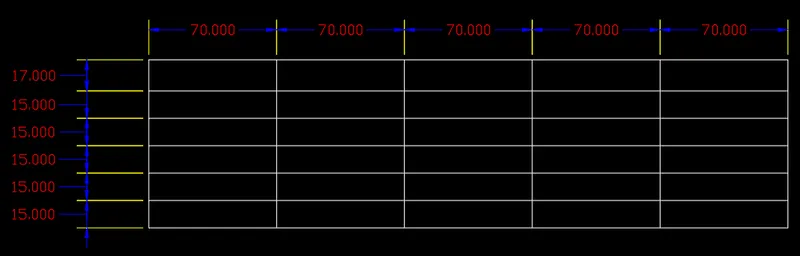

1. Make the following table.

2. Using multiline, fill in the following data with justification middle center MC

3. Using multiline, give the heading "Window Schedule" and underline it.

`bbb"RESULT"`

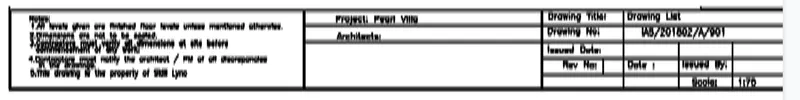

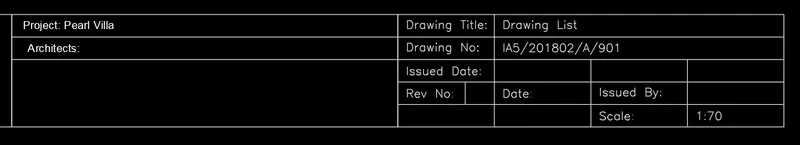

`bb"3. Create the drawing template as shown in the figure."`

`bbb"PROCEDURE"`

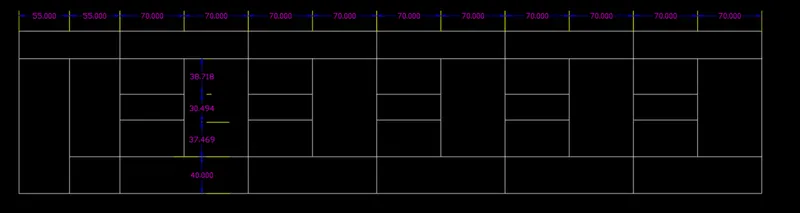

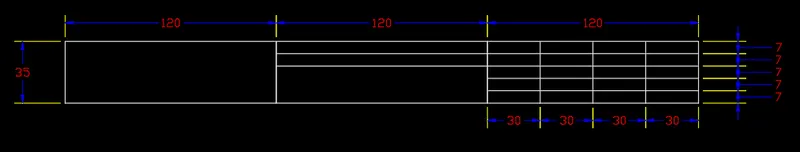

1. Make the following table.

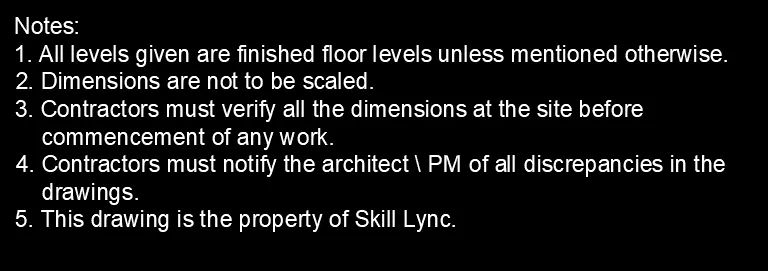

2. Using multitext, type the following as shown and place it in the first column. (Height = 2.5" and Font = Arial)

3. Type the following in rest of the cells as shown using multitext: (Make a vertical line after Rev. No:) (Text height = 2.5" and Font = Arial)

`bbb"RESULT"`

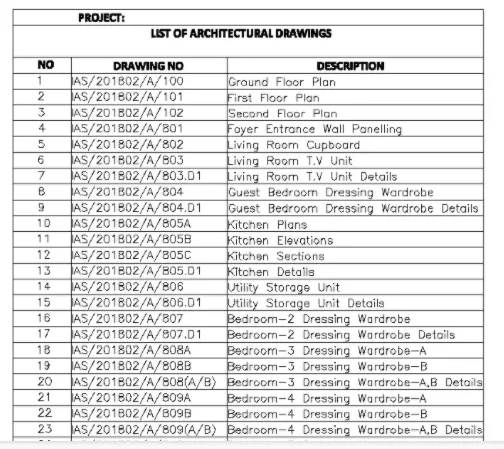

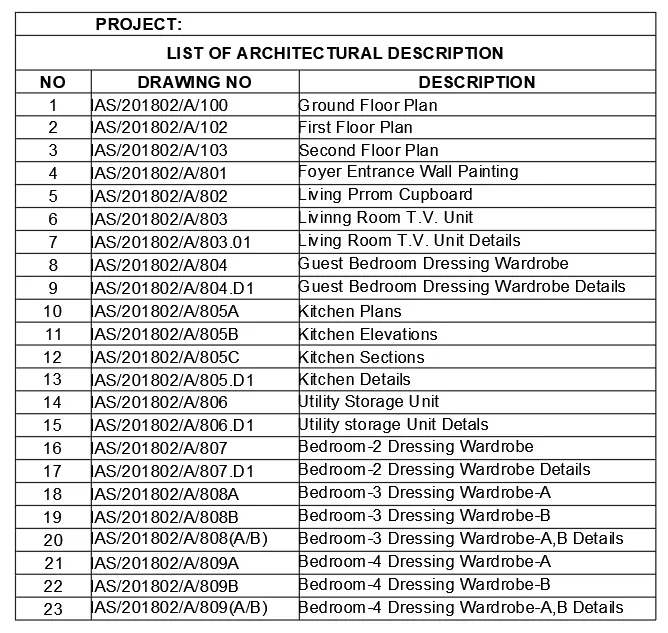

`bb"4. Create the list of drawing schedule as shown in the figure:"`

`bbb"PROCEDURE"`

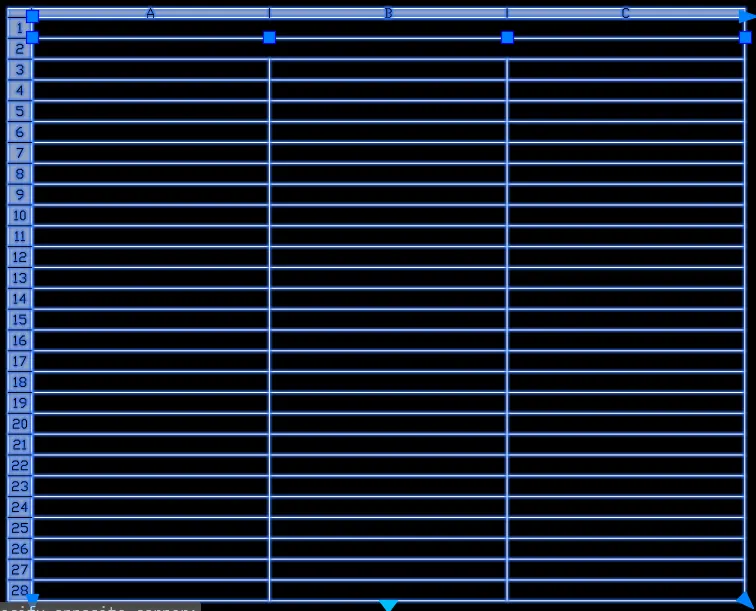

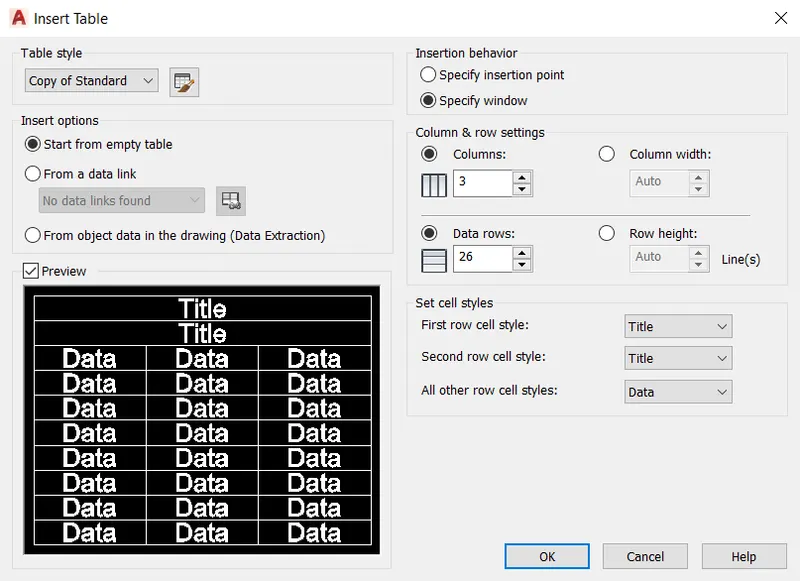

1. Open the table command.

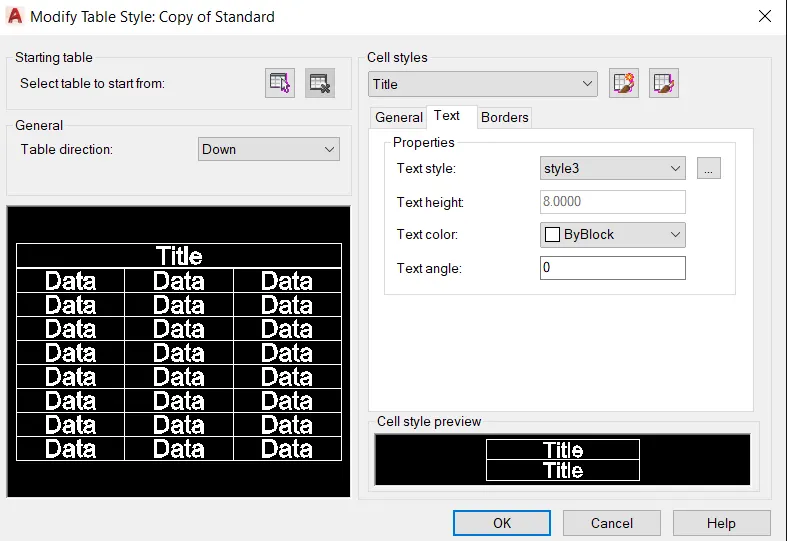

2. Create a new table style by selecting the required text style, text height, etc. for all the cell styles.

3. Enter the number of rows and columns, set the cell styles and using any insertion behaviour, insert the table.

4. Adjust the size of rows and columns.

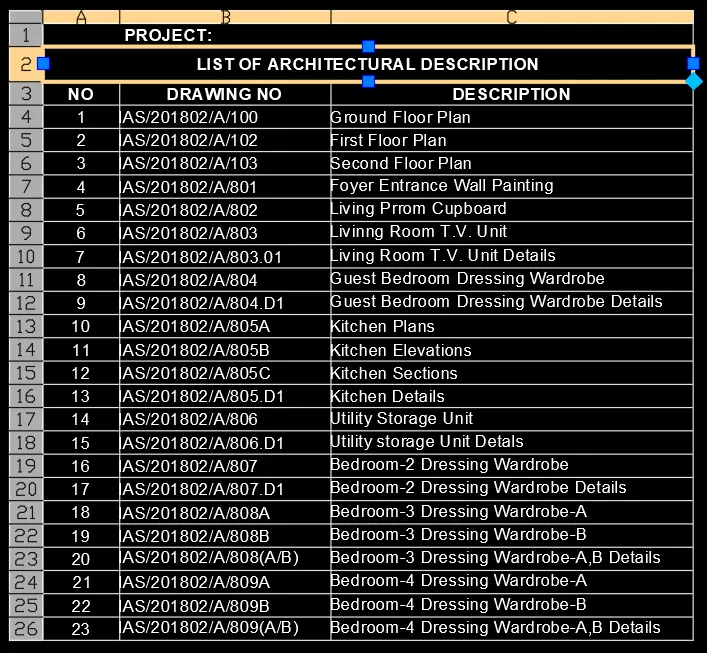

5. Enter the data.
6. Make the contents of title and header rows as Bold.
7. Give the required justification to the cells and adjust the cell sizes if required.

`bbb"RESULT"`

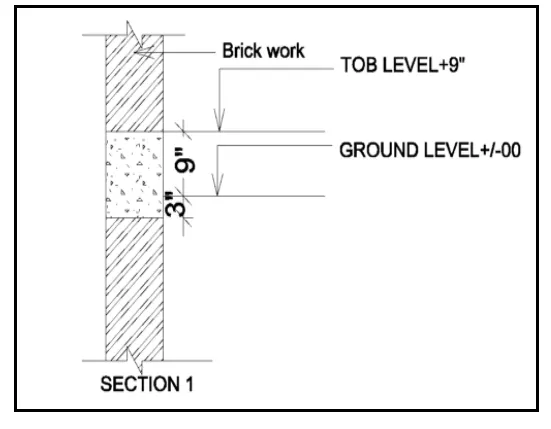

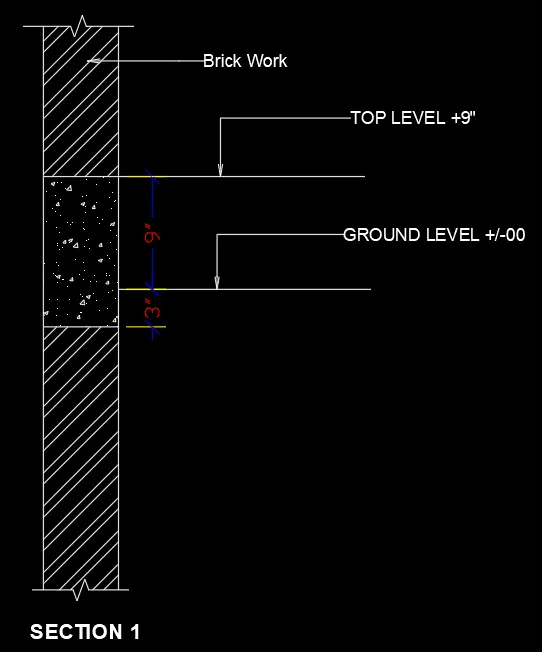

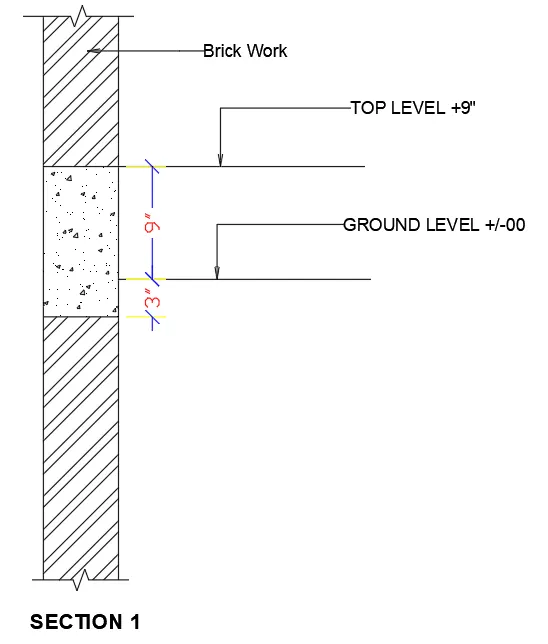

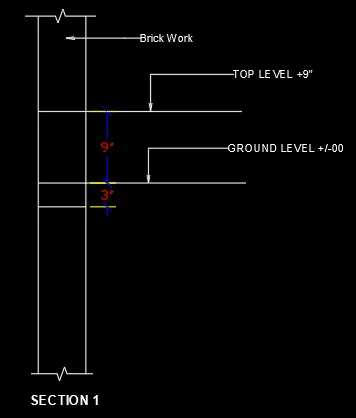

`bb"5. Create the Beam detail as shown in the figure and provide text for Top level and Ground level wherever given."`

`bbb"PROCEDURE"`

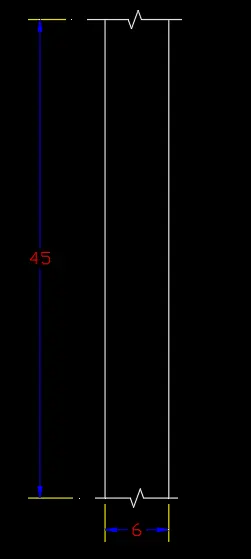

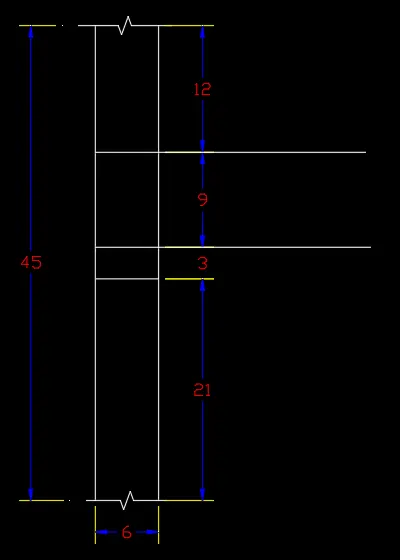

1. Make two parallel lines 45" long at a distance of 6" from each other.
2. Using the breakline command, make a breakline at the top and bottom.
3. Make the horizontal lines as shown in fig B.

A. B.

4. Give the required labeling using leader and multitext.
5. Modify the dimension to match with that in the question. (Arrowheads, suffix ("), etc.)

6. Give the hatching of brickwork and concrete as shown.

`bbb"RESULT"`
