Creation of Column Schedule and Drawing Template using AutoCad

1.ANS

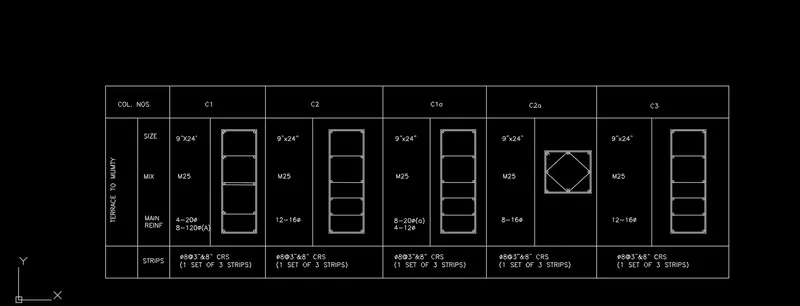

AIM: To creating a column schedule as shown in figure to prepare a using AutoCAD tools

introduction: Create a column schedule with the help of lines. Also, insert text with the help of DText command or Single Line text.

Use font name: romans.shx; Height: 8”, Justify: Left

PROCEDURE:

• using line tool create a table format and select the multi-line text and select the managing text tiles to select the romans-shx style and height is 8" set current, apply and close
• text the everything in matter
• create a column schedule diagram in table with the help of line tool and circle where its required
• justify the left is select the object and select the left

Result:

2. ANS

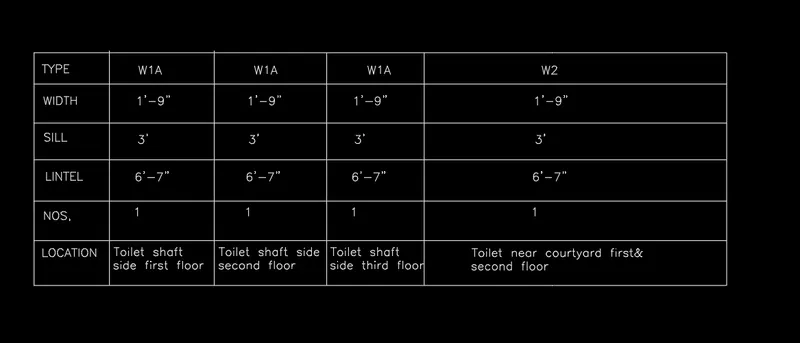

AIM: to creating a window schedule by using AutoCAD Sofware.

INTRODUCTION:

• using line command tool to create the table format
• using text tool to create texts

procedure:

• select the line command and create the table format of 6 rows and 5 columns
• select the text tool and use text style is romans-shx and height of text is 8"
• select the multi-line text and create the texts.

Results:

3.ANS

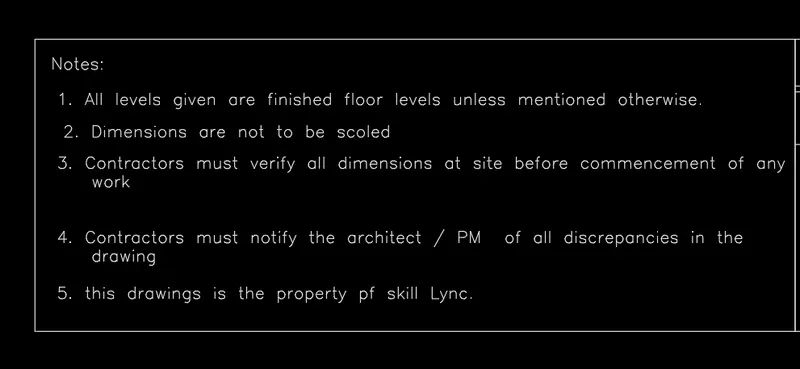

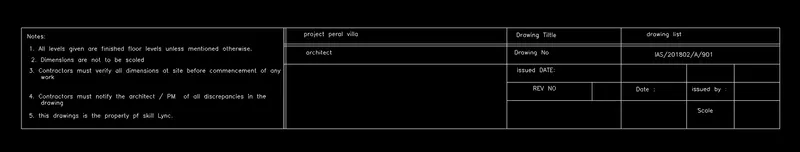

Aim: To creating the drawing template as shown in the figure by using auto cad

introduction:

using line command and text tools creating the drawing template

procedure:

select the line command and crate the rectangle type and select the offset and given the distance through select the single line text type all matter in the bx format

result:

4.ANS

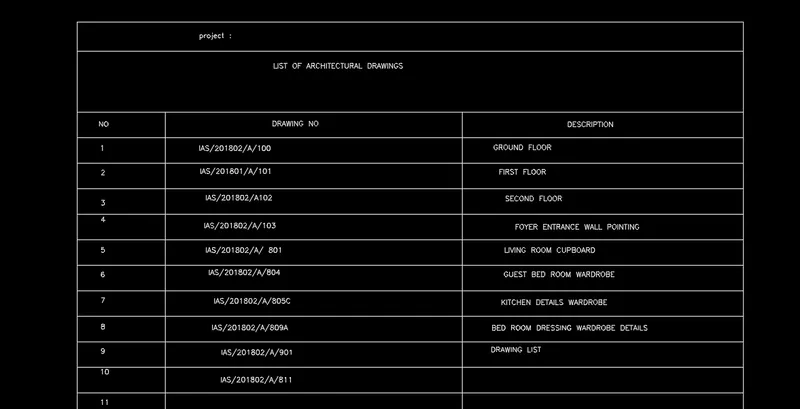

AIM: TO creating the project list of drawing schedule using AutoCAD

introduction:

using line tool and text tool to create the drawing list of schedules

procedure:

select the line command tool and create the rectangle shape and select the offset tool through distance create the rows and columns

select the text command as single line or multi line, write the texts.

RESULT:

5.ANS

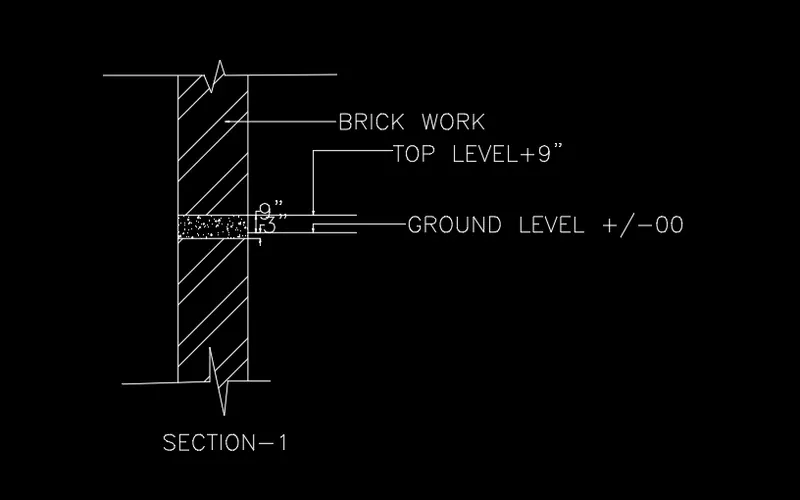

AIM: TO creating the beam details using AutoCAD

introduction: creating the beam details using line tool and hatch, text

procedure:

select the line command create the line

select the offset given through distance and create the bed level create zig jack dimension of extension symbol

select the hatch select brick wall and pick up a point increase the scale size

select the concrete hatch and select the pick point enter the hatch reduce the scale size its clearly Visbal

select the dim linear and given the dimension and select the leader, set content point is 3 and drag the leader three points write the text

result:
