Creation of Column Schedule and Drawing Template using AutoCad

AIM: To Creation of Column Schedule and Drawing Template using AutoCad.

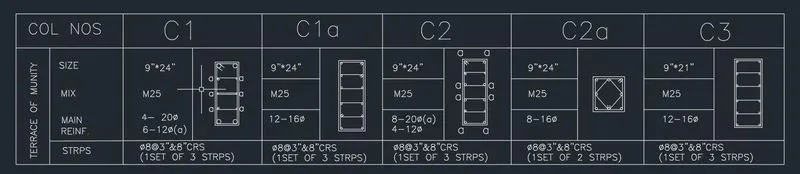

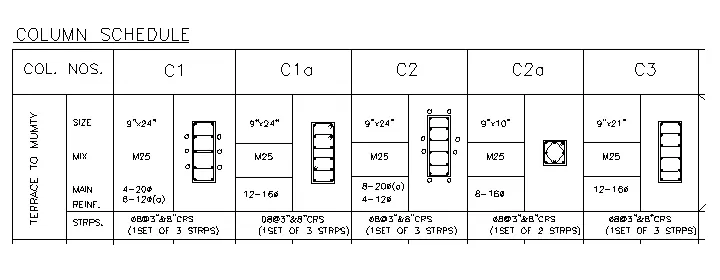

1. Create a column schedule as shown in the figure.

Procedure:

• In the command prompt type line to create tables
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing
• In the command prompt type MTEXT (multiline text) > symbols > to get diameter symbol.

RESULT:

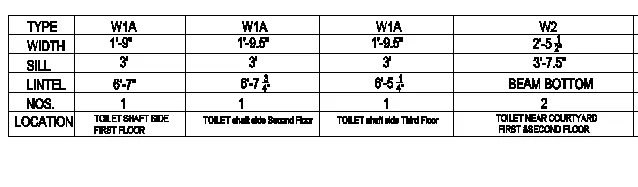

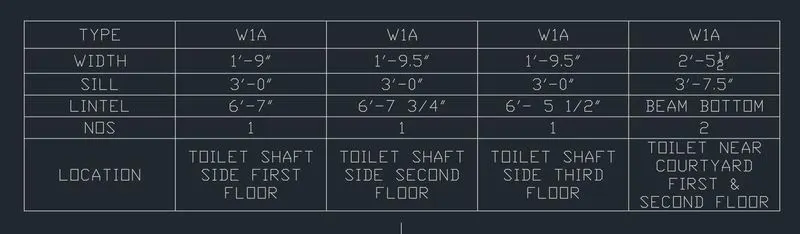

2. Create a window schedule as shown in the figures:

Procedure:

• In the command prompt type line to create tables
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > center (justify)
• In the command prompt type text to text the given text in the drawing

RESULT:

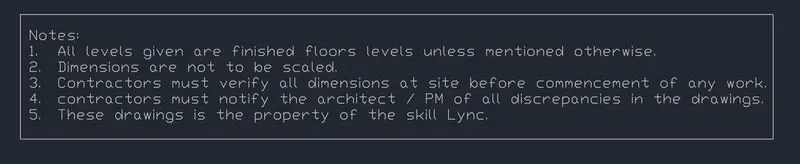

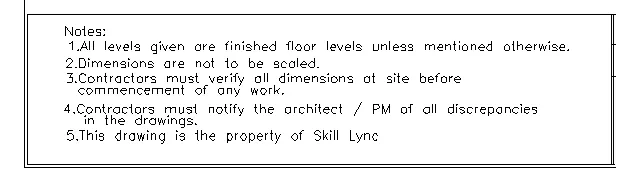

3. Create the drawing template as shown in the figure:< Use the Notes as in the figure>

Procedure:

• In the command prompt type line to create tables.
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify).
• In the command prompt type text to text the given text in the drawing.

RESULT:

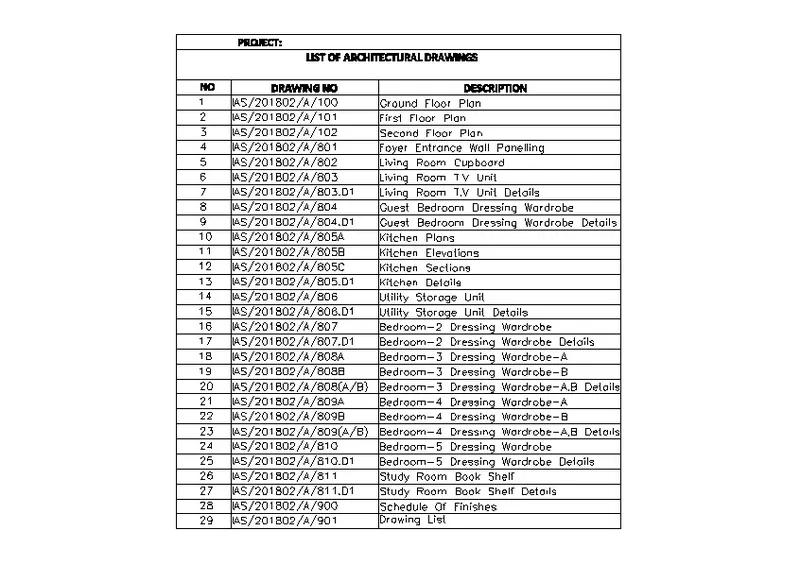

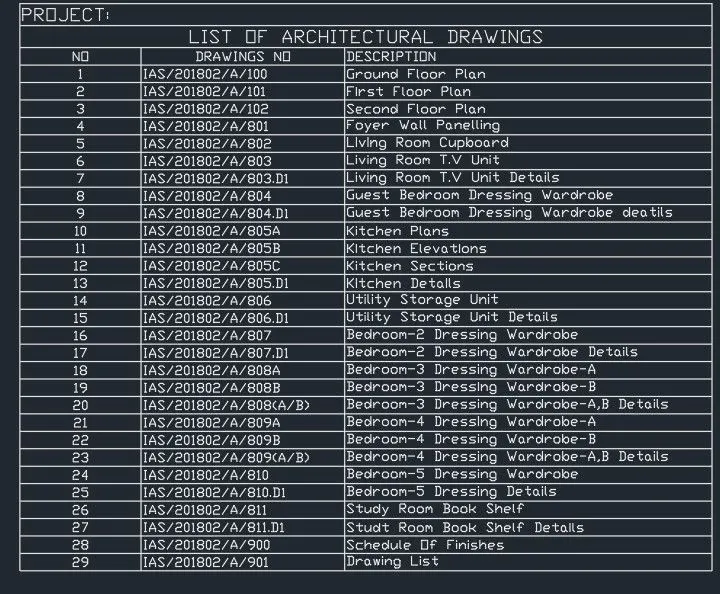

4. Create the list of drawing schedule as shown in the figure:

Procedure:

• In the command prompt type line to create tables .
• In the command prompt type ST (text style) > romans.shx (font name) > 8" (height) > left(justify) .
• In the command prompt type text to text the given text in the drawing .

RESULT:

5. Create the Beam detail as shown in the figure and provide text wherever given.

Procedure:

• In the command prompt type UNITS > Engineering> Inches.
• In the command prompt type Line (to create the column).
• In the command prompt type Text to text the given drawings.
• In the command prompt type HATCH to hatch the given drawings.

RESULT:
