Creation of Column Schedule and Drawing Template using AutoCad

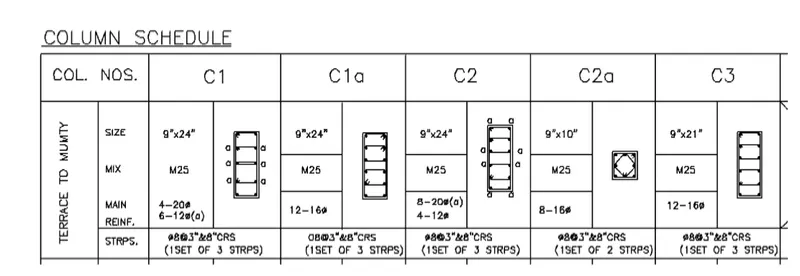

1. Aim: To creat a cplumn schedule as shown in the figure:
Procedure:
- In the command prompt type line to create tables
- In the command prompt type ST(text style) > romans.shx (font name)> 8" (height)> left(justify)
- In the command prompt type text to text the given text in the drawing
- In the command prompt type MTEXT (multiline text)> symbols > to get diameter symbols
Result:

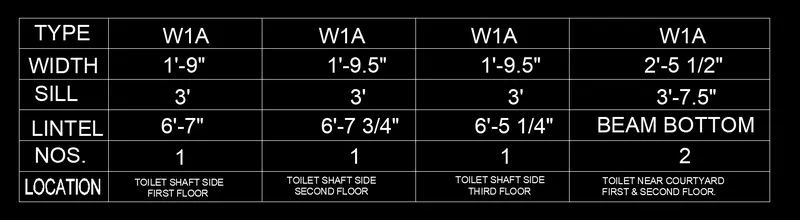

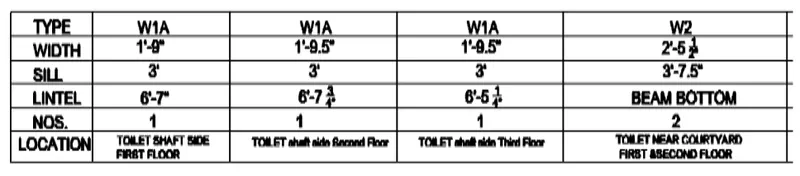

2. Aim: To create a window schedule as shown in figure
Procedure:
- In the command prompt type line to create tables
- In the command prompt type ST(text style) > romans.shx (font name)> 8" (height)> left(justify)
- In the command prompt type text to text the given text in the drawing.
Result:

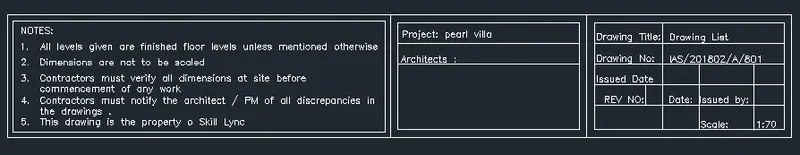

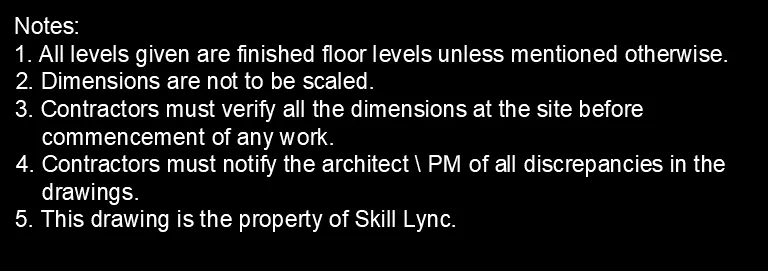

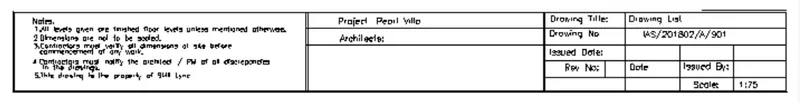

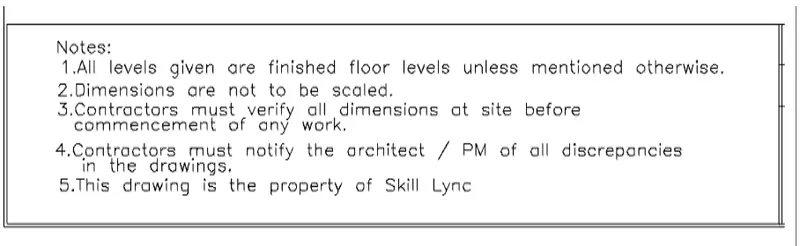

3. Aim: To create the drawing template as shown in the figure
Procedure:
- In the command prompt type line to create tables
- In the command prompt type ST(text style) > romans.shx (font name)> 8" (height)> left(justify)
- In the command prompt type text to text the given text in the drawing.
Result:

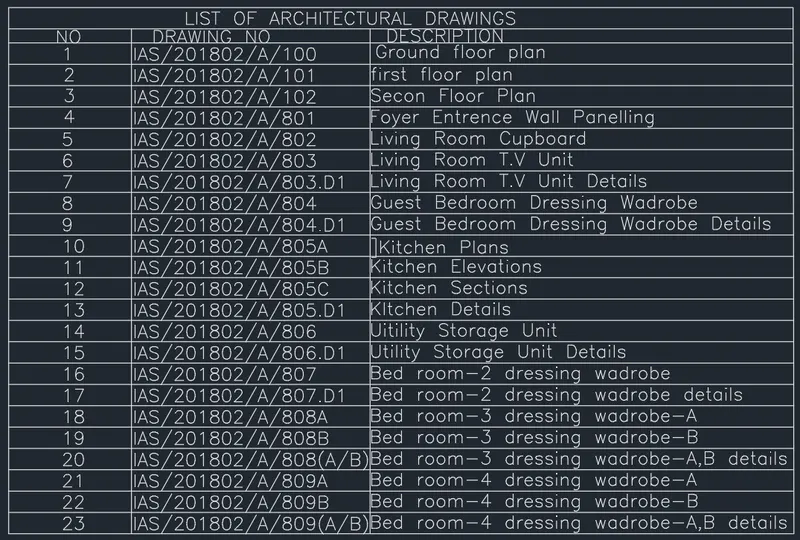

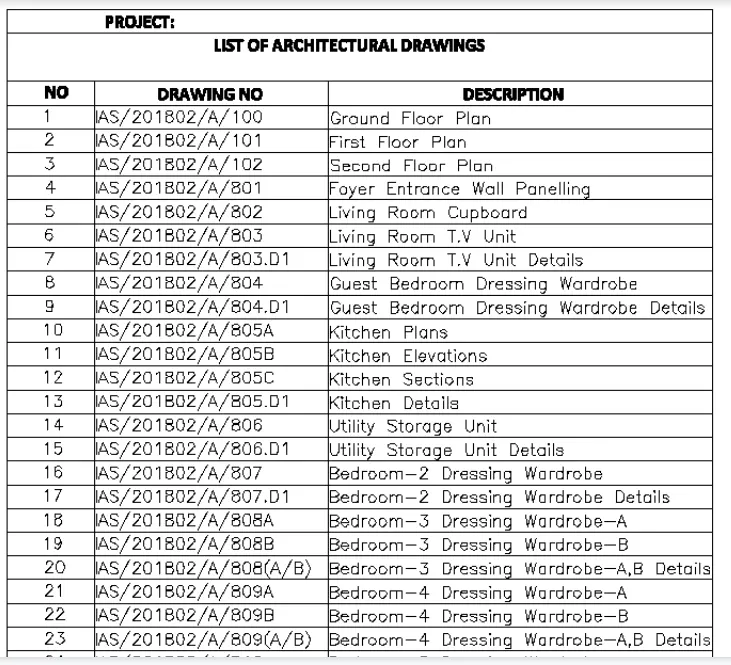

4. Aim: To create the list of drawing schedule as show in the figure
Procedure:
- In the command prompt type line to create tables
- In the command prompt type ST(text style) > romans.shx (font name)> 8" (height)> left(justify)
- In the command prompt type text to text the given text in the drawing.
Result:

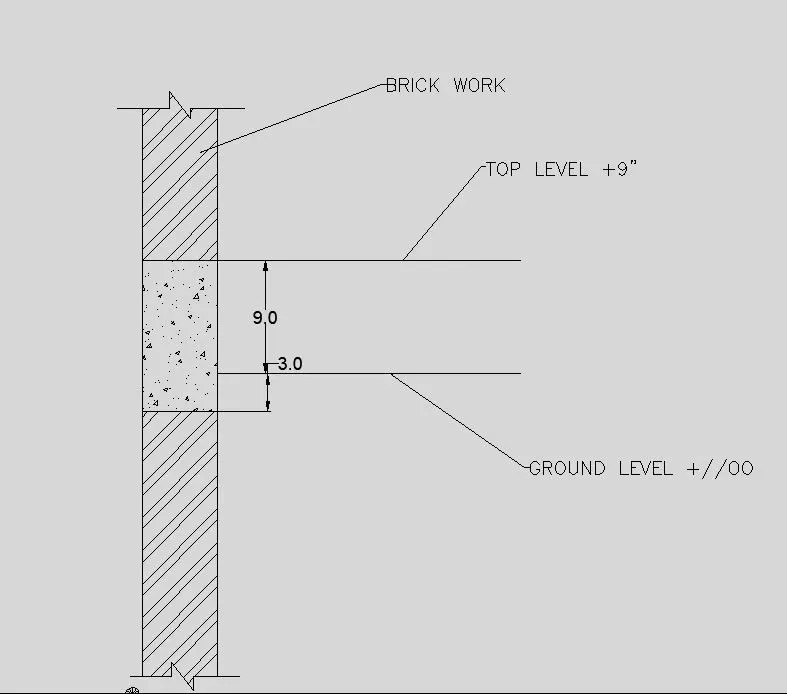

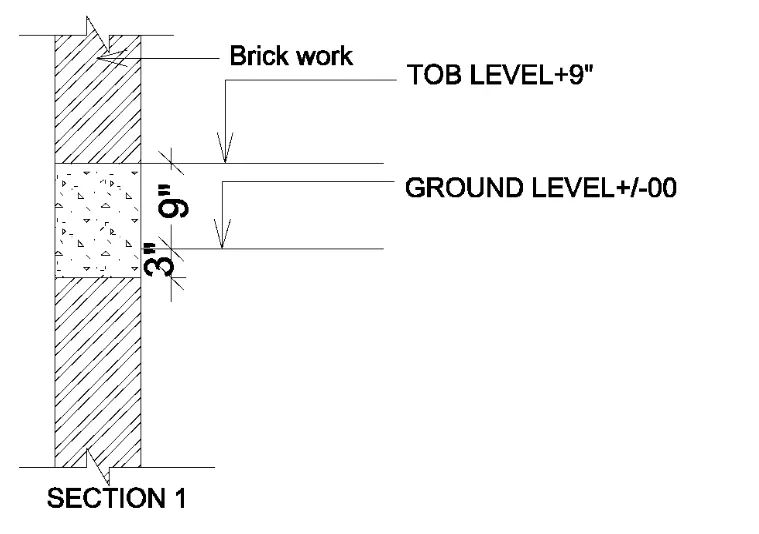

5. Aim: To create the beam details as shown in the figure
Procedure:
- In the command prompt type Units>Engineering>Inches
- In the command prompt type line (to create the column)
- In the command prompt type Text to Text given drawings.
- In the command prompt type HATCH to HATCH the given drawings.
Results:
