Creation of Column Schedule and Drawing Template using AutoCad

1.

AIM:

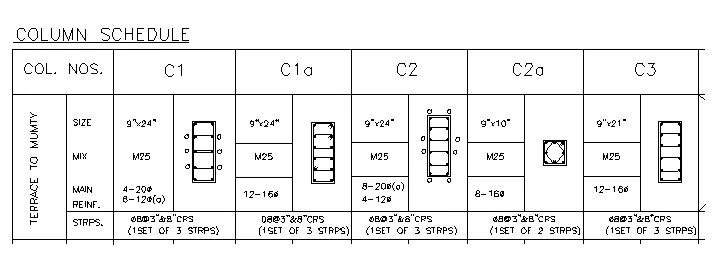

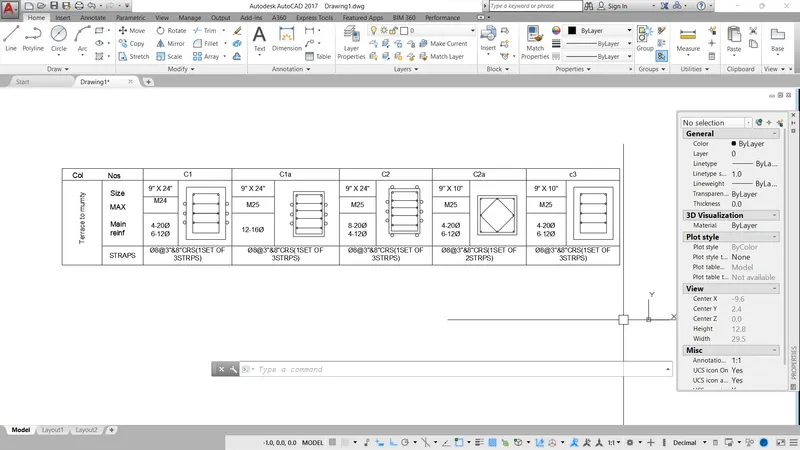

To create a column schedular as shown in figure

PROCEDURE:

• In the command prompt type line to create tables
• In the command prompt type ST (text style)> Arial.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing
• In the command prompt type MTEXT ( multiline text ) > symbols > to get diameter symbol

RESULT:

2.

AIM:

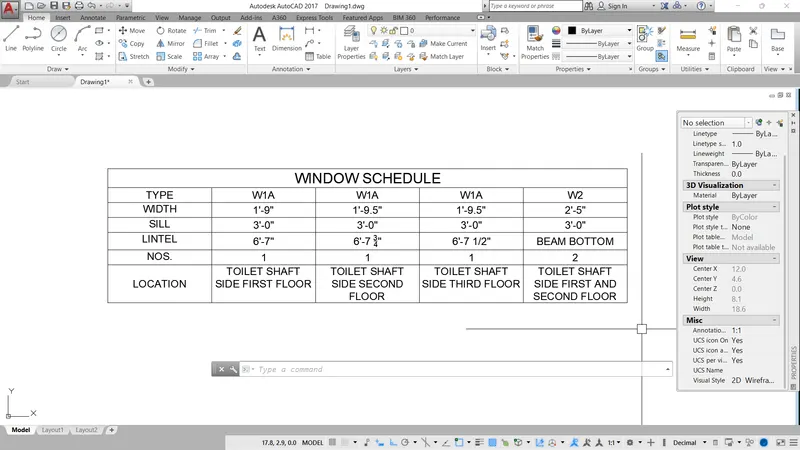

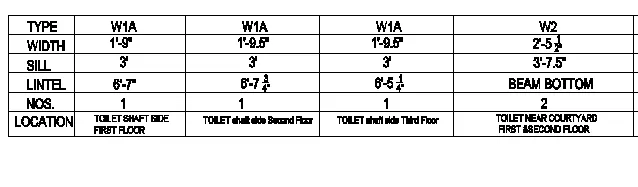

To create a window schedule as shown in the figure:

PROCEDUE:

• In the command prompt type line to create tables
• In the command prompt type ST (text style)> Arial.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing

RESULT:

3.AIM:

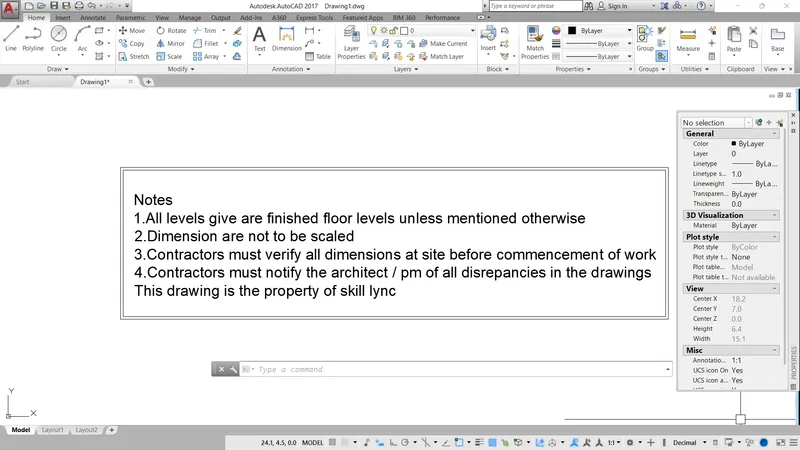

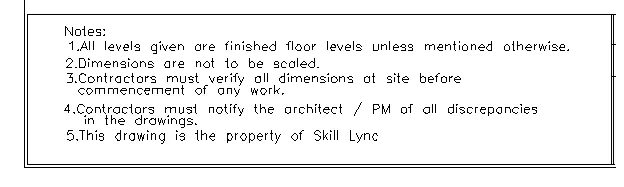

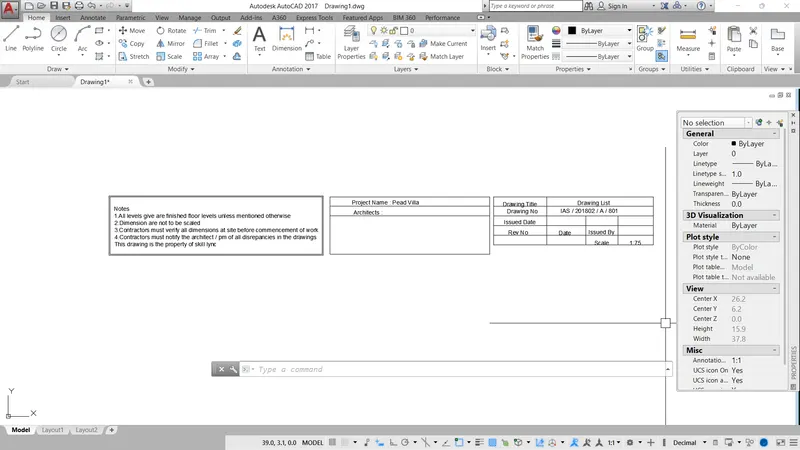

To create the diagrm template as shown in the figure.

PROCEDUE:

• In the command prompt type line to create tables
• In the command prompt type ST (text style)> Arial.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing

RESULT:

4.AIM:

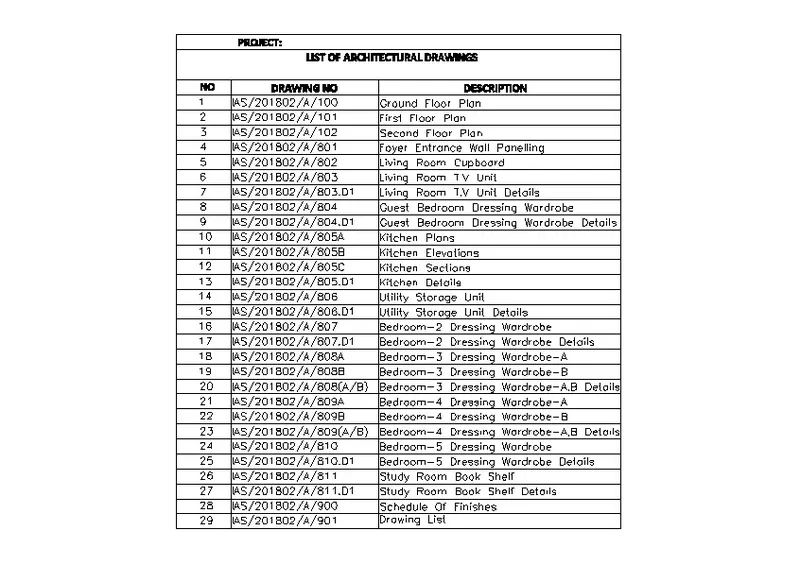

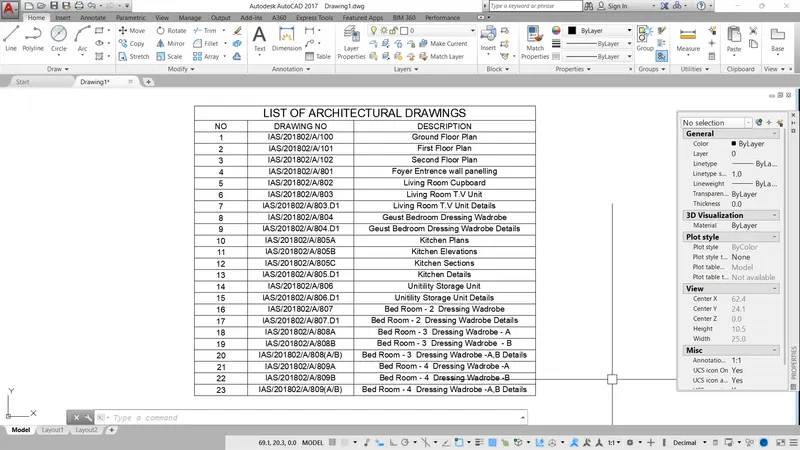

To create the list of diagram schedule as shown in the figure:

PROCEDUE:

• In the command prompt type line to create tables
• In the command prompt type ST (text style)> Arial.shx (font name) > 8" (height) > left (justify)
• In the command prompt type text to text the given text in the drawing

RESULT:

5.

AIM:

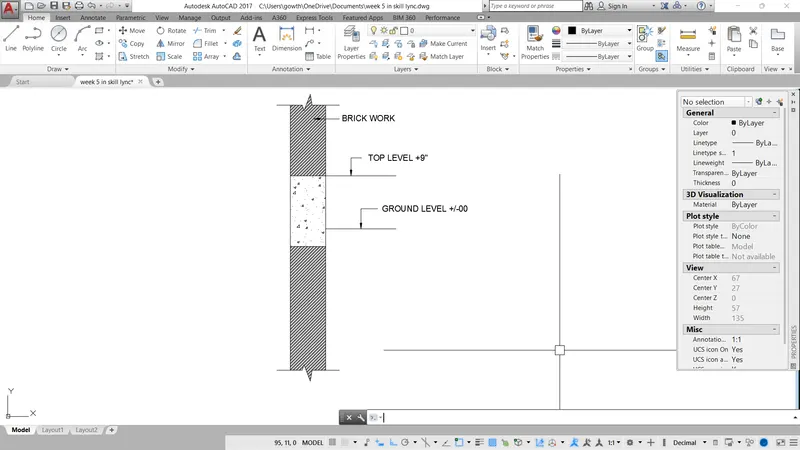

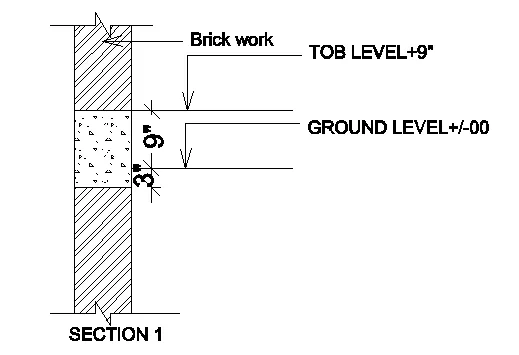

To create the beam detail as shown in the figure

PROCEDURE:

STEP 1:

• In the command prompt type UNITS > Engineering > Inches

STEP 2:

• In the command prompt type Line ( to create the column )
• In the command prompt type Text to text the given drawings.
• In the command prompt type HATCH to hatch the given drawings.

RESULT:
