Creating a Floor plan, Footing detail and Isometric view using AutoCad

AIM:

To Draw c.s of load bearing wall over spread footing using autocad software

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type (rectangle)
• specify first corner point (1,1)
• In the command prompt click dimensions
• specify length of the rectangle 0.90
• specify width of the rectangle 0.25
• In the command prompt type (rectangle)
• specify first corner point (1.2,1.25)
• In the command prompt click dimensions
• specify length of the rectangle 0.50
• specify width of the rectangle 0.40
• In the command prompt type (rectangle)
• specify first corner point (1.25,1.65)
• In the command prompt click dimensions
• specify length of the rectangle 0.40
• specify width of the rectangle 0.40
• In the command prompt type (rectangle)
• specify first corner point (1.30,2.65)
• In the command prompt click dimensions
• specify length of the rectangle 0.30
• specify width of the rectangle 0.05
• In the command prompt type (rectangle)
• specify first corner point (1.30,2.7)
• In the command prompt click dimensions
• specify length of the rectangle 0.30
• specify width of the rectangle 1.0
• In the command prompt type (rectangle)
• specify first corner point (1.25,2.05)
• In the command prompt click dimensions
• specify length of the rectangle 1.15
• specify width of the rectangle 0.15
• In the command prompt type (Line)
• specify starting point (0.40,2.05)
• In the command prompt type @0.15<90
• In the command prompt type @0.3<0
• In the command prompt type @0.15<90
• In the command prompt type @0.3<0
• In the command prompt type @0.15<90
• In the command prompt type @0.3<0

RESULT:

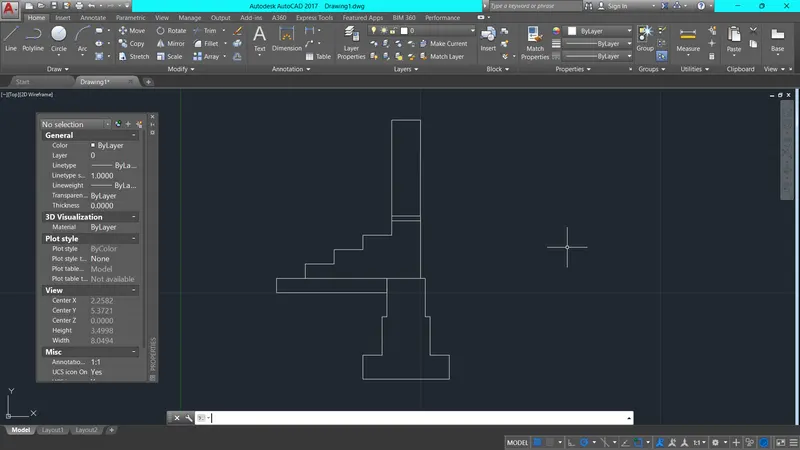

C.S of load bearing wall over spread footing

AIM:

To Draw C.S Isolated footing using autocad software

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type (Line)
• specify first corner point (1,1)
• In the command prompt type @1<0
• In the command prompt type @0.15<90
• In the command prompt type line
• In the command prompt type (1.04,1.04)
• In the command prompt type @0.38<0
• In the command prompt type @1.96<90
• In the command prompt type @0.17<0
• In the command prompt type @1.96<270
• In the command prompt type @0.38<0
• In the command prompt type @0.05<90
• In the command prompt type line
• In the command prompt type (1.04,1.04)
• In the command prompt type @0.05<90
• In the command prompt type line
• In the command prompt type (1.04,1.04)
• In the command prompt type @0.05<90
• In the command prompt type line
• In the command prompt type (1.42,3)
• In the command prompt type @0.04<180
• In the command prompt type @1.60<270
• Join coordinate points(1.38,1.40) and (1,1.15)using line command
• In the command prompt specify start point (1.59,3)
• In the command prompt type @0.04<0
• In the command prompt type @1.60<270
• Join coordinate points (1.63,1.40) and (2,1.15)using line command
• In the command prompt type (offset)
• In the command prompt type distance 0.20
• In the command prompt click multiple (click on the objects till you get the number of desired segments)

RESULT:

C.S Isolated footing

AIM:

To draw a line diagram of a two bedroom building

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type (Line)
• specify first corner point (1,1)
• In the command prompt type @3.60<0
• In the command prompt type @0.90<270
• In the command prompt type @1<0
• In the command prompt type @0.90<270
• In the command prompt type @4.20<0
• In the command prompt type @3.60<90
• In the command prompt type @4.60<180
• In the command prompt type @0.90<90
• In the command prompt type @3.60<180
• In the command prompt click close
• In the command prompt type line
• In the command prompt specify start piont (4.60,1)
• In the command prompt type @0.90<90
• In the command prompt type line
• In the command prompt specify start piont(4.60,4.60)
• In the command prompt type @1.80<270
• In the command prompt type (offset)
• In the command prompt type 0.30
• Click on the line in which coordinate points are (4.60,0.10)and(5.60,0.10)
• Click on the previous line to get segments
• Click on the line in which coordinate points are(4.60,5.50)and(5.60,5.50)
• Click on the previous line to get segments

RESULTS:

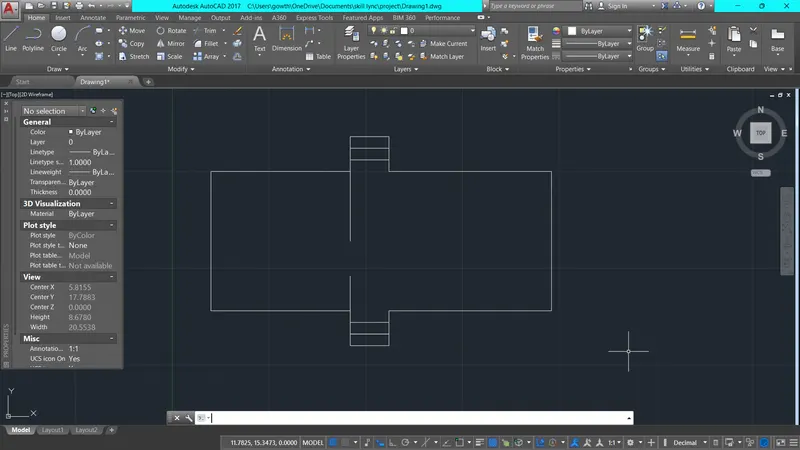

Line diadram of a two bedroom building

AIM:

To draw c.s of load bearing wall showing foundation details

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type (rectangle)
• specify first corner point (1,1)
• In the command prompt click dimensions
• specify length of the rectangle 0.90
• specify width of the rectangle 0.45
• In the command prompt type (rectangle)
• specify first corner point (1.15,1.45)
• In the command prompt click dimensions
• specify length of the rectangle 0.60
• specify width of the rectangle 0.40
• In the command prompt type (rectangle)
• specify first corner point (1.20,1.85)
• In the command prompt click dimensions
• specify length of the rectangle 0.50
• specify width of the rectangle 0.30
• In the command prompt type (rectangle)
• specify first corner point (1.25,2.15)
• In the command prompt click dimensions
• specify length of the rectangle 0.40
• specify width of the rectangle 0.60
• In the command prompt type (rectangle)
• specify first corner point (1.30,2.75)
• In the command prompt click dimensions
• specify length of the rectangle 0.30
• specify width of the rectangle 1.00

RESULT:

C.S of load bearing wall showing foundation details

AIM:

To draw Isometric view of steps using Autocad

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type units
• Type=decimal,Precision=0.00,angle=decimal degree
• In the command prompt type ds
• In drafting setting (ds) off " snap on" and off " grid on"
• Select on isometric snap
• keep ortho (f8) on
• In the command prompt type line
• specify the point or select a point
• In the command prompt type 1(distance)
• Press f5 (isodraft) to get the line in desired directon
• In the command prompt type 0.15(distance)
• Press f5 (isodraft) to get the line in desired directon
• In the command prompt type 0.30(distance)
• Press f5 (isodraft) to get the line in desired directon
• This process is done till the steps are formed

RESULT:

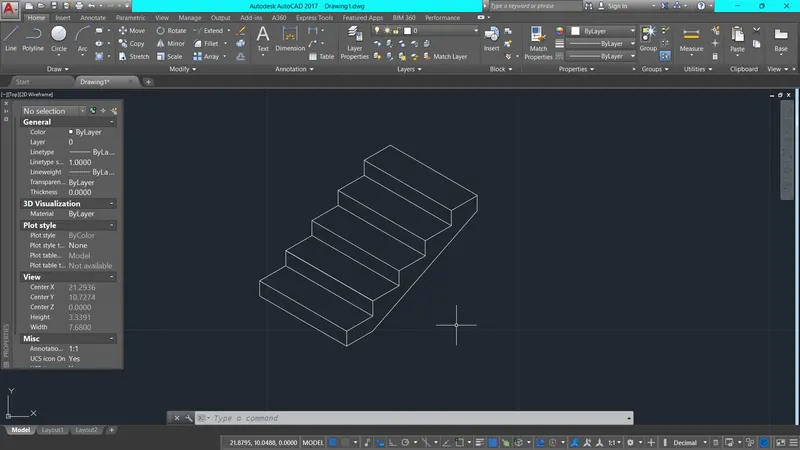

Isometric view of steps

AIM:

To draw Isometric view of gable wall

PROCEDURE:

• Open Autocad
• In the command prompt type QNEW
• Click on imperical template, advaced setup, decimal
• In the command prompt type units
• Type=decimal,Precision=0.00,angle=decimal degree
• In the command prompt type ds
• In drafting setting (ds) off " snap on" and off " grid on"
• Select on isometric snap
• keep ortho (f8) on
• In the command prompt type line
• specify the point or select a point
• Press f5 (isodraft) to get the line in desired directon
• In the command prompt type the required distance

RESULTS:

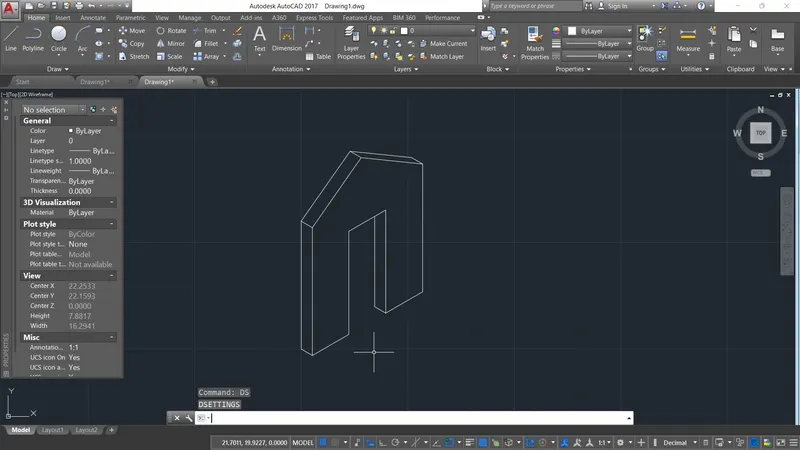

Isometric view of gable wall
